The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

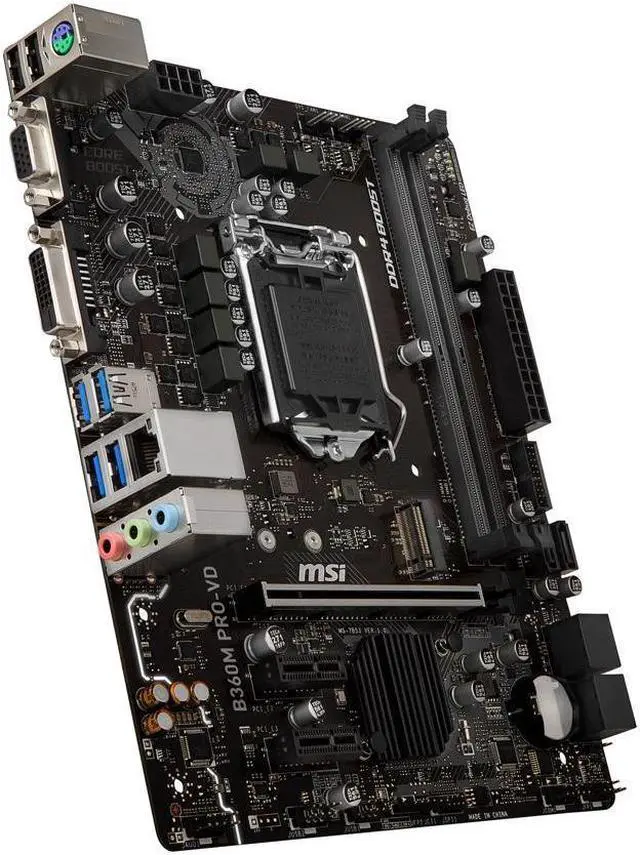

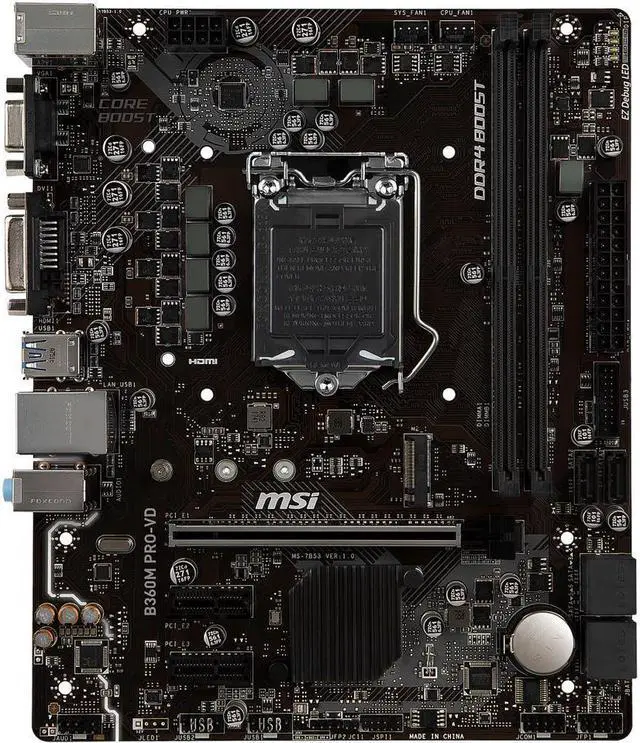

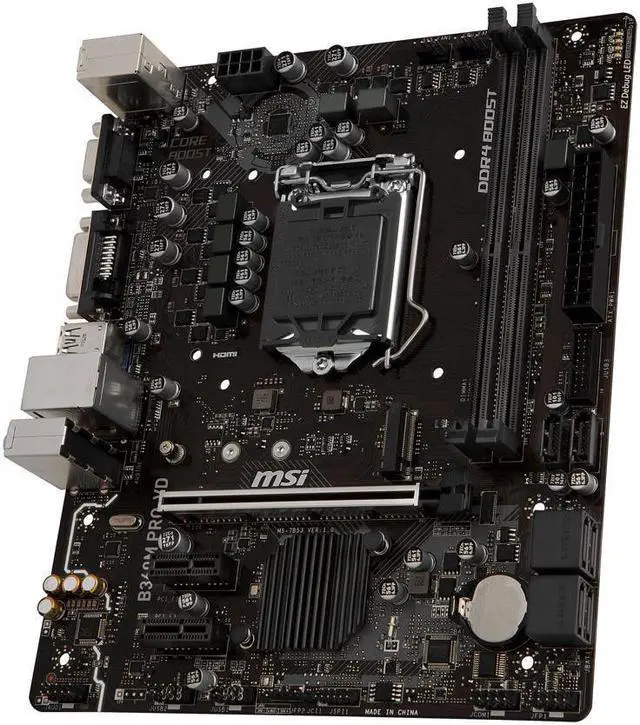

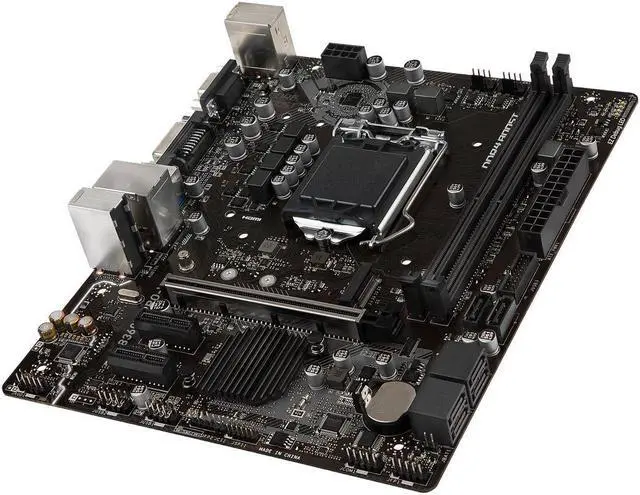

Learn more about the MSI B360M PRO-VD
Model
Brand
MSI
Series
PRO
Model
B360M PRO-VD
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset
Intel B360
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic:

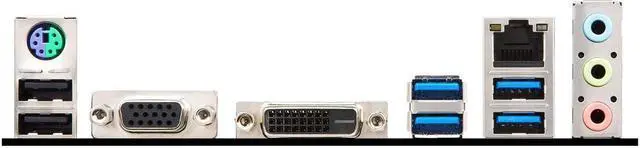

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
* No Display support when using the Processor model with suffix "F"
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x1
2 x PCIe 3.0 x1 slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s * The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
M.2
1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices
Intel Optane Ready
Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
1Gbps
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors
1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
8.9" x 7.3"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.
Supports DDR4 Memory, up to 2666 MHz.
Audio Boost: Reward your ears with studio grade sound quality.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
