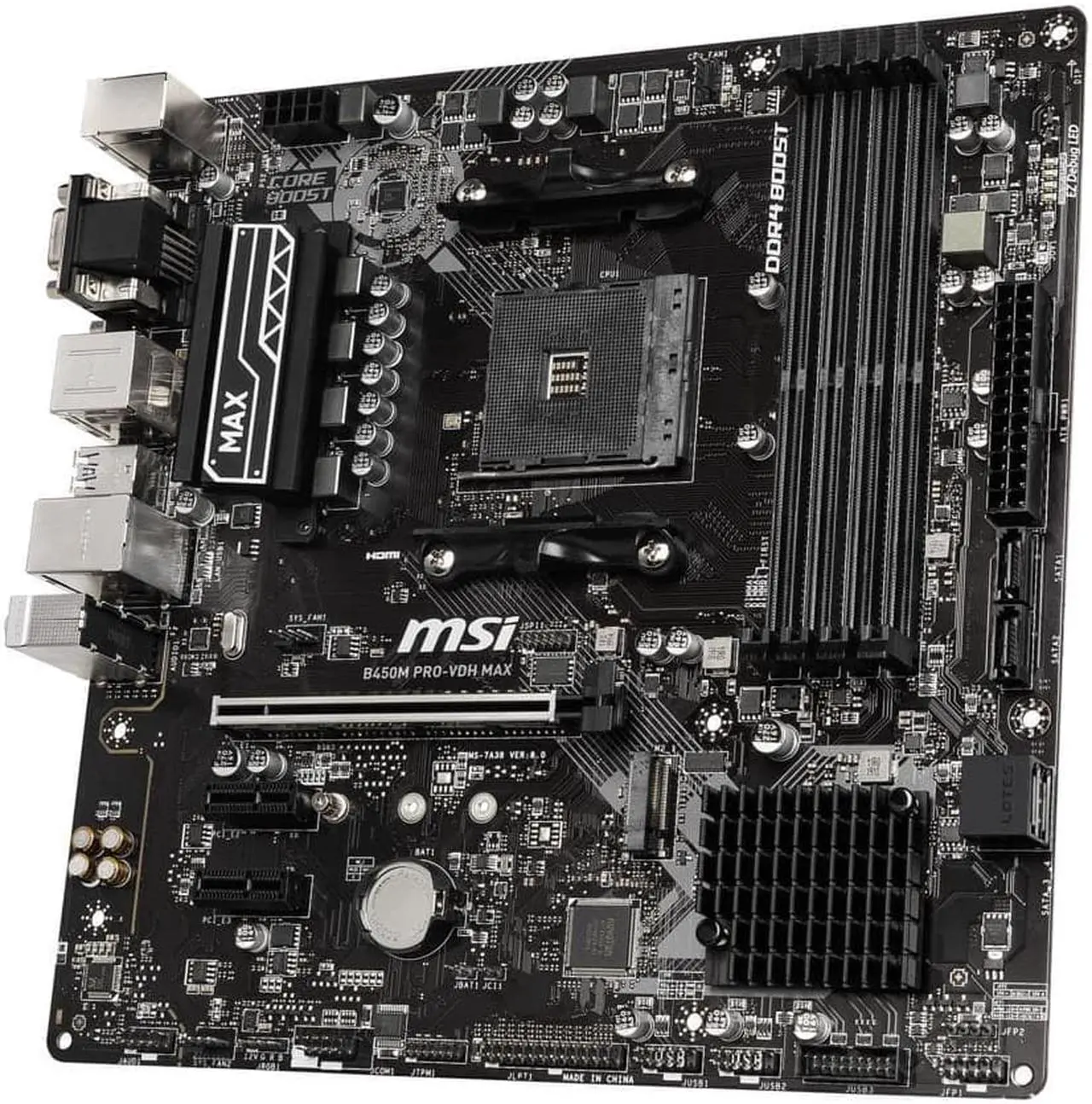

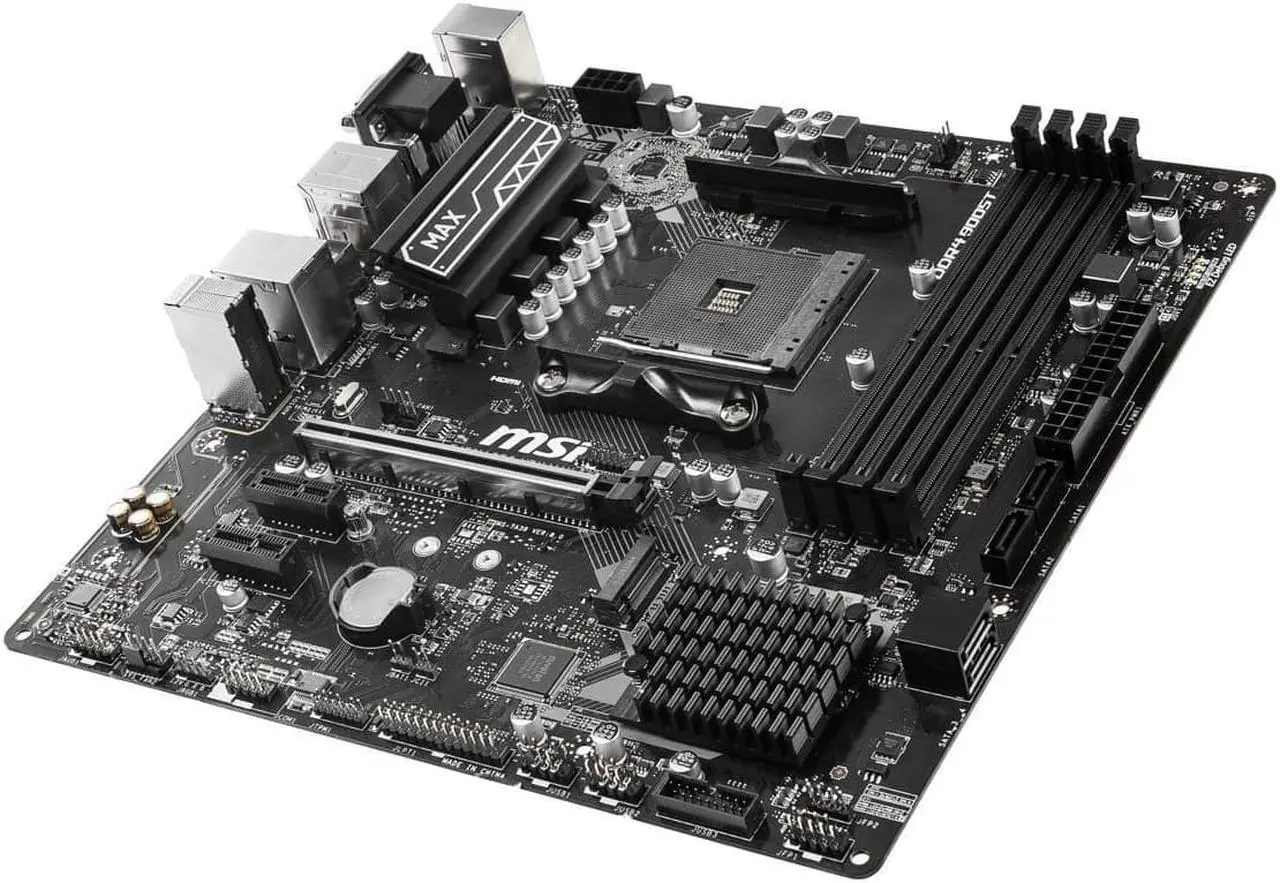

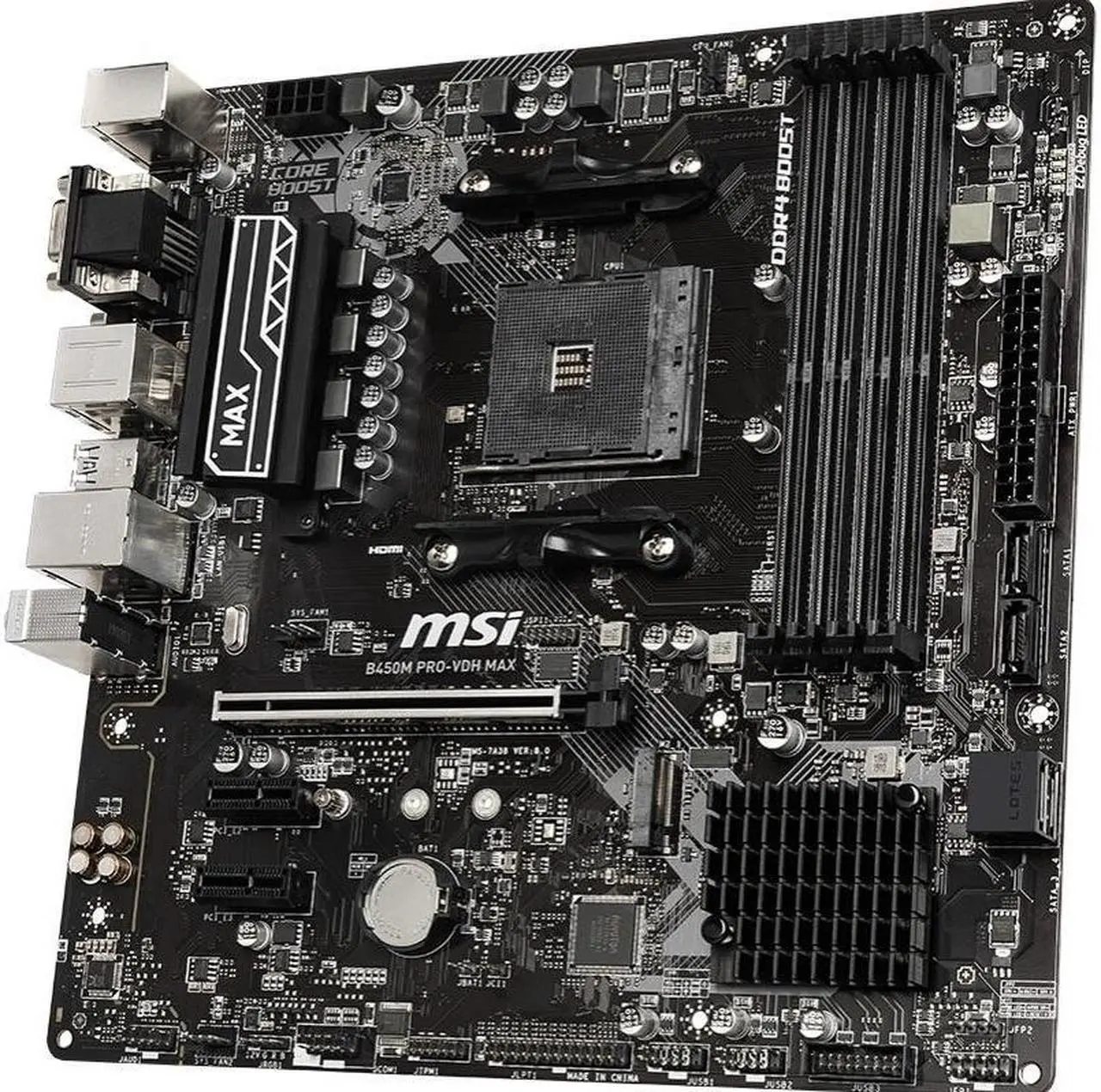

MSI B450M PRO-VDH MAX AM4 AMD B450 M2 [NVME ] USB3.0 USB3.1 PCI-E 3.0 HDMI SATA 6Gb/s Micro ATX AMD Motherboard R3 R5 R7

Please note: the owner can help you buy this motherboard friends free upgrade of the latest version of BIOS so that you buyers to hand at will light up their heart CPU our shop has no intention to engage in price war with other shops reasonable profit and quality service is the foothold of our shop [ AMD AM4 motherboard for a variety of CPU support is very complex once bought wrong will not light up the return in this shop you only need to pay remarks you want to use the CPU model the store will give you screen the most suitable for your CPU BIOS version to save the trouble of return ]

Instructions on the CPU model supported by the motherboard:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
TPYE 1: 1-3 generation Ryzen

BIOS version:E7A38AMS.B00 ]; Supported CPU includes:

NO. 1: Summit Ridge=PRO 1200+1600X+PRO 1700+1500X+PRO 1500+1300X+PRO 1600+PRO 1700X

NO. 2: Pinnacle Ridge=2600+2700X+PRO 2600+PRO 2700 +PRO 2700X +2700E+2500X+2600E+2300X

NO. 3: Raven Ridge=2200GE+2400GE+PRO 200GE+PRO 2400G+PRO 2200G+3200GE+3400GE+PRO 3200GE+PRO 3200GE+PRO 3400GE+3000G+3200G+3350G+3400G

-----------------------------------------------------------------------------------------------------------------------------------
TPYE 2: 1-3 generation Ryzen+ Raven Ridge[200GE 220GE 240GE 3000GE]

BIOS version:E7A38AMS.B00 ]; Supported CPU includes:

NO. 1: Summit Ridge=PRO 1200+1600X+PRO 1700+1500X+PRO 1500+1300X+PRO 1600+PRO 1700X

NO. 2: Pinnacle Ridge=2600+2700X+PRO 2600+PRO 2700 +PRO 2700X +2700E+2500X+2600E+2300X

NO. 3: Raven Ridge=2200GE+2400GE+PRO 200GE+PRO 2400G+PRO 2200G+3200GE+3400GE+PRO 3200GE+PRO 3200GE+PRO 3400GE+3000G+3200G+3350G+3400G

NO. 4: Raven Ridge=200GE 220GE 240GE 300GE

-----------------------------------------------------------------------------------------------------------------------------------
[ 4TH+5TH Ryzen ] TPYE 3: 4 -5 generation Ryzen:

BIOS version: [E7A38AMS.BG];

Supported CPU includes: Latest Beta BIOS

NO. 1: Support Cezanne CPU 5RD Gen AMD Ryzen series CPU

NO. 2: Support Renoir CPU 4RD Gen AMD Ryzen series CPU
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

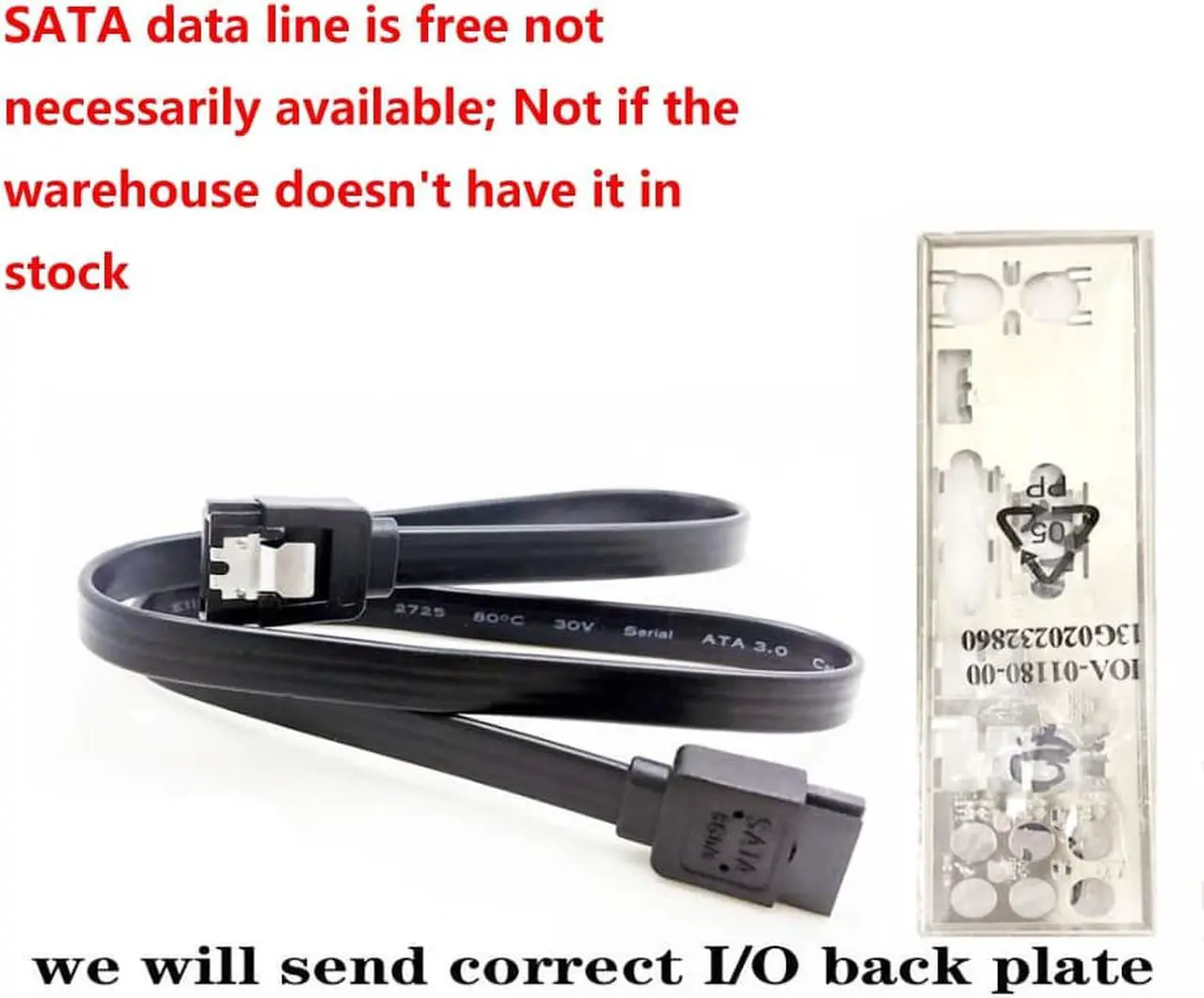

The motherboard baffle is not the original baffle! It's made by the merchants themselves! Mind that the motherboard metal baffle is not original, please do not buy it!

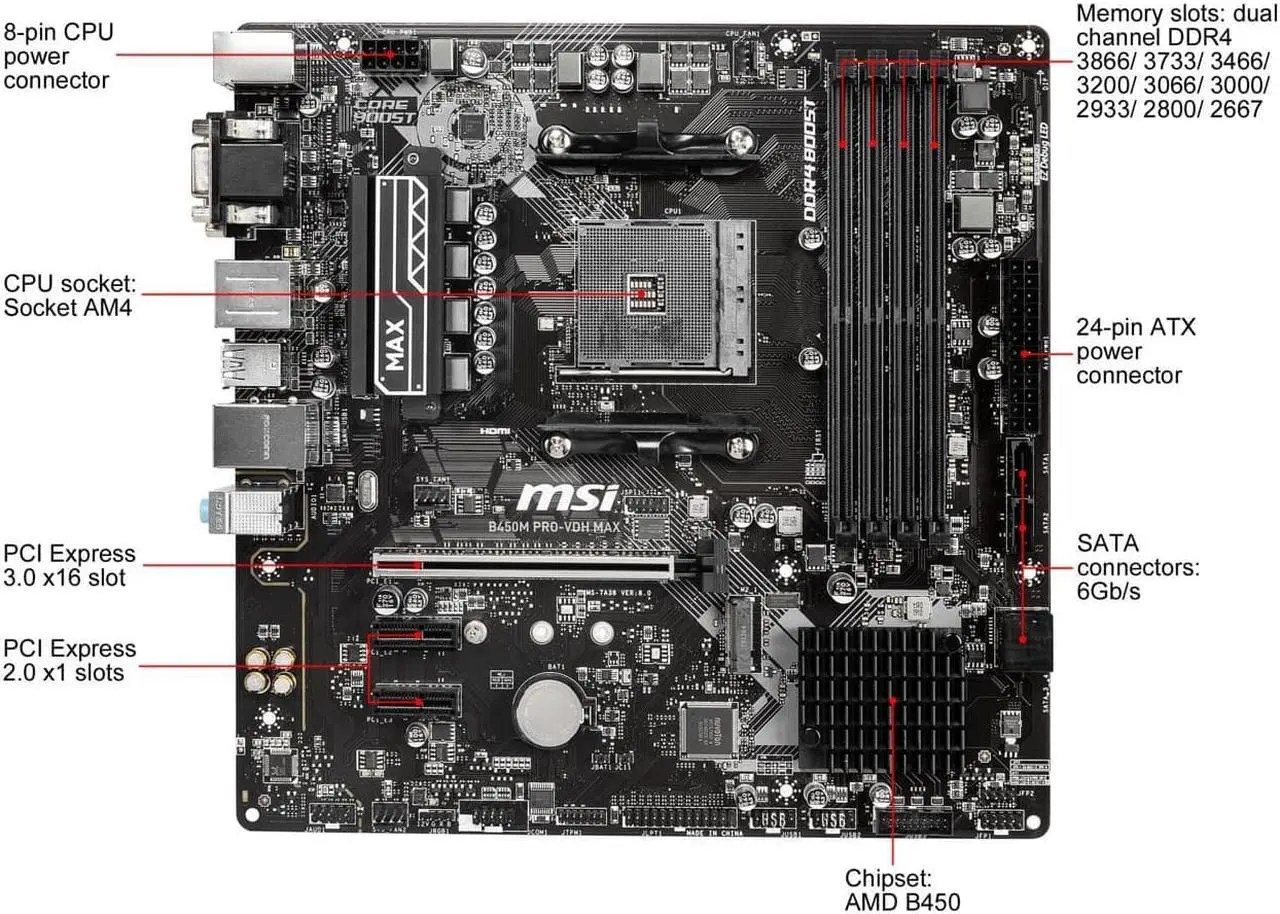

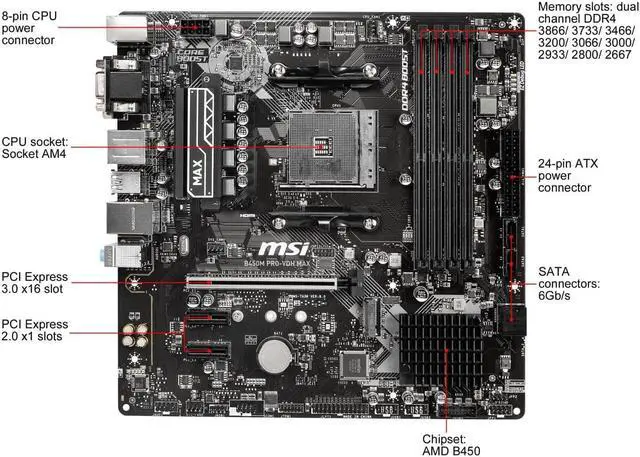

Microstar B450M PRO-VDH MAX parameters


Main chipset AMD B450
Chipset Description AMD B450 chipset is used
Display chip CPU Built-in display chip (requires CPU support)
Audio chip integrates Realtek ALC892 7.1 channel audio chip
Nic chip Onboard Realtek RTL8111H gigabit NIC
Processor

Specifications

CPU Type 3rd Generation / 2nd Generation / 1st Generation AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU Socket AM4
Memory size
Memory type 4 x DDR4 DIMM
The maximum memory capacity is 64GB
The memory support dual channel DDR4 2667/2800/2
