* Please go to intel.com for compatibility information. * Onboard graphics output are disabled when using the F SKU processors.

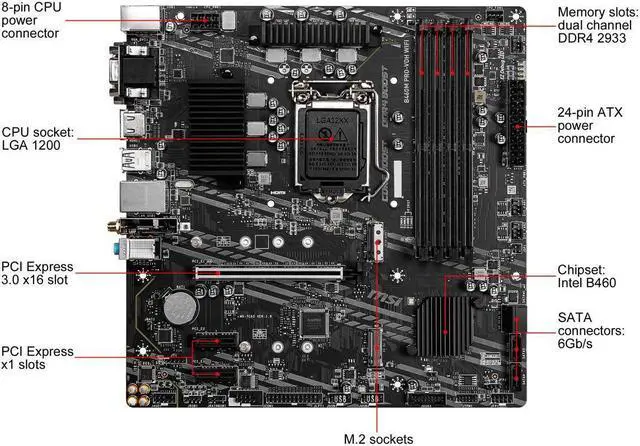

Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4-2933 (Max.) (Intel Core i7/ i9)
DDR4-2666 (Max.) (Intel Core i5 (Below))
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x1
2 x PCI Express x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
2 x M.2 slots (Key M):
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices * M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready for the M2_2 slot only ** Supports Intel Smart Response Technology for Intel Core processors
* SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC892/ALC897
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
1Gbps
Wireless LAN
Intel 3168NGW 802.11 a/b/g/n/ac
Bluetooth
Bluetooth 4.2
Rear Panel Ports

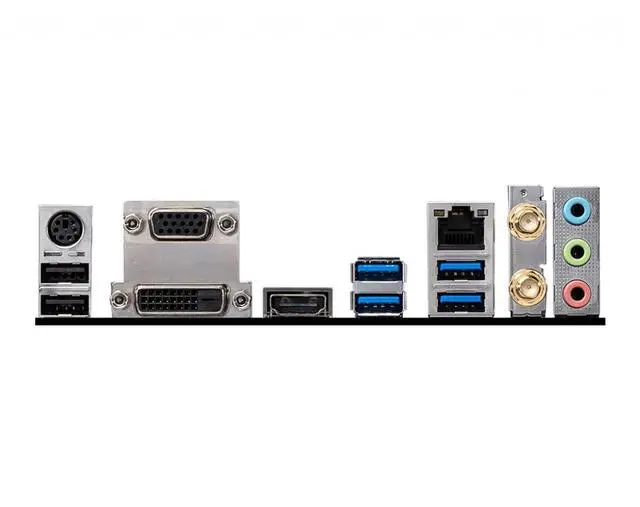

Back I/O Ports
1 x D-Sub 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 3 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo 2 x USB 2.0/1.1 4 x USB 3.2 Gen 1
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
Other Connectors
1 x 4-pin CPU fan connector 1 x 4-pin water pump connector 2 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x parallel port connector 1 x serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 1 x TPM module connector
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933(Max) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
