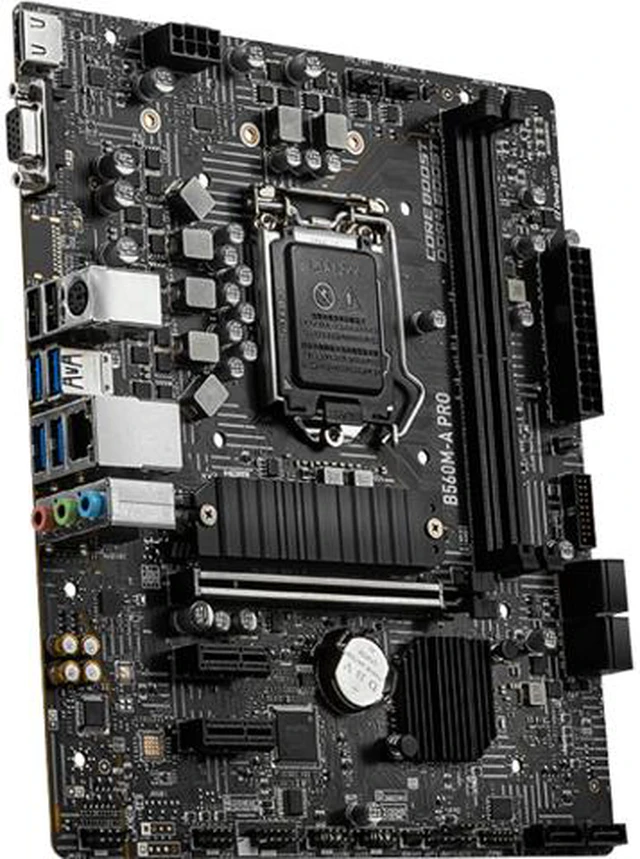

    MSI B560M-A PRO LGA 1200 Intel B560 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel B560
    • Supports 11th / 10th Gen Intel Core Processors
    • Supports Intel Pentium Gold / Celeron Processors
    • Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
    • Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
    • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5200
    • 1DPC 2R Max speed up to 4700+
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    Learn more about the MSI B560M-A PRO

    Model
    Brand MSI
    Model B560M-A PRO
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 11th / 10th Gen Intel Core Processors
    Supports Intel Pentium Gold / Celeron Processors
    Chipsets
    Chipset Intel B560
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
    Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)

    Max overclocking frequency:
    1DPC 1R Max speed up to 5200
    1DPC 2R Max speed up to 4700+
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

    * Actual support may vary by CPU.
    PCI Express x1 2 x PCIe 3.0 x1
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 1 x M.2 slot (Key M):*
    Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
    Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)*
    Supports 2242/2260/2280 storage devices

    * Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
    Intel Optane Ready Yes
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8125B
    Max LAN Speed 2.5Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45)
    1 x PS/2 Keyboard/Mouse Combo
    2 x USB 2.0/1.1
    4 x USB 3.2 Gen 1 Type-A
    3 x Audio Jacks
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    Other Connectors 1 x 4-pin CPU fan connector
    1 x 4-pin system fan connector
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Clear CMOS jumper
    1 x TPM module connector
    1 x Serial port connector
    1 x Tuning Controller Connector
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX

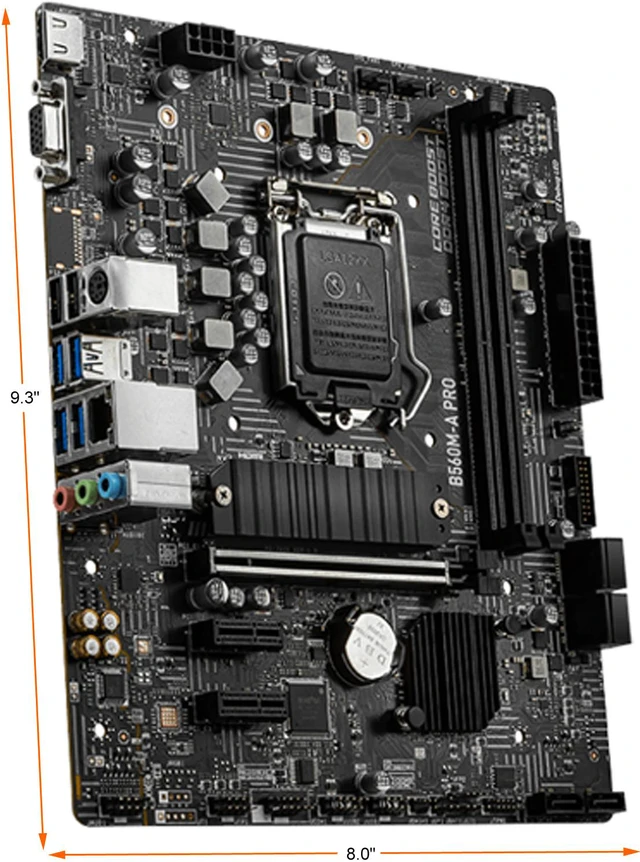

    Dimensions (W x L) 9.3" x 8.0"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket

    Supports DDR4 Memory, up to 5200(OC) MHz

    Core Boost : With premium layout and digital power design to support more cores and provide better performance

    DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability

    Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

    2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

    Audio Boost : Reward your ears with studio grade sound quality

    Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength
