Main image of MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 2 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 3 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 4 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 5 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 6 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 7 of 7 - MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Shop All MSI Products | Visit C.N.E Technology Store

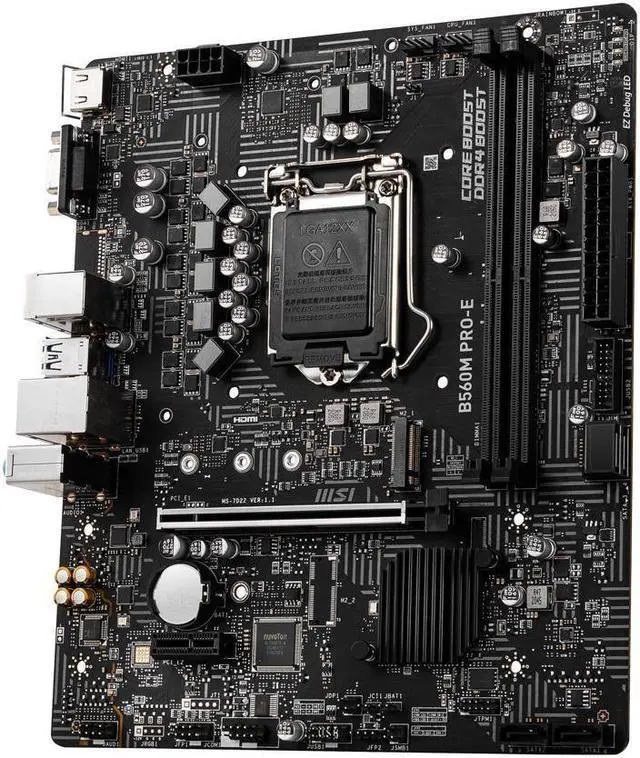

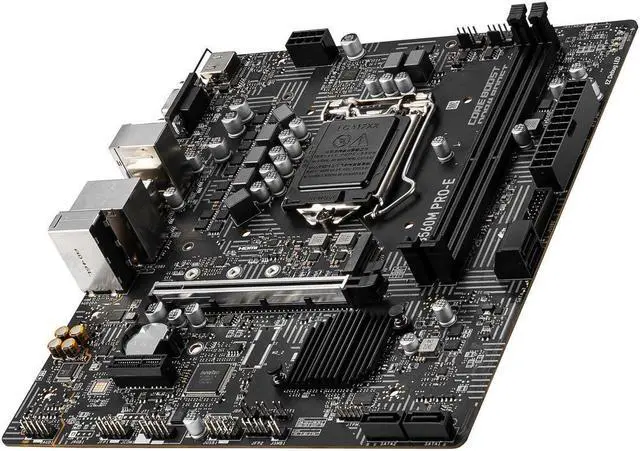

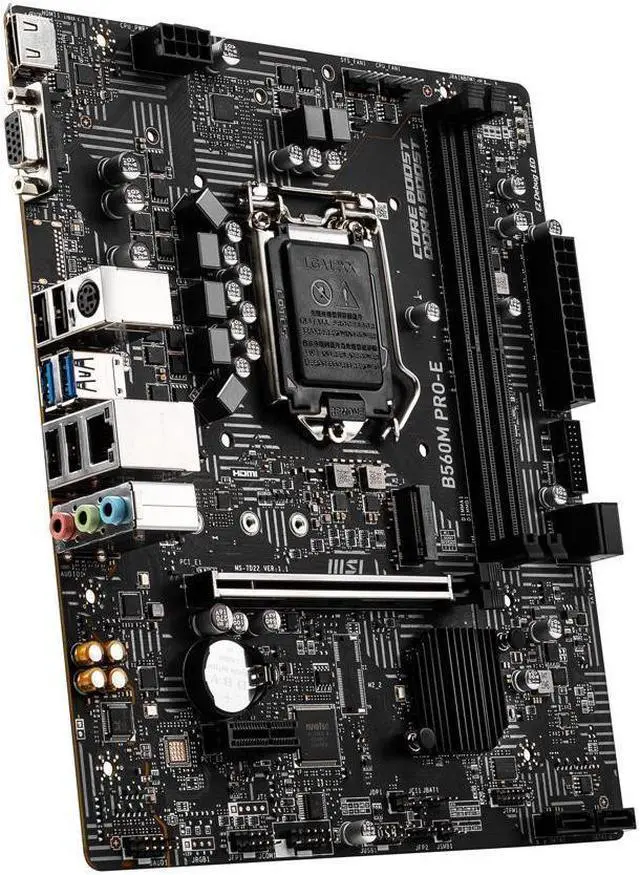

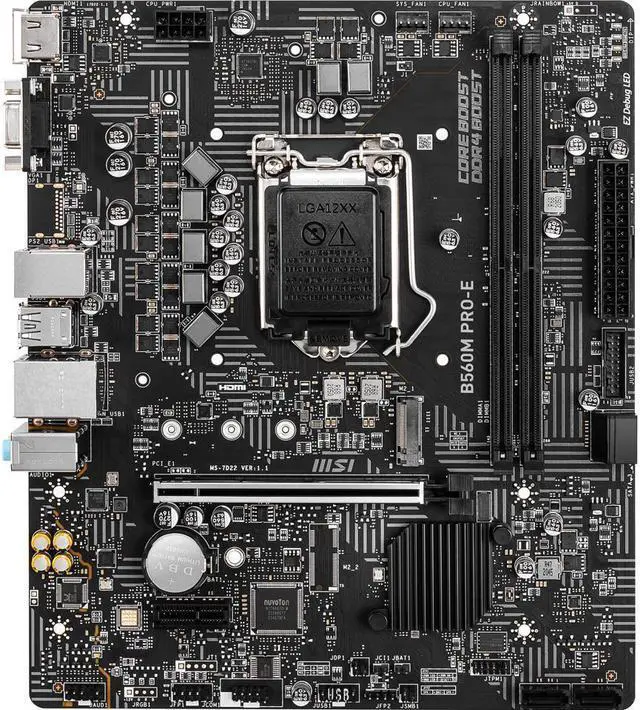

MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

REFURBISHED

Be the first to review this product...

Intel B560
Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800
1DPC 2R Max speed up to 4600+

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Intel B560
Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 4800
1DPC 2R Max speed up to 4600+

Model
Brand	MSI
Model	B560M PRO-E

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors

Chipsets
Chipset	Intel B560

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 1DPC 2R Max speed up to 4600+
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express x1	1 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M): M2_1 slot (From B560 Chipset): Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s* Supports 2242/2260/2280 storage devices * SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

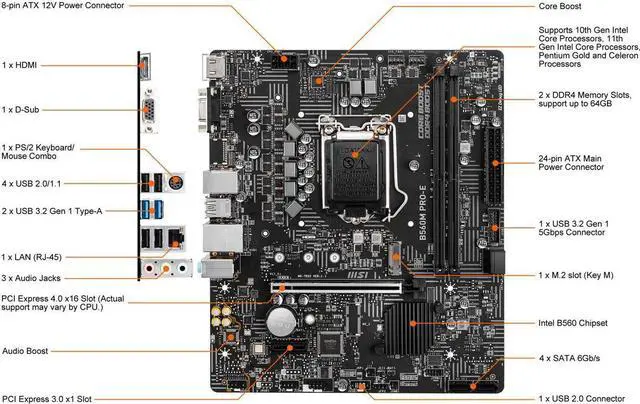

Rear Panel Ports

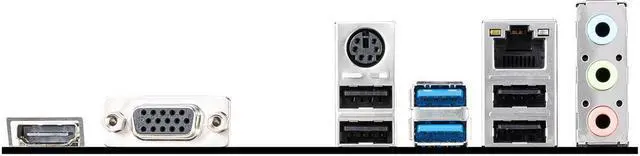

Back I/O Ports	1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 3 x Audio Jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.3" x 8.0"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 4800(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Lightning Fast Experience: PCIe 4.0 Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Additional Information
First Listed on Newegg	June 02, 2025
