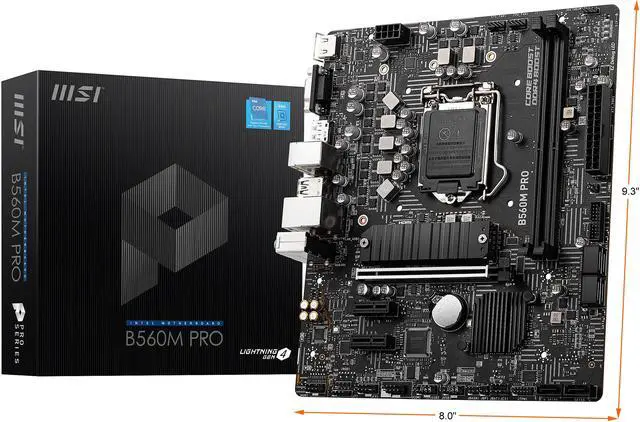

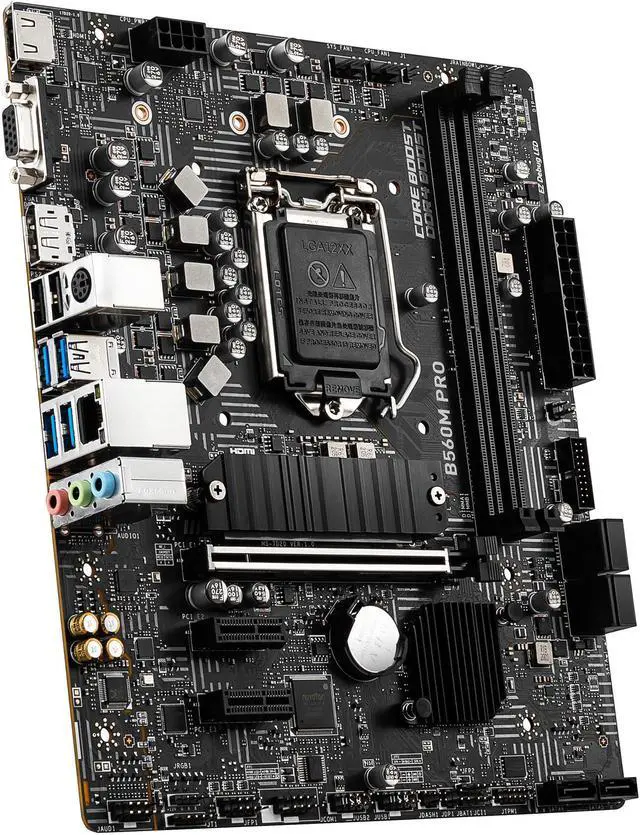

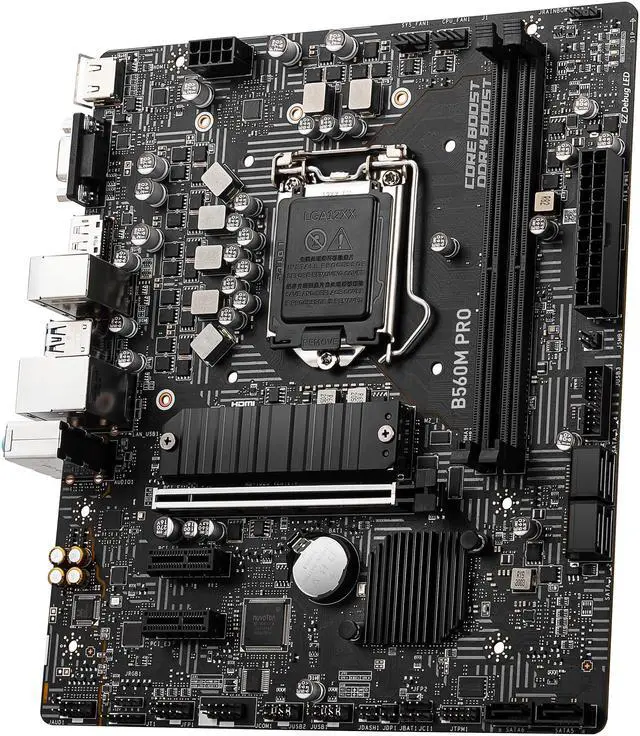

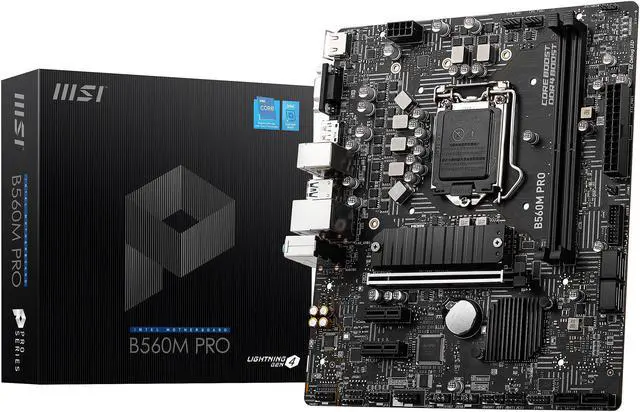

MSI PRO B560M PRO LGA 1200 Intel B560 Micro ATX Intel Motherboard
REFURBISHED Product Type
- Intel B560
- Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 10th Gen (LGA 1200) / Intel Core 11th Gen (LGA 1200) / Pentium Gold
- DDR4 2133 / 2666 / 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
- DDR4 2133 / 2666 / 2933 / 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5200 MHz
- 1DPC 2R Max speed up to 4700+ MHz
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI B560M PRO
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | B560M PRO |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 10th Gen (LGA 1200) / Intel Core 11th Gen (LGA 1200) / Pentium Gold |
| Chipset | Intel B560 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2133 / 2666 / 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) DDR4 2133 / 2666 / 2933 / 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots (From B560 chpiset) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio |
| LAN Chipset | 1 x Realtek 8125B 2.5Gbps LAN controller |
|---|---|
| Max LAN Speed | 2.5Gbps |

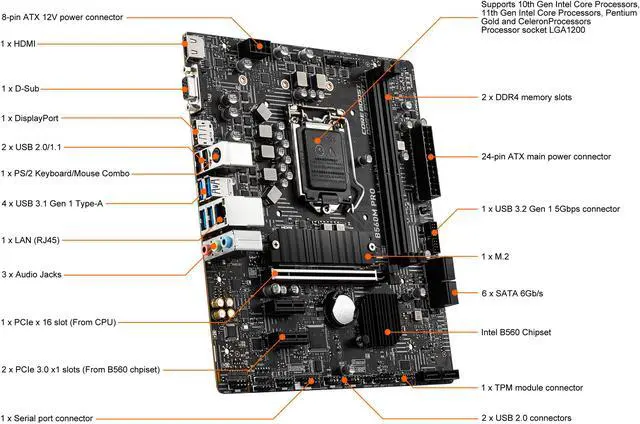

| Back I/O Ports | 1 x DisplayPort / 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 Type-A |
|---|---|
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 6 x SATA 6Gb/s connectors 1 x M.2 slot (M-Key) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning Controller Connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.3" x 8.0" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |

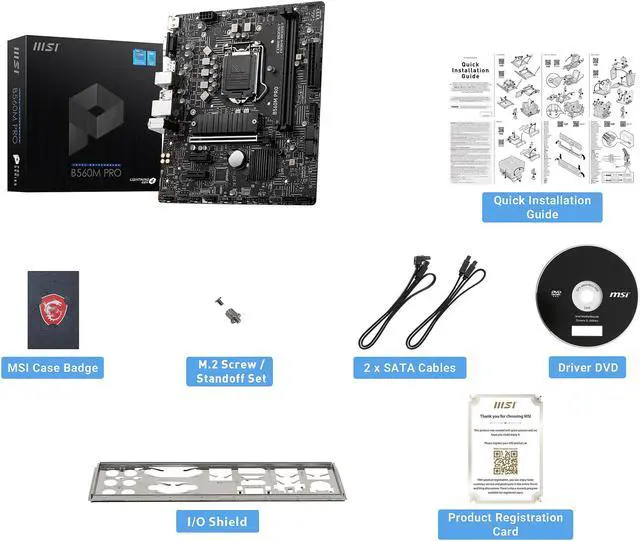

| Package Contents | MSI B560M PRO MSI Case Badge M.2 Screw / Standoff Set 2 x SATA Cables Driver DVD I/O Shield Product Registration Quick Installation Guide |
|---|
| First Listed on Newegg | March 24, 2026 |
|---|
