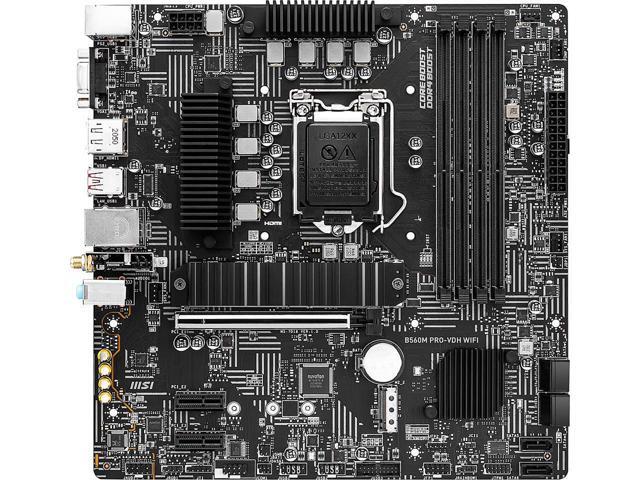

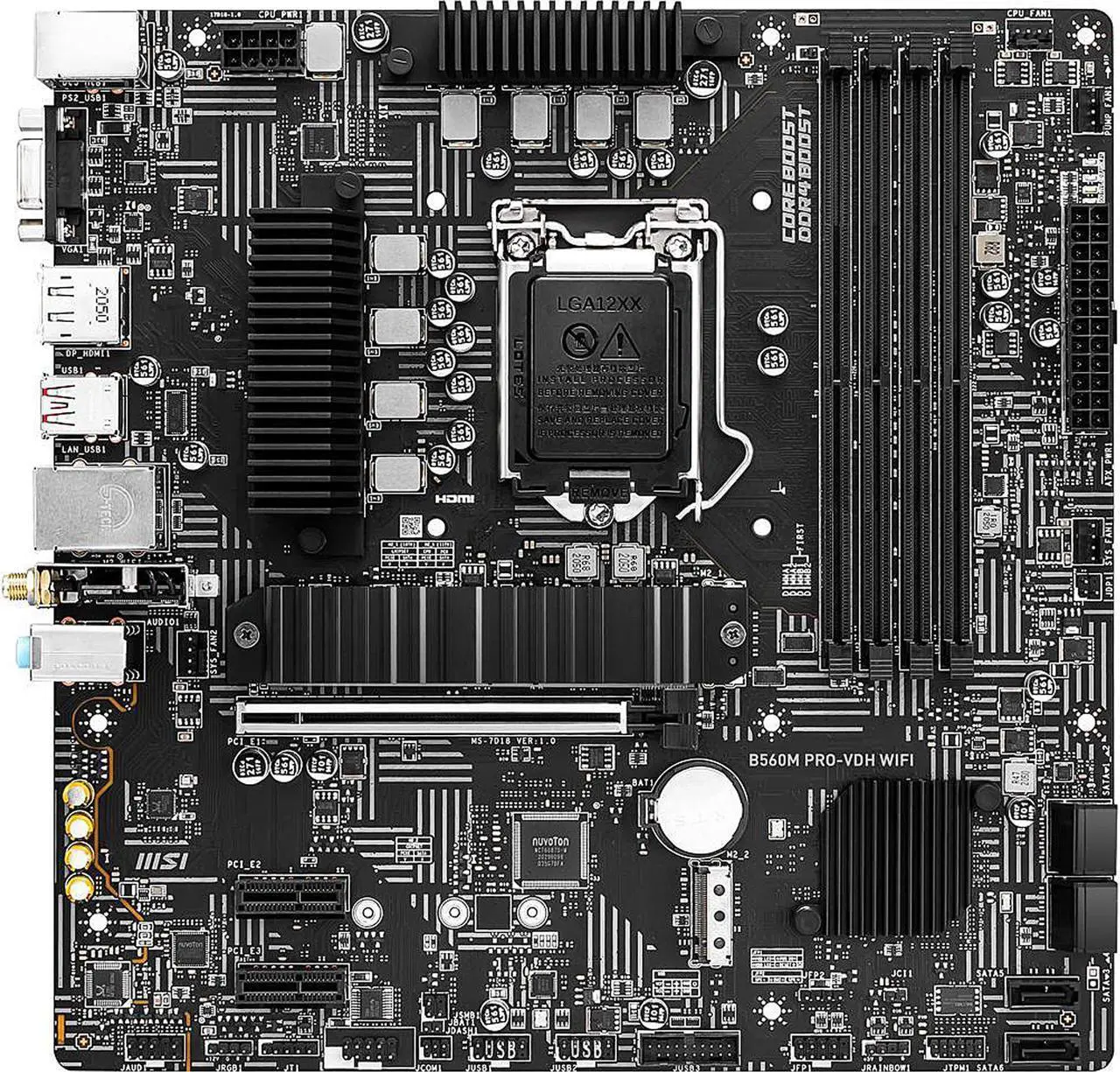

MSI PRO B560M PRO-VDH WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard
- Intel B560
- Supports 11th / 10th Gen Intel Core Processors, Intel Pentium Gold and Celeron Processors
- Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
- Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5066
- 1DPC 2R Max speed up to 4600+
- 2DPC 1R Max speed up to 4266+
- 2DPC 2R Max speed up to 4000+
Specs
Reviews
Learn more about the MSI B560M PRO-VDH WIFI
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | B560M PRO-VDH WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors, Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4266+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 (Actual support may vary by CPU.) |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 |
| Bluetooth | Bluetooth 5.1 |
| Back I/O Ports | 1 x DisplayPort / 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A / 3 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning Controller Connector 6 x SATA 6Gb/s connectors 2 x M.2 slots (M-Key) |
| Form Factor | Micro ATX |
|---|---|

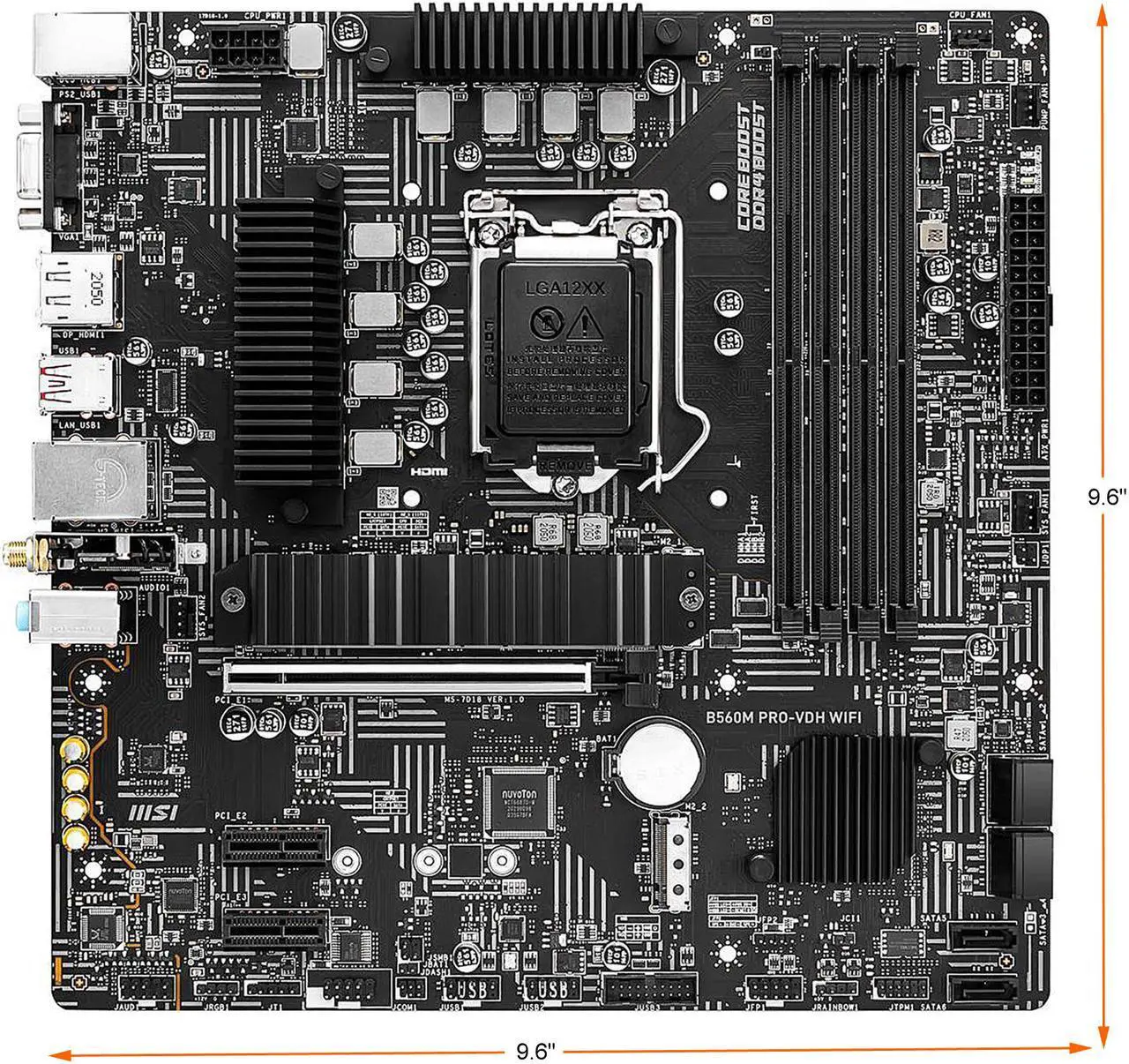

| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. Core Boost With premium layout and fully digital power design to support more cores and provide better performance. 2.5G Network Solution Featuring premium 2.5G LAN with LAN manager to deliver better network experience. EZ Debug LED Easiest way to troubleshoot. Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience. DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability. |
|---|
| Package Contents | B560M PRO-VDH WIFI MSI Case Badge M.2 Screw / Standoff Sets I/O Shield 2 x SATA Cables Wi-Fi Antenna Product Registration Card Quick Installation Guide Driver DVD |
|---|
| Date First Available | November 29, 2023 |
|---|
