This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
DDR3 1066/1333/1600/1800*/2000*/2200*/2400* MHz (OC, 22nm CPU required)
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x1
1 x PCI Express x1
PCI Slots
1 x PCI Slot
Storage Devices
Serial ATA (SATA)
1 x SATA 6Gb/s
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111E
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2
2
Video Ports
D-Sub
HDMI
1 x HDMI
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.0 + 4 x USB 2.0
Other Connectors
ATX 24-Pin power connector4-pin ATX 12V power connectorCPU x 1 / System x 2 FAN connectors1 x Clear CMOS jumper1 x Serial port connector1 x Parallel port connector1 x TPM Module connector1 x Front Panel Audio connector1 x Front Panel connector1 x Chassis Intrusion connector
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 6.81"
Power Pin
24 Pin
Features
Features
OC Genie II: Auto OC to boost performance in 1 secClickBIOS II: Easy-to-use UEFI BIOS interfaceSupport USB 3.0 & SATA 6Gb/s
Additional Information
First Listed on Newegg
March 18, 2026

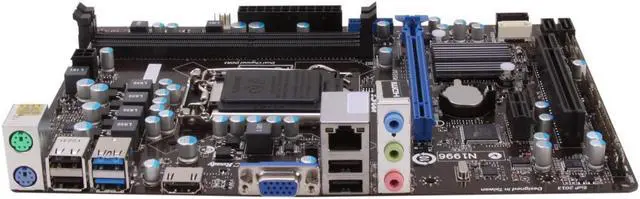

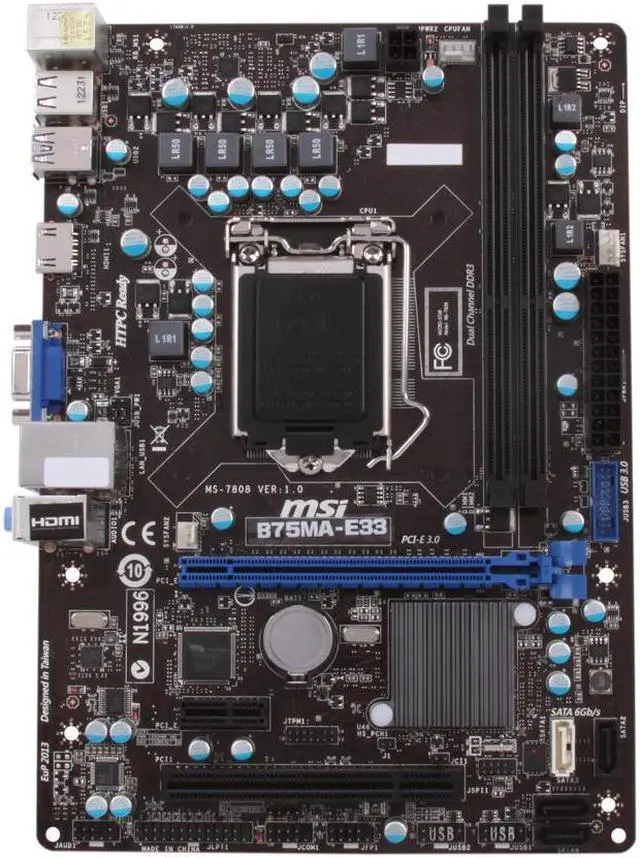

Customer Reviews of the MSI B75MA-E33
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
