Perform in Style

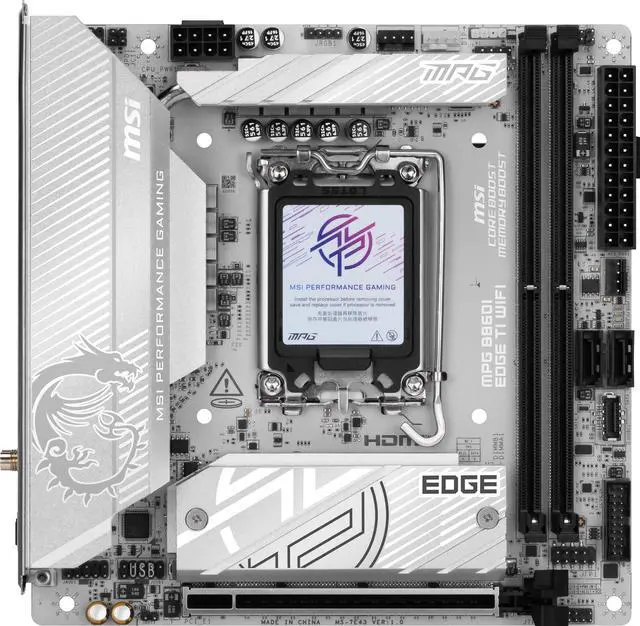

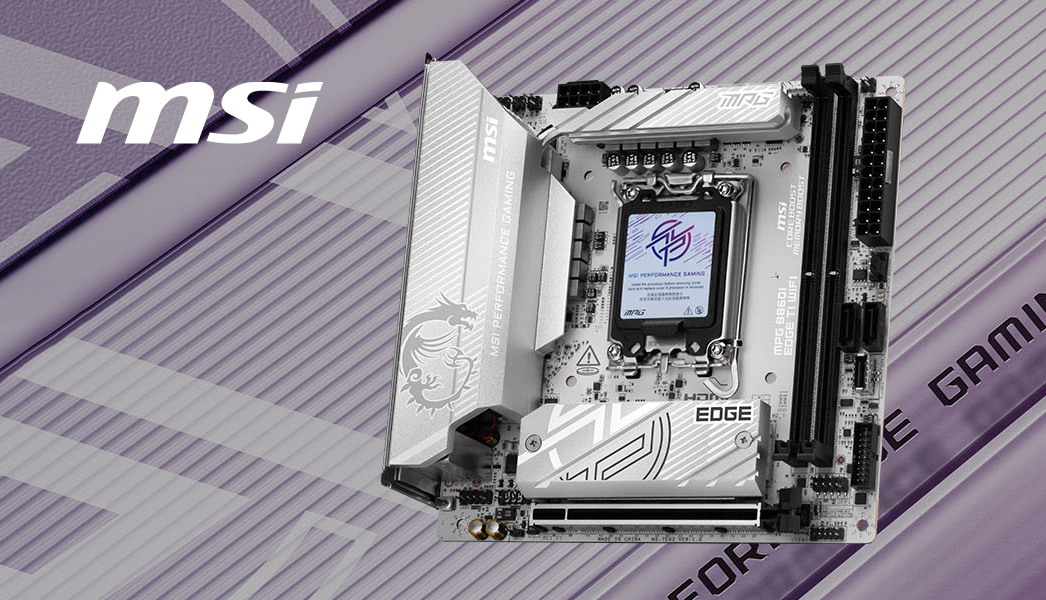

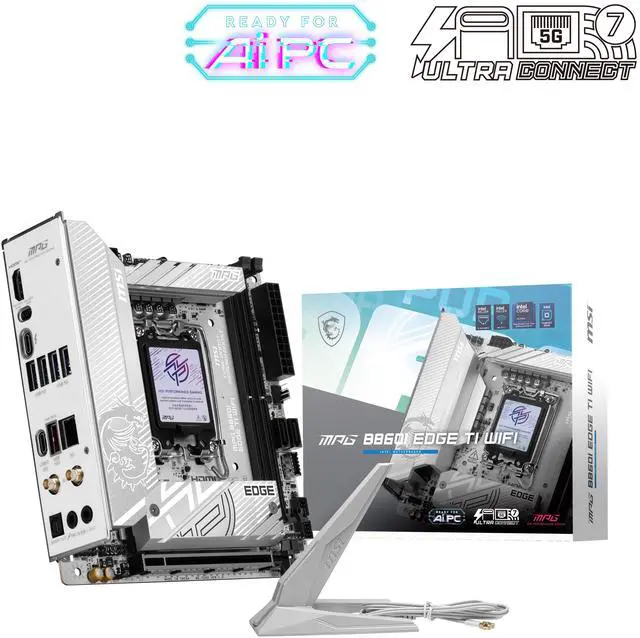

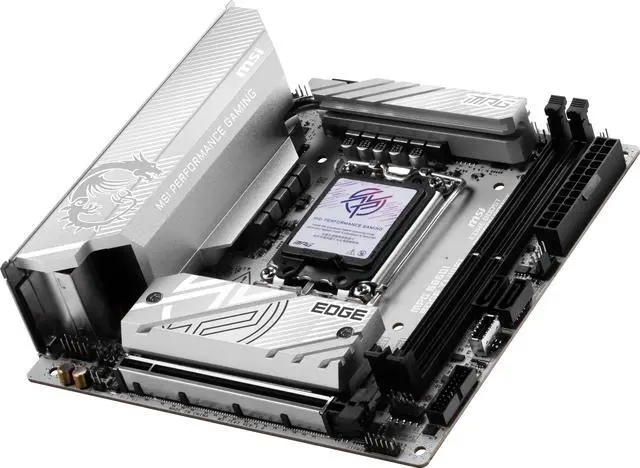

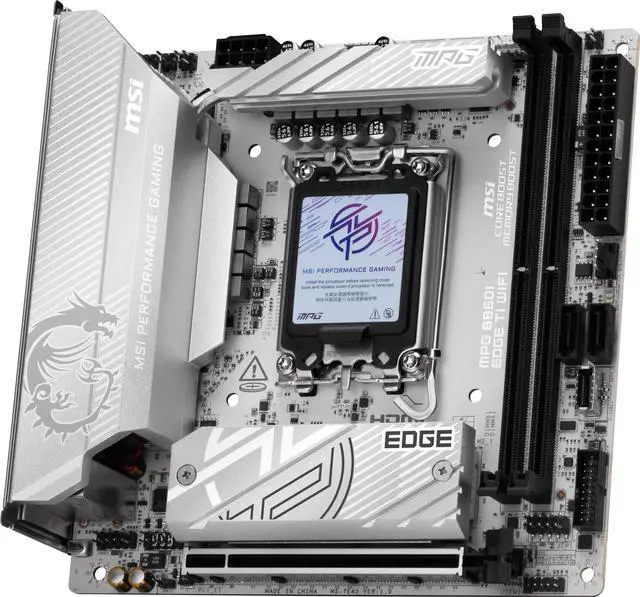

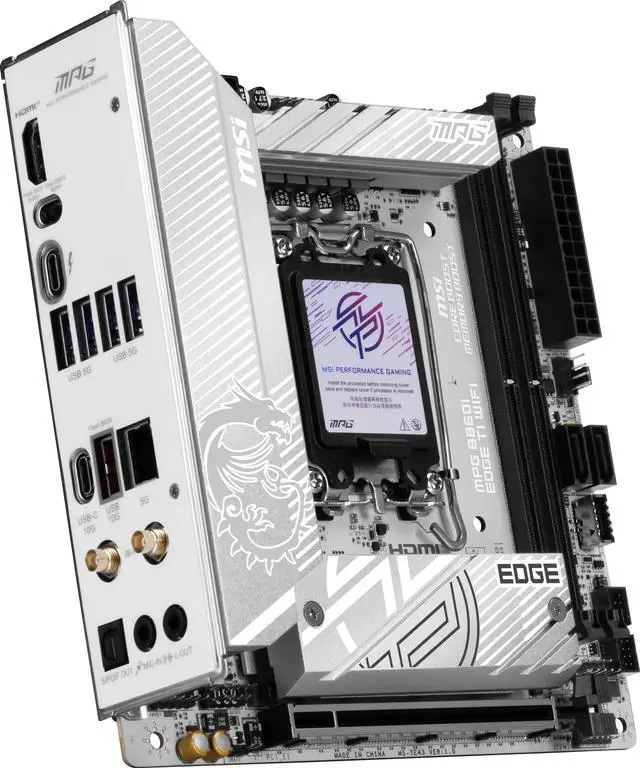

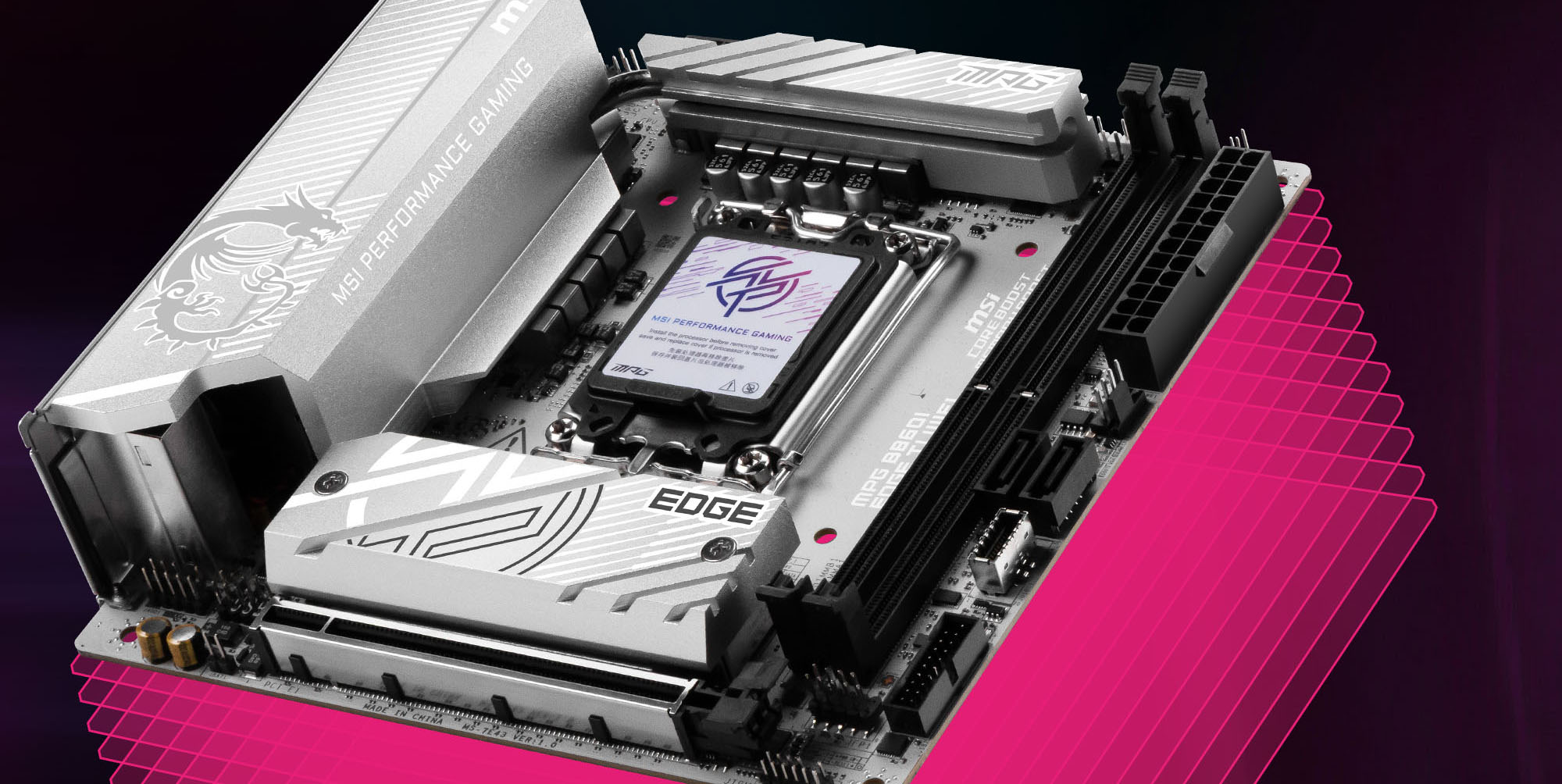

The MPG B860I EDGE TI WIFI is a gaming oriented Mini-ITX motherboard with a direct 8 phases power design, constructed around the latest Intel B860 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

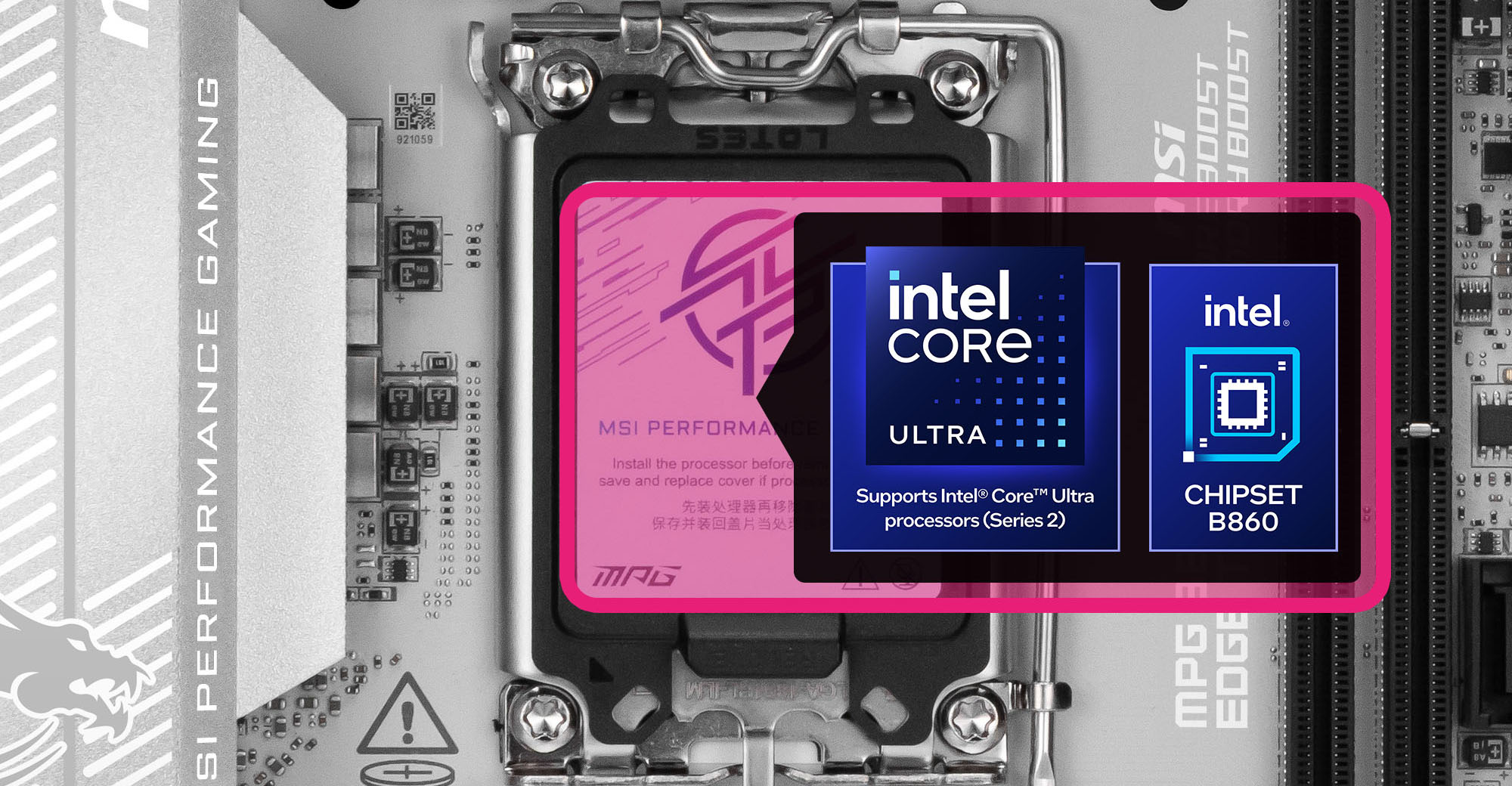

Supports Intel Core Ultra Processors (Series 2)
The MPG B860I EDGE TI WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: Mini-ITX
- Socket Type: LGA 1851
- Chipset: Intel B860

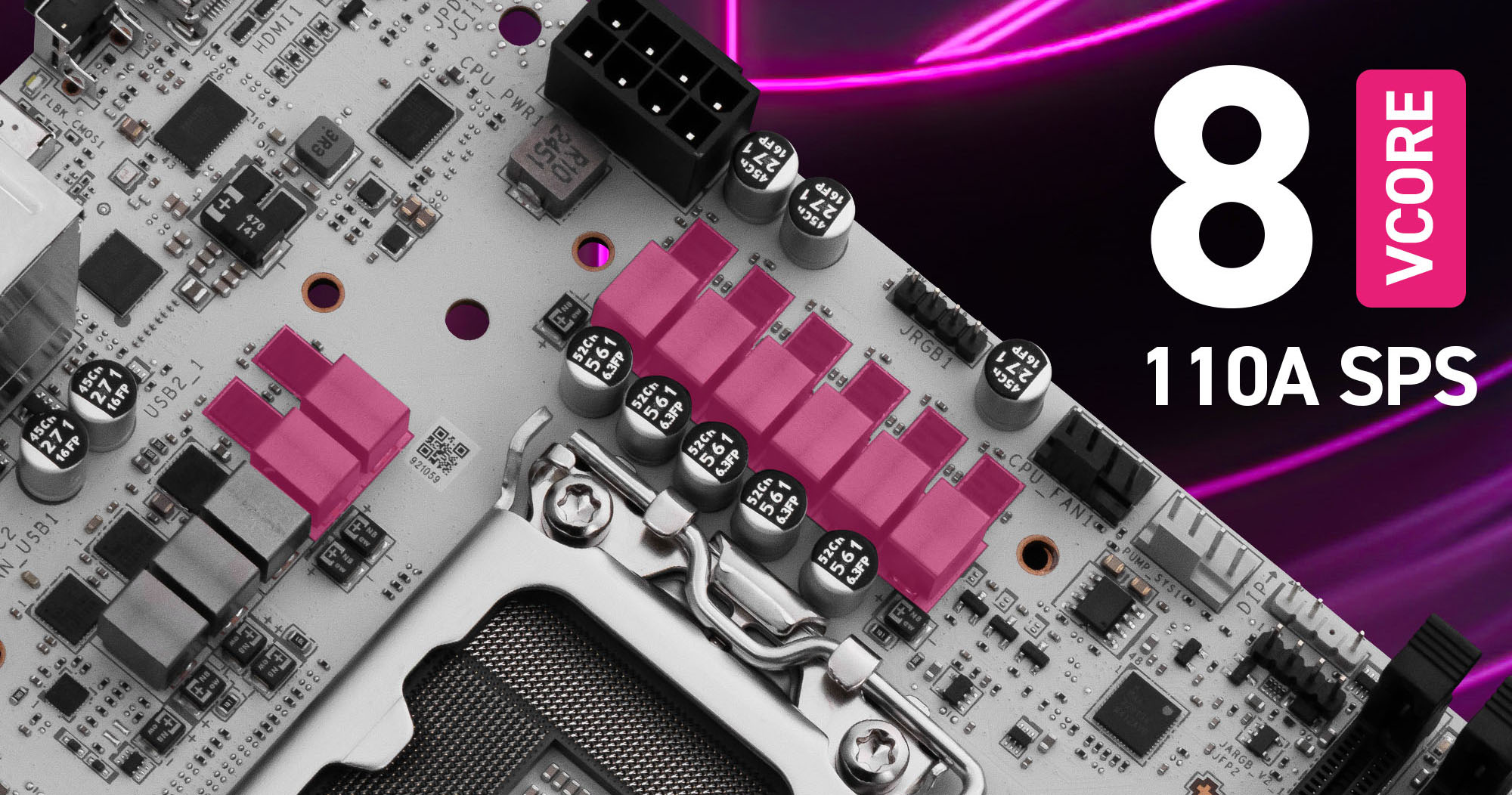

Ultra Power - Direct 8-phase power design with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG B860I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
Direct 8-phase power design (110A / SPS)
1-Phase SA Power
1-Phase GT Power
1-Phase VNNAON Power
Frozr Design
- Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and M.2 Shield Frozr for improved thermal dissipation.
- Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
- Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

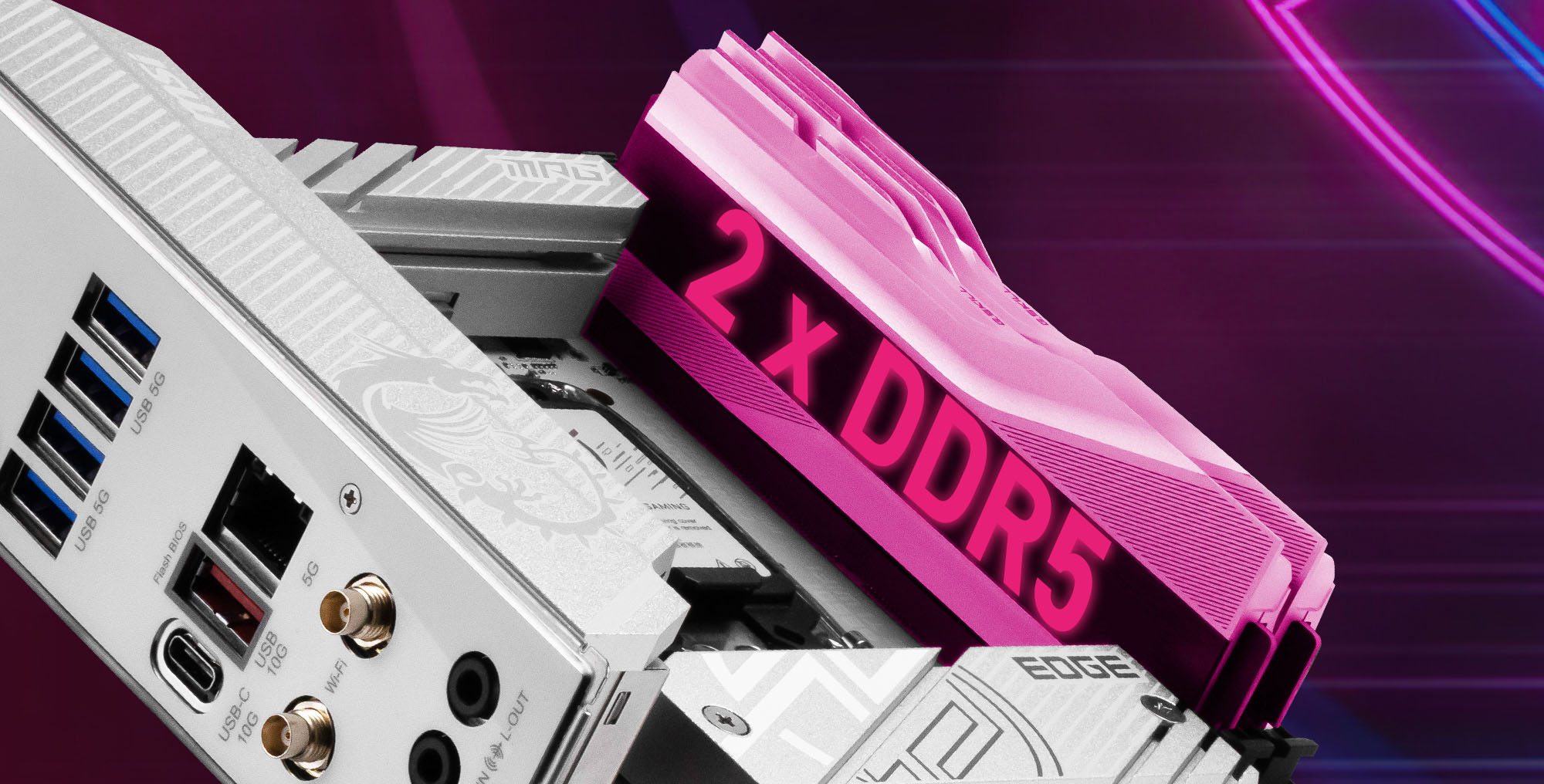

2 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

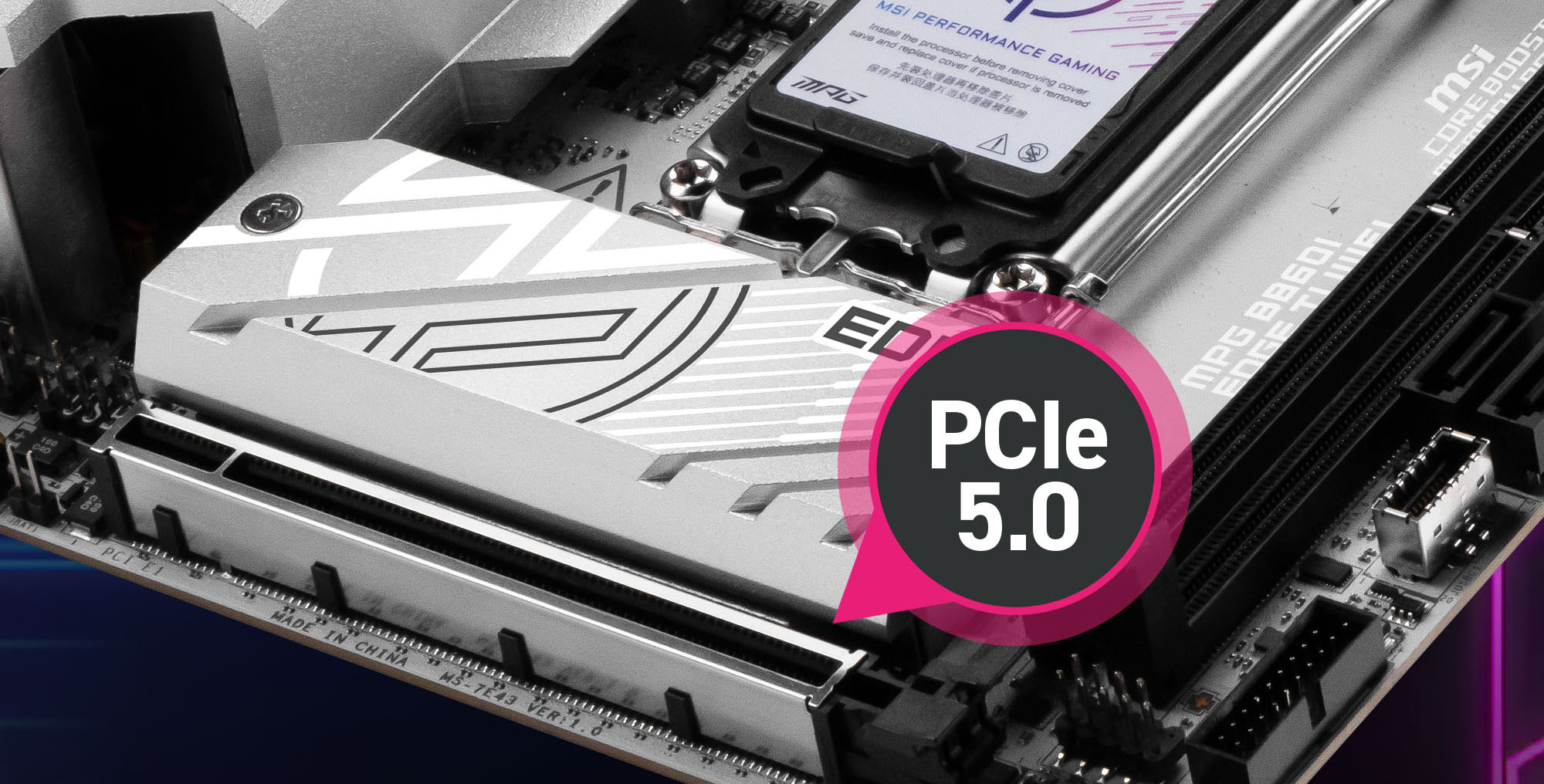

Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
* MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

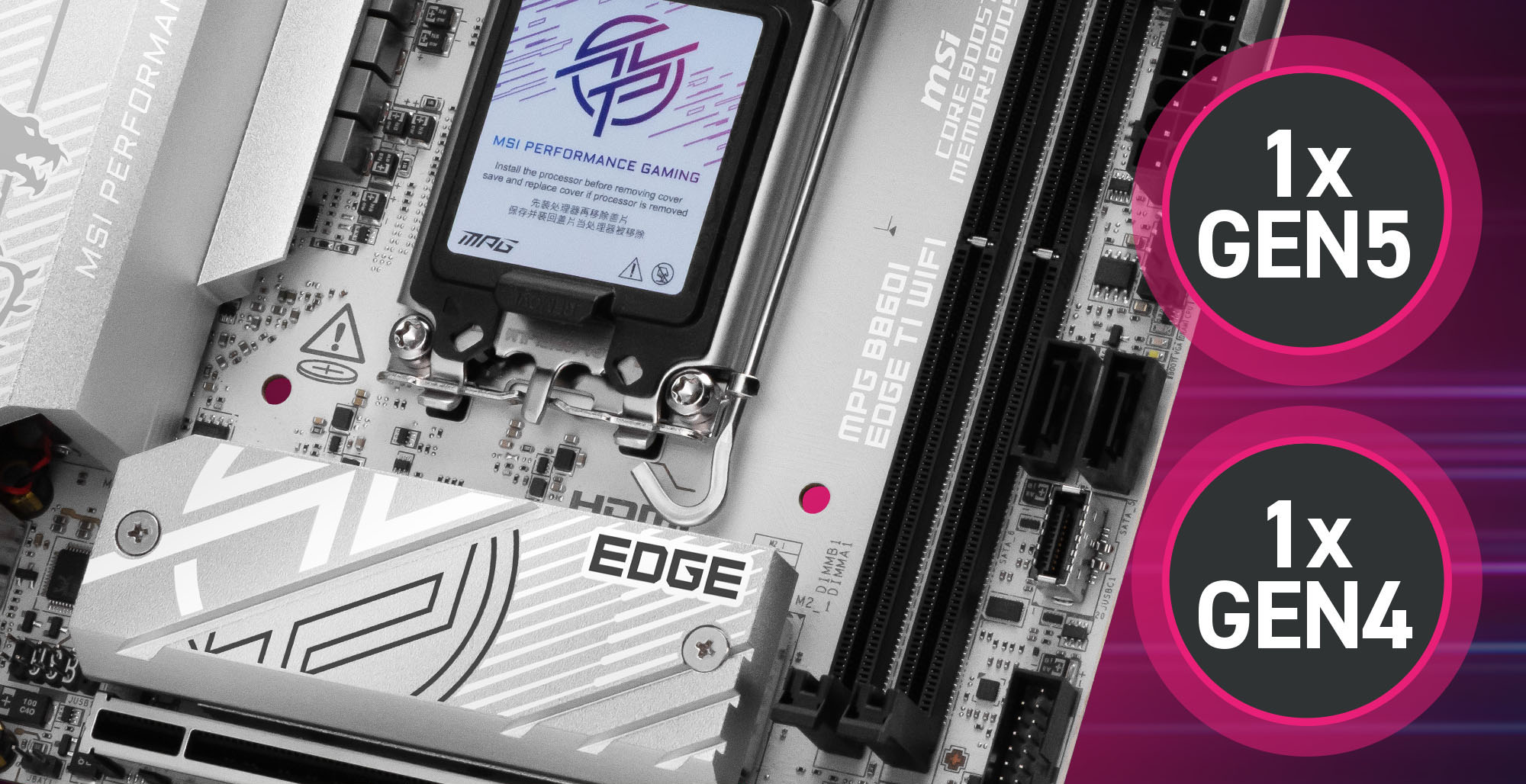

Gen5 M.2 Connector
The MPG B860I EDGE TI WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)
1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.

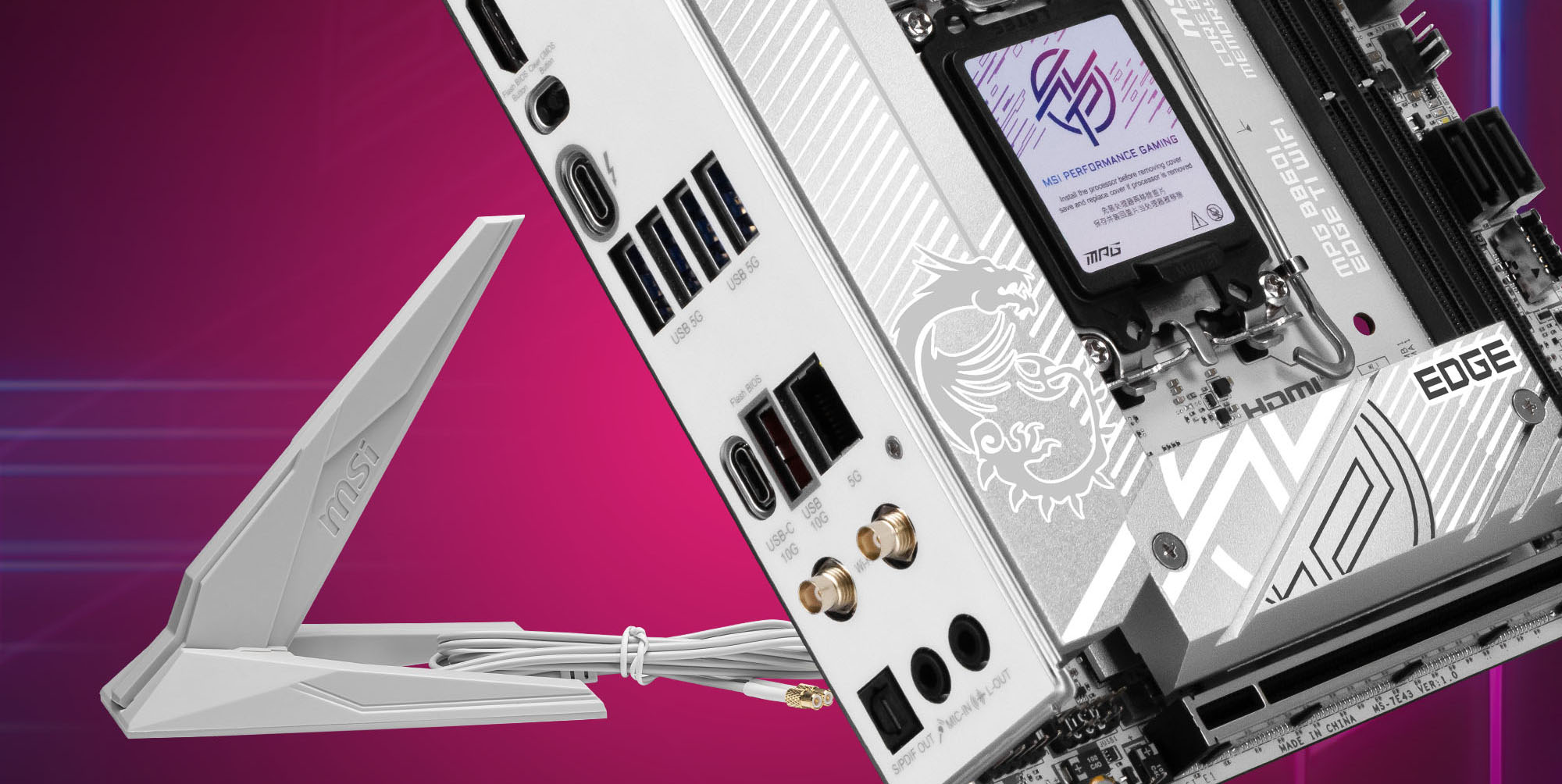

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
EZ Front Panel Cable: Provides an easier way to connect the case front panel to the motherboard, allowing you to pre-connect the front panel cables outside the case.
EZ System Command: The Clear CMOS button allows you to reset and clear BIOS settings, while the Flash BIOS Button lets you update the BIOS without powering on the system.

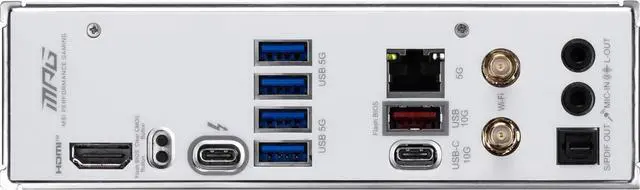

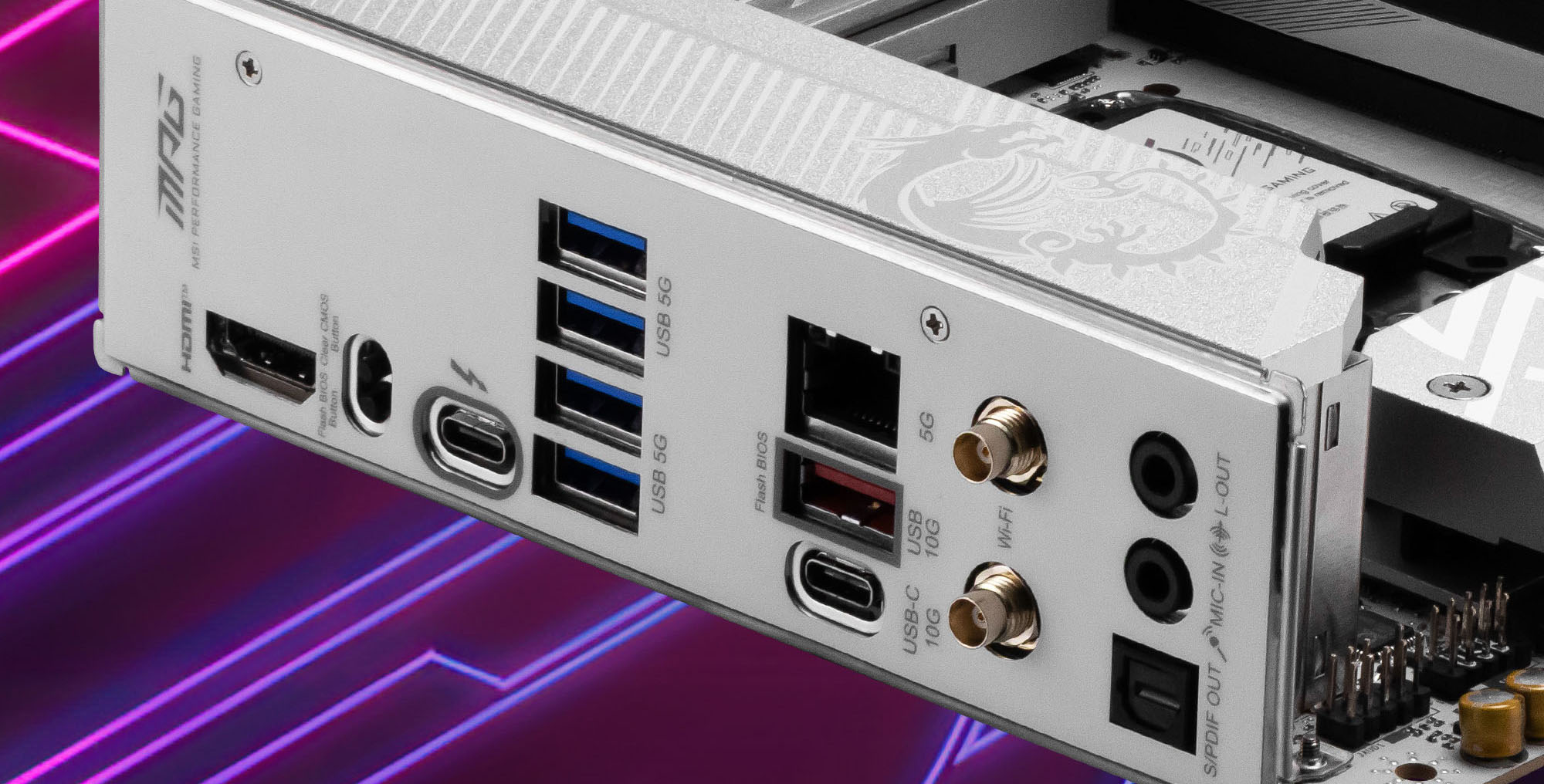

Ultra Connect
- 5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
- Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
- Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
