The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

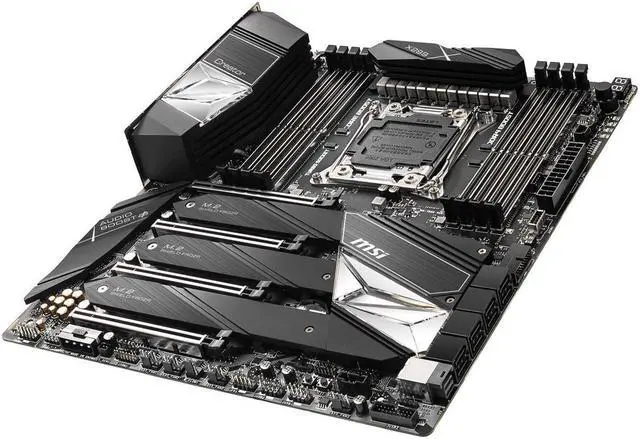

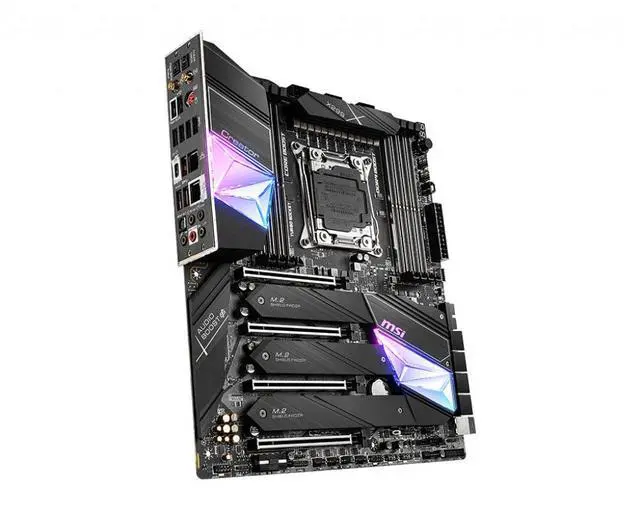

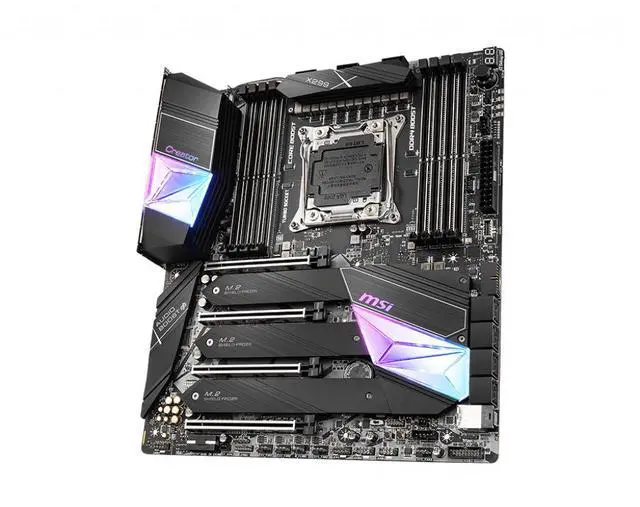

Learn more about the MSI Creator X299
Model
Brand
MSI
Model
Creator X299
Supported CPU
CPU Socket Type
LGA 2066
CPU Type
Supports Intel Core X-series 10000/9000/78xx (above) processors for socket LGA2066
4 x PCIe 3.0 x16 slots Support x8/x8/x16/x8 and x16/x0/x16/x8 modes with the 48-lane CPU. Support x8/x8/x16/x8 and x16/x0/x16/x8 modes with the 44-lane CPU.* Support x8/x8/x8/x0 and x16/x0/x8/x0 modes with the 28-lane CPU.**
* The PCI_E4 slot will run 3.0 x4 speed with 44-lane CPU when installing M.2 PCIe device into M2_3 slot. ** The PCI_E4 slot is unavailable with 28-lane CPU.
Storage Devices
Serial ATA (SATA)
8 x SATA 6Gb/s
M.2
Intel X299 Chipset 1 x M.2 slots (Key M) - Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices - Intel Rapid Start Technology - Intel Optane Memory Ready 1 x U.2 port, supports PCIe 3.0 x4 NVMe storage - Supports Intel Smart Response Technology
Intel CPU 2 x M.2 slots (M2_2 & M2_3, Key M) - Support up to PCIe 3.0 x4, 2242/2260/2280/22110 storage devices*
* M2_3 slot is unavailable with 28-lane CPU.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1-Channel High Definition Audio Supports S/PDIF output
Onboard LAN
LAN Chipset
AQUANTIA AQC107
Second LAN Chipset
Intel I219V
Max LAN Speed
10Gbps + 1Gbps
Wireless LAN
Intel Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4-5 GHz (160 MHz) up to 2.4 Gbps The Wireless module is pre-install in the M2_4 (Key-E) slot
* Only support windows 10 64-bit
Bluetooth
Supports Bluetooth 5
Rear Panel Ports

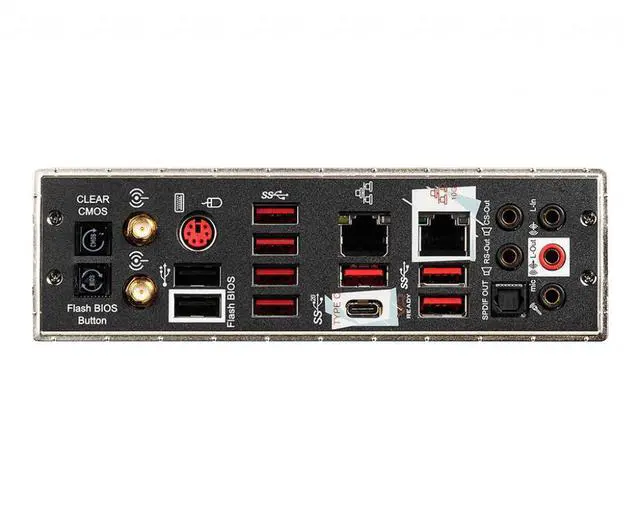

Back I/O Ports

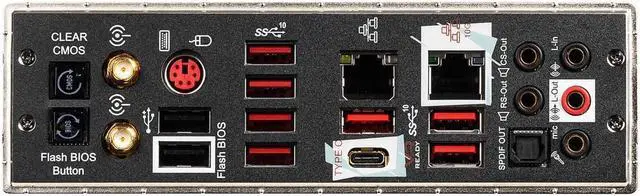

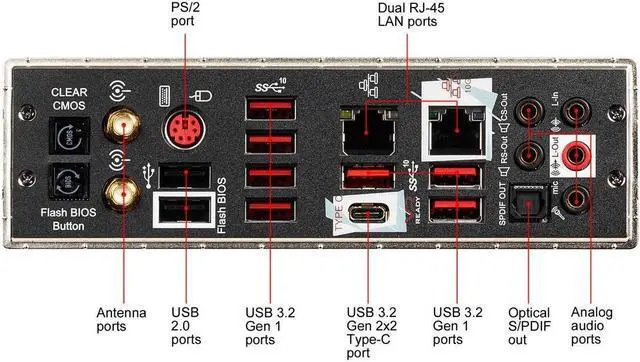

1 x Clear CMOS Button 1 x Flash BIOS Button 1 x Wireless / Bluetooth Module 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 Type-A ports 7 x USB 3.2 Gen1 Type-A ports 2 x LAN (RJ45) ports 1 x USB 3.2 Gen2x2 20G Type-C port 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port
Other Connectors
1 x 4-pin CPU fan connector 4 x 4-pin system fan connectors 2 x 4-pin extend system fan connectors 1 x 4-pin water-pump fan connector 1 x 3-pin Water Flow connector 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x 2-pin Thermal Sensors connector 1 x Thunderbolt Add-on Card Connector 1 x Virtual RAID on CPU connector
Physical Spec
Form Factor
Extended ATX
Dimensions (W x L)
12.0" x 10.7"
Power Pin
1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors 1 x flat 4-pin ATX 12V power connector (Provides additional power for PCIe x16 slots)
Features
Features
Supports Intel Core X-series Processors 10000/9000/78xx (above)series for LGA2066 Socket

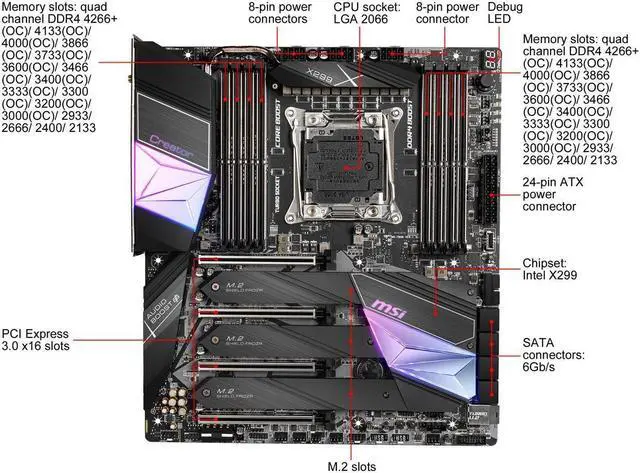

Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266+(OC)
More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design
More Efficency for Data Transfer: 10G LAN + Intel Gigabit LAN with Intel WIFI 6 and bandwidth management
More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2
More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability
