1x M.2 port*M.2 port supports M.2 SATA 6Gb/s moduleM.2 port supports M.2 PCIe module up to 10Gb/s speed**M.2 port supports 4.2cm/ 6cm/ 8cm length module* The SATA5 and SATA6 ports will be unavailable when installing a module in the M.2 port.** M.2 PCIe interface only supports UEFI option ROM, NOT support legacy option ROM.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1150
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Killer E2205
Max LAN Speed
1Gbps

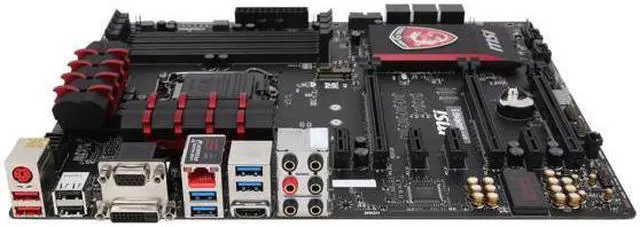

Rear Panel Ports
Back I/O Ports
1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 2.0/1.1 / 4 x USB 3.0
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x VGA connector1 x DVI-D connector
HDMI
1 x HDMI port, supporting a maximum resolution of 4096X2304@24Hz/ 2560X1600@60Hz/ 3840X2160@60Hz/ 1920X1200@60Hz
RJ45
1 x LAN (RJ45) port
USB 3.0
4 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
Audio Ports
6 x OFC audio jacks
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
Other Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x 4-pin CPU fan connectors3 x 4-pin system fan connectors1 x TPM module connector1 x Serial port connector1 x Front panel audio connector1 x Direct audio power connector2 x System panel connectors1 x Chassis Intrusion connector1 x Clear CMOS jumper1 x Audio power switch1 x 2-Digit Debug Code LED
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socketSupports DDR3-3300(OC) MemoryM.2 + USB 3.0 + SATA 6Gb/sAudio Boost 2: Reward Your Ears with True QualityKiller Ethernet: Kill Your LagUSB Audio Power: Surve Stable 5V Power & Better Signal Transmission over USBXSplit Gamecaster: Show off Your Skills and AchievementsGuard-Pro: Improved Protection and Power Efficiency OC Genie 4: Overclock in 1 SecondGaming App: Boost Your Frame RateClick BIOS 4: Easily Fine-tune Your SystemMulti-GPU: NVIDIA SLI & AMD CrossFire SupportSound Blaster Cinema 2: Realistic Surround Sound ExperienceGaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming DevicesBIOSThe motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.Mounting9 mounting holes.
