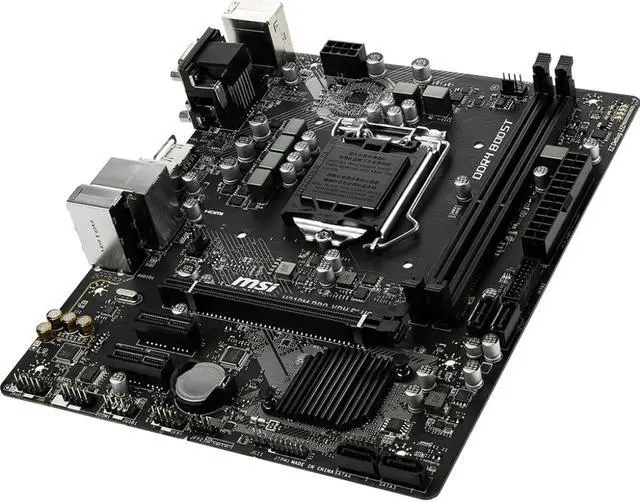

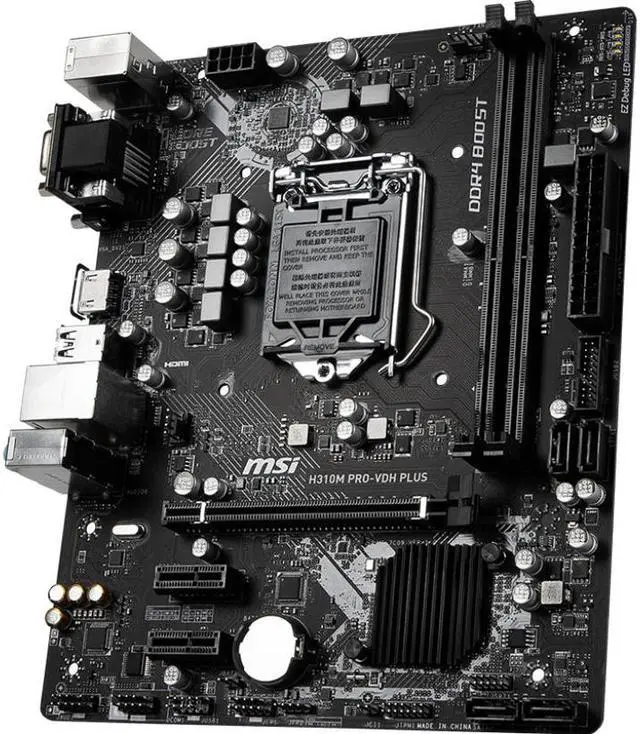

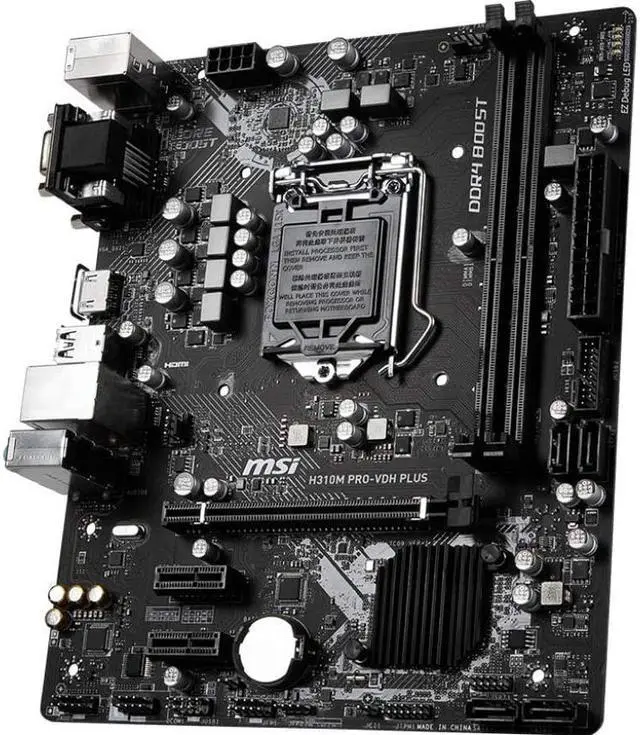

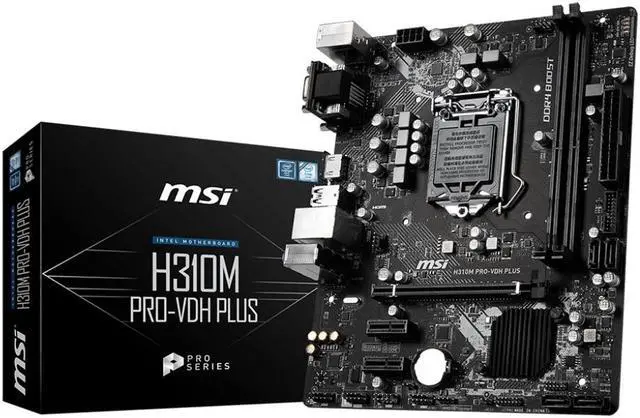

MSI PRO H310M PRO-VDH PLUS LGA 1151 (300 Series) Intel H310 SATA 6Gb/s Micro ATX Intel Motherboard
- Intel H310
- This chipset is ME11 firmware based and doesn't feature SDA3.0.
- Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Supports DDR4 2666/ 2400/ 2133 MHz
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI H310M PRO-VDH PLUS
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | H310M PRO-VDH PLUS |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel H310 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048 x 1536 @ 50 Hz, 2048 x 1280 @ 60 Hz, 1920 x 1200 @ 60 Hz 1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz 1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 30 Hz * No Display support when using the Processor model with suffix "F" Supports up to 2 displays simultaneously |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 2666/ 2400/ 2133 MHz* * 2666 MHz for I7 and I5 processors only. |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9" x 7.3" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket. Supports DDR4 Memory, up to 2666 MHz. Audio Boost: Reward your ears with studio grade sound quality. EZ Debug LED: Easiest way to troubleshoot. X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. |
|---|
| First Listed on Newegg | September 03, 2024 |
|---|
