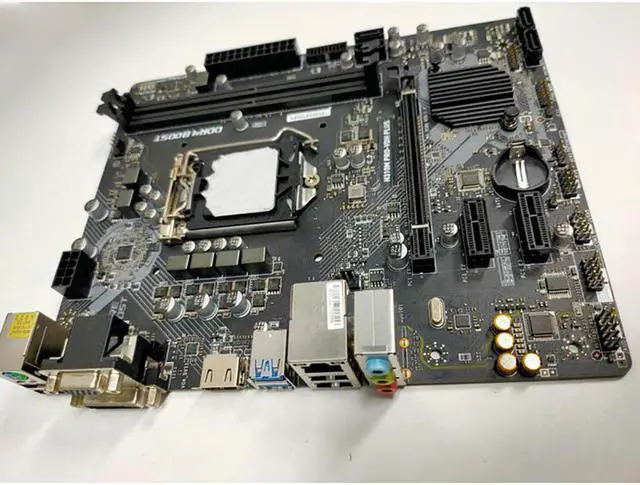

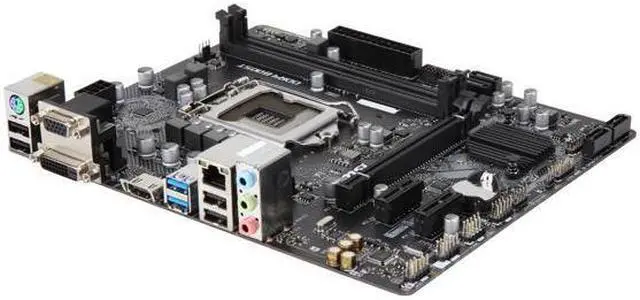

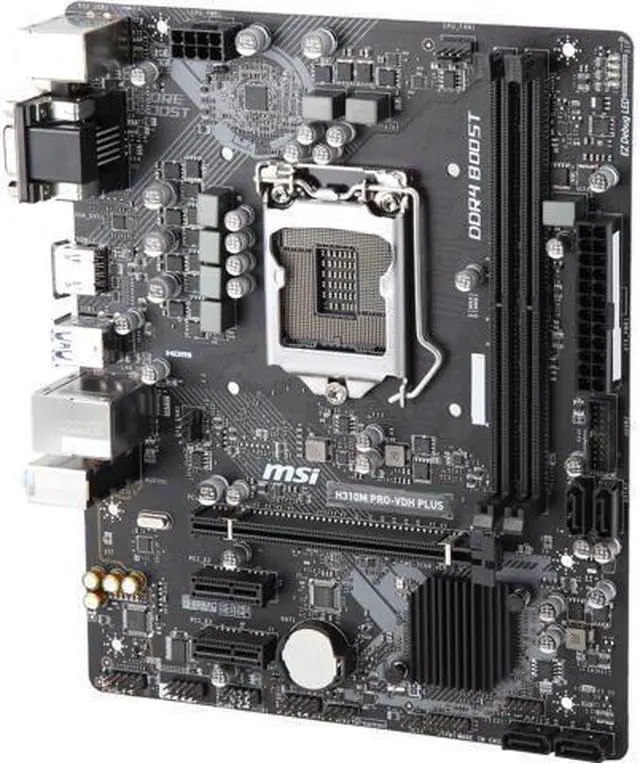

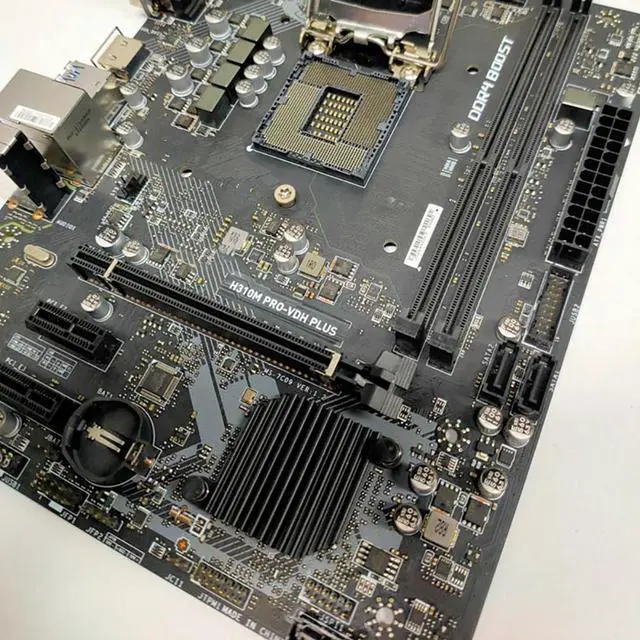

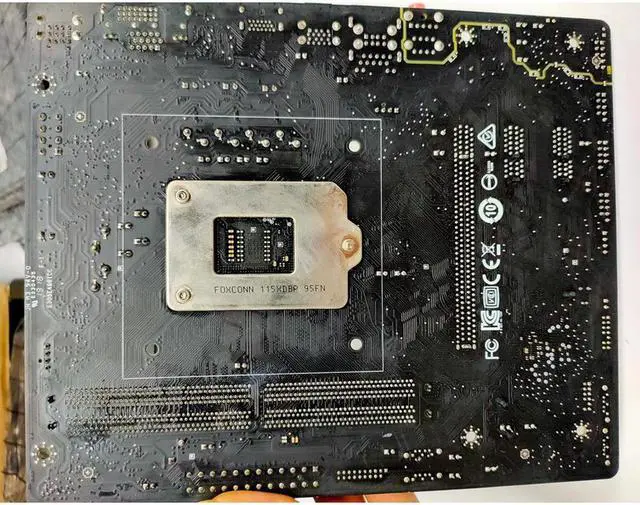

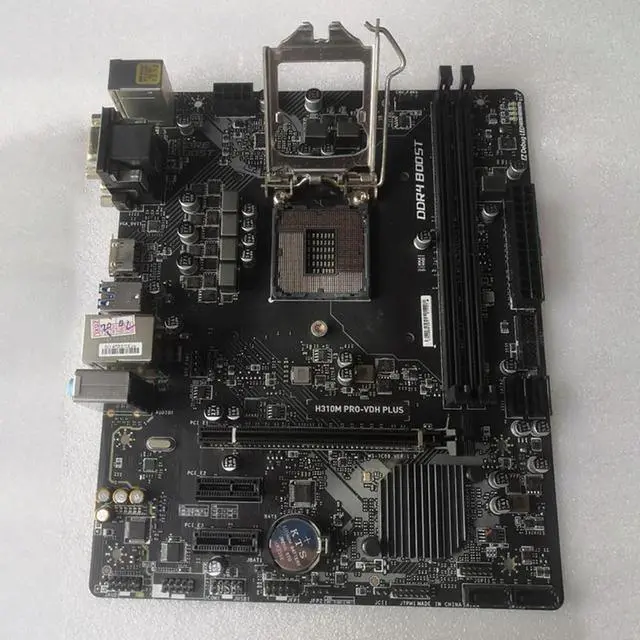

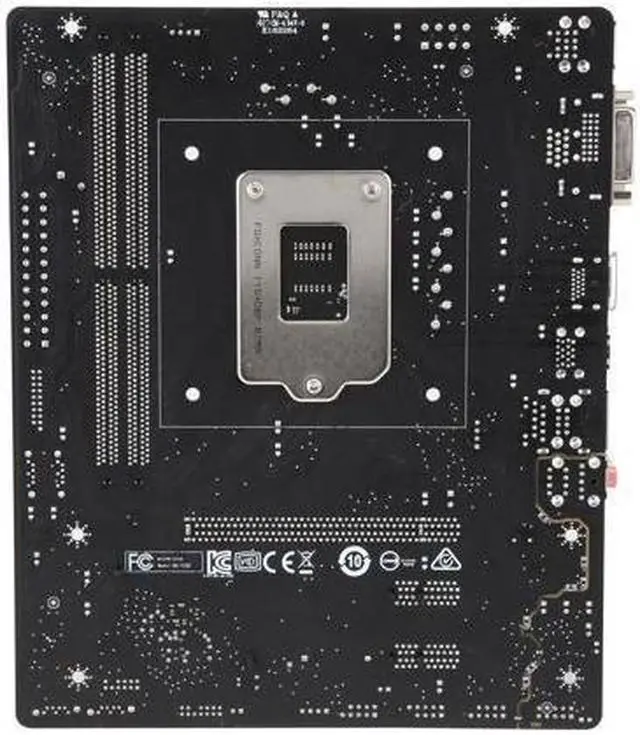

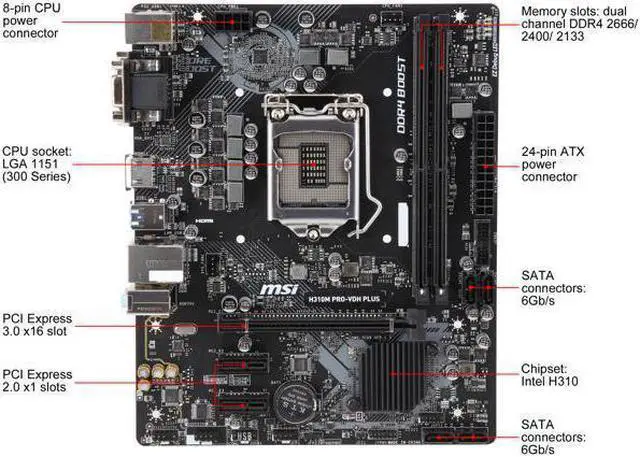

MSI H310M PRO-VDH PLUS MATX Motherboard DVI HDMI
Learn more about the MSI H310M PRO-VDH PLUS
Model
Brand
MSI
Series
PRO
Model
H310M PRO-VDH PLUS
Part Number
H310M PRO-VDH PLUS
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Core i7 / i5 / i3 (8th Gen, LGA1151)
Chipsets
Chipset
Intel H310
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 2666
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x16
1 x PCI Express x16
PCI Express x1
2 x PCI Express x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
1Gbps

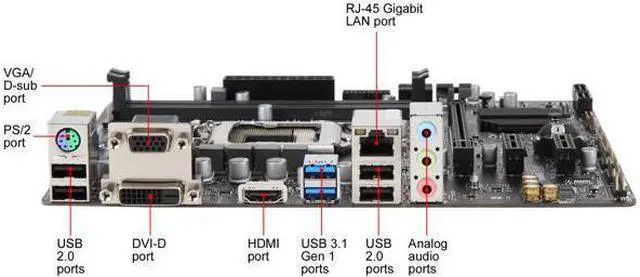

Rear Panel Ports
HDMI
1 x HDMI
USB 3.1
2 x USB 3.1
USB 1.1/2.0
4 x USB 2.0
Internal I/O Connectors
Onboard USB
2 x USB 3.1 + 2 x USB 2.0
Other Connectors
1 x Clear CMOS jumper2 x Front panel connectors1 x Serial port connector1 x TPM module connector1 x Chassis Intrusion connector1 x Front panel audio connector1 x 4-pin CPU fan connector1 x 4-pin system fan connector
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
8.9" x 7.3"
Power Pin
24 Pin
Features
Features
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.Supports DDR4 Memory, up to 2666 MHz.Audio Boost: Reward your ears with studio grade sound quality.EZ Debug LED: Easiest way to troubleshoot.X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Additional Information
First Listed on Newegg
June 02, 2025
