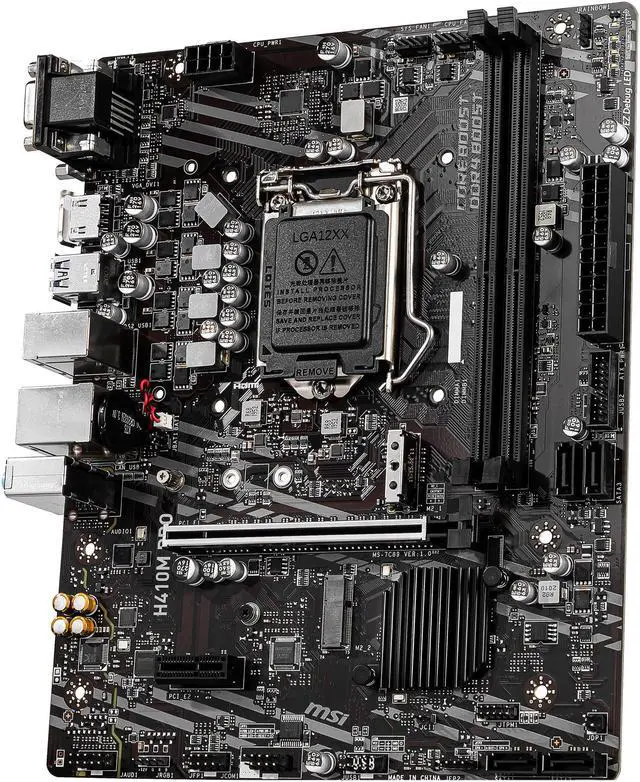

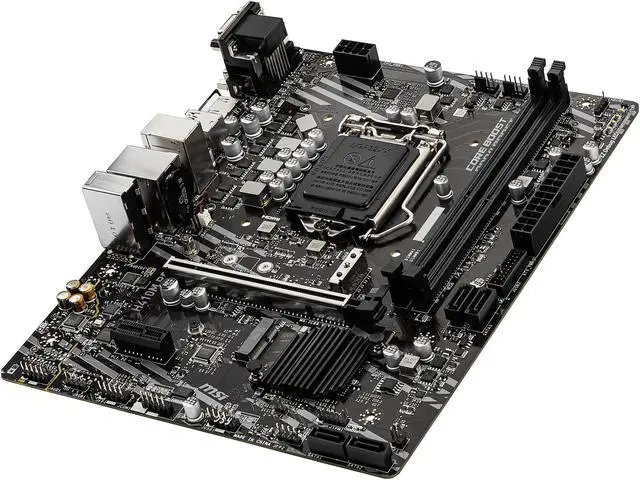

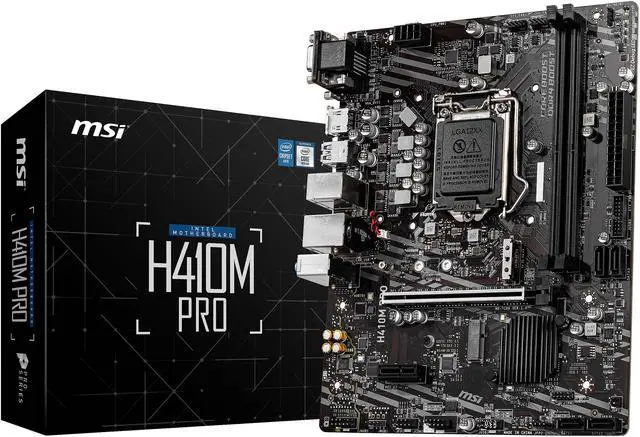

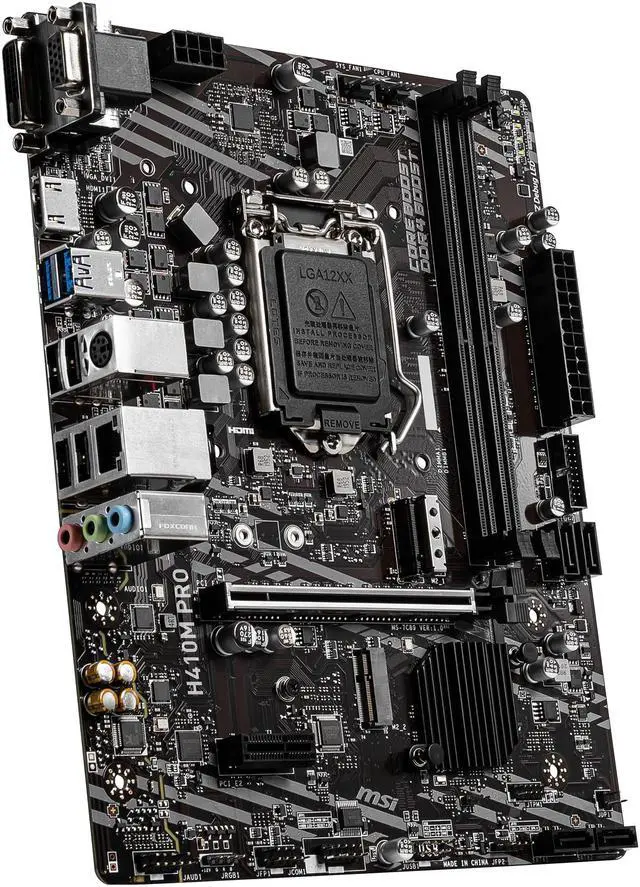

MSI PRO H410M PRO LGA 1200 Intel H410 Micro ATX Intel Motherboard
Used - Very Good Product Type
- Intel H410
- Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
- Intel Core i7/i9
- Supports up to DDR4 2933 MHz
- Intel Core i5 and below
- Supports up to DDR4 2666 MHz
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI H410M PRO
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | H410M PRO |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket1 2 1 Please go to www.intel.com for more compatibility information. 2 Onboard graphics output are disabled when using F SKU processors. |
| Chipset | Intel H410 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz Maximum shared memory is 1GB |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Intel Core i7/i9 Supports up to DDR4 2933 MHz Intel Core i5 and below Supports up to DDR4 2666 MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 slot (From PCH) |
| Other Slots | 1 x M.2 slot with E key for WiFi module only |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

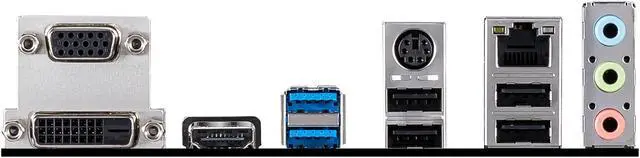

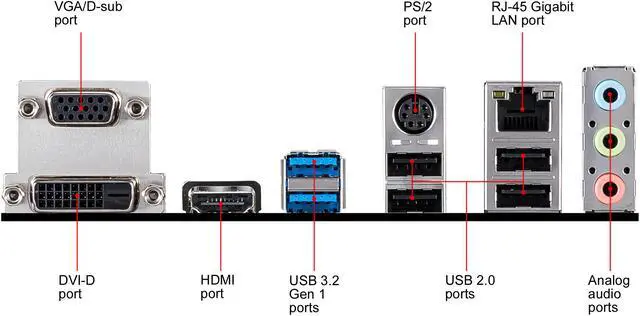

| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.2 Gen 1 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 4 x EZ Debug LED |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |

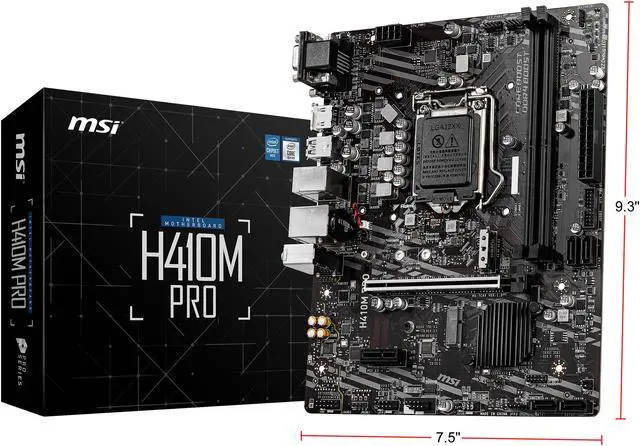

| Dimensions (W x L) | 9.3" x 7.5" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 2933(Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
| First Listed on Newegg | November 07, 2025 |
|---|
