will this work with a fx 6300 series?

I assume your asking about: http://www.newegg.com/Product/Product.aspx?Item=N82E16819113286 That is an AMD processor. This motherboard is for Intel

New to building a computer. This does not have Sata 6 ports? So... I need to stay away from those hardrives with Sata 6?

All six on-board SATA ports are 6 Gb/sec. Also there is built-in RAID!

$74^.99

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by TRREUSE GROUP

4.5 (92 seller ratings)

Shipped by TRREUSE GROUP

Best Sellers

ProTek

Top Rated

4.4 (312 total ratings)

$74^.99
+ FREE SHIPPING

Meet Your Seller

TRREUSE GROUP

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

H61M-E33/W8 CPU Compatibility

H61M-E33/W8 Memory Compatibility

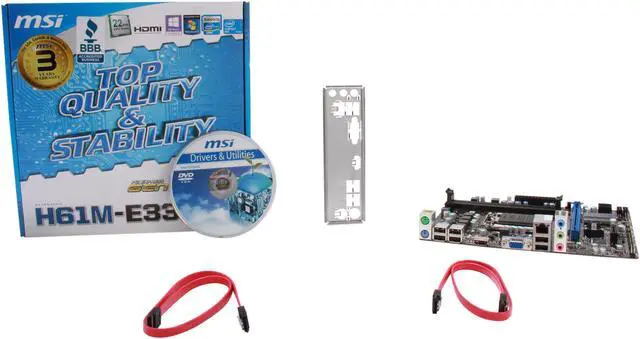

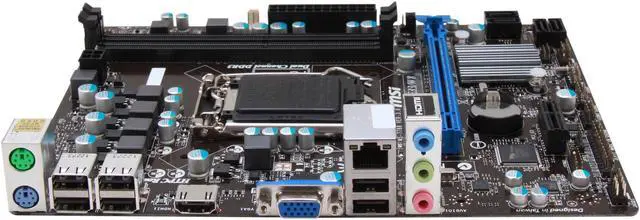

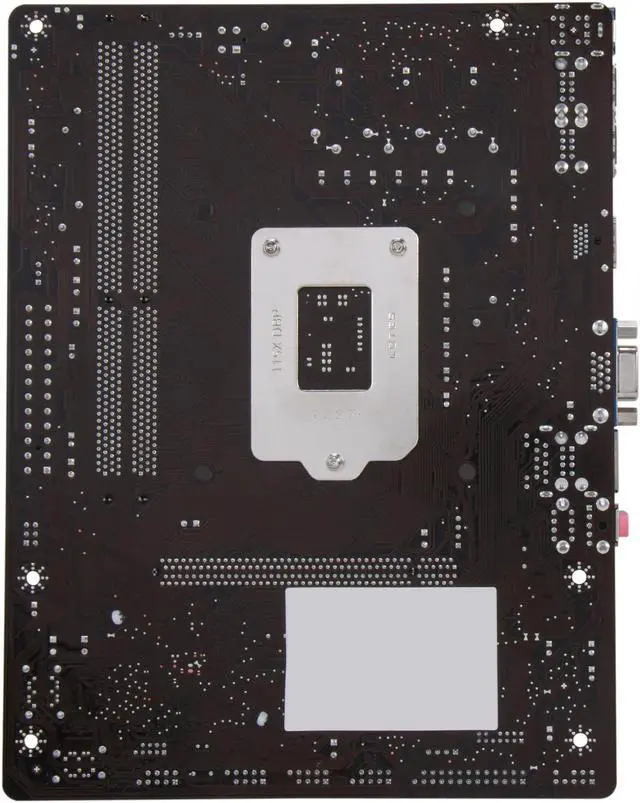

Main image of MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 2 of 5 - MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 3 of 5 - MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 4 of 5 - MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 5 of 5 - MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Shop All MSI Products | Visit TRREUSE GROUP Store

MSI H61M-E33/W8 LGA 1155 Intel H61 HDMI Micro ATX Intel Motherboard with UEFI BIOS

Used - Very Good

Good Condition. Item has been tested and visually inspected for defects. Only items pictured are included. Please see listing pictures. If a part is not pictured, then it is not included in the sale.

Intel H61
Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
DDR3 2400(OC)/2200(OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel® H61 (G3) Chipset Based

OC Genie II: Auto OC to boost performance in 1 sec
ClickBIOS Concept: Easy-to-use UEFI BIOS interface
Support VGA & HDMI output
IGP Supports DirectX 11, Shader Model 5.0, OCL 1.1 and OpenGL 3.1

Model
Brand	MSI
Model	H61M-E33/W8

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)

Chipsets
Chipset	Intel H61

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1066/ 1333/ 1400/ 1600/ 1800/ 2000/ 2200/2400
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	1 x PCI Express x1

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub
HDMI	1 x HDMI
USB 1.1/2.0	6 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Other Connectors	ATX 24-Pin power connector 4-pin ATX 12V power connector CPU x 1 / System x 2 FAN connectors Front panel audio connector Front panel connector 1 x chasis intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector(optional) 1 x Parallel port connector(optional) 1 x TPM connector (optional)

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 6.81"
Power Pin	24 Pin

Features
Features	OC Genie II: Auto OC to boost performance in 1 sec ClickBIOS Concept: Easy-to-use UEFI BIOS interface Support VGA & HDMI output IGP Supports DirectX 11, Shader Model 5.0, OCL 1.1 and OpenGL 3.1 *The DirectX 11 effect is only supported with the 3rd Gen Intel processors for LGA 1155 socket
