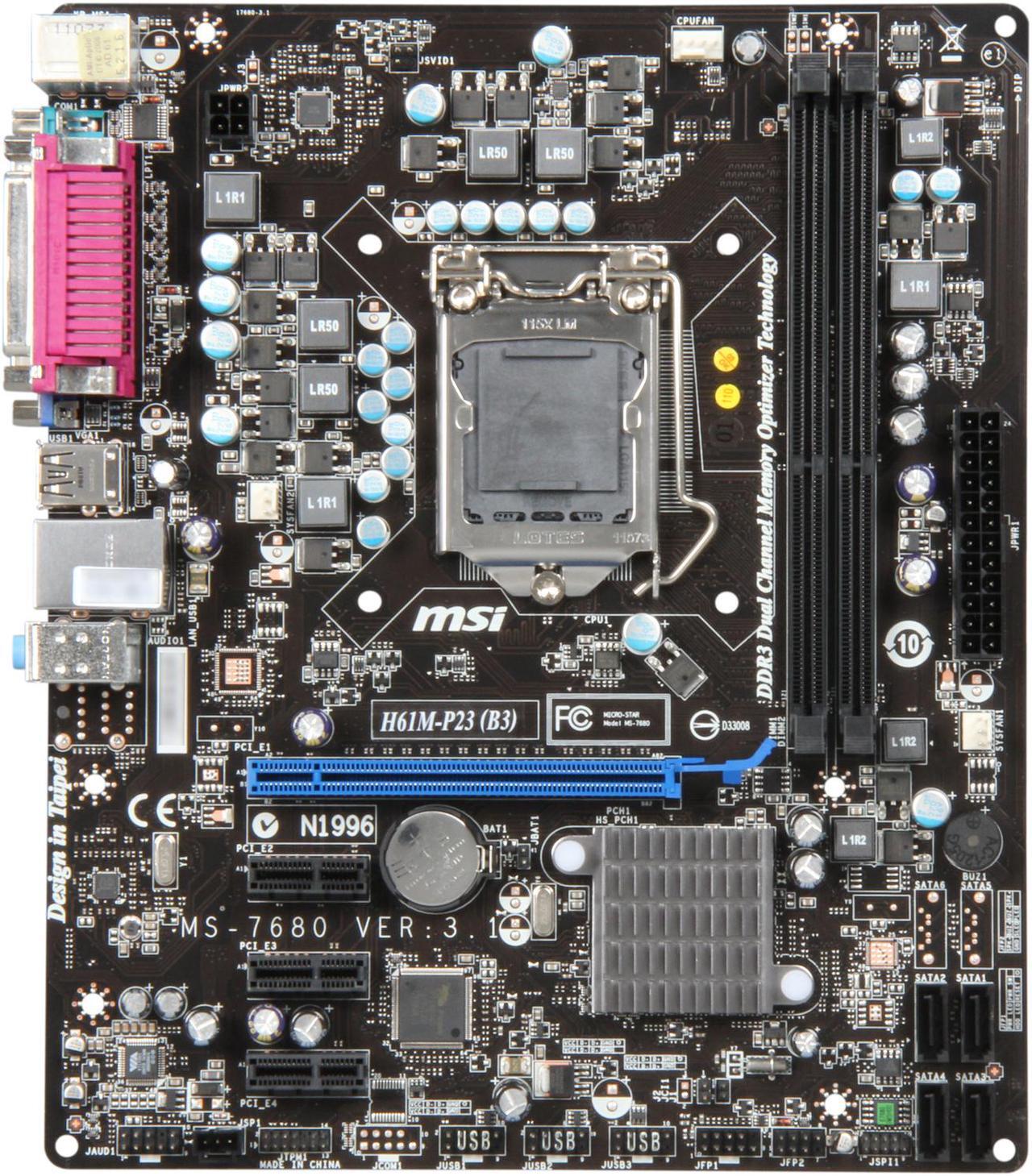

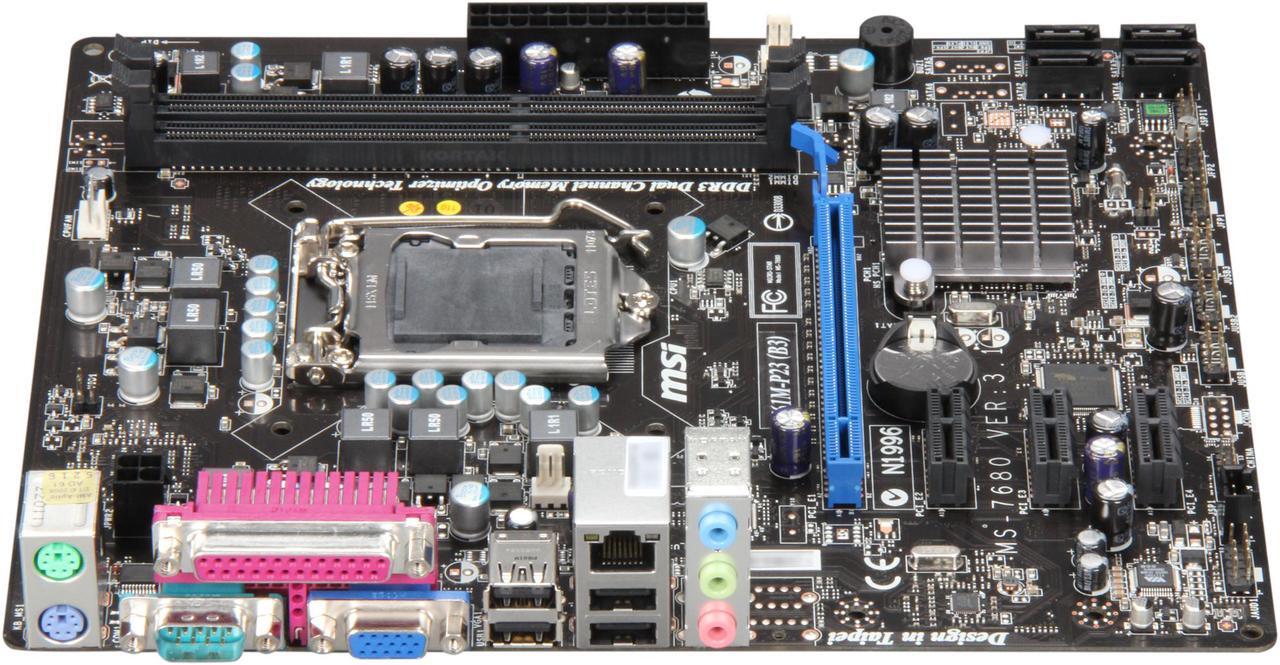

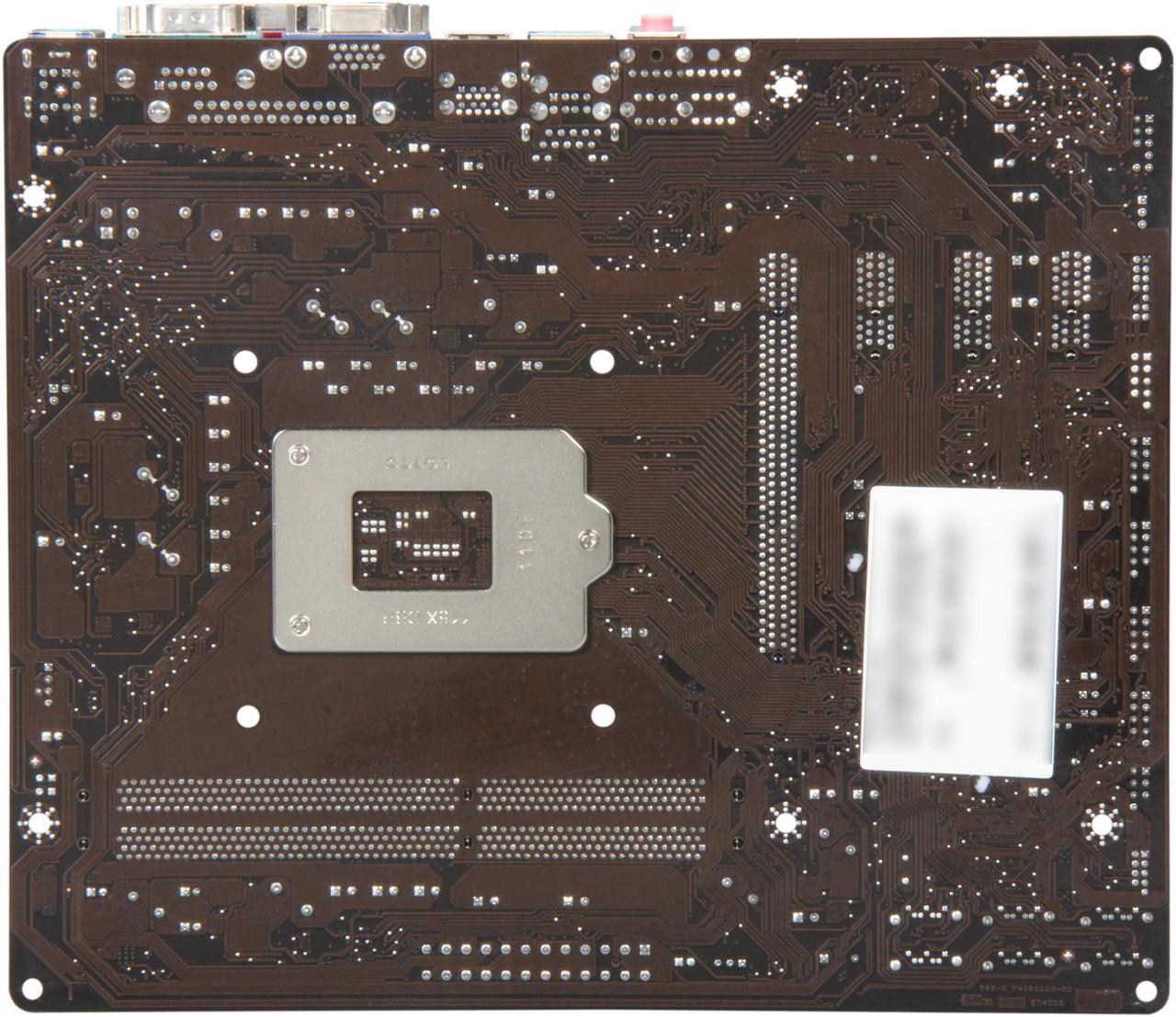

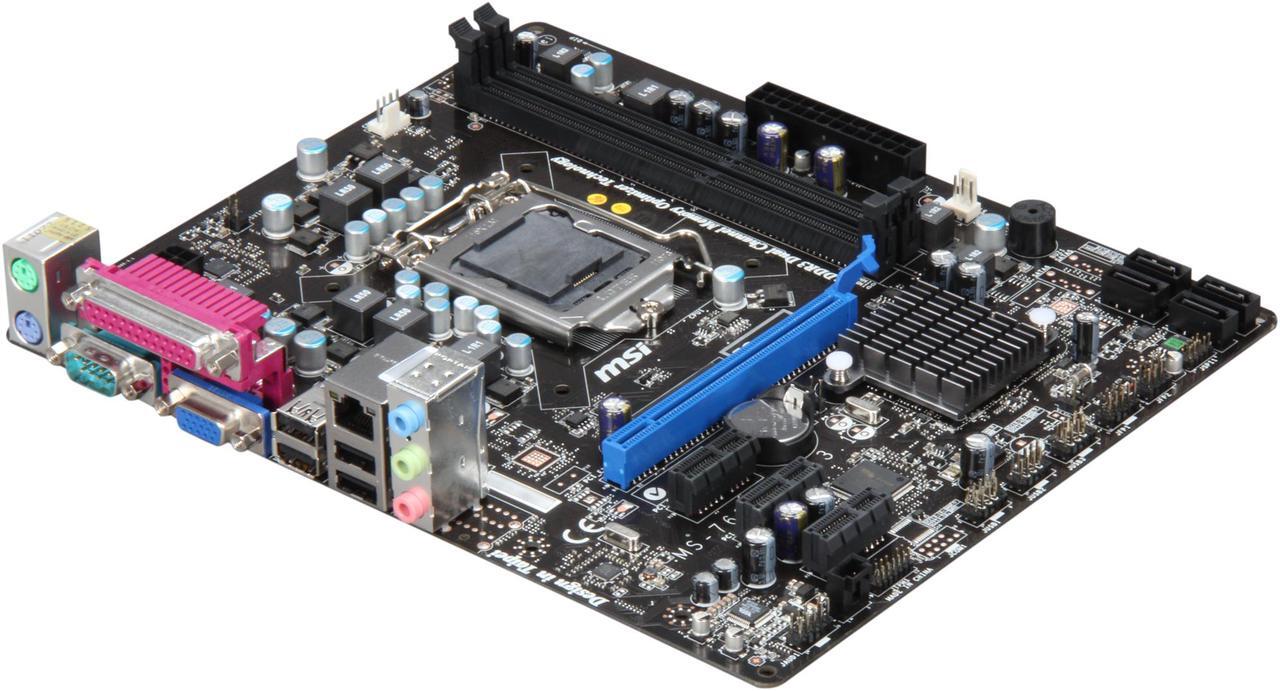

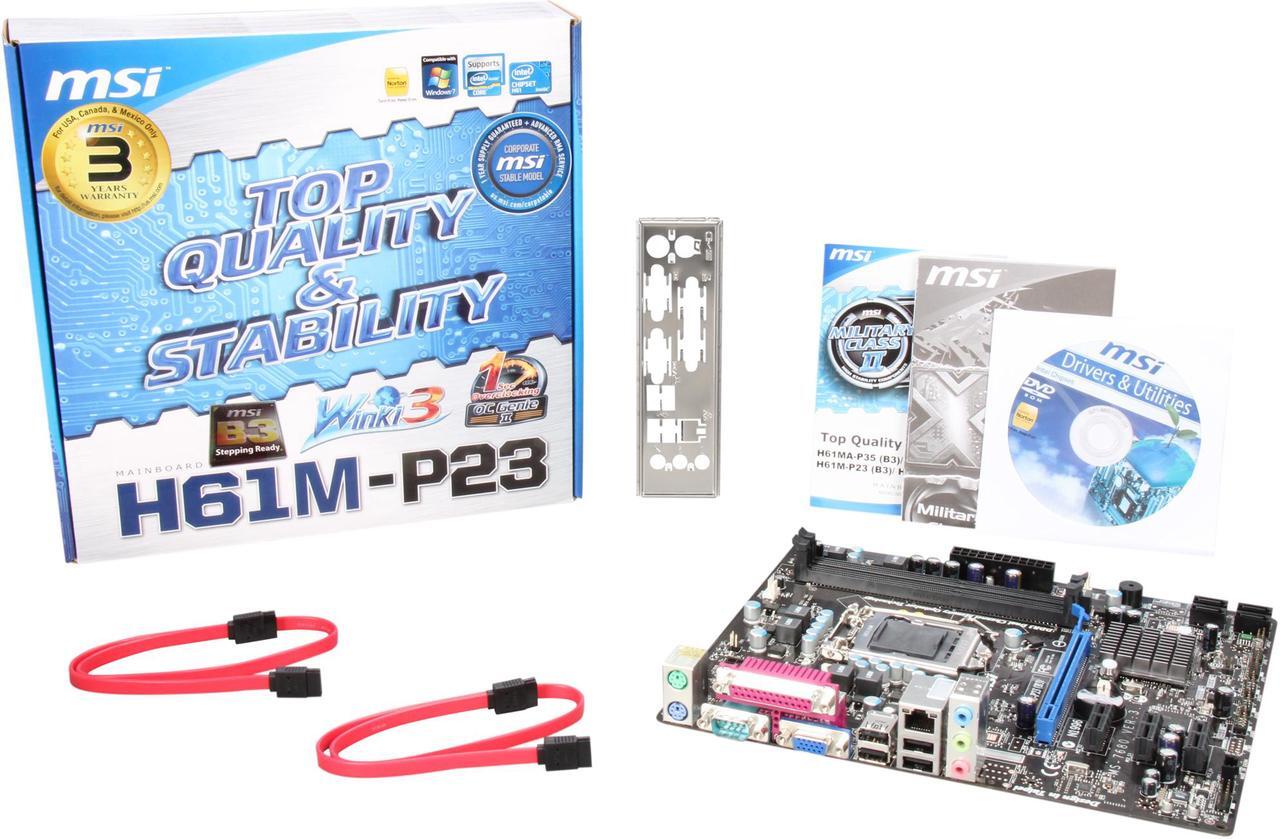

    MSI H61M-P23 (B3) LGA 1155 Intel H61 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel H61
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
    • DDR3 1333
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the MSI H61M-P23 (B3)

    Model
    Brand MSI
    Model H61M-P23 (B3)
    Supported CPU
    CPU Socket Type LGA 1155
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
    Chipsets
    Chipset Intel H61
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 1333
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x1 3 x PCI Express x1
    Onboard Audio
    Audio Chipset VIA VT1708S
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Atheros AR8151
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
    PS/2 2
    COM 1
    LPT 1
    Video Ports D-Sub
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 8.07"
    Power Pin 24 Pin
    Features
    Features OC Genie II: Auto OC to boost performance in 1 sec

    ClickBIOS Concept: Easy-to-use UEFI BIOS interface

    IGP Supports DirectX 10.1, Shader Model 4.1 and OpenGL 3.0

    Support DDR3 1066/1333
    Additional Information
    Date First Available April 01, 2025
