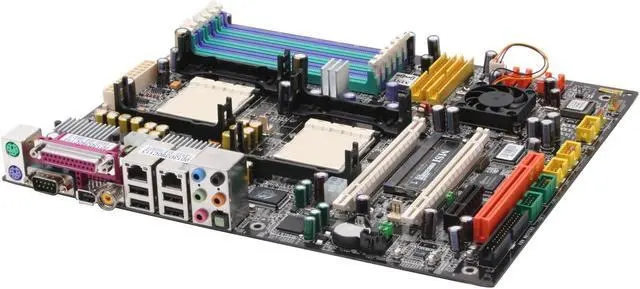

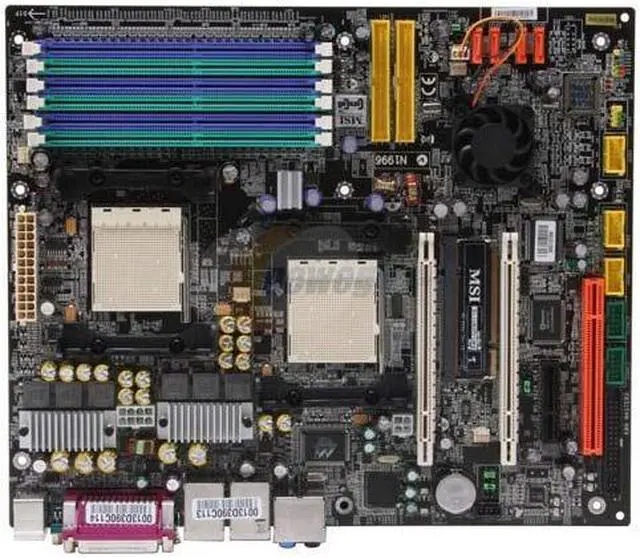

MSI K8N Master2-FAR ATX Server Motherboard Dual 940 NVIDIA nForce4 Professional
- Dual 940
- NVIDIA nForce4 Professional
- 6 x 184Pin
Specs
Reviews (16)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI K8N Master2-FAR
| Brand | MSI |
|---|---|
| Model | K8N Master2-FAR |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| North Bridge | NVIDIA nForce4 Professional |
|---|
| Number of DDR Slots | 6 x 184Pin |
|---|---|
| DDR Standard | DDR266/333/400 |
| Maximum Memory Supported | 12GB |
| ECC Supported | ChipKill ECC allows continuous correction of 4-bit errors in a failed x 4 memory device |
| Registered | Yes |
| PCI Express x16 | Two PCI Express x16 slots for graphics cards (SLI mode supported) 2nd PCI Express x16 slot (PCI_E3) is compatible with PCI Express x 1 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Slots | 1 x PCI Slot |
| SATA | 4 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0 or 1, 0+1, JBOD supported RAID function available for PATA133+SATA H/D or 4 SATA H/D drives |
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E1111 PHY |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5788 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Onboard USB | 3 sockets support up to 6 USB2.0 ports |
|---|---|
| Onboard 1394 | 2 x 1394a |
| Features | Note: Windows XP Professional and Windows Server 2003 Memory Support. The maximum amount of memory that can be supported on Windows XP Professional and Windows Server 2003 is also 4 GB. However, Windows Server 2003, Enterprise Edition supports 32 GB of physical RAM and Windows Server 2003, Datacenter Edition supports 64 GB of physical RAM using the PAE feature . For other operating systems, please check with your OS vendor for maximum memory support |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | October 11, 2005 |
|---|
