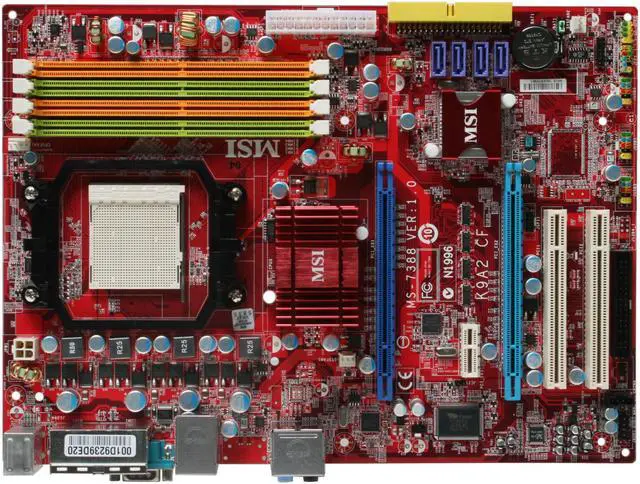

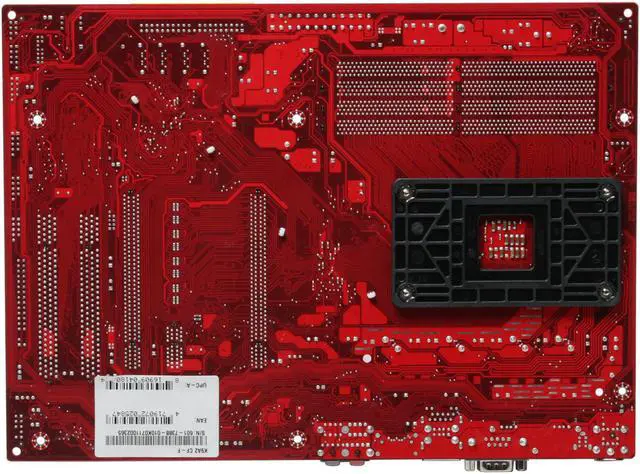

MSI K9A2 CF-F AM2+/AM2 AMD 790X ATX AMD Motherboard
- AMD 790X
- Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
- DDR2 1066
Specs
Reviews (89)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI K9A2 CF-F
| Brand | MSI |
|---|---|
| Model | K9A2 CF-F |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| Chipset | AMD 790X |
|---|---|
| South Bridge | ATI SB600 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (Dual CrossFire 8X+8X) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1 |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

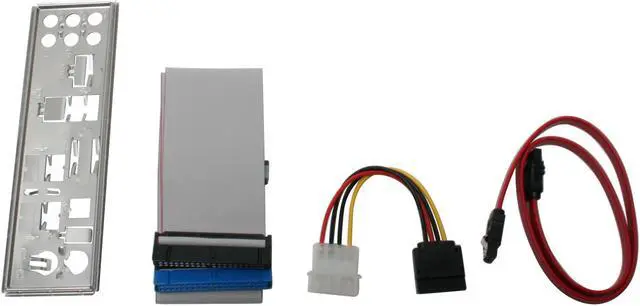

| Package Contents | K9A2 CF-F Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | December 10, 2007 |
|---|
