MSI K9A2 Platinum AM2+/AM2 AMD 790FX ATX AMD Motherboard

(683) Write a Review
  • AMD 790FX
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (683)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI K9A2 Platinum

Model
Brand MSI
Model K9A2 Platinum
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 2600 MHz
Chipsets
Chipset AMD 790FX
South Bridge ATI SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 4 x PCI Express 2.0 x16
Slot configurations: Dual CrossFire (16X+16X), Triple CrossFire (16X+8X+8X), Quad CrossFire (8X+8X+8X+8X)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Additional RAID Controller Promise T3
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 1Gbps

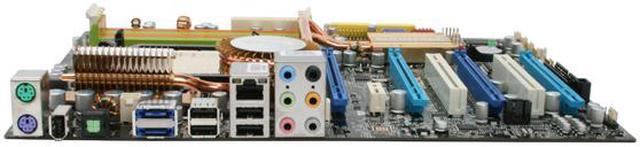

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.8"
Power Pin 24 Pin
Features
Features Dual Core Center monitors hardware
MSI Live Update keeps the performance up to date
AMD Cool'n'Quiet technology provides keeps it cool

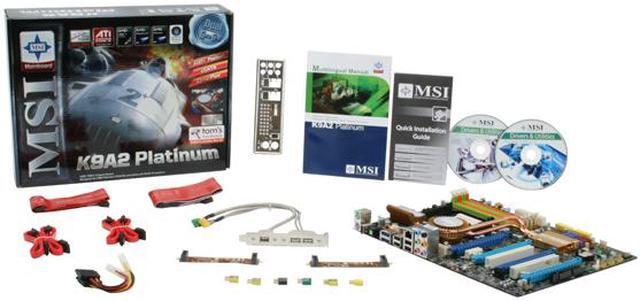

Packaging
Package Contents K9A2 Platinum
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
4-pin to SATA Power Cable
2 x CrossFire Bridge
IEEE 1394 Bracket
USB Bracket
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available November 16, 2007
