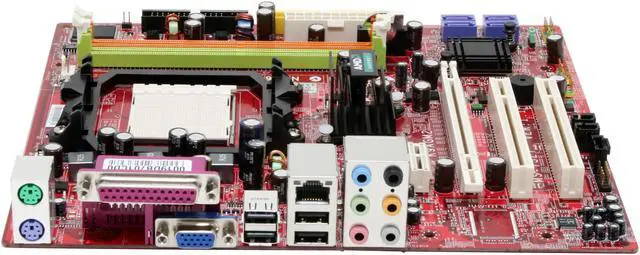

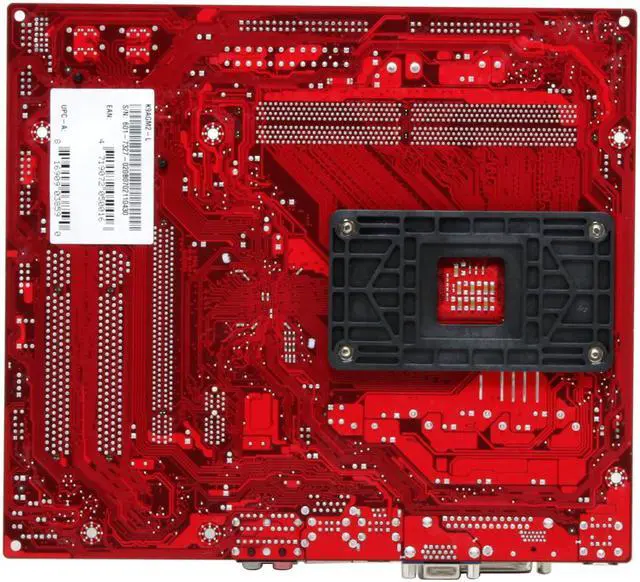

MSI K9AGM2-L AM2 AMD 690V Micro ATX AMD Motherboard

(29) Write a Review

AMD 690V
Athlon 64 X2 / Athlon 64 / Sempron
DDR2 800

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (29)

Any questions? Our AI beta will help you find out quickly.

Try me now

The K9AGM2-L Desktop Board is based on ATI 690V & SB600 chipsets for optimal system efficiency. Designed to fit the advanced AMD Athlon 64 X2/ Athlon 64 processor, the K9AGM2-L delivers a high performance and professional desktop platform solution.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

CPU Socket Type	AM2
CPU Type	Athlon 64 X2 / Athlon 64 / Sempron
FSB	1000 MHz

Chipset	AMD 690V
South Bridge	ATI SB600

Number of Memory Slots	2x240pin
Memory Standard	DDR2 800
Maximum Memory Supported	4GB
Channel Supported	Dual Channel

PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/0+1

MSI K9AGM2-L AM2 AMD 690V Micro ATX AMD Motherboard

Learn more about the MSI K9AGM2-L

Customer Reviews of the MSI K9AGM2-L

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2	2
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.2"
Power Pin	24 Pin

Model
Brand	MSI
Model	K9AGM2-L

Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8101E
Max LAN Speed	100Mbps
