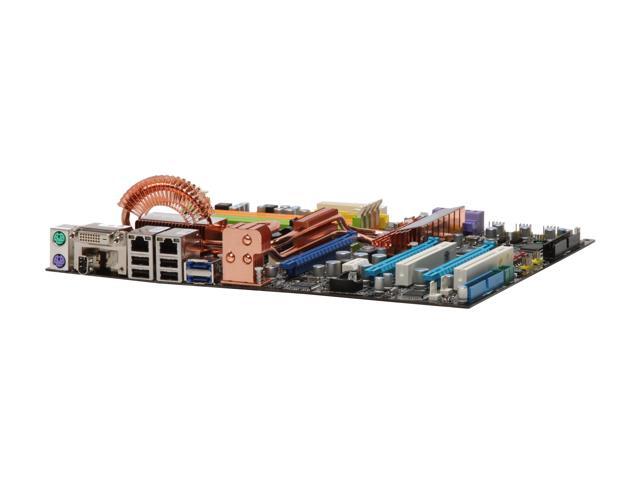

MSI K9N2 Diamond AM2+/AM2 NVIDIA nForce 780a SLI ATX AMD Motherboard

OUT OF STOCK.
  • NVIDIA nForce 780a SLI
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066
Specs
Reviews

Learn more about the MSI K9N2 Diamond

Model
Brand MSI
Model K9N2 Diamond
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 2600 MHz
Chipsets
Chipset NVIDIA nForce 780a SLI
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR2 1066
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express 2.0 x16 slots
Supports 3-way SLI, the three PCIE x 16 lanes will be configured as x16/ x8/ x8
If there are only two graphic cards installed, please use the mazarine slot and the first blue slot, the three PCIE x 16 lanes will be configured as x16/ x16/ x0
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID NV RAID 0/1/0+1/5 JBOD
Onboard Video
Onboard Video Chipset NVIDIA GeForce 8 series
Onboard Audio
Audio Chipset Creative SB X-Fi Xtreme H/W Audio Card (MS-4132)
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8211BL
Second LAN Chipset Realtek 8111C
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports DVI
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.8"
Power Pin 24 Pin
Packaging

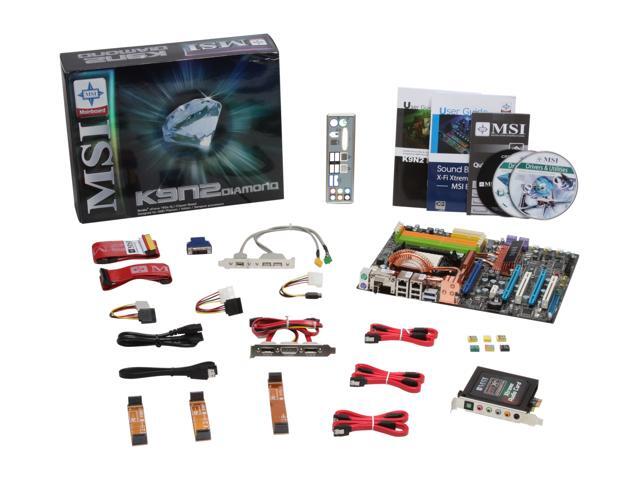

Package Contents K9N2 Diamond
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
eSATA Cable & Power Cord
eSATA Bracket
SLI Bridge
Audio Card
IEEE 1394 & USB Bracket
VGA Adapter
Additional Information
Date First Available May 23, 2008
