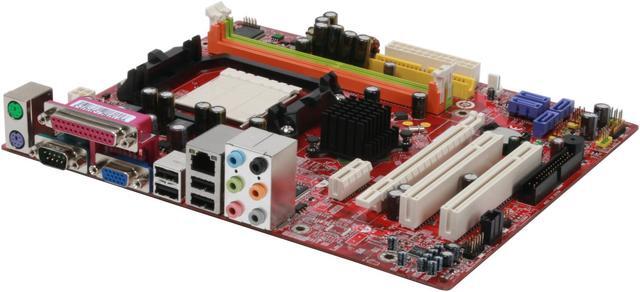

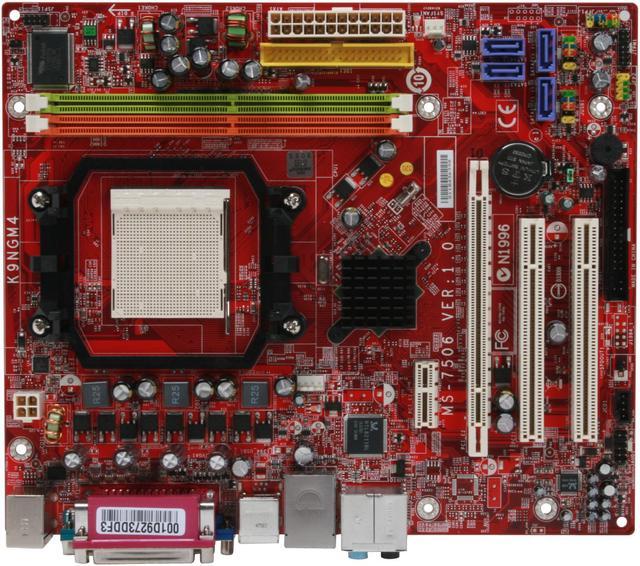

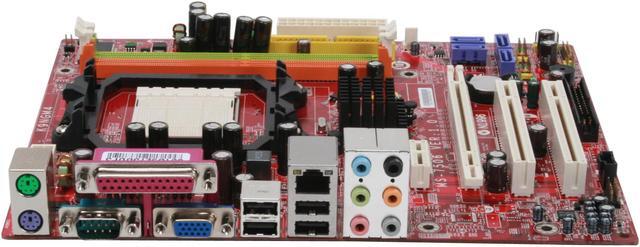

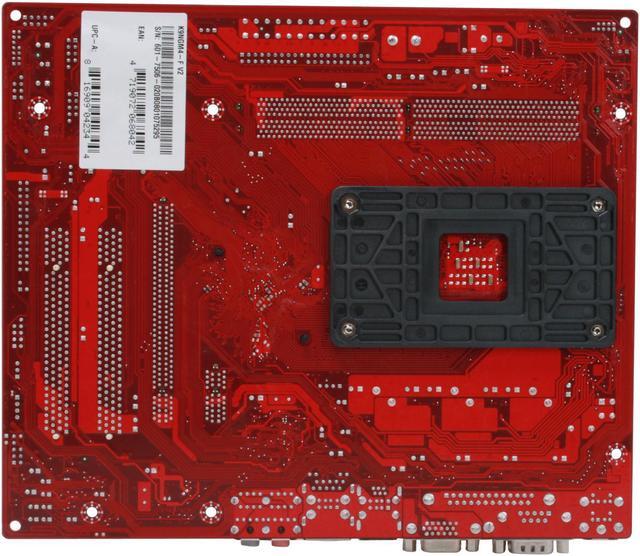

MSI K9NGM4-F V.2 AM2+/AM2 NVIDIA GeForce 7025 Micro ATX AMD Motherboard

  • NVIDIA GeForce 7025
  • Phenom / Athlon 64 X2 / Athlon 64 / Sempron
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (37)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the MSI K9NGM4-F V.2

Model
Brand MSI
Model K9NGM4-F V.2
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom / Athlon 64 X2 / Athlon 64 / Sempron
FSB 1000 MHz
Chipsets
Chipset NVIDIA GeForce 7025
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID NV RAID 0/1/0+1/5 JBOD
Onboard Video
Onboard Video Chipset NVIDIA GeForce 7025
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8211B
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.1"
Power Pin 24 Pin
Packaging

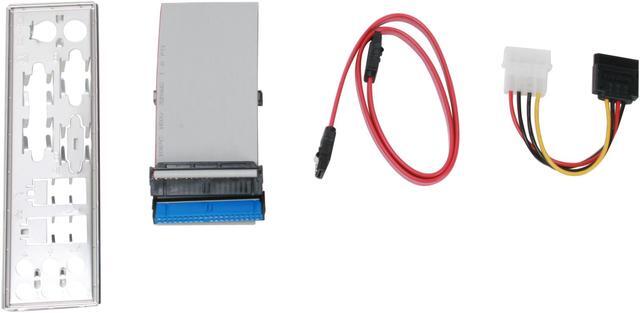

Package Contents K9NGM4-F V.2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
4-pin to SATA Power Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available February 22, 2008
