$119.00
Ships from Hong Kong.
Meet Your Seller

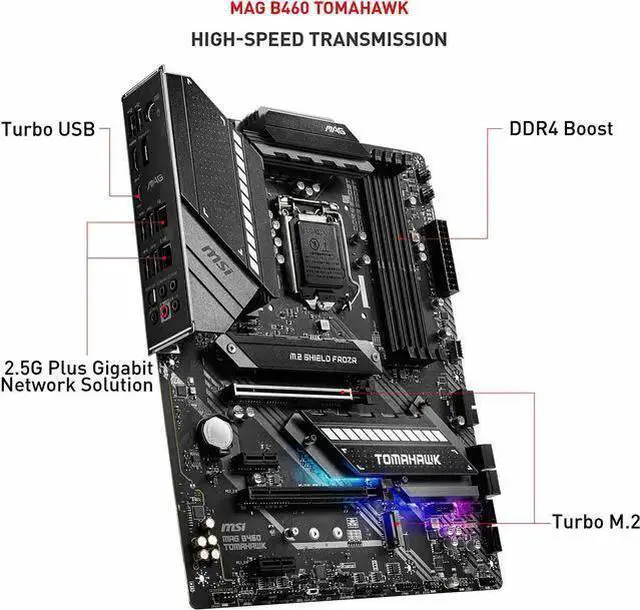

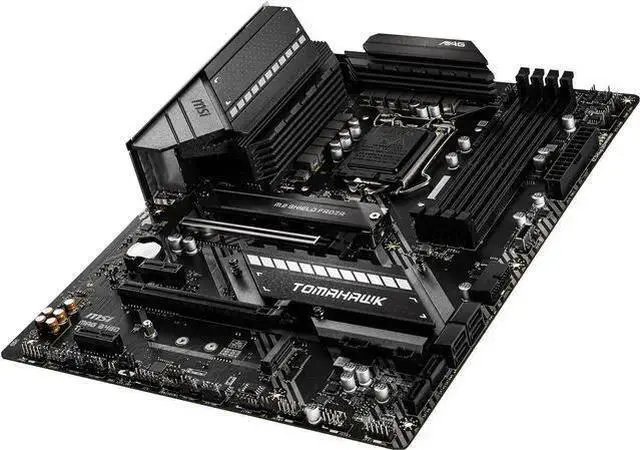

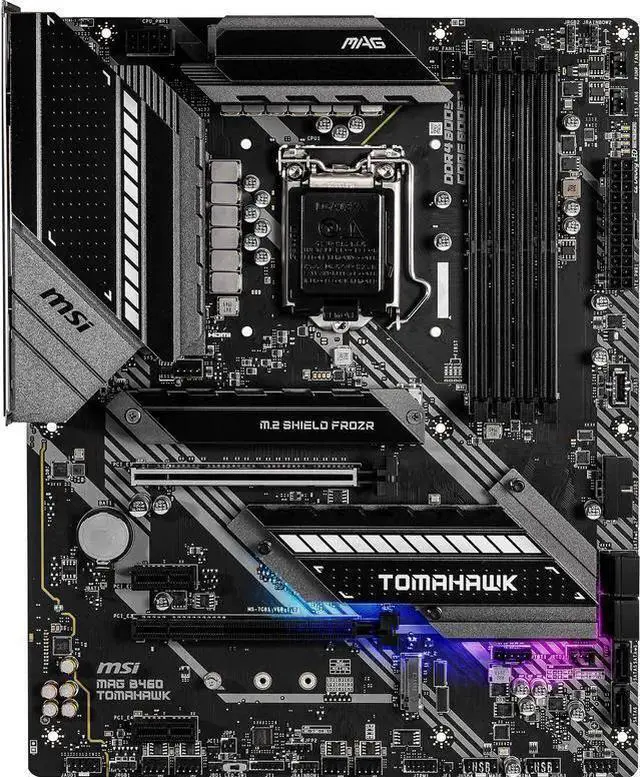

MSI MAG B460 TOMAHAWK LGA 1200 ATX Intel Motherboard
REFURBISHED Product Type
- Intel B460
- Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Intel Core i7/i9
- Supports up to DDR4 2933 MHz
- Intel Core i5 (Below)
- Supports up to DDR4 2666 MHz
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MAG B460 TOMAHAWK
| Brand | MSI |
|---|---|
| Model | MAG B460 TOMAHAWK |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2 1 Please go to intel.com for compatibility information. 2 Onboard graphics output are disabled when using the F SKU processors. |
| Chipset | Intel B460 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Intel Core i7/i9 Supports up to DDR4 2933 MHz Intel Core i5 (Below) Supports up to DDR4 2666 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode 1 x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode * * PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots (From PCH) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports * * SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|---|---|
| M.2 | 2 x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices 2 1 SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. 2 BPCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. |
| Intel Optane Ready | Intel Optane Memory Ready 3 3 Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 2.5Gbps + 1Gbps |

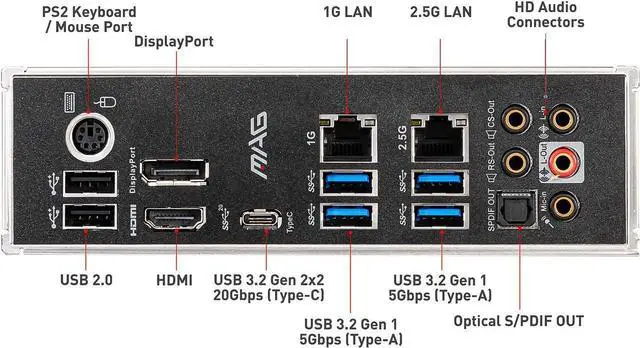

| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |

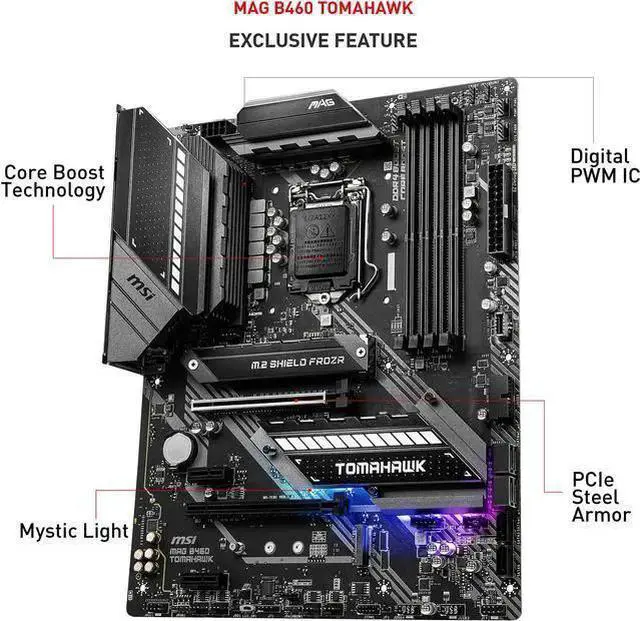

| Features | Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 2933MHz (Max.) Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN deliver the best online experience without lag Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire |
|---|
| First Listed on Newegg | December 27, 2025 |
|---|
