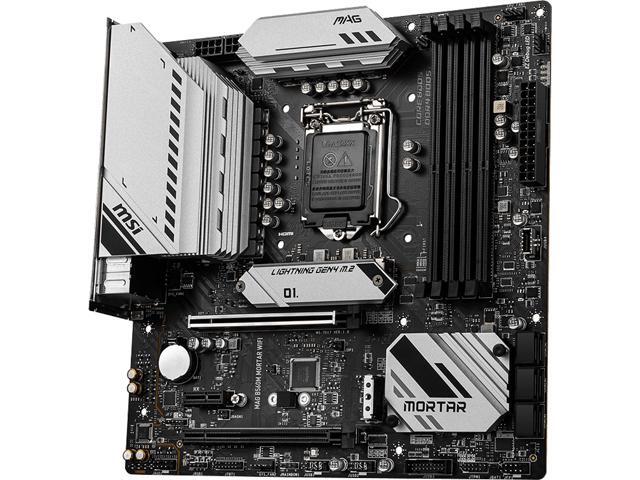

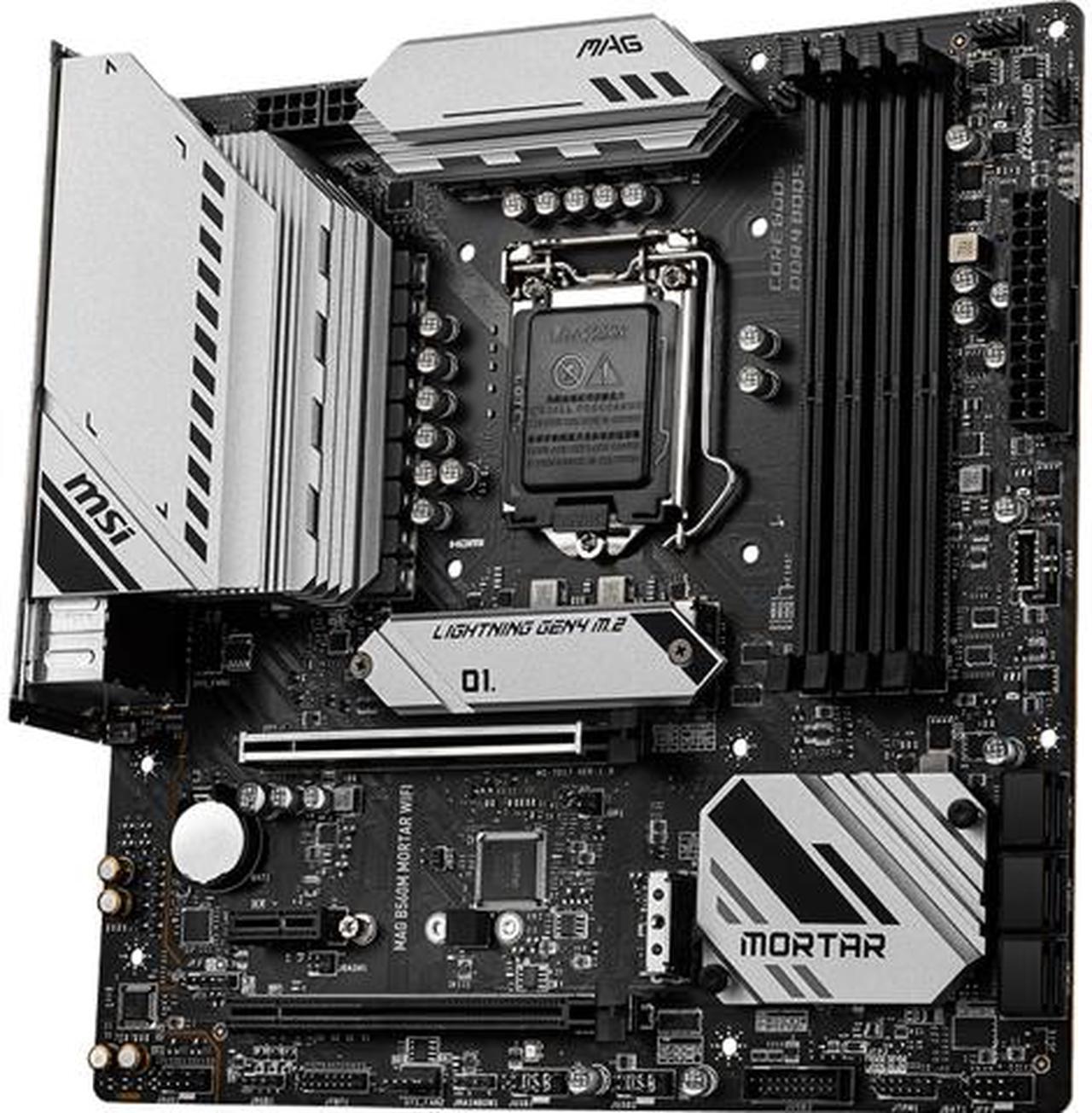

MSI MAG B560M MORTAR WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard
- Intel B560
- Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5066+ MHz
- 1DPC 2R Max speed up to 4600+ MHz
- 2DPC 1R Max speed up to 4266+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
+
+
Specs
Reviews
Learn more about the MSI MAG B560M MORTAR WIFI
| Brand | MSI |
|---|---|
| Model | MAG B560M MORTAR WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz* ** 1 x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz* ** *Available only on processors featuring integrated graphics **Graphics specifications may vary depending on the CPU installed. MULTI-GPU: Supports 2-way AMD CrossFire Technology |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 slot PCI_E2 (From B560 chipset) |
| Other Slots | Support x16/ x4 PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (From B560 chipset)* Support up to PCIe 3.0 * PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS. |
| Serial ATA (SATA) | 6x SATA 6Gb/s ports (from B560 chipset)* *SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|---|---|
| M.2 | 2 x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)* Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B560 chipset) Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready** Supports Intel Smart Response Technology for Intel Core processors *SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. **Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Audio Chipset | Realtek ALC897 Codec Supports S/PDIF output |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Realtek RTL8125B 2.5Gbps LAN controller |
|---|
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 1 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks / 1 x USB 3.2 Gen 2x2 Type-C |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Tuning Controller Connector 1 x TBT connector (Supports RTD3) |
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5066(OC) MHz Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology |
|---|
| Date First Available | September 03, 2024 |
|---|
