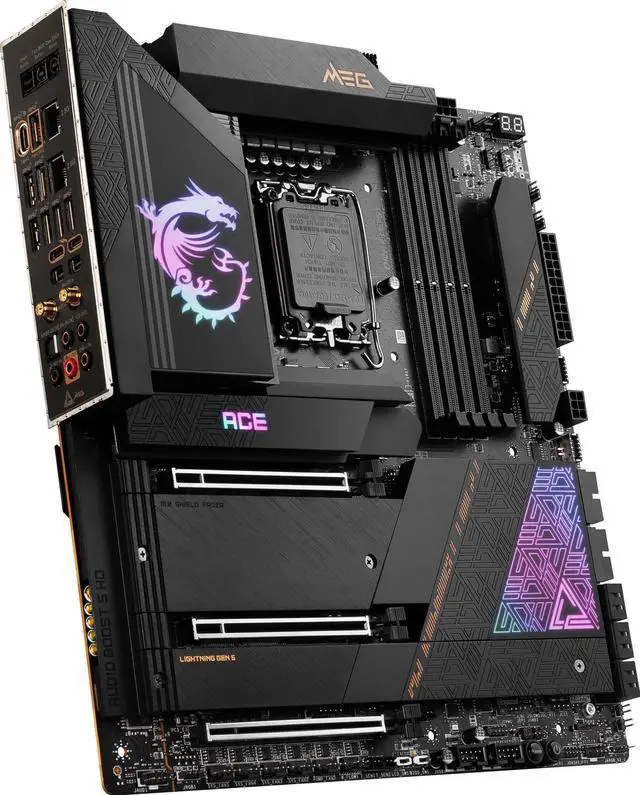

Main image of MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

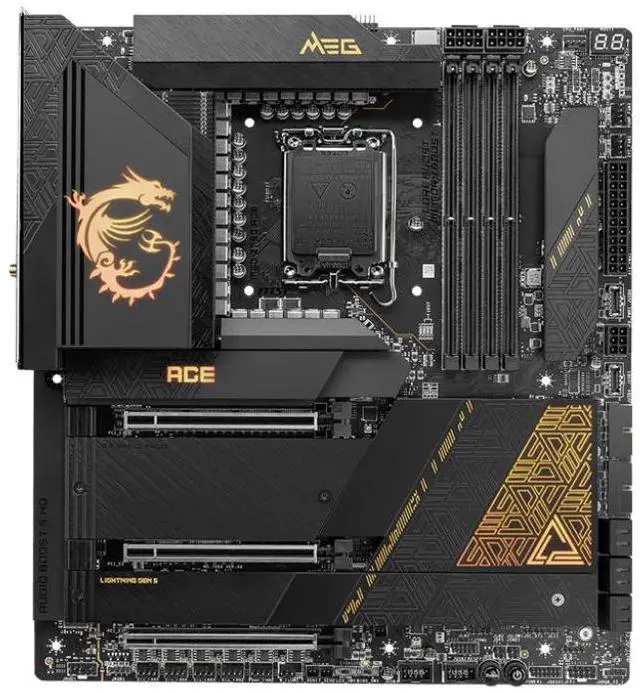

Alt view image 2 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 3 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 4 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 5 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 6 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 7 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 8 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Alt view image 9 of 9 - MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Shop All MSI Products | Visit Wupingshangmao Store

MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

REFURBISHED

Be the first to review this product...

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Supports Intel Core 14th, 13th, 12th Gen, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
Maximum 5xM.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster
Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
Supports Intel Core 14th, 13th, 12th Gen, Intel Pentium Gold, Celeron Processor and Intel Processor 300 (T) for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance
Maximum 5xM. 2
Connectors: Onboard quintuple M. 2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M. 2 SSDs safe while preventing throttling, making them run faster
Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by wupingshangmao Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports 1R 5600 MHz (by JEDEC & POR) - 1DPC 1R Max speed up to 7600+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6800+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory * Please refer to www.msi.com for more information on compatible memory

PCI Express 5.0 x16	2 x PCIe 5.0 x16 slots - Supports x16/x0, x8/x8 - PCI_E1 & PCI_E2 slots (From CPU) Supports AMD CrossFire Technology
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slots - supports up to PCIe 4.0 x4 - PCI_E3 slot (From Z790 Chipset)

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	2 x Key M (PCIe/SATA) + 3 x Key M (PCIe) + 1 x Key E (WiFi/BT) 5x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports up to SATA 6Gb/s - Supports 2260/ 2280 storage devices M2_4 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2280/22110 storage devices M2_5 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports up to SATA 6Gb/s - Supports 2260/ 2280 storage devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Audio Chipset	Realtek ALC4082 Codec + ES9280AQ PRO Combo DAC/HPA
Audio Channels	7.1 Channels

Best Sellers

Meet Your Seller

MSI MEG Z790 ACE LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Extended ATX Motherboard

Refurbished

Learn more about the MSI MEG Z790 ACE

Customer Reviews of the MSI MEG Z790 ACE

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E
Bluetooth	Bluetooth 5.2

Onboard USB	2 x USB 3.2 Gen 2 10Gbps Type-C ports (From Z790 chipset)* 2 x USB 3.2 Gen 1 5Gbps connectors (From Hub GL3523) - Support additional 4 USB 3.2 Gen 1 5Gbps ports 2 x USB 2.0 Type-A connectors (From Hub GL850G) - Supports additional 4 USB 2.0 ports * To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
Other Connectors	Fan Connectors 1 x 4-pin CPU fan connector 2 x 4-pin water-pump fan connectors 5 x 4-pin system fan connectors System Connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 3-pin Water Flow connector 1 x TPM module connector 1 x Tuning Controller connector Button 1 x Power button 1 x Reset button Jumpers 1 x Clear CMOS jumper 1 x Slow mode jumper 2 x Low temperature booting jumpers 1 x OC force enter BIOS jumper (Supports lower PCIe mode) LED Features 1 x EZ LED Control switch 1 x 4-pin RGB LED connector 3 x 3-pin ARGB Gen2 LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED

Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 10.9"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin PD power connector
