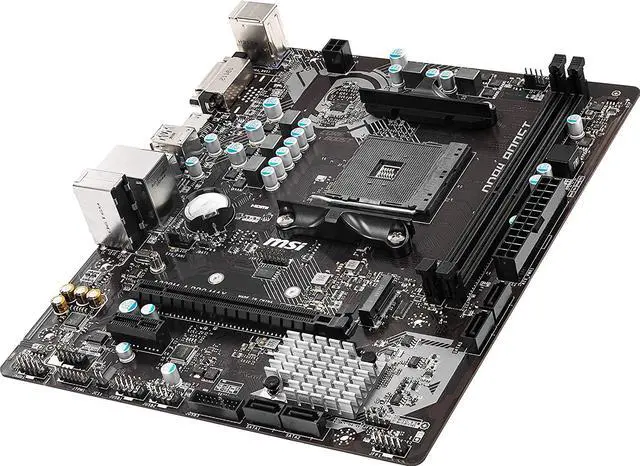

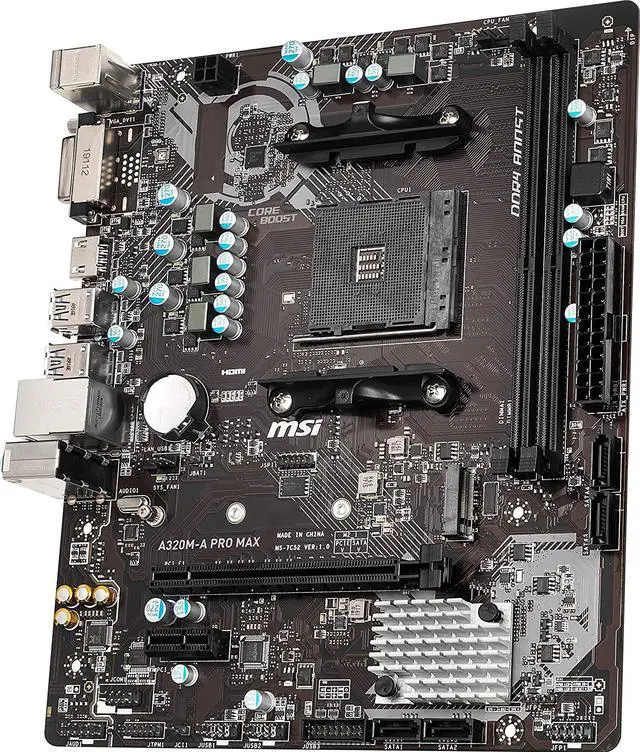

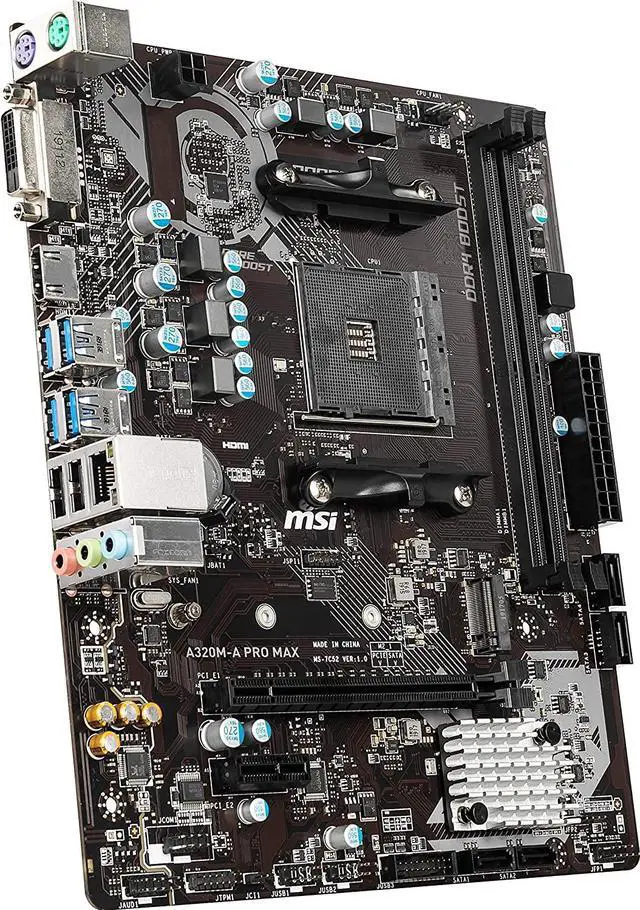

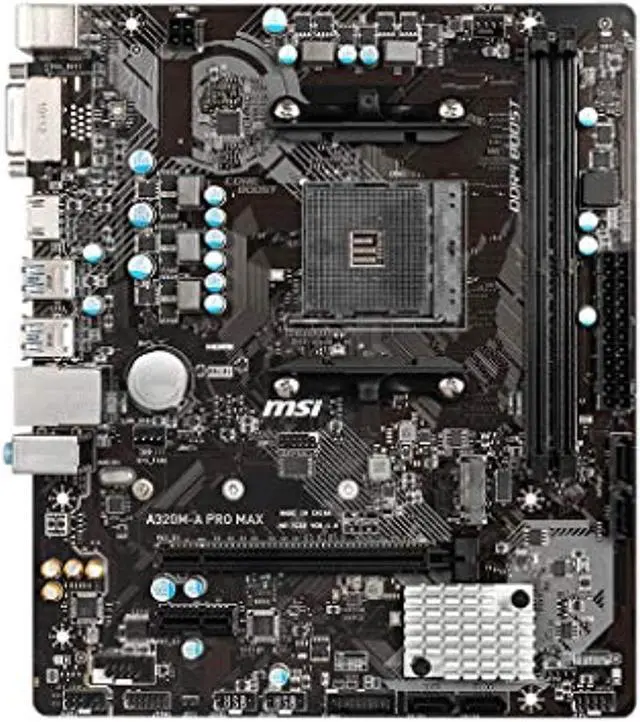

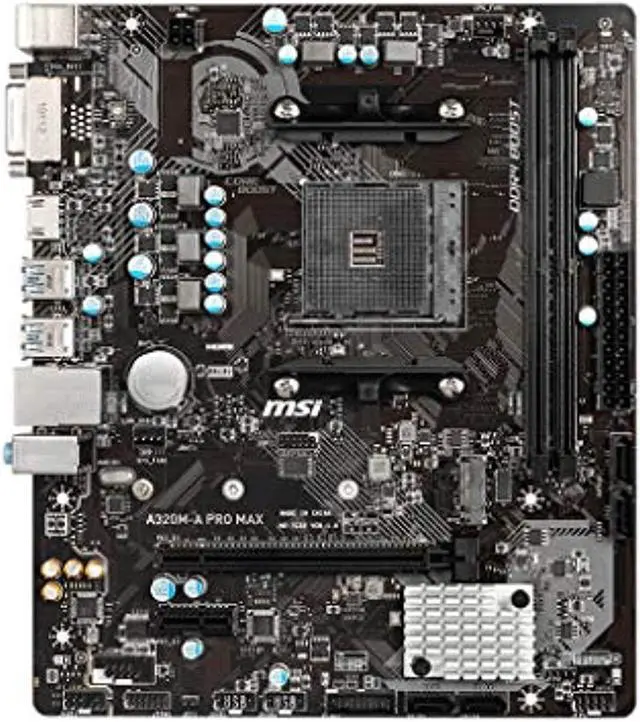

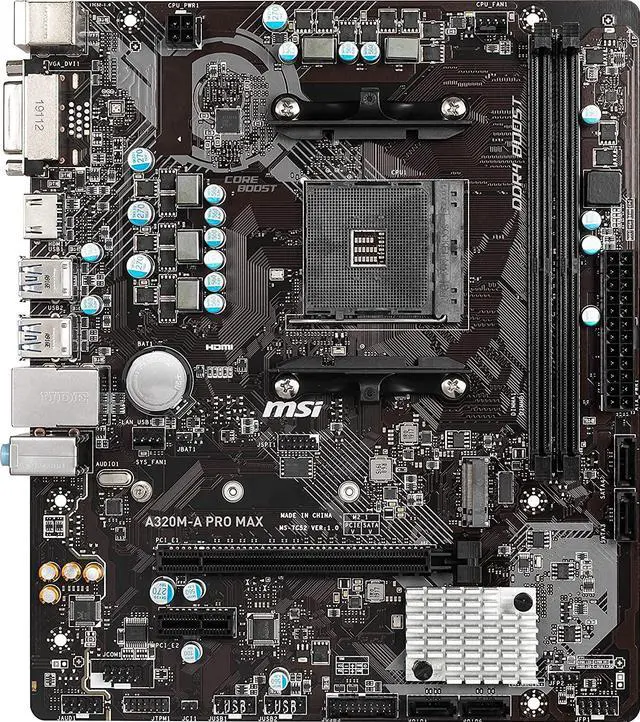

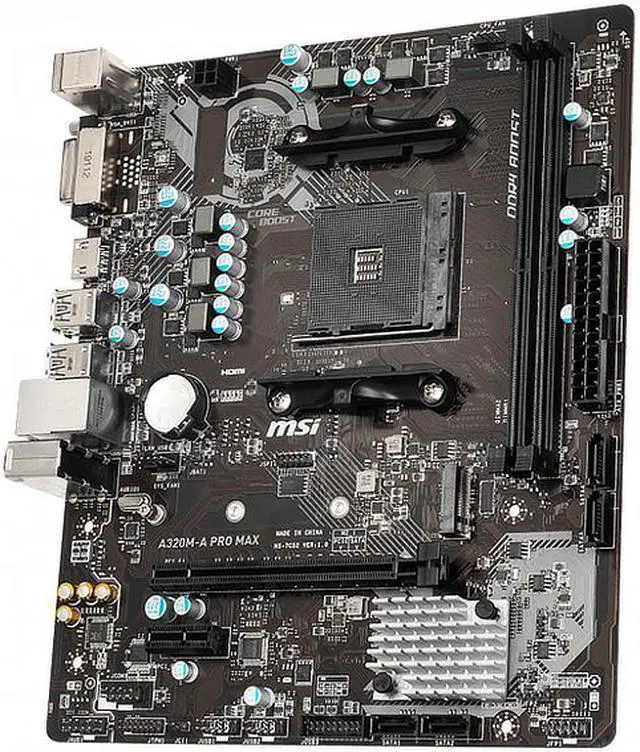

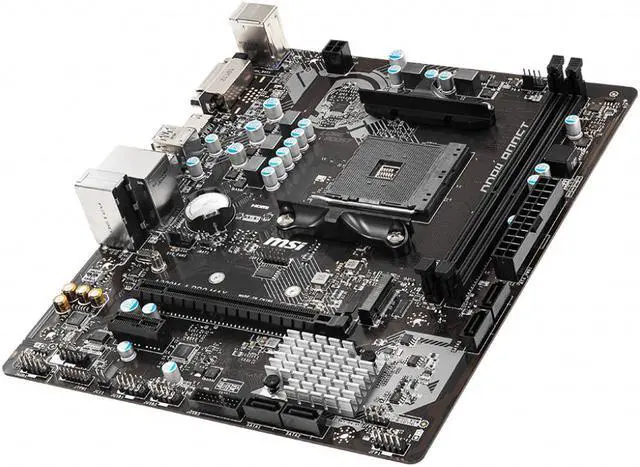

A320M-A PRO MAX Socket AM4 AMD A320 DDR4 Micro ATX Motherboard (A320M-A PRO MAX)
Used - Very Good Product Type
- AMD A320,
- Micro ATX
- DDR4, 2
- 32 GB,
- Socket AM4
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Internal IO
- Number of
M. 2 (M) slots: 1
Front panel connector: Yes
- 12V power connector: Yes
Supported storage drive interfaces: PCI Express 3.0, Serial ATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 ( 3.1
Gen 1) connectors: 1
- TPM connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
Front panel audio connector: Yes
- CPU fan connector: Yes
Chassis intrusion connector: Yes
- ATX
Power connector (24-pin): Yes
Motherboard chipset family: AMD
Motherboard chipset: AMD A320
Supported processor sockets: Socket AM4
Motherboard form factor: Micro ATX
Component for: PC
Number of mounting holes: 6
Audio output channels: 7.1 channels
Supported storage drive types: HDD, SSD
Windows operating systems supported: Windows 10, Windows 7
Motherboard chipset family: AMD
Motherboard chipset: AMD A320
- RAID levels: 0, 1, 10
Supported processor sockets: Socket AM4
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Processor manufacturer: AMD
Compatible processor series: AMD Athlon X4, AMD Ryzen
Supported processor sockets: Socket AM4
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual
- ECC: Yes
Non-ECC: Yes
Supported memory clock speeds: 1866, 2133, 2400, 2667, 2933, 3200 MHz
Maximum internal memory: 32 GB
Supported storage drive types: HDD, SSD
Supported storage drive interfaces: PCI Express 3.0, Serial ATA III
- RAID levels: 0, 1, 10
DirectX version: 12.0

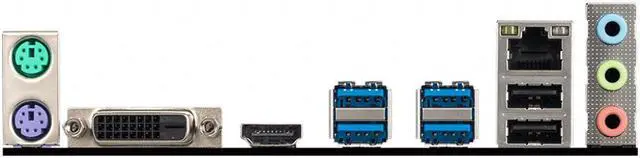

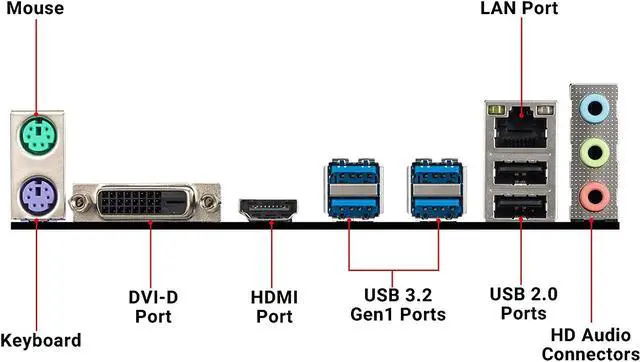

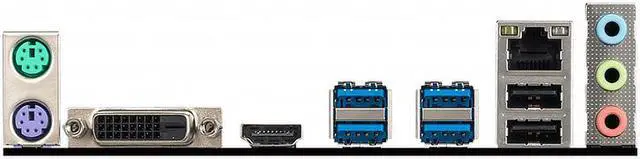

- USB 3.2 Gen 1 ( 3.1 Gen 1)
Type-A ports quantity: 6
- USB 2.0 ports quantity: 2
Serial ports quantity: 1
- PS2 ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
- HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
- DVI-D ports quantity: 1
Ethernet LAN: Yes
Wi-Fi: No
- LAN controller: Realtek 8111H
Number of mounting holes: 6
Windows operating systems supported: Windows 10, Windows 7
Motherboard chipset family: AMD
Motherboard chipset: AMD A320
Supported processor sockets: Socket AM4
Audio output channels: 7.1 channels
Motherboard form factor: Micro ATX
Component for: PC
Audio chip: Realtek ALC892
- Number of
M. 2 (M) slots: 1
- PCI Express x1 (Gen 2. x) slots: 1
- PCI Express x16 (Gen 3. x) slots: 1
- BIOS type: UEFI AMI
Clear CMOS jumper: Yes
DirectX version: 12.0
Windows operating systems supported: Windows 10, Windows 7
Drivers included: Yes
Width: 236 mm
Depth: 200 mm
Utilities included: Yes
Quick installation guide: Yes
Drivers included: Yes
Cables included: SATA
