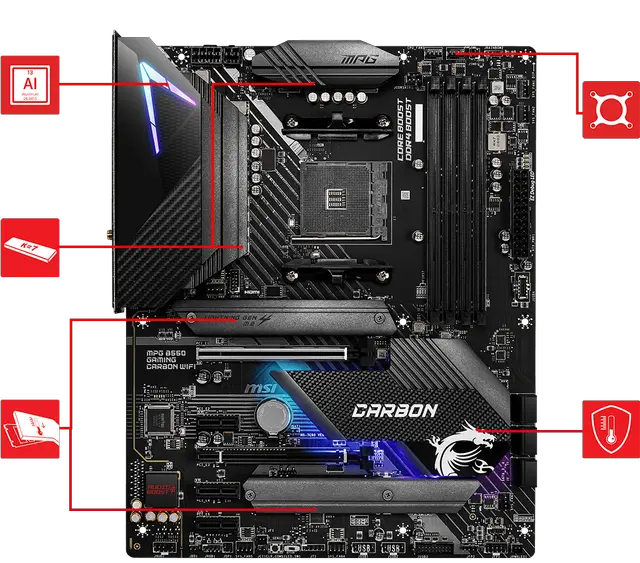

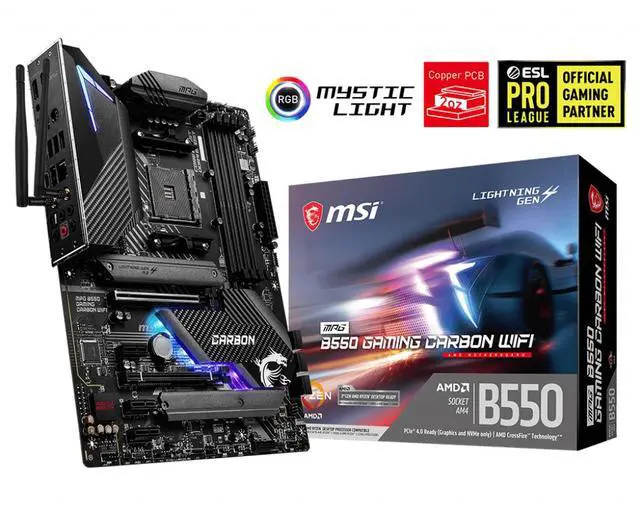

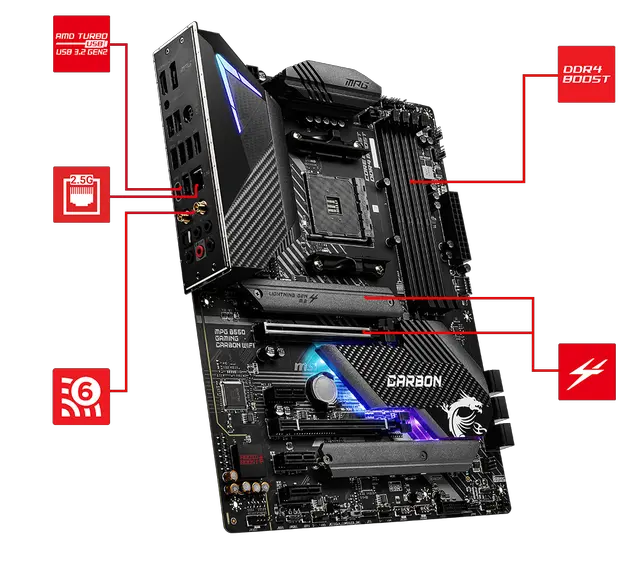

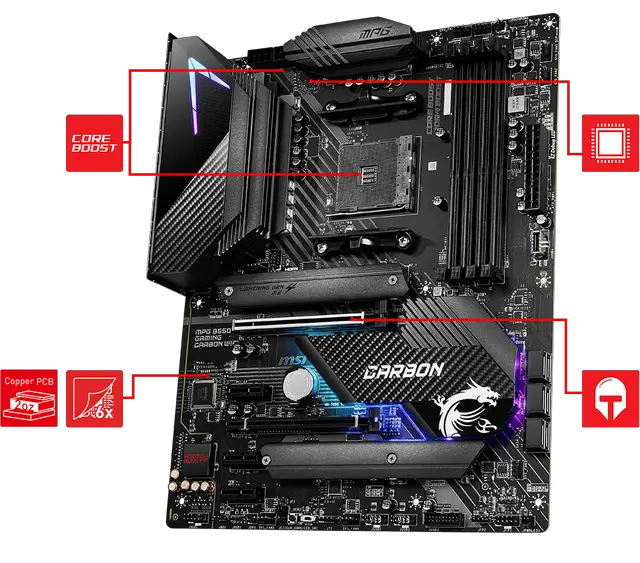

MSI MPG series B550 GAMING CARBON WIFI AM4 AMD B550 ATX Motherboard AMD 3rd RYZEN

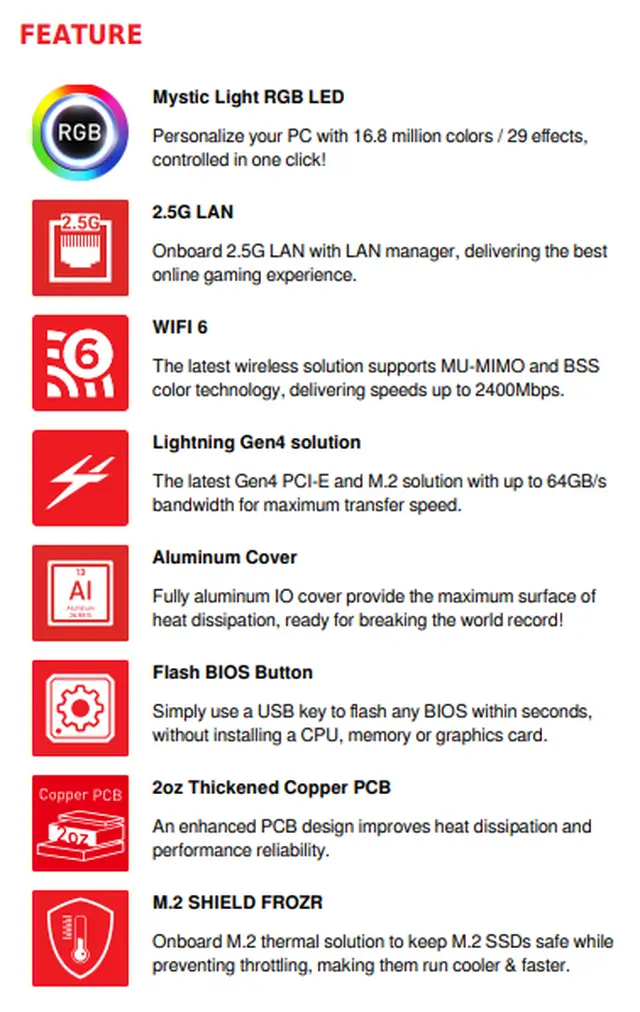

- Mystic Light RGB LED
- 2.5G LAN
- WIFI 6
- Lightning Gen4 solution
- Aluminum Cover
- Flash BIOS Button
- 2oz Thickened Copper PCB
- M.2 SHIELD FROZR
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SOCKET: AM4
CPU (MAX SUPPORT) RYZEN: 9
CHIPSET: AMD B550 Chipset
DDR4 MEMORY: 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNE: Dual
DIMM SLOTS: 4
MAX MEMORY (GB): 128
PCI-EX16: 2
PCI-EX1: 3
SATAIII: 6
M.2 SLOT: 2
RAID: 2000/1/10
LAN: 1x Realtek? RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 4
AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek? ALC1200 Codec)
DISPLAYPORT: 1
HDMI: 1
DIRECTX: 12
FORM FACTOR: ATX
CROSSFIRE: Y
OPERATING SYSTEM: Support for Windows® 10 64-bit
CPU (MAX SUPPORT) RYZEN: 9
CHIPSET: AMD B550 Chipset
DDR4 MEMORY: 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNE: Dual
DIMM SLOTS: 4
MAX MEMORY (GB): 128
PCI-EX16: 2
PCI-EX1: 3
SATAIII: 6
M.2 SLOT: 2
RAID: 2000/1/10
LAN: 1x Realtek? RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 4
AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek? ALC1200 Codec)
DISPLAYPORT: 1
HDMI: 1
DIRECTX: 12
FORM FACTOR: ATX
CROSSFIRE: Y
OPERATING SYSTEM: Support for Windows® 10 64-bit
