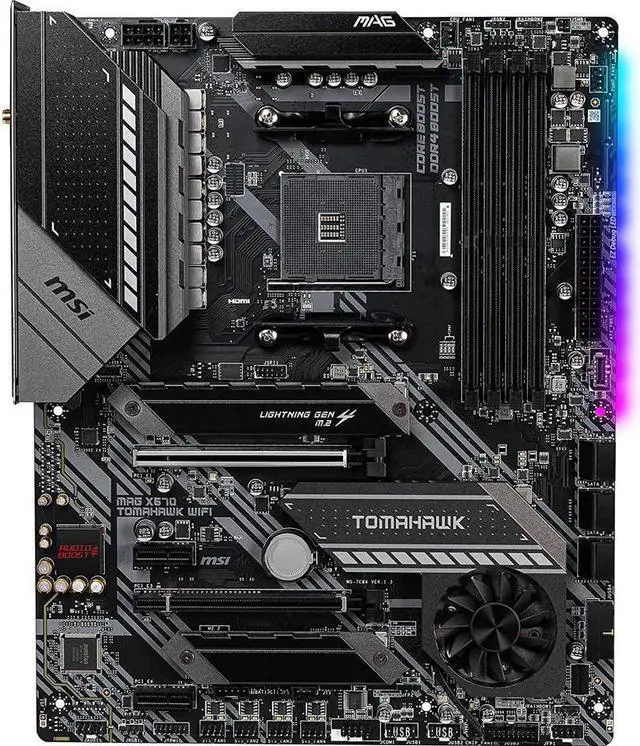

MSI MAG X570 TOMAHAWK WIFI AM4 AMD X570 WiFi6 ATX Motherboard

MSI MAG X570 TOMAHAWK WIFI AM4 AMD X570 WiFi6 ATX Motherboard
MSI MAG X570 TOMAHAWK WIFI Motherboard, Socket AM4 to support AMD Ryzen 2nd and 3rd Generation/ Ryzen with Radeon Vega Graphics and 2nd Gen Ryzen with Radeon Graphics processors as MSI Compatibility List online, AMD X570 chipset, 4 x DDR4 Boost DIMM slots (Dual Channel, up to 128GB), Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz (by JEDEC) and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz (by A-XMP OC MODE, 3rd Gen Ryzen required to support DDR4 3733 to 4600+ Mhz), 2 x PCIe 4.0/3.0 x16 slots (PCI_E1 with Steel Armor: 3rd Gen Ryzen supports PCIe 4.0 x16 mode, 2nd Gen AMD Ryzen supports PCIe 3.0 x16 mode, Ryzen with Radeon Vega Graphics and 2nd Gen Ryzen with Radeon Graphics support PCIe 3.0 x8 mode; PCI_E3 supports x4 mode) and 2 x PCIe 3.0 x1 slots, Supports 2-way AMD CrossFire Technology, 6 x SATAIII (6Gb/s) ports, 2 x M.2 slots (Key M): M2_1 slot with M.2 Shied Frozr (Lightning Gen4 M.2) supports PCIe 4.0 x4 (while using 3rd Gen Ryzen) or PCIe 3.0x4 (while using 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 SSDs + M2_2 slot with M.2 Shied Frozr supports PCIe 4.0 x4 (while using 3rd Gen Ryzen), PCIe 3.0x4 (while using 2nd Gen Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen Ryzen with Radeon Graphics) or SATA 6Gb/s 2242/ 2260/ 2280 SSDs, 1 x USB3.2 Gen2 Type-C + 4 x USB3.2 Gen1 + 4 x USB2.0 via internal USB connectors, 1 x USB3.2 Gen2 Type-C (3rd Gen Ryzen required) + 3 x USB3.2 Gen2 (3rd Gen Ryzen required) + 2 x USB3.2 Gen1 + 2 x USB2.0 on the rear I/O panel, 1x Realtek RTL8125B 2.5 Gbps LAN, 1 x Intel Wi-Fi 6 AX200 (802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz, up to 2.4Gbps) with Bluetooth 5.1 pre-installed in M2_WIFI1 (Key E), Frozr Heatsink Design with Patented Fan and Double Ball Bearings, Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost, Pre-installed I/O Shielding for better EMI protection and convenient installation, Audio Boost, Click BIOS 5, MSI Dragon Center, MSI App Player, Mystic Light, Supports Windows 10 64-bit
