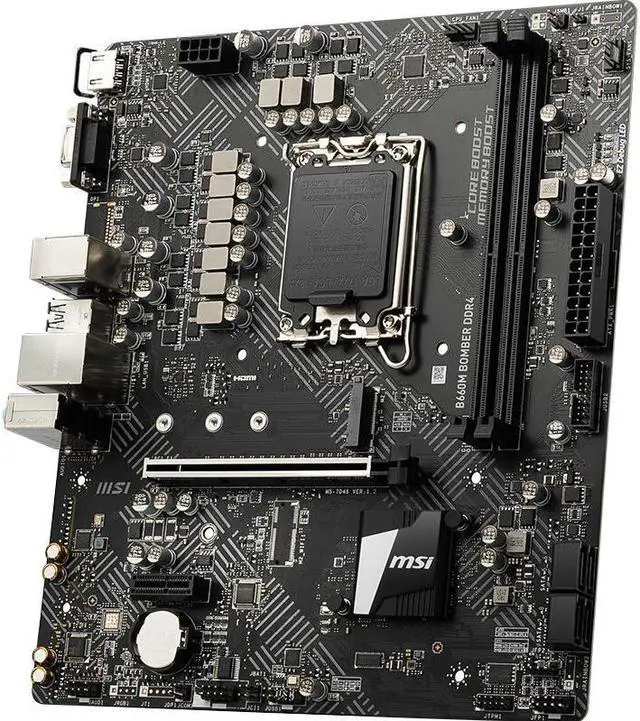

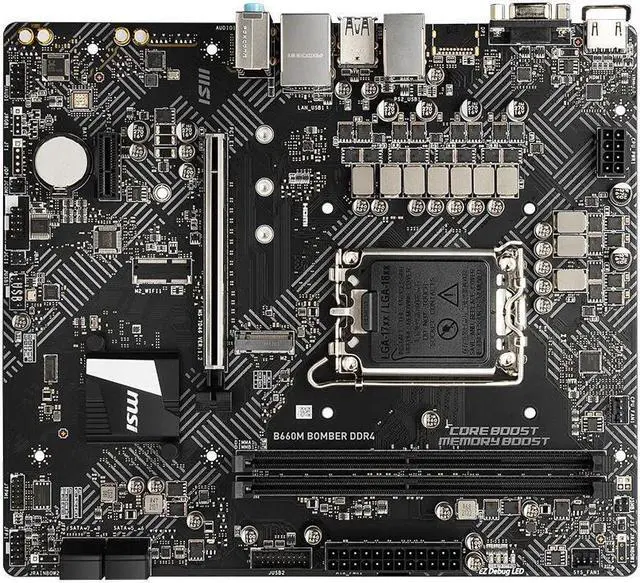

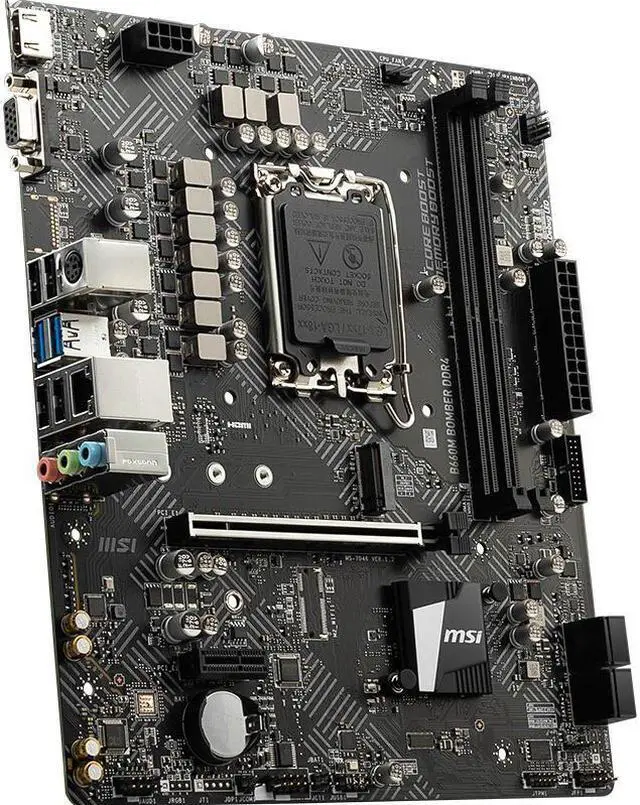

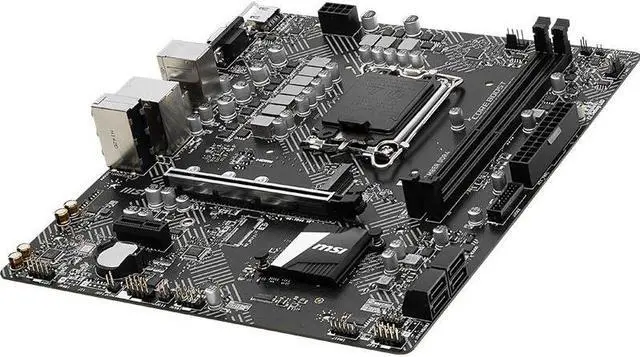

MSI B660M BOMBER DDR4 Motherboard Intel B560 LGA 1700 DDR4 M.2 Micro ATX VGA

Package included: Please note only the following accessories come with the mobo: 1 x motherboard 2 x SATA cables 1 x I/O back panel CPU Supports 12th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 CHIPSET Intel® B660 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) EXPANSION SLOT 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1 ONBOARD GRAPHICS 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 Available only on processors featuring integrated graphicsGraphics specifications may vary depending on the CPU installed. SATA PORTS 4x SATA 6Gb/s ports (From B660chipset) 1 SATA7 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. M. 2 SSD SLOT 1x M. 2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel® Optane Memory Supports Intel® Smart Response Technology for Intel Core processors SATA7 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices AUDIO Realtek® ALC892/ ALC897 Codec 7.1 -Channel High Definition Audio LAN 1x Intel® I219V 1Gbps LAN controller POWER CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector USB Intel® B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) FAN CONNECTORS 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS 1x Clear CMOS jumper LED FEATURES 4x EZ Debug LED BACK PANEL PORTS HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 DIMENSIONS M-ATX Form Factor 9.3 in.

x 8.0 in. ( 24.4 cm x 21.1 cm
