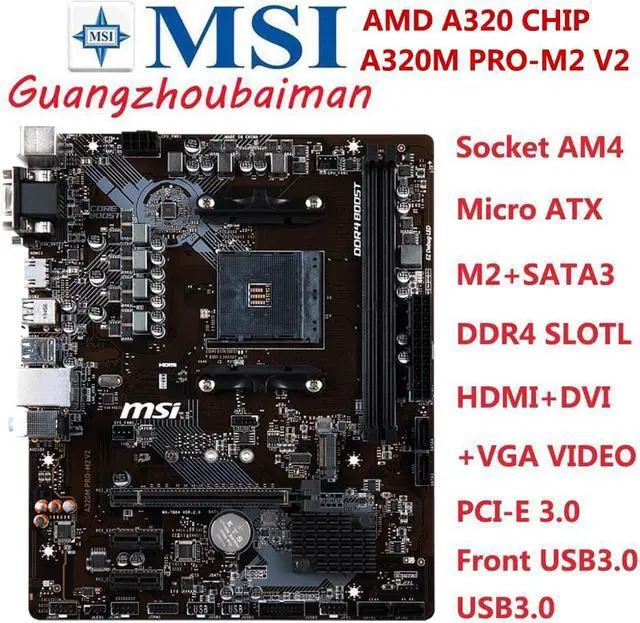

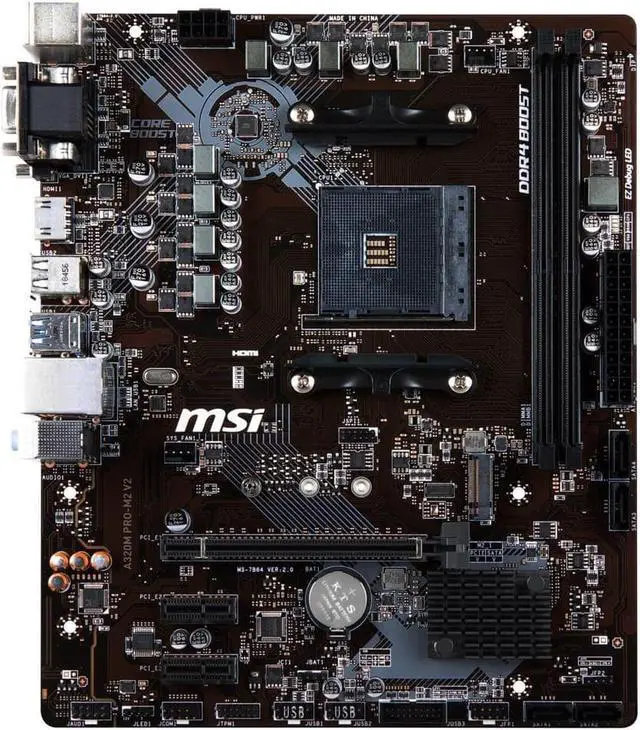

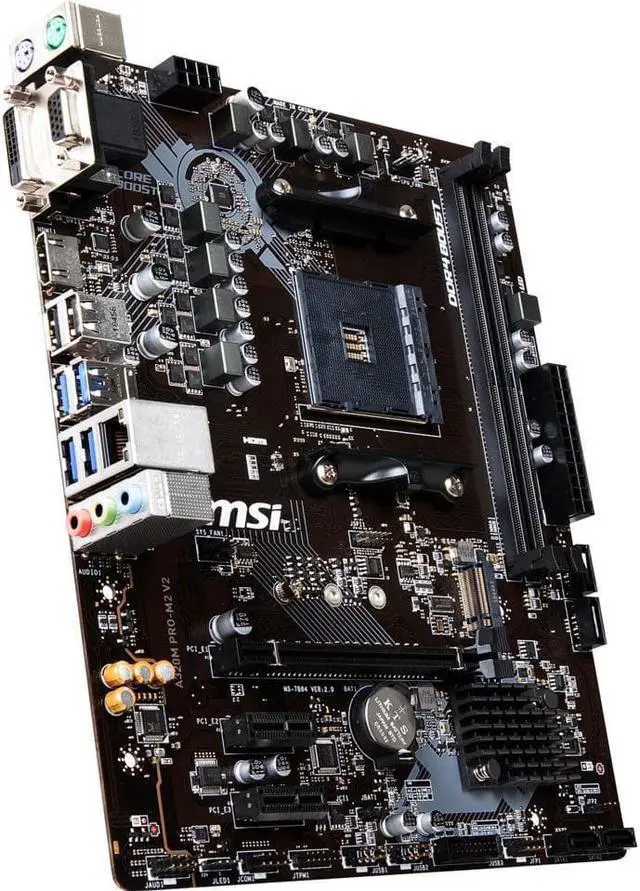

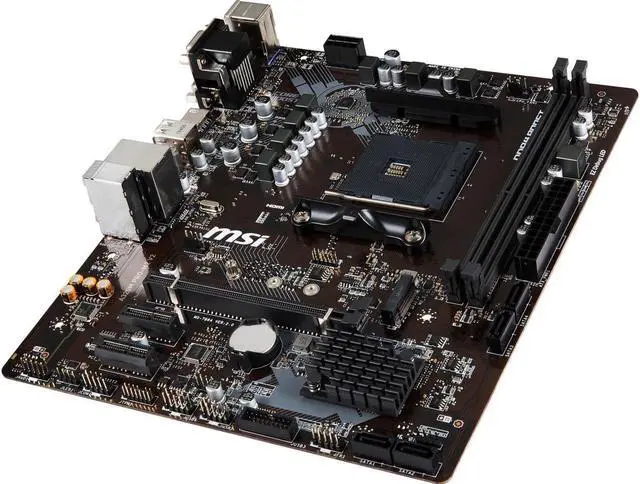

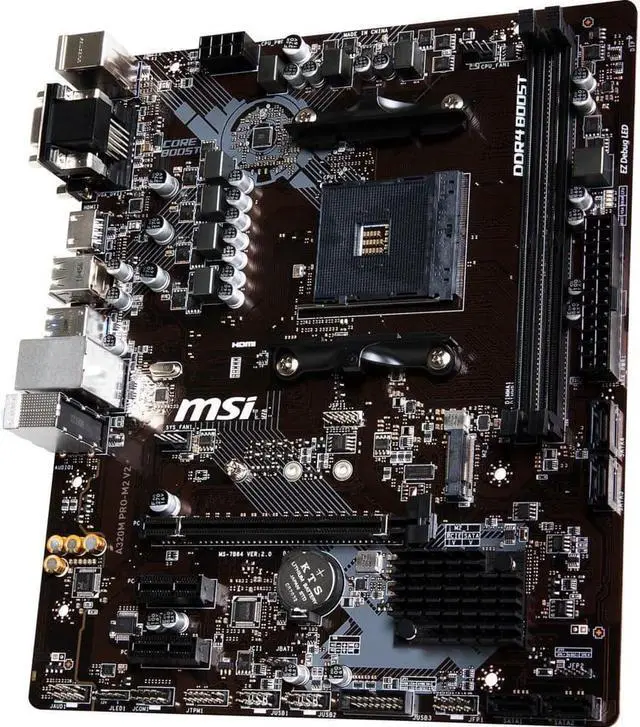

FOR MSI A320M PRO-M2 V2 AM4 AMD A320 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard M2 [ NVME ] Support 1-3 generation Ryzen [R5 1XXX~ R5-3xxx]

A320M PRO-M2 V2 [M2 NVME]; latest BIOS [E7B84v31] 2019-02-01! Support all models of 1-2-3 generation! This product does not support low-level cpus such as X4 A6, A8, A10, and A12; Only 1-3 Ryzen cpus are supported You can't use a 4-5 generation CPU because the BIOS



doesn't support it! BIOS [7B84v361] 2022-11-10


Quality Certification: ce
Chipset: AMD A320
Socket Type: AM4
Storage Interface Type: U. 2
Onboard LAN: 1x RJ45
Package: No
Model Number: A320M PRO-M2
Application: Desktop
With CPU: No
Special Function: NONE
Maximum Ram Capacity: 32 GB
Chipset Manufacturer: AMD
Back I/O Ports: VGA(D-Sub)
Support Memory Type: DDR4
Usage Scenario: Office
Number of PCI: 0
PCI - E standards: PCI - E 3.0
Origin: CN (Origin)
Number of PCIe x 8:0
Number of PCIe x 16:1
Number Of Memory Slots: 2
Memory channel: Double
Number of SATA Ports: 2
Form Factor: CeB
Support USB Type: USB 2.0
Launch Date: 2004
Number of PCIe x 4:0
Number of PCIe x 1:2
Certification: WEEE
Number of M. 2:0
type: Motherbaord AM4 DDR4

Motherboard chip
Integrated chip sound card/network card
Main chipset AMD A320
Chipset description Using AMD A320 chipset
Display chip APU built-in display chip (requires APU support)
Audio chip integrated Realtek ALC887 7.1 channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type AMD Ryzen/7th generation A series/Athlon II/Athlon
CPU socket Socket AM4
CPU description Support AMD RYZEN processor
Memory specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 1866/2133/2400/2667MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 1×SATA III interface

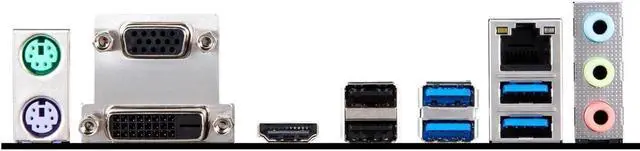

I/O interface
USB interface 2 × USB 3.1 Gen1 interface, 4 × USB 3.1 Gen1 Type-A interface, 6 × USB 2.0 interface (4 built-in + 2 backplane)
Video interface 1 × HDMI interface, 1 × VGA interface, 1 × DVI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard type Micro ATX type
Dimensions 24.4 × 20.6 cm
Other parameters
RAID function Support RAID 0, 1, 10
