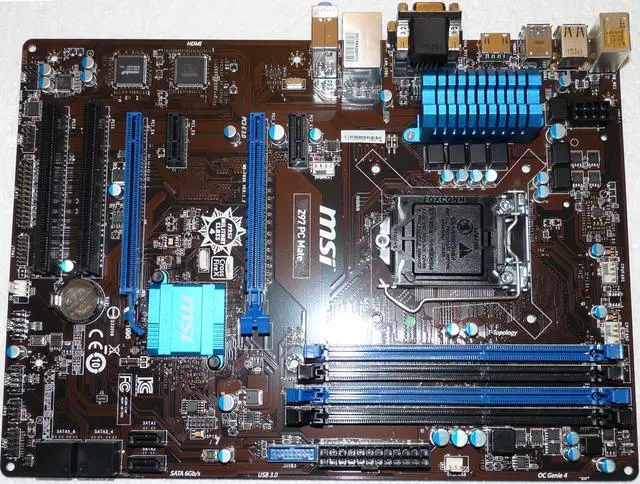

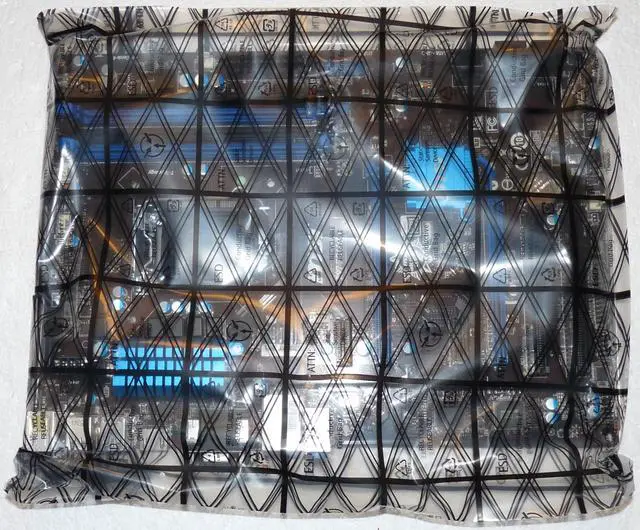

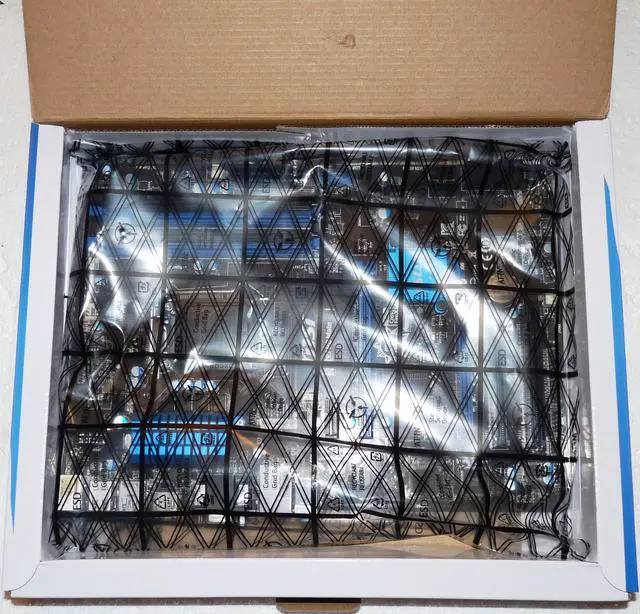

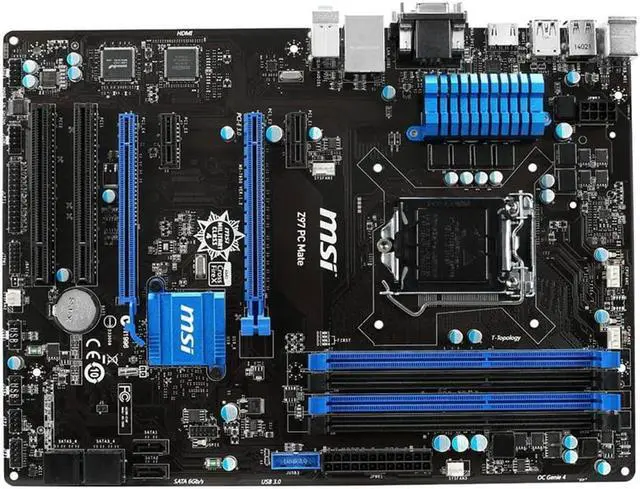

MSI Z97 PC Mate LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Motherboard OEM PACKING NO ACCESSORIES

Brand: MSI
Model: Z97 PC Mate

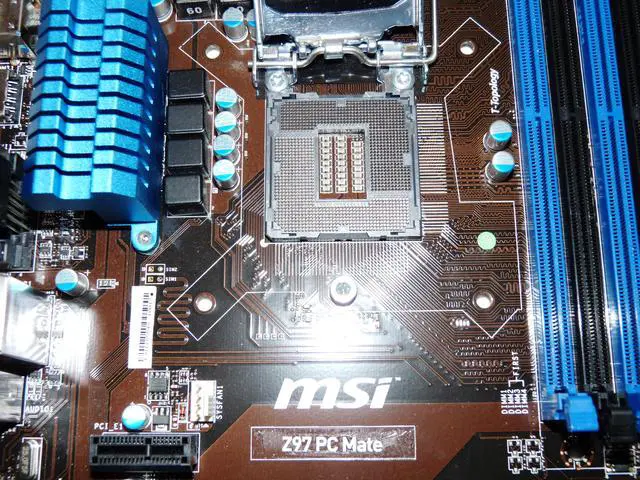

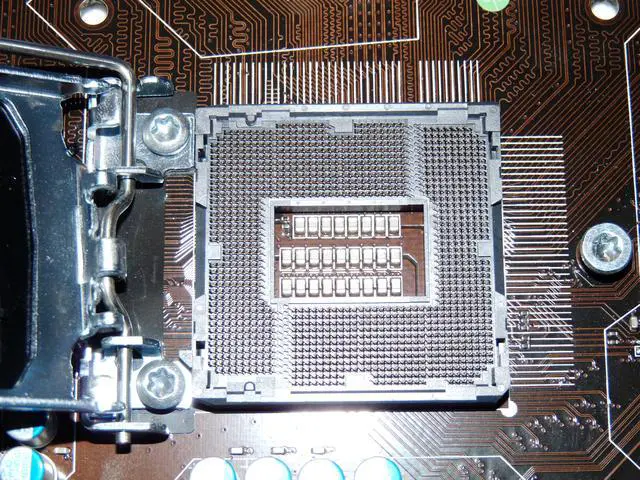

CPU Socket Type: LGA 1150
CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Chipset: Intel Z97
Onboard Video Chipset: Supported only by CPU with integrated graphic
Number of Memory Slots: 4×240pin
Memory Standard: 3000* (*OC) / 2800*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133*/ 2000*/ 1866*/ 1600/ 1333/ 1066
Maximum Memory Supported: 32GB
Channel Supported: Dual Channel
PCI Express 3.0 x16: 1 x PCIe x16 slots
PCI_E2 supports PCIe 3.0: Support x16, x4/x4 modes
PCI Express 2.0 x16: 1 x PCIe x16 slots
PCI_E4 supports PCIe 2.0: Support x16, x4/x4 modes
PCI Express x1: 2 x PCIe 2.0 x1 slots
PCI Slots: 2 x PCI Slots
SATA 6Gb/s: 6 x SATA 6Gb/s
SATA RAID: 0/1/5/10
Audio Chipset: Realtek ALC887
Audio Channels: 8 Channels
LAN Chipset: Realtek 8111G
Max LAN Speed: 10/100/1000Mbps
Rear Panel Ports:
PS/2
1 x PS/2 keyboard port
1 x PS/2 mouse port
Video Ports
1 x VGA port
1 x DVI-D port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.0
2 x USB 3.0
USB 1.1 / 2.0
4 x USB 2.0
Audio Ports
1 x 3 in 1 audio jacks

Onboard USB: 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
Other Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x 4-pin CPU fan connectors
1 x 4-pin system fan connector
2 x 3-pin system fan connectors
1 x Clear CMOS jumper
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x Parallel Port connector

Form Factor: ATX
Dimensions (W x L): 12.00" x 8.70"
Power Pin: 24 Pin

Features
Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket
Supports DDR3-3000 (OC) Memory
USB 3.0 + SATA 6Gb/s
Military Class 4: Top Quality & Stability
OC Genie 4: Overclock in 1 Second
Click BIOS 4: Easily Fine-tune Your System
4K UHD Support: Ultra-high Definition Visual Experience
Multi-GPU: AMD CrossFire Support
Command Center: Control & Customize Your PC Settings
Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
Smart Utilities: Easily Setup & Configure Intel Technologies

BIOS:
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.
