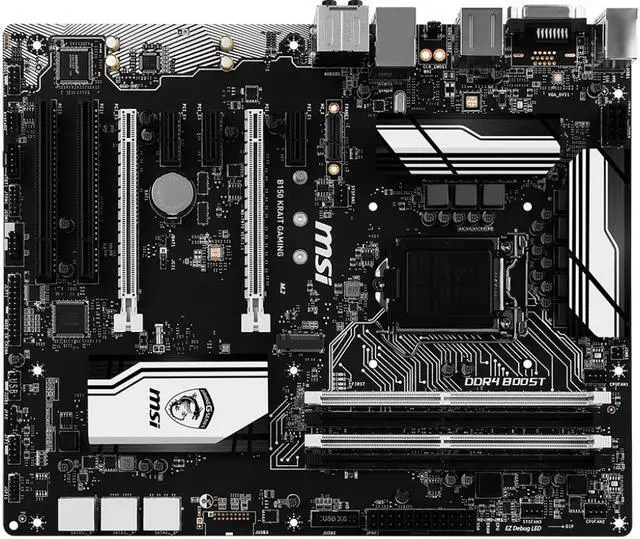

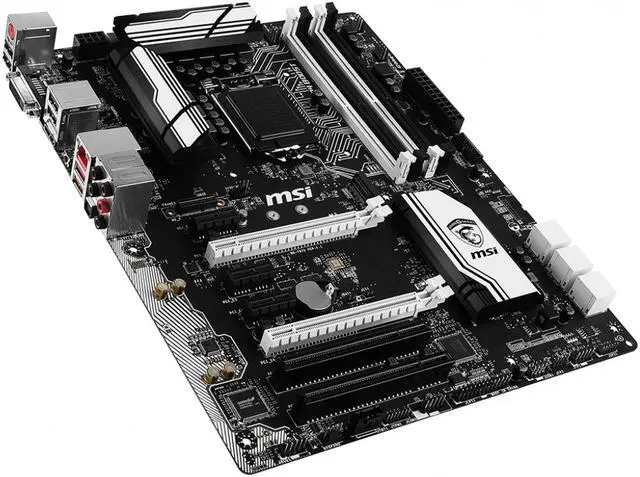

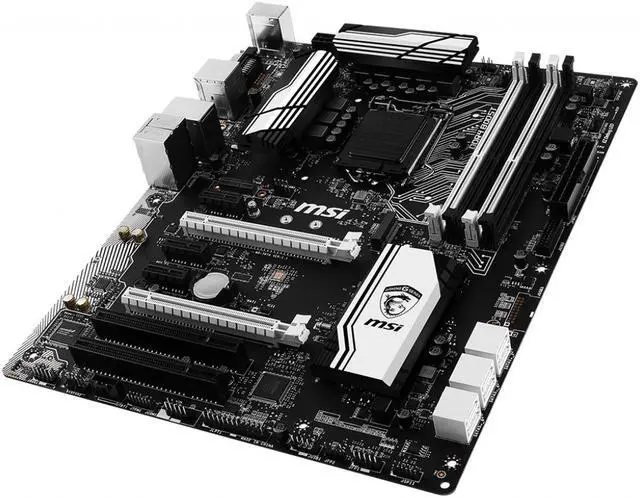

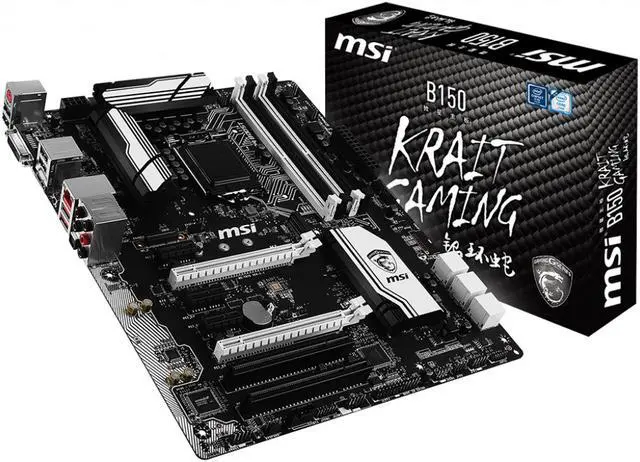

MSI B150 KRAIT GAMING Original New Desktop Motherboard B150 Socket LGA 1151 i3 i5 i7 DDR4 64G SATA3 ATX

processor

• 6th generation Intel® CoreTM i3/i5/i7, Intel® Pentium®, Celeron® processor supporting LGA1151 architecture
* For CPU support, please check the CPU support status table. The above specifications are for reference only.


chipset

• Intel® B150 chipset



RAM

• 4 DDR4 memory slots supporting up to 64GB
• Support for DDR4 2133 MHz
• Dual channel memory architecture
• Support for ECC, non-cache memory
• Support for Intel® Extended Memory Profiles (XMP)


* Due to Intel chipset limitations, using XMP-2400 (inclusive) or above, the frequency will be limited to XMP-2133MHz



Slot

• 2 PCIe 3.0 x16 slots (support x16, x16/ x4 mode)
• 3 PCIe 3.0 x1 slots
• 2 PCI slots
• 1 M.2 Wi-Fi module slot (Key E)

* S3, S4, S5 do not support PCI wakeup




Onboard graphics

• 1 HDMITM interface with resolution 4096x2160@24Hz, 2560x1600@60Hz
• 1 DVI-D interface with resolution 1920x1200@60Hz



Multi-GPU

• Support for 2-Way AMD® CrossFireTM technology



Built-in SATA

• Intel® B150 chipset
• 6 SATA 6Gb/s interfaces*
• 1 M.2 slot (Key M)
- Only M.2 SATA specifications are supported, M.2 PCIe specifications are not supported
- Support SATA 6Gb/s specification, 4.2cm/ 6cm/ 8cm length M.2 Solid state disk card

* When the M.2 module is installed in the M.2 (M2_1) slot, the SATA5~6 ports will be invalid.



USB

• Intel® B150 chipset
- 4 USB 3.1 Gen1 (SuperSpeed ??USB) connectors (2 on the backplane and 2 on the onboard USB 3.1 Gen 1 interface)
- 6 USB 2.0 (High-speed USB) connectors (4 on the backplane and 2 on the onboard USB 2.0 interface)




Onboard sound card

• Realtek® ALC892 Decoder Chip
• 7.1-channel high-quality sound
• Support for S/PDIF output



Onboard NIC

• 1 Realtek RTL8111H Gigabit LAN



Backplane rear output/input interface

• 1 PS/2 keyboard/mouse interface
• 4 USB 2.0 ports
• 1 DVI-D interface
• 1 HDMITM interface
• 1 clear CMOS button
• 1 network (RJ45) interface
• 2 USB 3.1 Gen1 interfaces
• 1 fiber S/PDIF output interface
• 5 oxygen-free copper audio interfaces




Built-in output / input interface

- 1 24-pin ATX main power connector
- 1 8-pin ATX 12V power connector
- 6 SATA 6Gb/s interfaces
- 1 USB 2.0 interface (adds 2 USB 2.0 ports separately)
- 1 USB 3.1 Gen1 interface (supports 2 additional USB 3.1 Gen1 interfaces)
- 2 4-pin CPU fan connectors
- 3 4-pin system fan connectors
- 1 front panel audio interface
- 2 system panel interfaces
- 1 TPM module interface
- 1 chassis open interface
- 1 serial interface
- 1 parallel interface
- 1 clear CMOS function jumper
