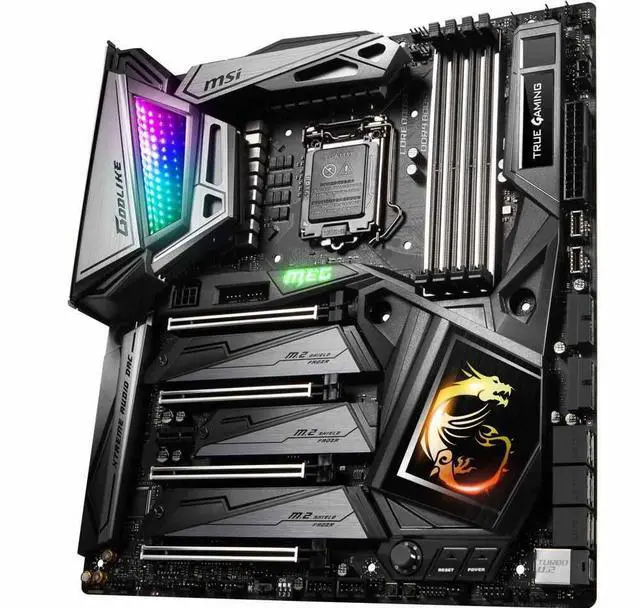

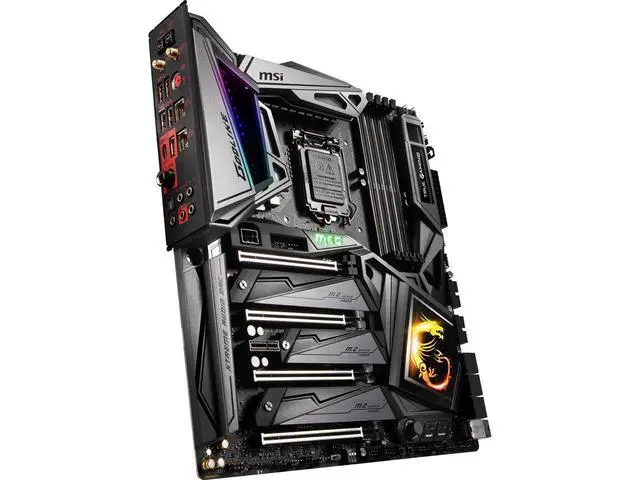

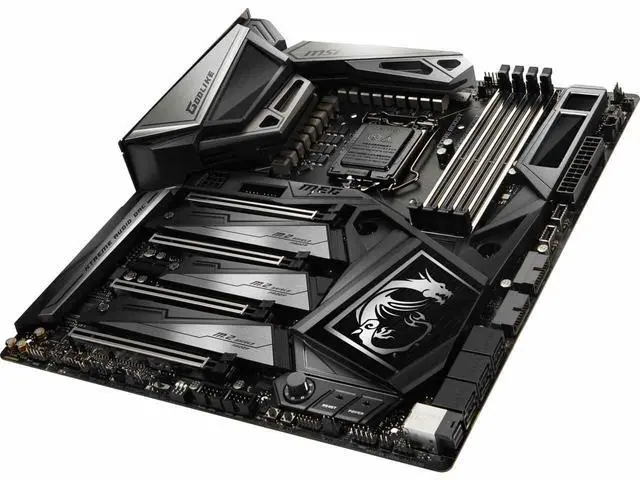

MSI MEG Z390 GODLIKE Socket LGA1151 Intel Z390 SATAIII USB3.1 ATX Motherboard

Feature: Two Easy BIOS Update Buttons for Clear CMOS and BIOS FLASHBACK+ Overwhelming 18-phase VRM and brand-new infinity design RGB Mystic Light Infinity with 16.8 million colors and 29 effects Pre-installed I/O Shielding for better EMI protection Xtreme Audio DAC to deliver the sound quality of 384kHz/32-bit

Custom Bundle: No

Features: On-Board

Audio Multi-GPU Support: Supports 2-way NVIDIA SLI and 4-way AMD Cross

Fire technology

Appropriate For: Graphic Design, Serious Gaming

SATA Ports: 6 x SATAIII (6Gb/s) ports

Expansion Slots: PCI Express 3.0 x1, PCI Express 3.0 x16 M.

2 Slots: 3 Turbo M. 2 slots to support PCIe 3.0 x4 and SATAIII SSDs

Socket Type: LGA 1151/Socket H4

RAID Support: RAID 0/1/5/10 for SATA HDDs & SSDs; RAID 0/1/5 for M.

2 PCIe SSDs LAN: Dual Killer E2500 Gigabit LANs (10/100/1000 x2)

Wireless LAN: Killer

Wireless-AC 1550 (TX/RX: 2x2) with Bluetooth 4.1

Front USB Support: USB 3.1 Type-C x2, USB 3.0 x4, USB 2.0 x4 via internal connectors

Rear USB: USB 3.1 Type-C x1, USB 3.1 x3, USB 3.0 x2 on the rear I/O panel

Audio: 2 x Realtek ALC1220 Codecs and 1 x ESS E9018 Codec - Xtreme

Audio
Describe: MSI MEG Z390 GODLIKE Enthusiast GAMING Motherboard, Socket LGA1151 to support 9th (Coffee Lake Refresh) and 8th Gen (Coffee Lake) Intel Core/Pentium Gold/Celeron series processors as MSI Compatibility List on line, Intel Z390 chipset, 4 x DDR4 Boost Steel Armor DIMM slots (Dual Channel, up to 64GB) to support non-ECC and unbuffered DDR4 4600 (OC) / 4533 (OC) / 4500 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2800 (OC) / 2666/ 2400/ 2133 MHz, Supports Intel Extreme Memory Profile (XMP), 18-phase VRM, 4 x PCIe 3.0 x16 Steel Armor slots and 1 x PCIe 3.0 x1 slots, supports 2-way NVIDIA SLI and 4-way AMD Cross

Fire technology, 6 x SATAIII (6Gb/s) ports, Triple Turbo M. 2 slots (Key M) with Shield FROZR on board to support PCIe 3.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 (only M2_1 and M2_3 can support 22110) SSDs, Intel Optane Memory Ready (Drivers and BIOS
update to the lastest version required), 2 x USB 3.1 Type-C + 4 x USB 3.0 + 4 x USB 2.0 via internal USB connectors, 1 x USB 3.1 Type-C + 3 x USB 3.1 + 2 x USB 3.0 on the rear I/O panel, 2 x Killer E2500 Gigabit LAN and 1 x

Killer Wireless-AC 1550 (TX/RX: 2x2) with Bluetooth 4.1, Killer xTend to combine a built-in switch with wireless extender, Clear CMOS Button and BIOS FLASHBACK+ Button located on the pre-installed rear I/O shield, RGB Mystic Light Infinity ( 16.8 million colors and 29 effects), Xtreme

Audio DAC: Isolated audio with ESS DAC (supports 6.35 mm Headphone-out Jack) + 2 x audio processors + Nahimic to deliver the breathbreaking sound quality with 384kHz/32-bit, Pre-installed I/O Shielding, Supports Windows 10 64-bit
