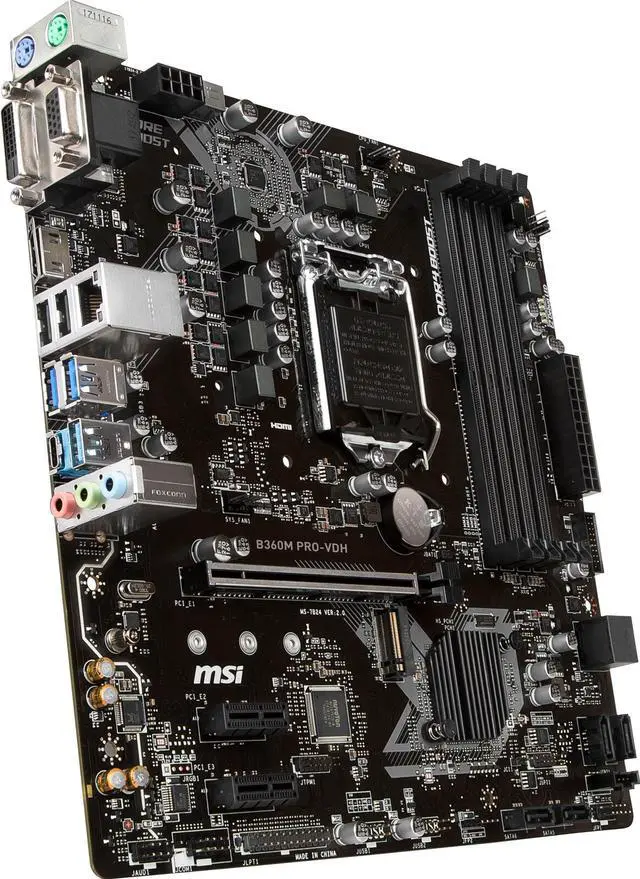

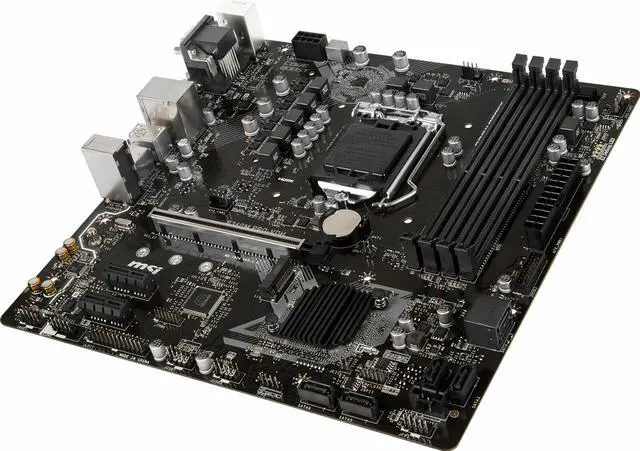

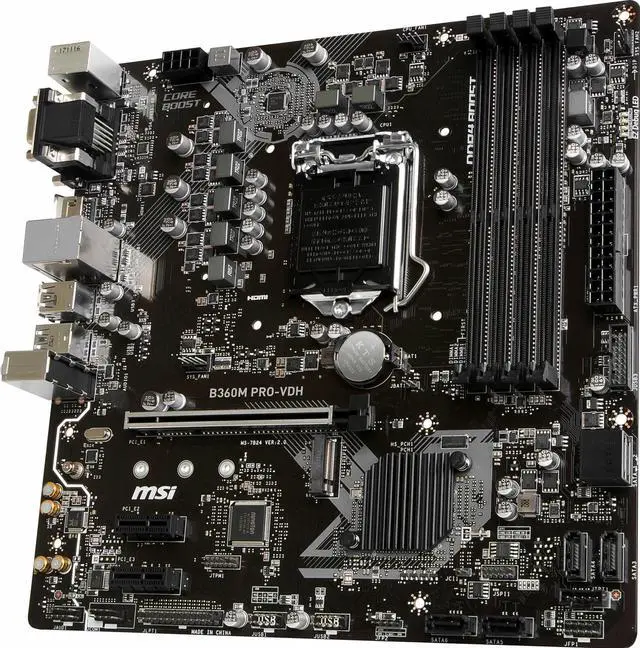

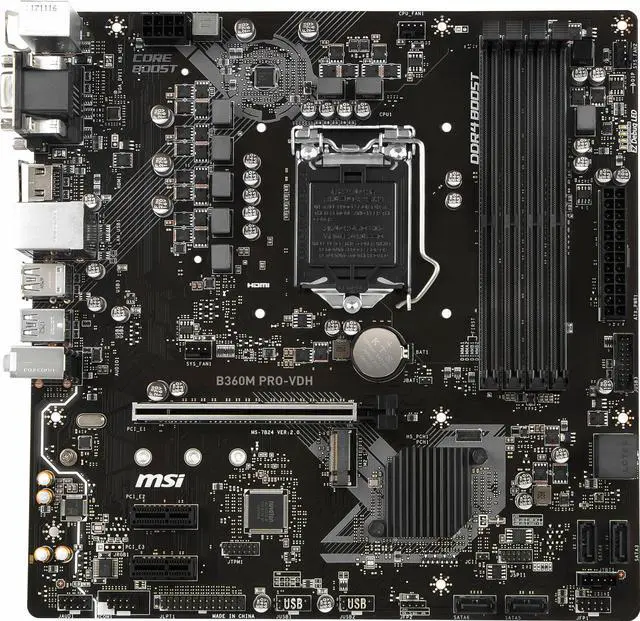

    MSI B360M PRO-VDH LGA1151 Intel B360 USB3.0 Micro-ATX Motherboard(B360M PRO-VDH)

    REFURBISHED Product Type
    • Feature#1: DDR4 Boost for the best gaming performance and stability RAID Support: n/a
    • Feature#2: Audio Boost to deliver the most immersive sound experience
    • TPM (Header): 1
    • Feature#3: Core Boost by premium layout and optimized digital power design
    • LAN: Realtek 8111H Gigabit LAN (10/100/1000)
    • Feature#4: EZ Debug LED provides the easiest way to troubleshoot Wireless
    • LAN: via PCIe or USB (add-on WLAN card or dongle required)
    • Feature#5: X-Boost that boosts the performance of any storage or USB device
    • Front USB Support: USB3.0 x2, USB2.0 x4 via internal connectors
    • CPU Socket: Socket LGA1151 to support Intel 9th and 8th Generation processors
    • Rear USB: USB3.0 Type-C x1, USB3.0 x3, USB2.0 x2 on the rear I/O
    • Chipset: Intel B360
    • Audio: Realtek ALC887 Codec for 7.1-channel HD Audio
    • Memory Slots: 4 x DDR4 Boost DIMM slots (Dual Channel, up to 64GB)
    • Form Factor: Micro-ATX (9.6" x 9.6" inches) with 8 Mounting Holes
    • Memory Support: Supports DDR4 2133 up to 2666 MHz as MSI Compatibility List OS
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    MSI B360M PRO-VDH Motherboard, Socket LGA1151 to support 9th (Coffee Lake Refresh) and 8th Gen (Coffee Lake) Intel Core/Pentium Gold/Celeron series processors as MSI Compatibility List online, Intel B360 chipset, 4 x DDR4 Boost DIMM slots (Dual Channel, up to 64GB) to support non-ECC and unbuffered DDR4 2666/ 2400/ 2133 MHz, Supports Intel Extreme Memory Profile (XMP), 1 x PCIe 3.0 x16 slot with Steel Armor and 2 x PCIe 3.0 x1 slots, 6 x SATAIII (6Gb/s) ports, 1 x Turbo M.2 slot (Key M) to support PCIe 3.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 SSDs, Intel Optane Memory Ready (Drivers and BIOS update to the lastest version required), 2 x USB3.0 + 4 x USB2.0 via internal USB connectors,1 x USB3.0 Type-C + 3 x USB3.0 + 2 x USB2.0 + 1 x Mouse Keyboard ports on the rear I/O panel, 1 x VGA (D-sub) + 1 x DVI-D + 1 x HDMI (Select CPUs with integrated graphics required to enable those on-board video ports), RTL8111H Gigabit LAN, Audio Boost, Core Boost, X-Boost, EZ Debug LED, Click BIOS 5, Supports Windows 10 64-bit
