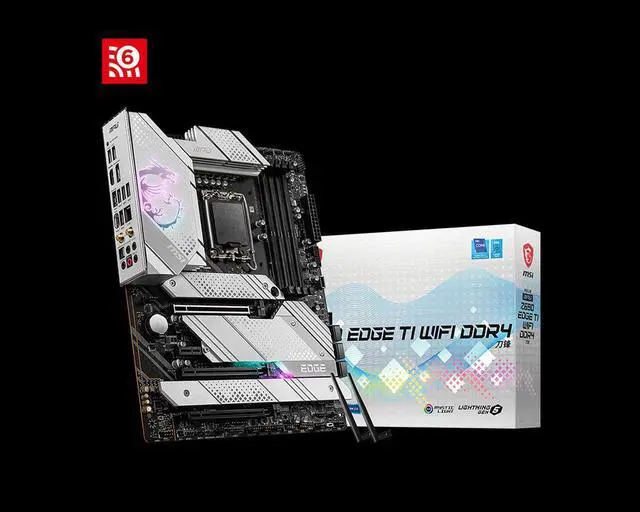

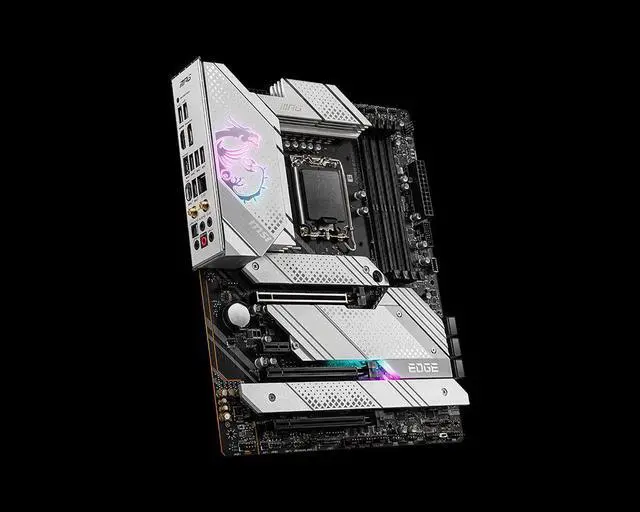

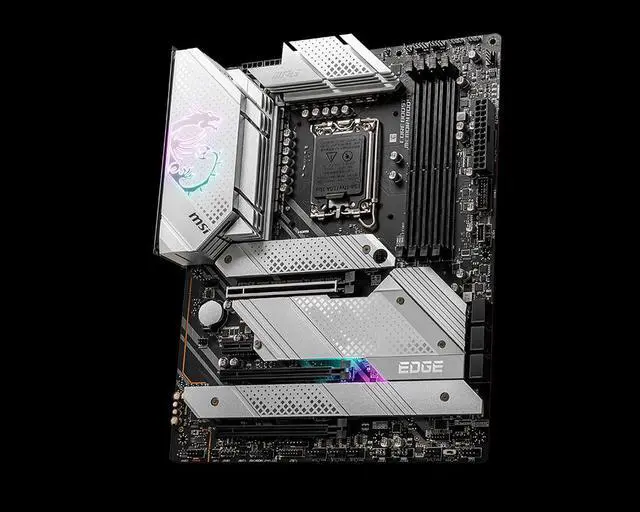

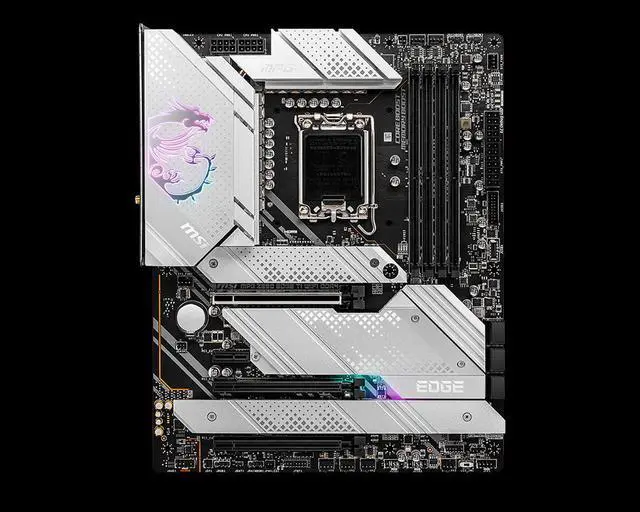

MSI MPG Z690 EDGE TI WIFI DDR4 Support 12th generation Intel Core/Pentium/Celeron LGA 1700 Processor / DDR4 up to 5200+(OC) MHz
- Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors
- 4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 5200+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- 3x PCIe x16 slots
- PCI_E1 slot (From CPU)
- Supports PCIe 5.0 x16
- PCI_E3 & PCI_E4 slots (From Z690 chipset)
- Supports PCIe 3.0 x4
- 1x PCIe 3.0 x1 slot (From Z690 chipset)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Support DDR4 memory, up to 5200+ (OC)
MHz Lightning Fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M. 2, USB 3.2 Gen 2x2
Enhanced power supply design: direct 16+1+1 phase power supply, dual 8 PIN CPU power connectors, core acceleration engine, memory acceleration engine
Advanced heat dissipation solutions: full metal covering heat dissipation, heat conduction heat pipes, 7W/mk MOSFET heat conduction pads, additional choke heat dissipation pads and M. 2 Frost Armor are designed for high-performance systems and uninterrupted gaming experience
MYSTIC LIGHT: One-button control of 16.8 million colors/multiple lighting effects. MYSTIC LIGHT SYNC supports RGB and RAINBOW (ARGB) LED strips and environmental equipment. 2.5G LAN with LAN Manager and Intel
Wi-Fi 6 solution: an upgraded network solution for professional and multimedia purposes. Provide a safe, stable and fast network connection
The fifth-generation e-sports audio components: bring you an immersive gaming experience with studio-level sound quality
High-quality PCB: 6-layer PCB made of 2oz thick copper and server-grade materials

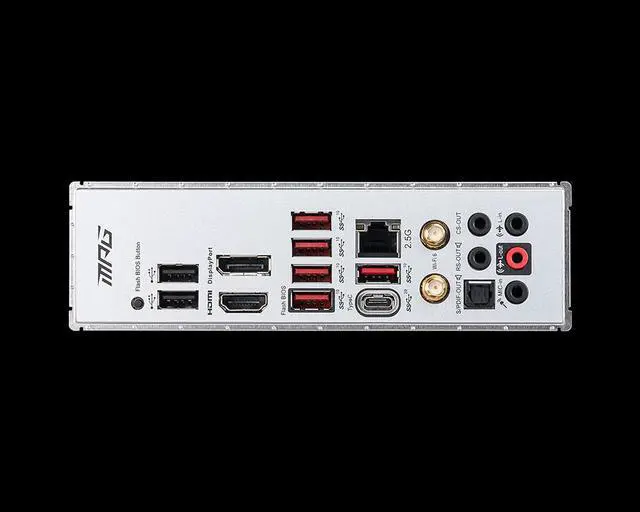

Pre-installed I/O shield: better EMI protection and easier installation
MHz Lightning Fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M. 2, USB 3.2 Gen 2x2
Enhanced power supply design: direct 16+1+1 phase power supply, dual 8 PIN CPU power connectors, core acceleration engine, memory acceleration engine
Advanced heat dissipation solutions: full metal covering heat dissipation, heat conduction heat pipes, 7W/mk MOSFET heat conduction pads, additional choke heat dissipation pads and M. 2 Frost Armor are designed for high-performance systems and uninterrupted gaming experience
MYSTIC LIGHT: One-button control of 16.8 million colors/multiple lighting effects. MYSTIC LIGHT SYNC supports RGB and RAINBOW (ARGB) LED strips and environmental equipment. 2.5G LAN with LAN Manager and Intel
Wi-Fi 6 solution: an upgraded network solution for professional and multimedia purposes. Provide a safe, stable and fast network connection
The fifth-generation e-sports audio components: bring you an immersive gaming experience with studio-level sound quality
High-quality PCB: 6-layer PCB made of 2oz thick copper and server-grade materials
Pre-installed I/O shield: better EMI protection and easier installation
