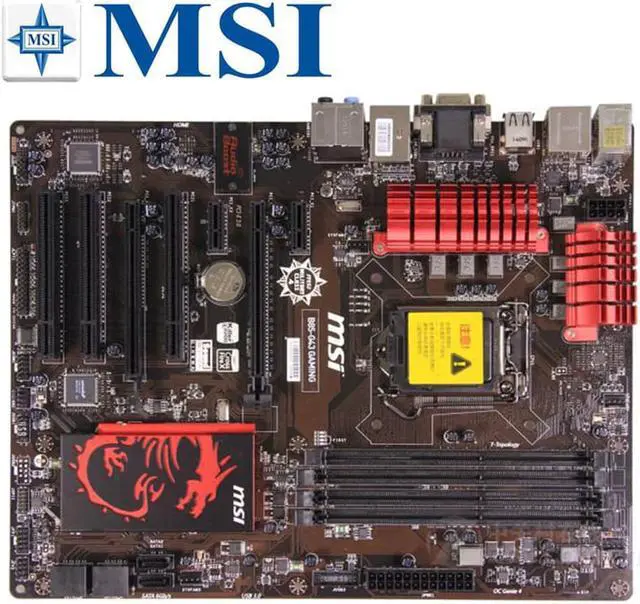

MSI B85-G43 GAMING mainboard DDR3 LGA 1150 SATA3 USB3.0 HDMI B85 Desktop motherboard Similar to H87 Z87 H97 Z97
REFURBISHED Product Type
- This motherboard model is B85-G43 GAMING
- The quality is original second-hand goods.(Used product 90%-80% new)
- But it is working well,we will finish100% testedbefore shipping.
- Packing include one motherboard and one metal bafflewithout CMOS battery, did not have other part.
- Please make sure you buy the right board to ensure 100% compatibility your other hardware.
- This Product is 100%Not repaired.
- This Product is 100% Original MSI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Special Note: Intel's 1156, 1155, 1150, 1151 platforms introduce a mechanism for RAM secondary storage! That is, when your CPU is an I3 I5 I7 or Xeon CPU! You can only plug in the front of the motherboard to count the first third group of RAM slots and then plug in the second group of RAM slots to light the motherboard! The lowest CPU of each platform is unrestricted! You can plug any set of RAM at will! This shop is in the low-end model CPU test! All RAM slots are tested and shipped!
1. When you only have one or two RAMs, you can only plug in the first third group of RAM slots! Insert the second group of RAM slots is no way to light up the machine!
2. When you don't have enough RAM to test all the RAM slots, you can borrow a friend's RAM. Only four slots are full. You know that the motherboard is normal!
B85-G43 GAMING parameters:
Main chipset Intel B85
Chipset description Using Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip onboard Killer E2205 Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Memory specifications

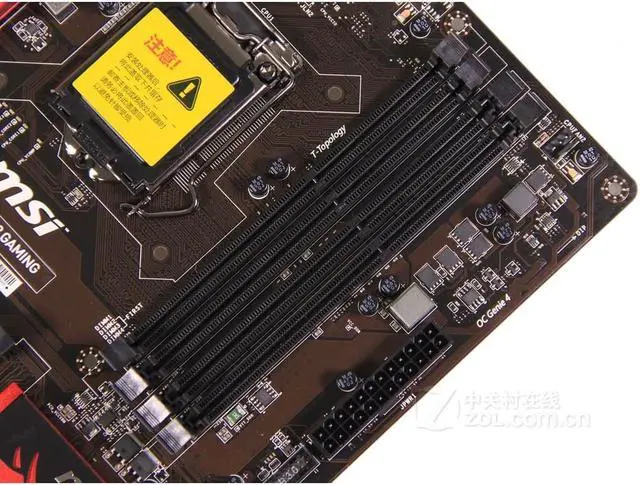

Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage expansion

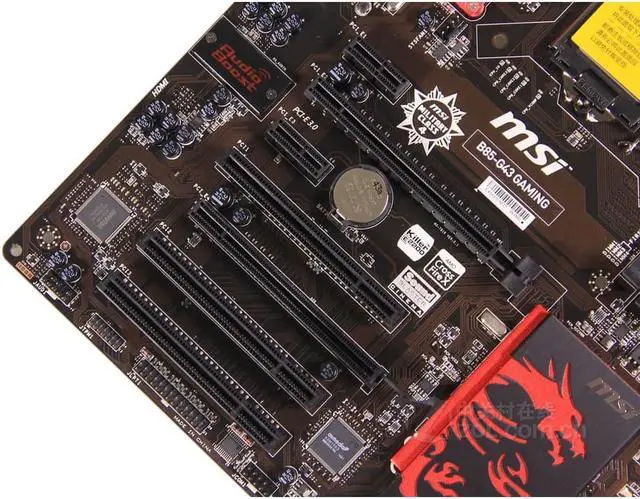

PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 4 × PCI slot

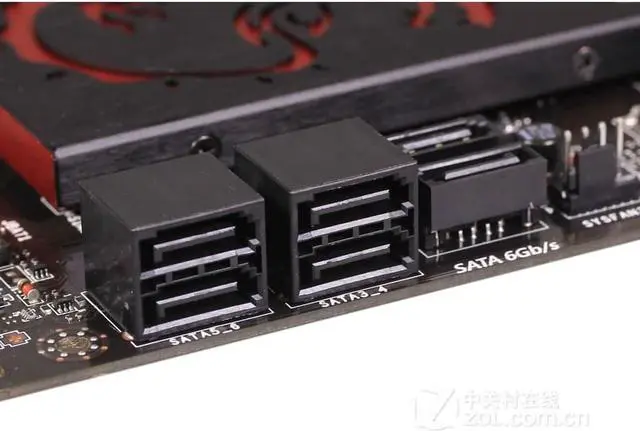

Storage interface 4×SATA III interface, 2×SATA II interface

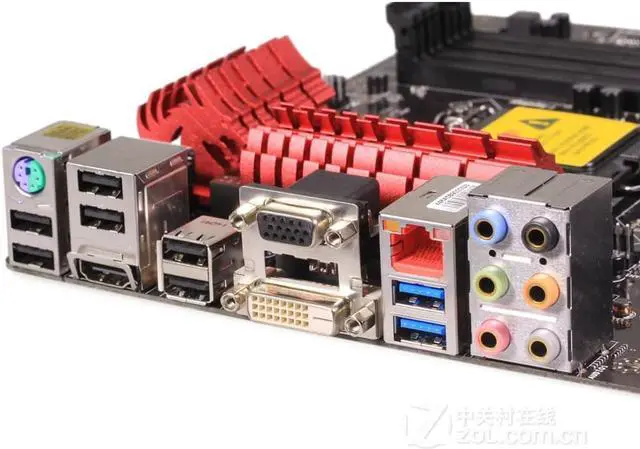

I/O interface
USB interface 4 × USB 3.0 interface (2 built-in +2 backplane), 8 × USB 2.0 interface (2 built-in +6 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5 × 24.4 cm
Other parameters
Multi-graphics technology supports AMD CrossFireX hybrid crossfire technology
Other features support HIFI
Packing list: motherboard x1 + baffle x1
1. When you only have one or two RAMs, you can only plug in the first third group of RAM slots! Insert the second group of RAM slots is no way to light up the machine!
2. When you don't have enough RAM to test all the RAM slots, you can borrow a friend's RAM. Only four slots are full. You know that the motherboard is normal!
B85-G43 GAMING parameters:
Main chipset Intel B85
Chipset description Using Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip onboard Killer E2205 Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 4 × PCI slot
Storage interface 4×SATA III interface, 2×SATA II interface
I/O interface
USB interface 4 × USB 3.0 interface (2 built-in +2 backplane), 8 × USB 2.0 interface (2 built-in +6 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5 × 24.4 cm
Other parameters
Multi-graphics technology supports AMD CrossFireX hybrid crossfire technology
Other features support HIFI
Packing list: motherboard x1 + baffle x1
