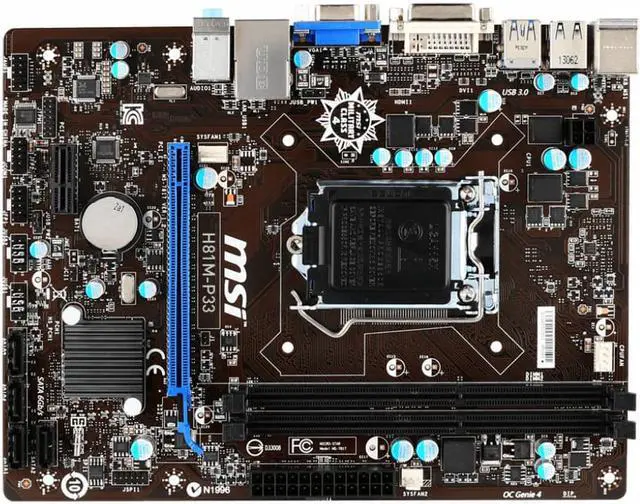

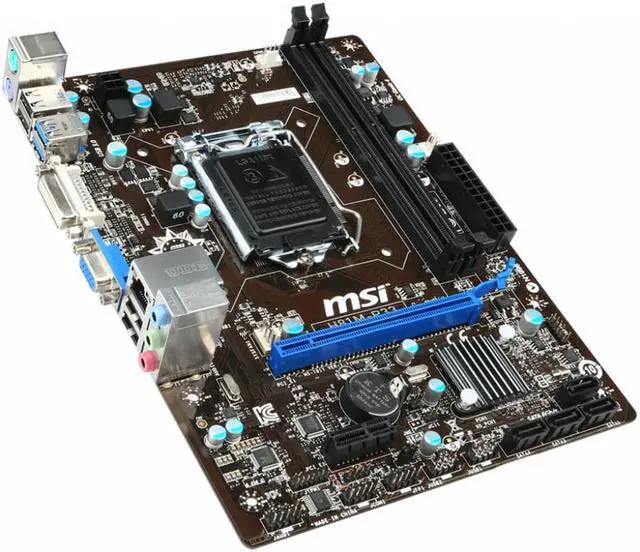

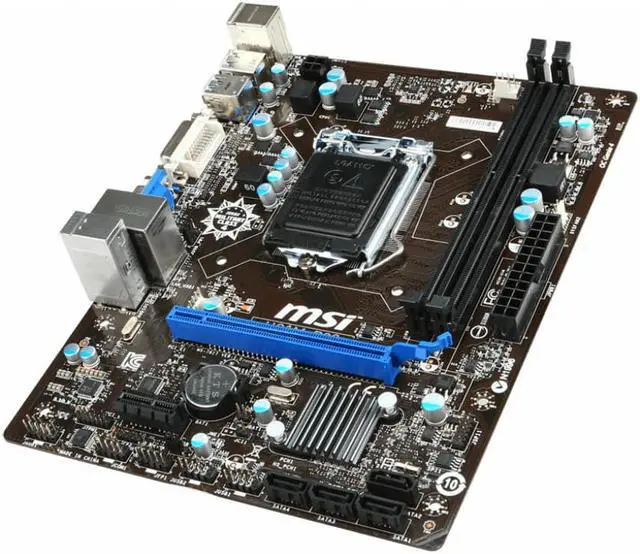

FOR MSI H81M-P33 Intel H81 PCI-E 2.0 SATA 6Gb/s USB 3.0 Micro ATX Intel LGA 1150 Motherboard DDR3 can use 1150 i3 i5 i7 xeon
REFURBISHED Product Type
- This motherboard model is H81M-P33
- The quality is original second-hand goods.(Used product 90%-80% new)
- But it is working well,we will finish100% testedbefore shipping.

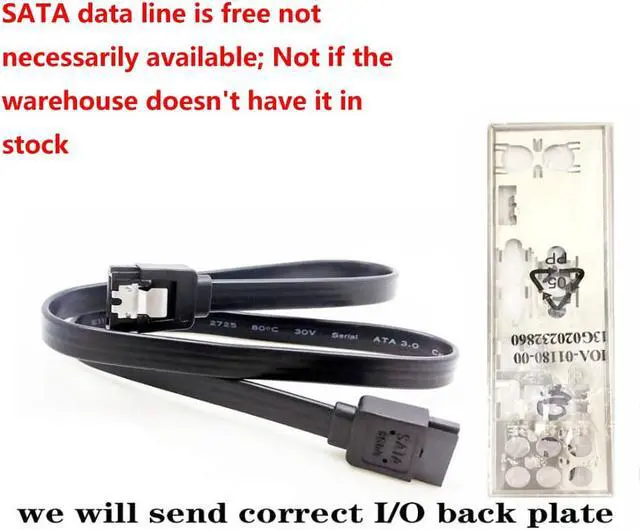

- Packing include one motherboard and one metal bafflewithout CMOS battery, did not have other part.
- Please make sure you buy the right board to ensure 100% compatibility your other hardware.
- This Product is 100%Not repaired.
- This Product is 100% Original MSI
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MSI H81M-P33 parameter
Main chipset Intel H81
Chipset Description Intel H81 chipset is used
Display chip CPU Built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound chip
Nic Chip-on-board Realtek RTL8111G Gigabit NIC
Processor
CPU type Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1150
CPU Description Intel 22nm processors are supported
Memory
Memory Type 2 x DDR3 DIMMs
The maximum memory capacity is 16GB
Memory Description Supports dual-channel DDR3 memory of 1600 MHZ, 1333 MHZ, and 1066MHz
Storage expansion
PCI-E Standard PCI-E 2.0
PCI-E slot 1 x PCI-E X16 video card slot, 1 x PCI-E X1 slot
Storage ports 2 x SATA III ports, 2 x SATA II ports

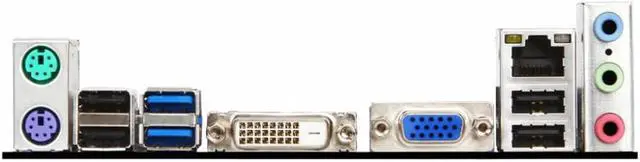

I/O interface
USB ports 2 x USB 3.0 ports (backplane), 8 x USB 2.0 ports (4 built-in +4 backplane)
Video port 1 x DVI port, 1 x VGA port
One 4-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, audio port, PS/2 mouse, PS/2 keyboard port
The plate type
Main board type Micro ATX board type
The overall dimension is 22.6 × 17.3 cm
Operating system Supports Microsoft Windows 7/XP operating system
Motherboard accessories
Packing list ASUS motherboard x1+I/O baffle x1
Main chipset Intel H81
Chipset Description Intel H81 chipset is used
Display chip CPU Built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound chip
Nic Chip-on-board Realtek RTL8111G Gigabit NIC
Processor
Specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1150
CPU Description Intel 22nm processors are supported
Memory
Specifications
Memory Type 2 x DDR3 DIMMs
The maximum memory capacity is 16GB
Memory Description Supports dual-channel DDR3 memory of 1600 MHZ, 1333 MHZ, and 1066MHz
Storage expansion
PCI-E Standard PCI-E 2.0
PCI-E slot 1 x PCI-E X16 video card slot, 1 x PCI-E X1 slot
Storage ports 2 x SATA III ports, 2 x SATA II ports
I/O interface
USB ports 2 x USB 3.0 ports (backplane), 8 x USB 2.0 ports (4 built-in +4 backplane)
Video port 1 x DVI port, 1 x VGA port
One 4-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, audio port, PS/2 mouse, PS/2 keyboard port
The plate type
Main board type Micro ATX board type
The overall dimension is 22.6 × 17.3 cm
Operating system Supports Microsoft Windows 7/XP operating system
Motherboard accessories
Packing list ASUS motherboard x1+I/O baffle x1
