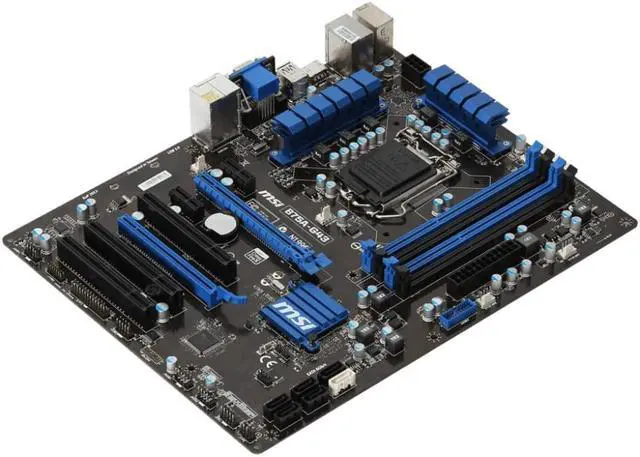

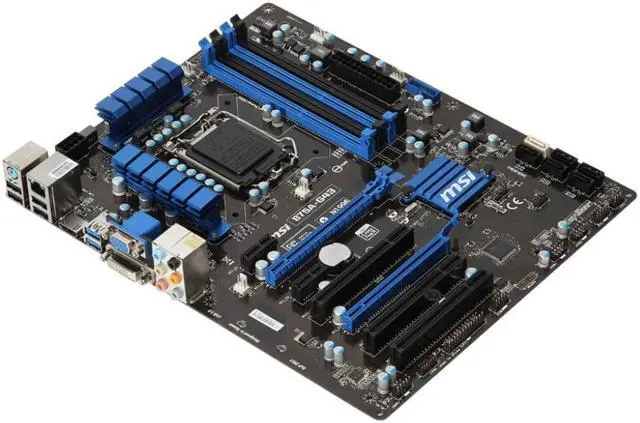

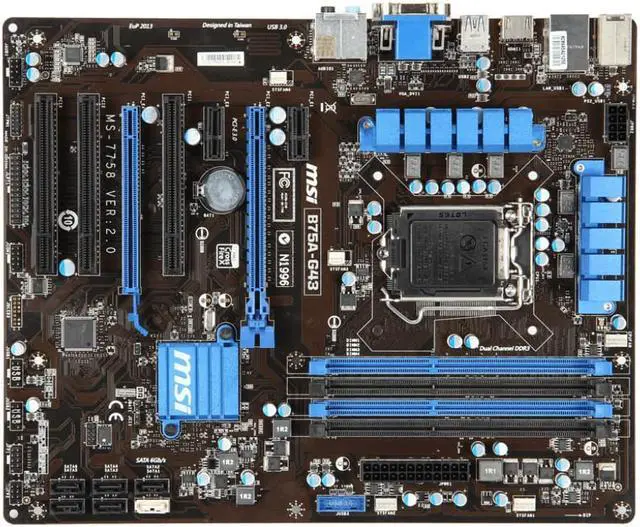

FOR MSI B75A-G43 LGA 1155 Intel B75 DDR3 HDMI SATA 6Gb/s USB 3.0 ATX PCI-E3.0 Intel Motherboard with UEFI BIOS
REFURBISHED Product Type
- This motherboard model is B75A-G43
- The quality is original second-hand goods.(Used product 90%-80% new)
- But it is working well,we will finish100% testedbefore shipping.
- Packing include one motherboard and one metal bafflewithout CMOS battery, did not have other part.
- Please make sure you buy the right board to ensure 100% compatibility your other hardware.
- This Product is 100%Not repaired.
- This Product is 100% Original FOR MSI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Special Note: Intel's 1156, 1155, 1150, 1151 platforms introduce a mechanism for RAM secondary storage! That is, when your CPU is an I3 I5 I7 or Xeon CPU! You can only plug in the front of the motherboard to count the first third group of RAM slots and then plug in the second group of RAM slots to light the motherboard! The lowest CPU of each platform is unrestricted! You can plug any set of RAM at will! This shop is in the low-end model CPU test! All RAM slots are tested and shipped!
1. When you only have one or two RAMs, you can only plug in the first third group of RAM slots! Insert the second group of RAM slots is no way to light up the machine!
2. When you don't have enough RAM to test all the RAM slots, you can borrow a friend's RAM. Only four slots are full. You know that the motherboard is normal!
Microstar B75A-G43 parameter
Main chipset Intel B75
Chipset Description Intel B75 chipset is used
Display chip Built-in CPU display chip (requires CPU support)
Audio chip integrated with Realtek ALC892 8-channel sound chip
Nic Chip Onboard Realtek RTL8111E Gigabit NIC
Processor specification
CPU type Core i7/Core i5/Core i3/Pentium/Celeron
CPU slot LGA 1155
CPU Description Intel 22nm processors are supported
Memory specification
DIMM Type 4 x DDR3 DIMMs
Maximum memory capacity 32GB
Memory Description Supports dual-channel DDR3 memory of 1600 MHz, 1333 MHZ, 1066 MHZ, 1800 MHZ, 2000 MHZ, and 2200 MHZ
Storage extension
PCI-E Standard The PCI-E 3.0 standard
PCI-E slot 2 x PCI-E X16 video card slot, 2 x PCI-E X1 slot
PCI slot 3 x PCI slot
Storage ports 5 x SATA II ports; 1 x SATA III port

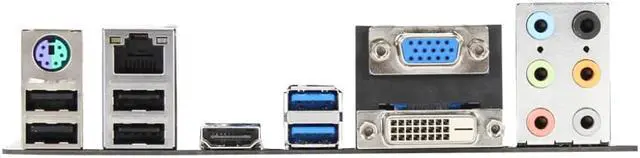

I/O interface
USB port 8 x USB 2.0 port (4 built-in +4 backplane); 4 x USB 3.0 ports (2 Built-in +2 backplane)
Video port 1 x DVI port, 1 x VGA port, 1 x HDMI port
One 8-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, audio port, PS/2 key and mouse port
Plate type
Main board type ATX board type
The overall dimension is 30.5 × 24.4 cm
Other parameters
The multi-graphics technology supports AMD CrossFireX hybrid Crossfire technology
1. When you only have one or two RAMs, you can only plug in the first third group of RAM slots! Insert the second group of RAM slots is no way to light up the machine!
2. When you don't have enough RAM to test all the RAM slots, you can borrow a friend's RAM. Only four slots are full. You know that the motherboard is normal!
Microstar B75A-G43 parameter
Main chipset Intel B75
Chipset Description Intel B75 chipset is used
Display chip Built-in CPU display chip (requires CPU support)
Audio chip integrated with Realtek ALC892 8-channel sound chip
Nic Chip Onboard Realtek RTL8111E Gigabit NIC
Processor specification
CPU type Core i7/Core i5/Core i3/Pentium/Celeron
CPU slot LGA 1155
CPU Description Intel 22nm processors are supported
Memory specification
DIMM Type 4 x DDR3 DIMMs
Maximum memory capacity 32GB
Memory Description Supports dual-channel DDR3 memory of 1600 MHz, 1333 MHZ, 1066 MHZ, 1800 MHZ, 2000 MHZ, and 2200 MHZ
Storage extension
PCI-E Standard The PCI-E 3.0 standard
PCI-E slot 2 x PCI-E X16 video card slot, 2 x PCI-E X1 slot
PCI slot 3 x PCI slot
Storage ports 5 x SATA II ports; 1 x SATA III port
I/O interface
USB port 8 x USB 2.0 port (4 built-in +4 backplane); 4 x USB 3.0 ports (2 Built-in +2 backplane)
Video port 1 x DVI port, 1 x VGA port, 1 x HDMI port
One 8-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, audio port, PS/2 key and mouse port
Plate type
Main board type ATX board type
The overall dimension is 30.5 × 24.4 cm
Other parameters
The multi-graphics technology supports AMD CrossFireX hybrid Crossfire technology
