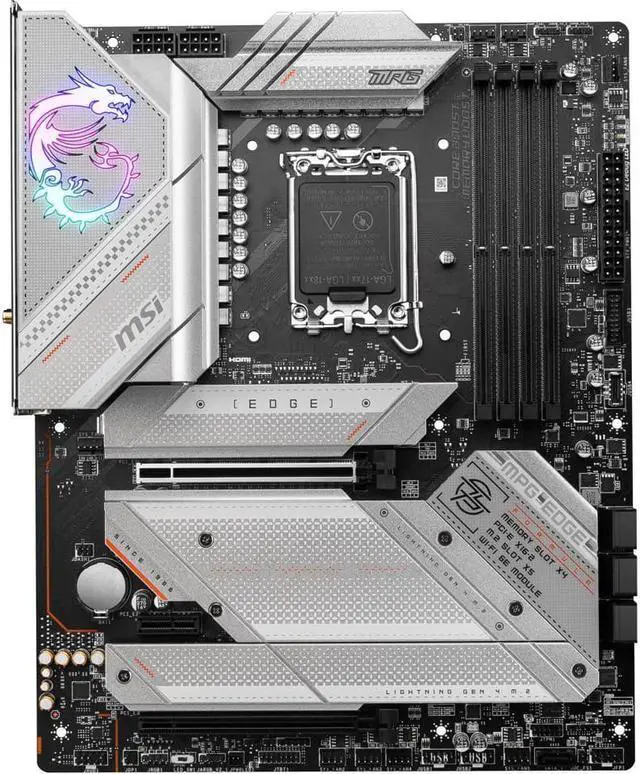

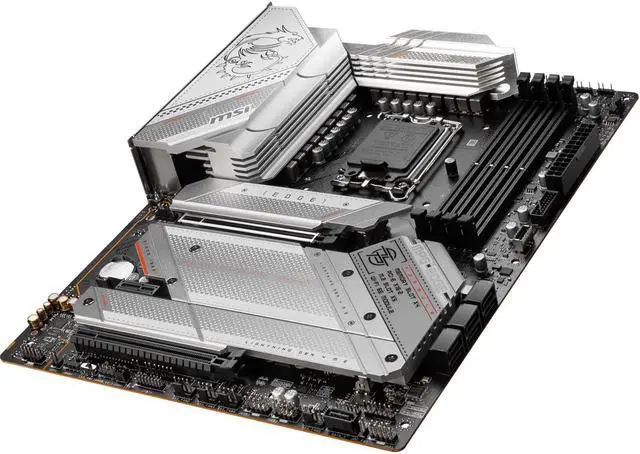

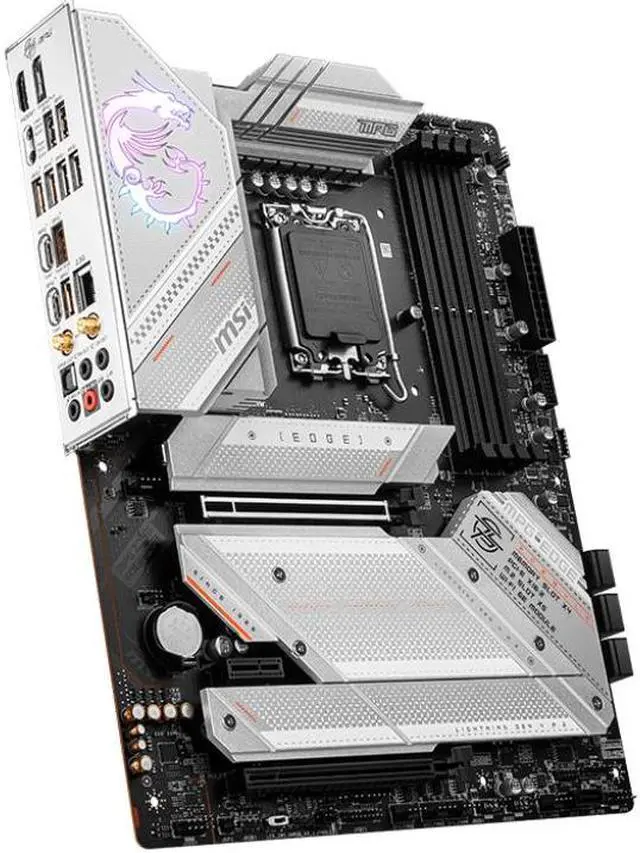

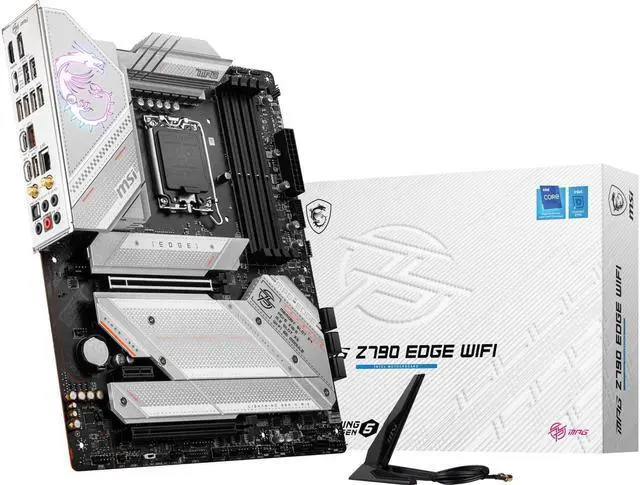

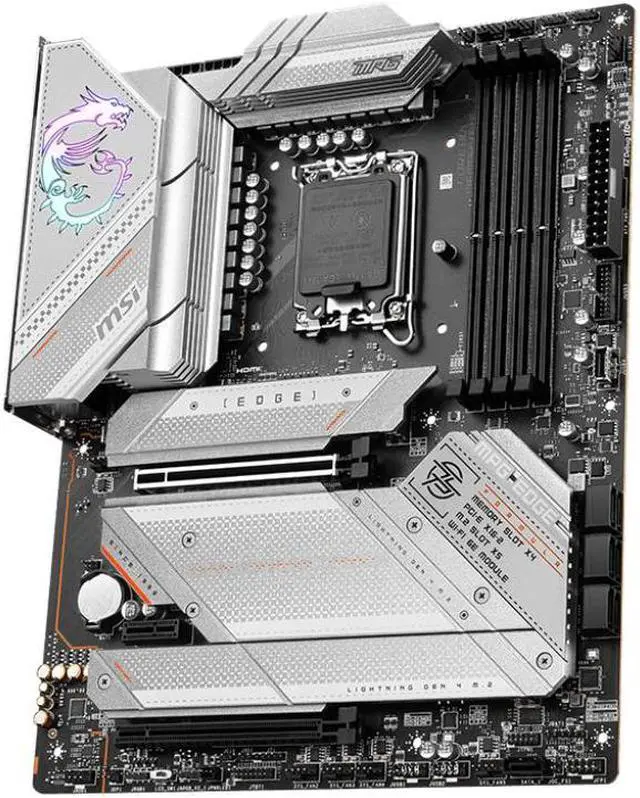

MSI MPG Z790 EDGE WIFI LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboard
- Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
- Latest DDR5 Memory - 7200MHZ+(OC): A huge step of DDR performance enhancement with the latest DDR5 memory.
- Premium Thermal Design: On board M.2 Shield Frozr.
- Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
- Screwless M.2 Shield Frozr: The patent-pending design provides the easiest way of M.2 installation.
- Wi-fi 6E: the latest wireless solution supports 6GHz spectrum. MU-MIMO and BSS color technology, delivering speeds up to 2400 Mbps.
- 2.5G Network solution.
- Lightning USB 20G: Build in USB 3.2 Gen 2X2 port. offers 20 Gbps transmission speed 4X faster than USB 3.2 Gen1.
- Audio Boost 5.
- Core Boost: with premium layout and fully digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure date signals for the best performance, stability and compatibility.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Name MPG Z790 EDGE WIFI
CPU Support Supports 12th / 13th Gen Intel®
Core Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
Z790 Chipset
Graphics
Interface
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort
1.4 Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC)
Storage 5x M. 2 PCIe 4.0 x4 slots
7x SATA 6Gbps ports

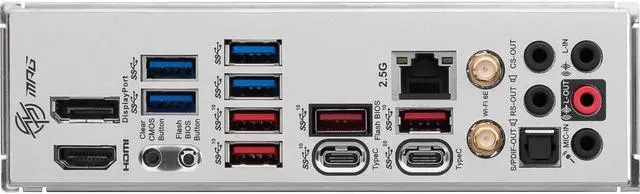

USB ports 1x USB 3.2 Gen 2x2 20G (1 Type-C)
6x USB 3.2 Gen 2 10Gbps (2 Type-C + 4 Type-A)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
4x USB 2.0 (4 Type-A)
LAN Intel®
2.5G bps LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel ( 7.1 ) HD Audio with Audio Boost 5
CPU Support Supports 12th / 13th Gen Intel®
Core Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
Z790 Chipset
Graphics
Interface
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort
1.4 Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC)
Storage 5x M. 2 PCIe 4.0 x4 slots
7x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2x2 20G (1 Type-C)
6x USB 3.2 Gen 2 10Gbps (2 Type-C + 4 Type-A)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
4x USB 2.0 (4 Type-A)
LAN Intel®
2.5G bps LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel ( 7.1 ) HD Audio with Audio Boost 5
