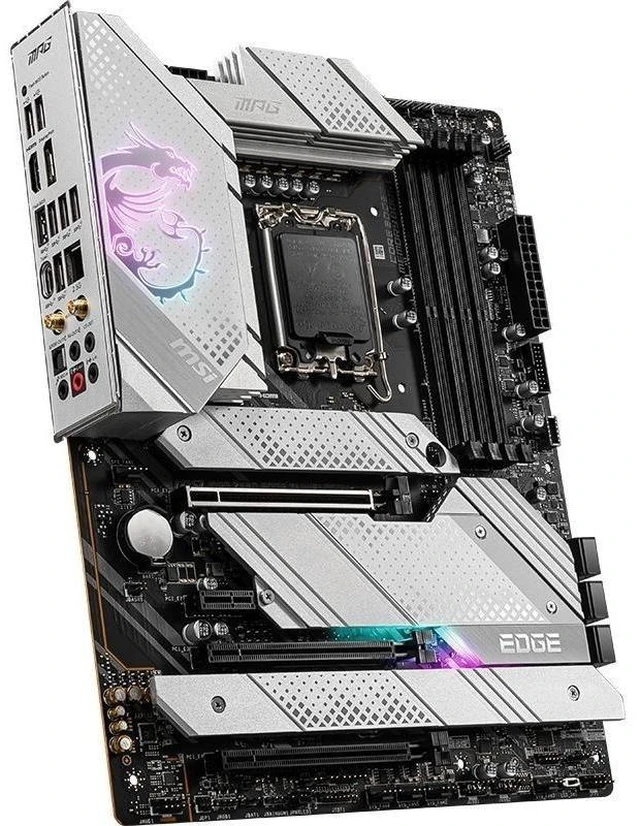

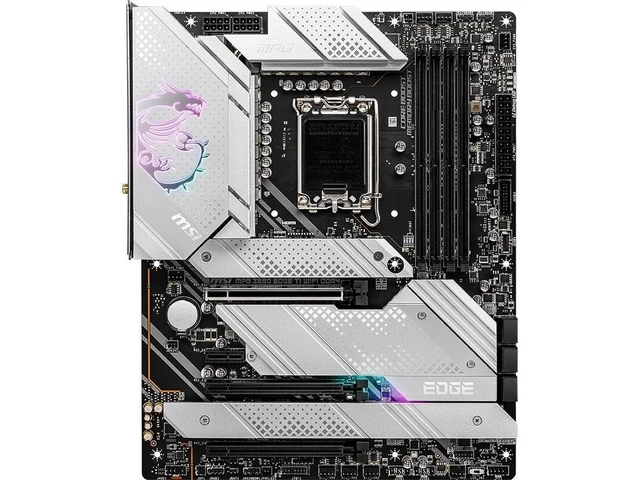

MSI MPG Z690 EDGE TI WIFI Motherboard (ATX,Intel Z690 LGA1700 12th Gen Intel Core,4×DDR4 DIMM, PCI-E 5.0 , 4×M.2, USB3.2 Gen2x2 Type-C , 2.5GbE LAN, Wi-Fi 6, 1xDisplayPort , 1xHDMI)
- Supports 12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket.Audio ports (Rear): 5plus Optical S/PDIF (Realtek ALC4080 Codec)
- Supports DDR4 Memory, up to 5600(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated chip: Sound card/network card
Main chipset: Intel Z690
Audio chip: Integrated Realtek ALC4080 7.1 channel sound chip
Nic chip: Onboard Intel I225V 2.5G bE NIC
CPU type: 12th generation Core/Pentium/Celeron
CPU slot: LGA 1700
Memory type: 4 x DDR4 DIM
Ms
Maximum memory capacity: 128GB
Memory Description: Supports dual-channel DDR4 5200 (OC) MHz memory
PCI-E Standard: PCI-E 5.0
PCI-E X16 slot: 3 slots
PCI-E X1 slot: 1
Storage ports: 4 x M. 2 ports, 6 x SATA III ports
USB interface:
1 x USB 3.2 Gen2x2 Type-C interface
5 x USB 3.2 Gen2 Type-A Interface
1 x USB 3.2 Gen2 Type-C interface
2 x USB 3.2 Gen1 port
2 x USB 2.0 port
Video port: 1 x DisplayPort port, 1 x HDMI port
Power interface: two 8-pin, one 24-pin power interface
Other interfaces: 1 x RJ45 network interface, 5 x audio interface
RAID: Supports RAID 0, 1, 5, and 10
Wireless: Support 802.11 a /b/g/n/ac/axWiFi standard
Bluetooth: Supports Bluetooth 5.2
Operating system: Windows11 64-bit, Windows10 64-bit
Main chipset: Intel Z690
Audio chip: Integrated Realtek ALC4080 7.1 channel sound chip
Nic chip: Onboard Intel I225V 2.5G bE NIC
CPU type: 12th generation Core/Pentium/Celeron
CPU slot: LGA 1700
Memory type: 4 x DDR4 DIM
Ms
Maximum memory capacity: 128GB
Memory Description: Supports dual-channel DDR4 5200 (OC) MHz memory
PCI-E Standard: PCI-E 5.0
PCI-E X16 slot: 3 slots
PCI-E X1 slot: 1
Storage ports: 4 x M. 2 ports, 6 x SATA III ports
USB interface:
1 x USB 3.2 Gen2x2 Type-C interface
5 x USB 3.2 Gen2 Type-A Interface
1 x USB 3.2 Gen2 Type-C interface
2 x USB 3.2 Gen1 port
2 x USB 2.0 port
Video port: 1 x DisplayPort port, 1 x HDMI port
Power interface: two 8-pin, one 24-pin power interface
Other interfaces: 1 x RJ45 network interface, 5 x audio interface
RAID: Supports RAID 0, 1, 5, and 10
Wireless: Support 802.11 a /b/g/n/ac/axWiFi standard
Bluetooth: Supports Bluetooth 5.2
Operating system: Windows11 64-bit, Windows10 64-bit
