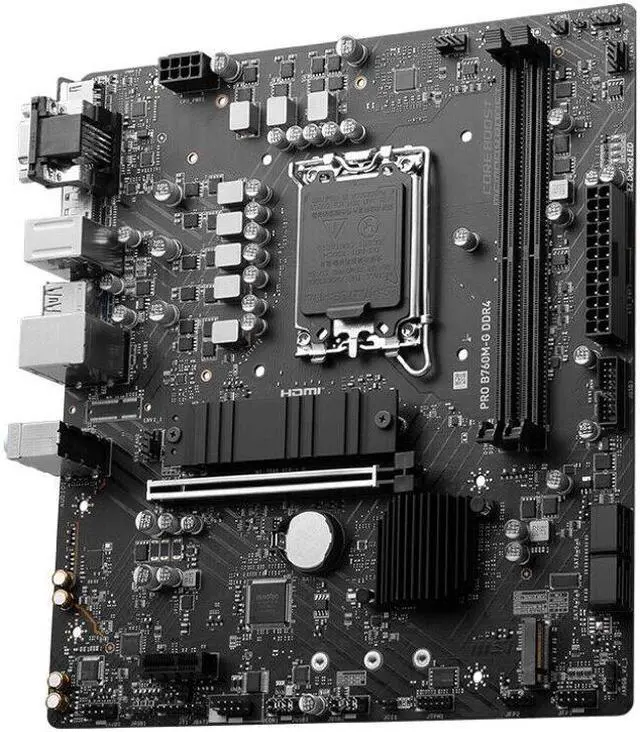

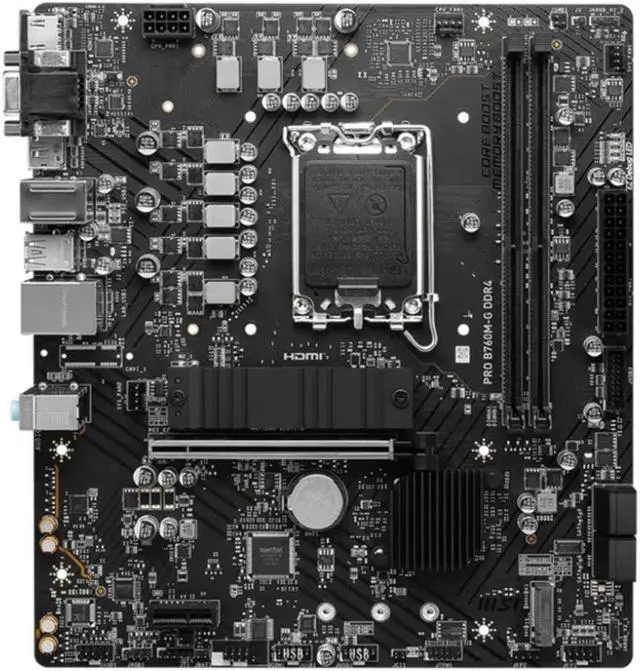

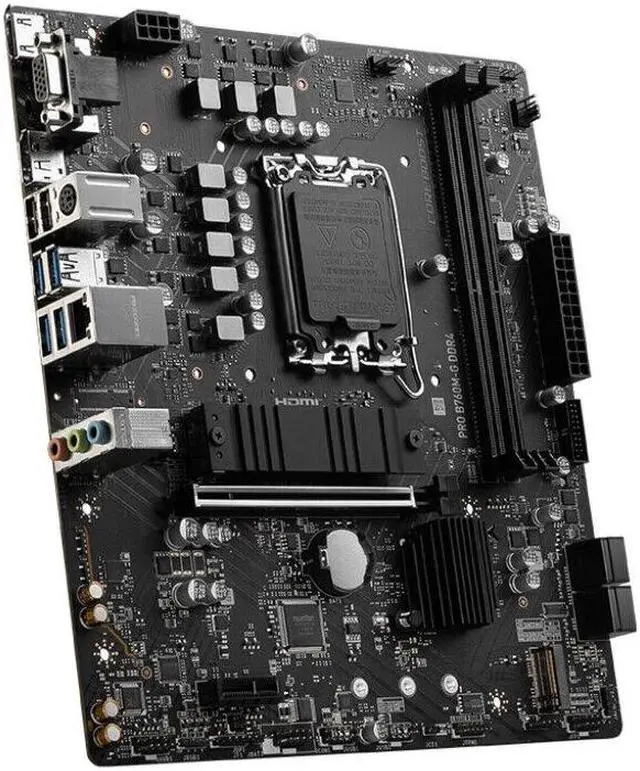

    MSI MSI PRO B760M-G ProSeries Motherboard (mATX, 12th/13th Gen Intel Core, LGA 1700 Socket, DDR4, PCIe 4, 2.5G LAN, M.2 Slots, USB 3.2)

    • Supports 12th/13th Gen Intel® Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
    • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    CHIPSET INTEL B760
    CPU SUPPORT Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
    MEMORY 2x DDR4, Maximum Memory Capacity 64GB
    Memory Support 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4200 (OC) / 4000 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200 (JEDEC) / 2933 (JEDEC) / 2666 (JEDEC) / 2400 (JEDEC) / 2133 (JEDEC)
    Max. overclocking frequency:
    1DPC 1R Max speed up to 4800+ MHz
    1DPC 2R Max speed up to 4600+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
    ONBOARD GRAPHICS 1x HDMI
    Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    1x VGA
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    EXPANSION SLOT 1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
    STORAGE 2x M. 2
    M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
    M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA7 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

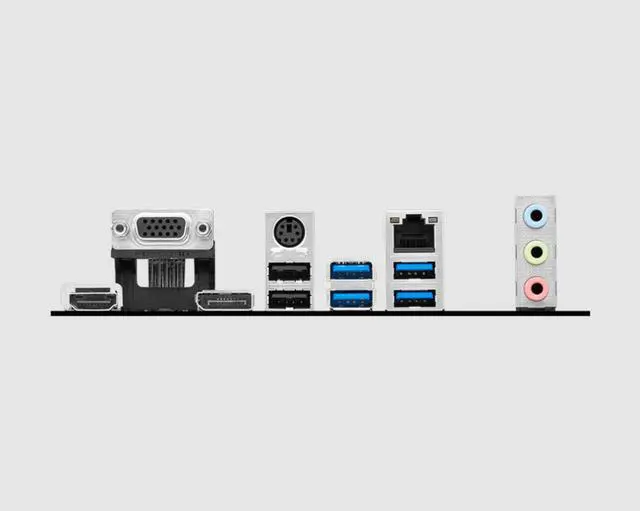

    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    LAN Realtek® RTL8125B 2.5G bps LAN
    AUDIO Realtek® ALC897 Codec
    7.1 -Channel High Definition Audio
    INTERNAL I/O 1x Power Connector (ATX_PWR)
    1x Power Connector (CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector (JRGB)
    1x TPM pin header(Support TPM 2.0 )
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    LED FEATURE 4x EZ Debug LED
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB DIMENSION (W × L) mATX
    220mmx 243.84 mm
