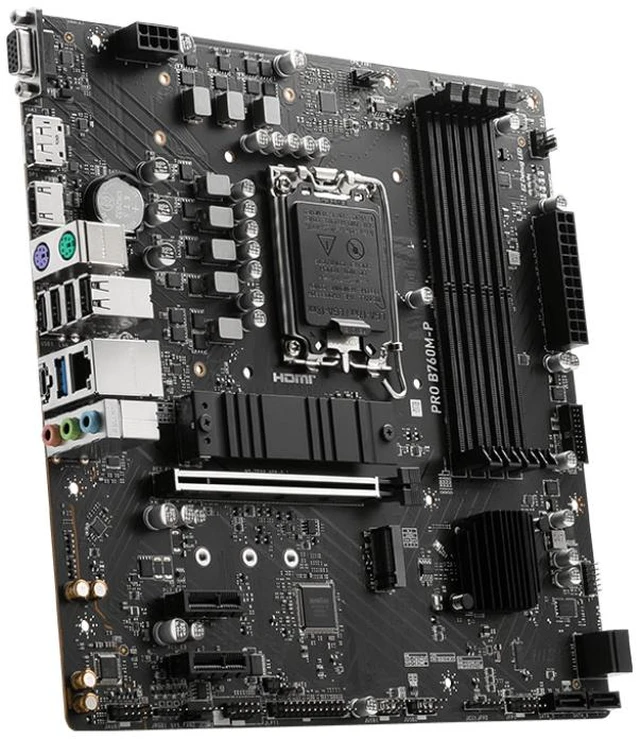

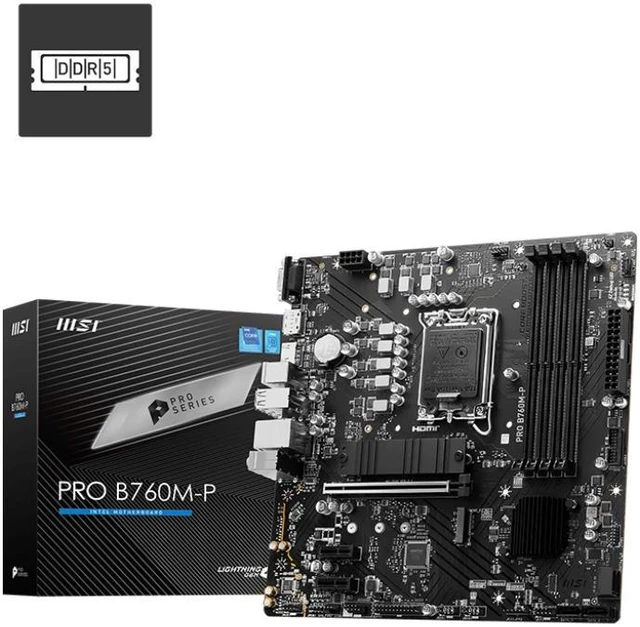

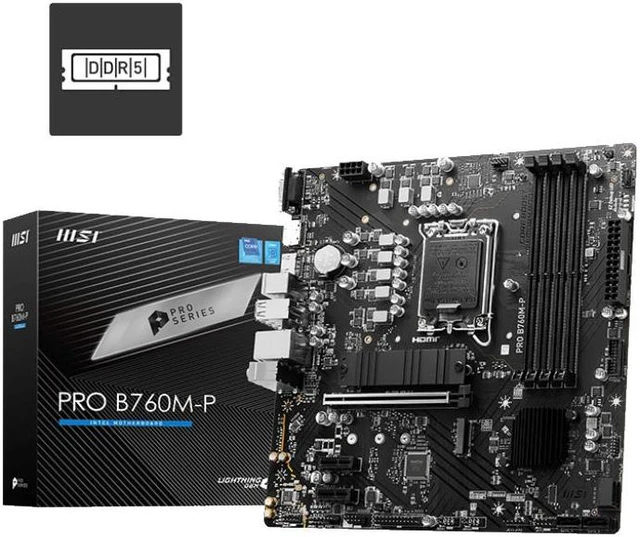

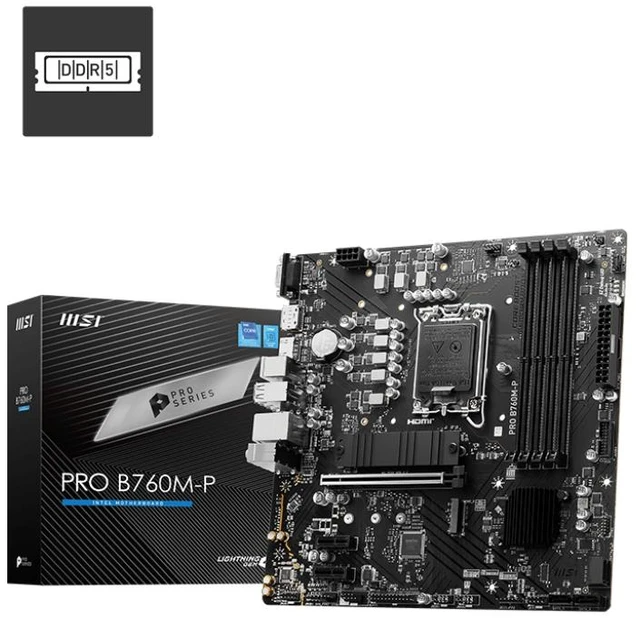

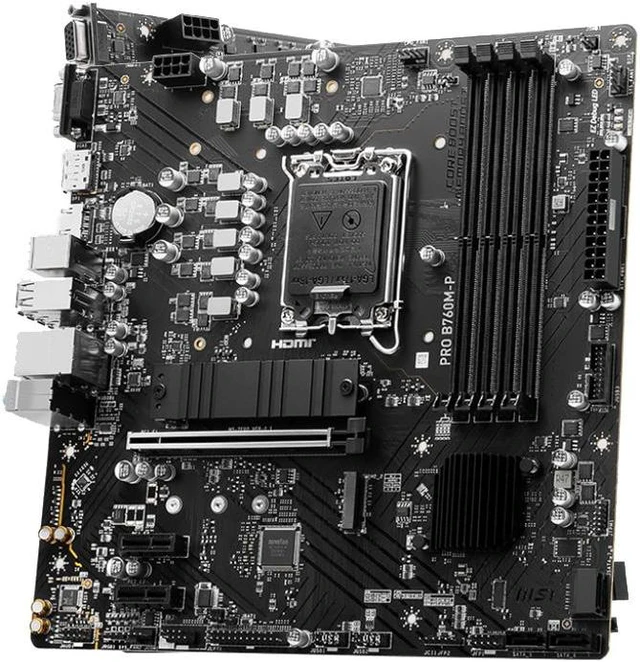

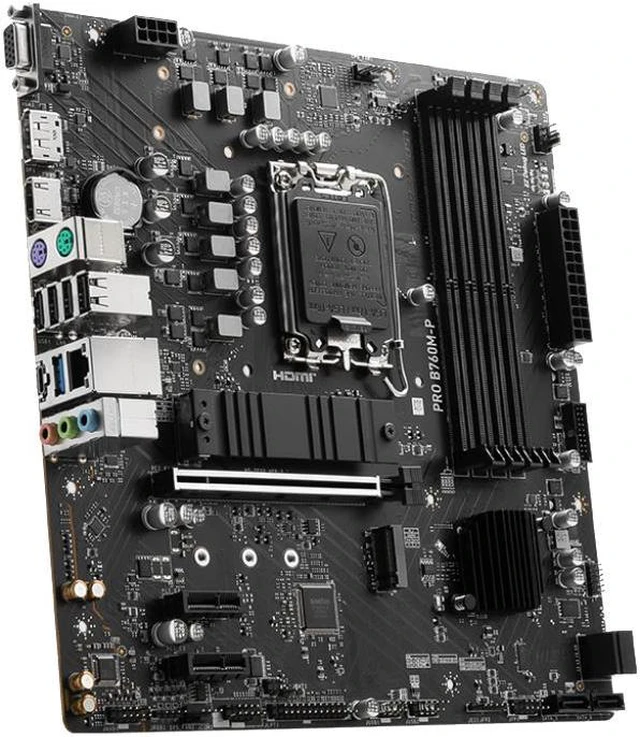

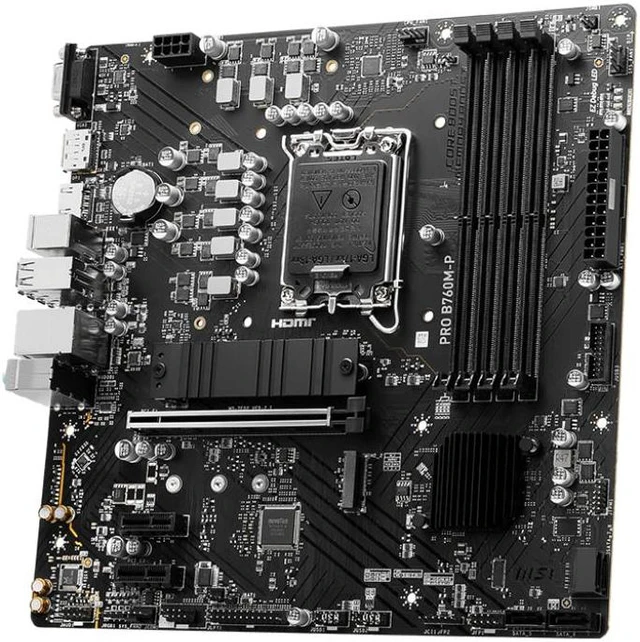

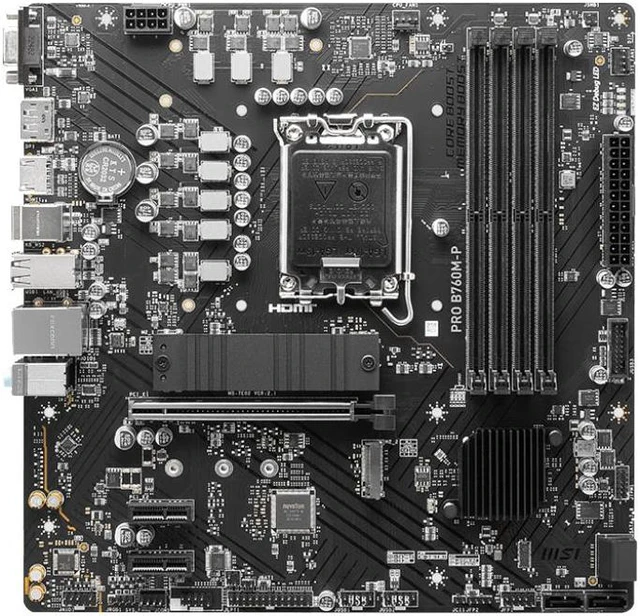

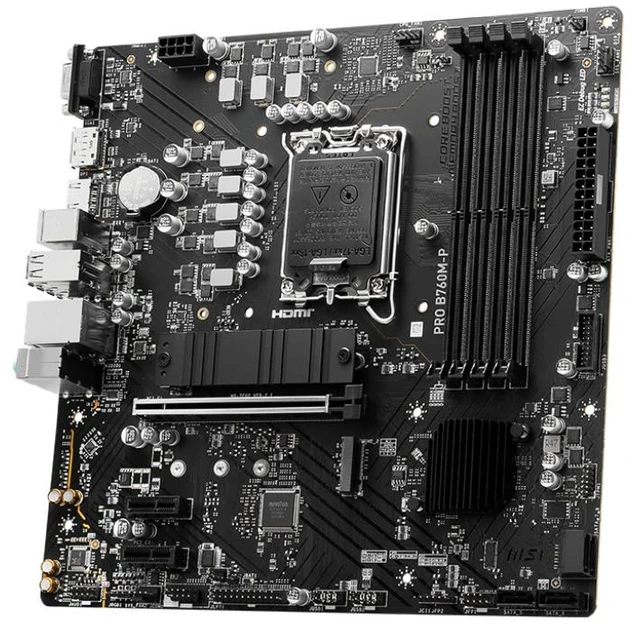

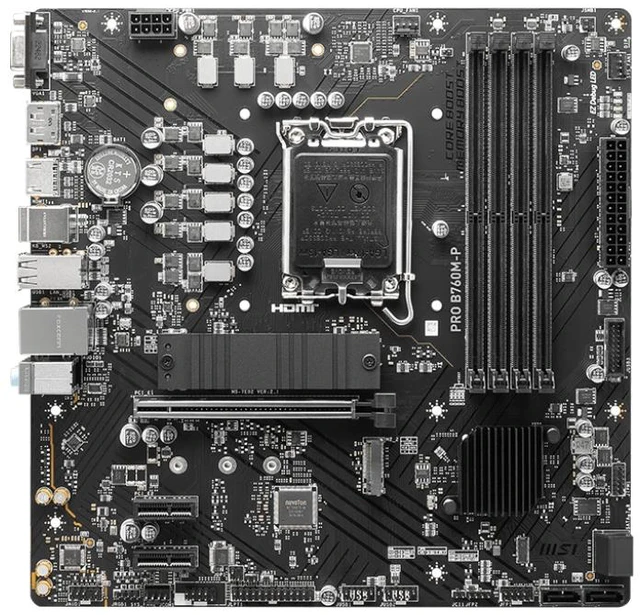

MSI PRO B760M-P [M-ATX] 1700 pins/DDR5/motherboard Supports 13th/12th Generation Intel® Core, Pentium® Gold and Celeron® processors in LGA 1700 footprint

#Please refer to the official website for detailed specifications#
Supports 13th/12th Generation Intel Core, Pentium Gold and Celeron processors in LGA 1700 footprint
Support DDR5 memory, dual-channel DDR5 6800+MHz (OC)
Core Boost: With excellent configuration and digital power supply design, it can fully support more cores and provide higher performance.
Memory Boost: Advanced technology provides clean signal transmission for optimal performance and stability.
Gaming at lightning speed: PCIe 4.0 slot, Lightning Gen4 x4 M. 2 with M. 2 Shield Frozr
AUDIO BOOST: Immerse your ears with studio-grade sound quality
Steel Armor: Protect VGA from bending and EMI interference for better performance, stability and longevity.

product specification
Chipset INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA1700
Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+ (OC) / 6600 (OC) / 6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 (JEDEC) / 5400 (JEDEC) / 5200 (JEDEC) / 5000 (JEDEC) / 4800 (JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

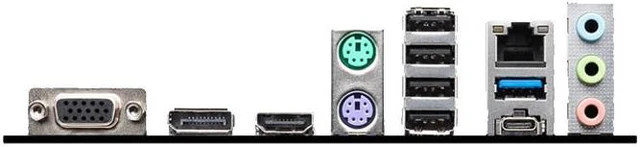

ONBOARD GRAPHICS 1x HDMI
Support HDMI 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot (Qty)
2x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage 2x M. 2 (Qty)
M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

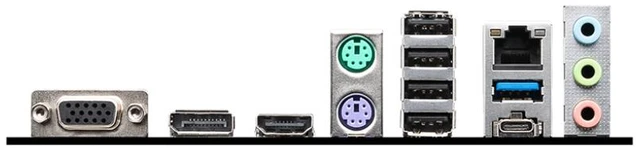

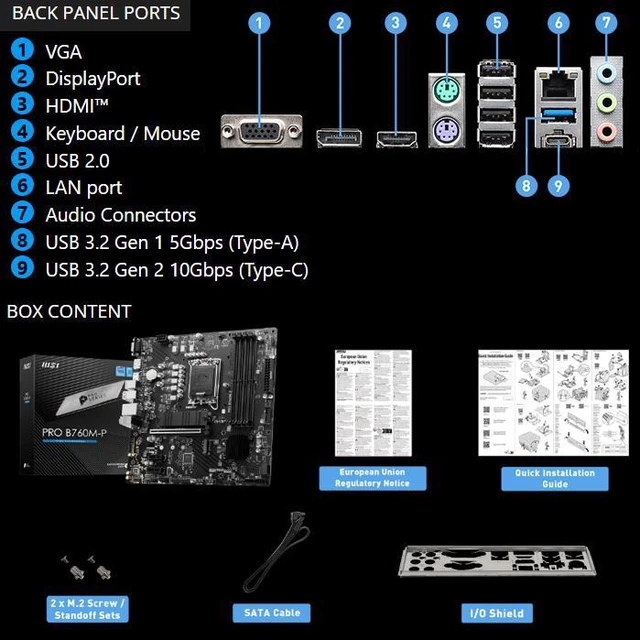

USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN Realtek RTL8111H Gigabit LAN
Audio Realtek ALC897 Codec
7.1 -Channel High Definition Audio
INTERNAL I/O 1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector (JRGB)
1x TPM pin header(Support TPM 2.0 )
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LEDs
OPERATING SYSTEM S
