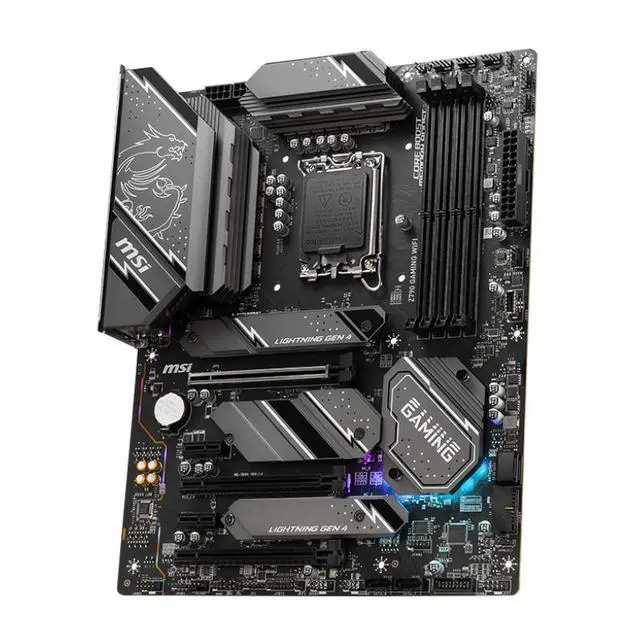

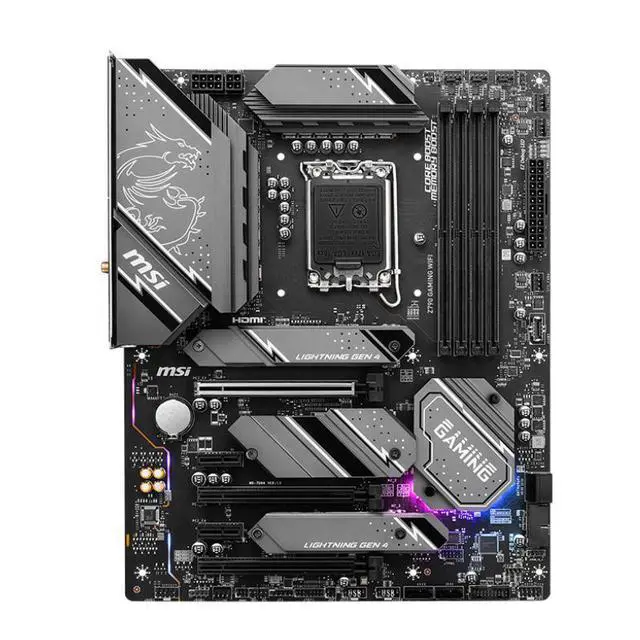

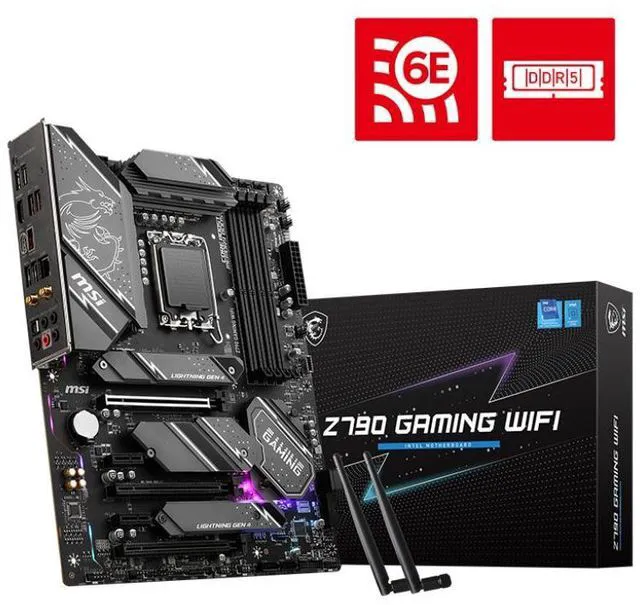

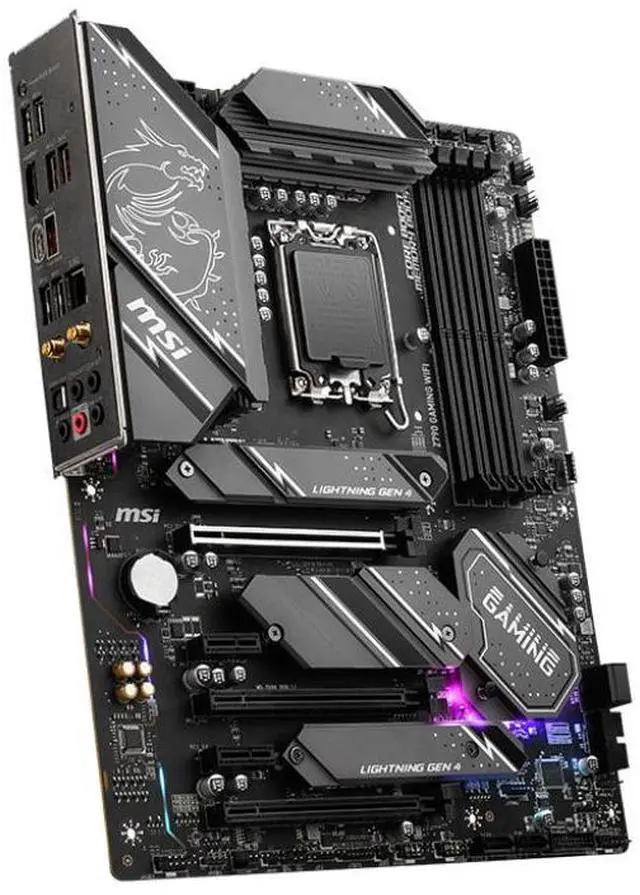

MSI Z790 GAMING WIFI D5 (LGA1700,DDR5, DrMOS 12+1+1 Enhanced Power Design ,PCIe 4.0, 3x M.2, 2.5Gbps LAN, Front USB 3.2 Gen2 Type-C, Wi-Fi 6E, ATX)

CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7200+ (OC) / 7000 (OC) / 6800 (OC) / 6600 (OC) / 6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 (JEDEC) / 5400 (JEDEC) / 5200 (JEDEC) / 5000 (JEDEC) / 4800 (JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7200+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI
Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 3x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 3x M. 2
M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M. 2 NVMe storage devices

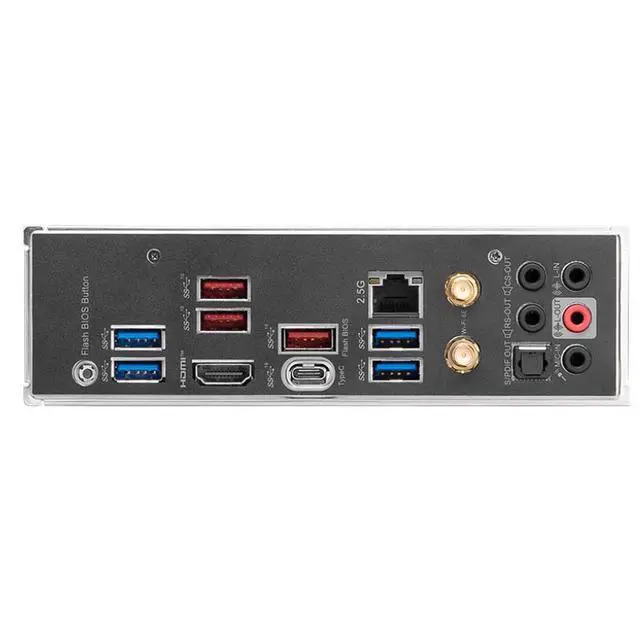

USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
LAN Realtek® RTL8125BG 2.5G bps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M. 2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GH z / 5GHz / 6GHz* (160MHz) up to 2.4G bps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC897 Codec
7.1 -Channel High Definition Audio
Supports S/PDIF output
INTERNAL I/O 1x Power Connector (ATX_PWR)
2x Power Connector (CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector (JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector (JRGB)
1x TPM pin header(Support TPM 2.0 )
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L) ATX
243.84 mmx 304.8 mm
