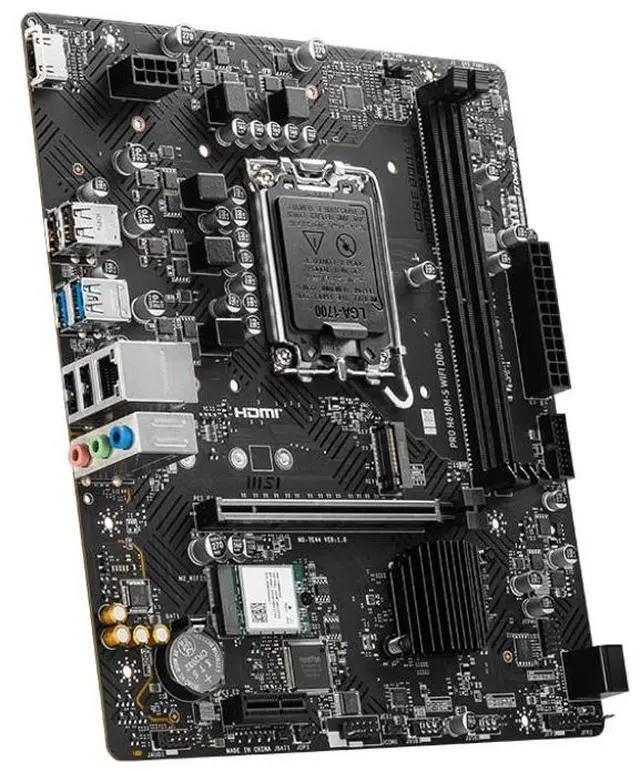

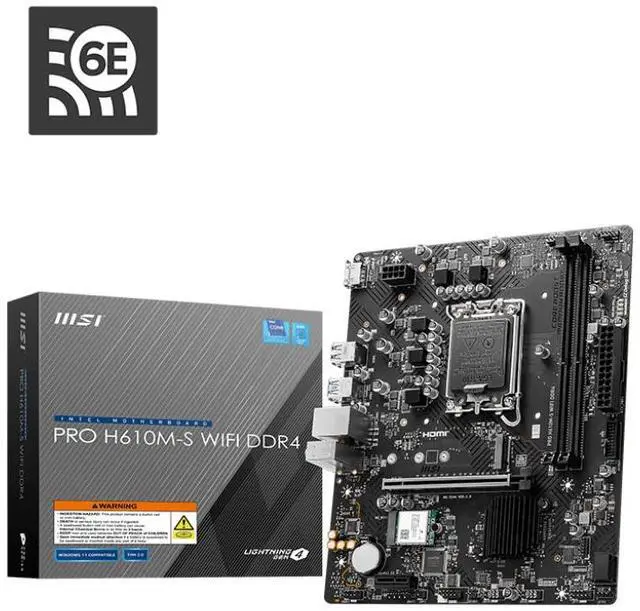

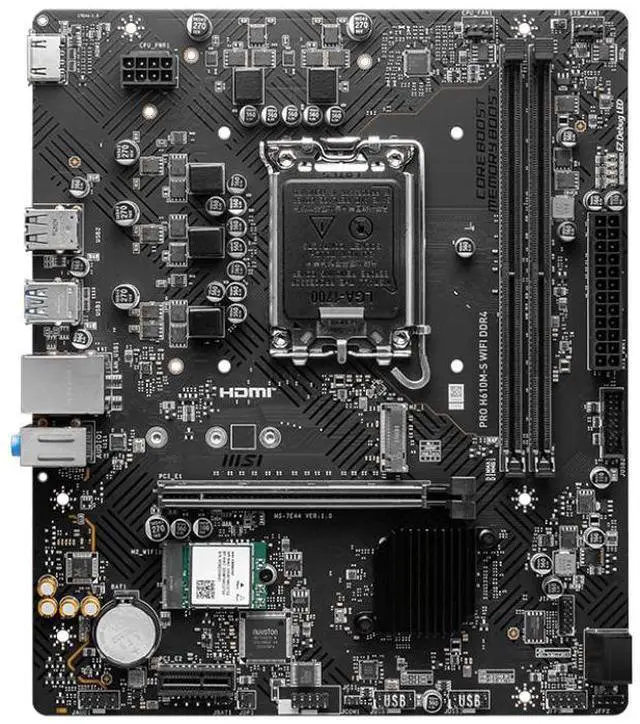

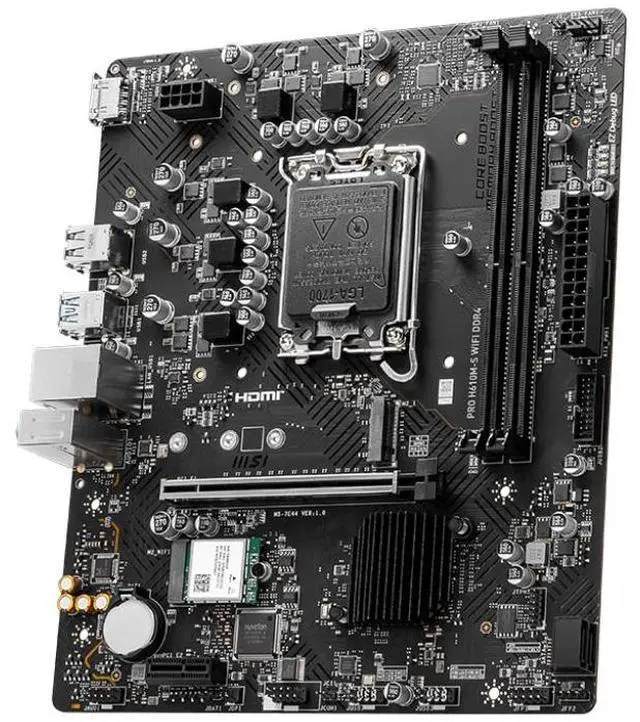

MSI PRO H610M-S WIFI DDR4 LGA 1700 Intel H610 SATA 6Gb/s Micro ATX Intel Motherboard
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports 14th/13th/12th generation Intel® Core processors, Pentium® Gold and Celeron® processors
- Supports DDR4 memory, up to 3200(MAX)MHz
- Core Boost Engine: uses advanced layout and digital power design to support more cores and provide better performance
- Memory Boost Engine: provides pure data signals for optimal performance, stability and compatibility
- Supports PCIe 4.0
- Wi-Fi 6E wireless network
- HD audio components
- Built-in PCIe steel armor
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Chipset
INTEL H610
CPU
Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
2x DDR4, Maximum Memory Capacity 64GB
Memory supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1xHDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot (quantity)
1x PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1 -Channel High Definition Audio
Storage
1x M. 2 (Qty)
M. 2_1 source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices
2x SATA 6G (Qty)

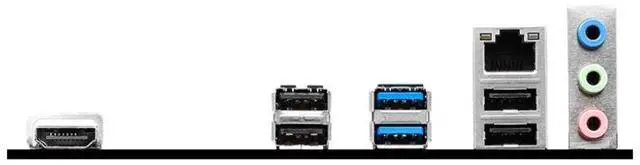

USB
4x USB 2.0 (rear)
4x USB 2.0 (front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Internal IO
1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0 )
4x USB 2.0 interface
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E
The Wireless module is pre-installed in the M. 2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GH z / 5GHz / 6GHz* (160MHz) up to 2.4G bps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED
INTEL H610
CPU
Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
2x DDR4, Maximum Memory Capacity 64GB
Memory supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1xHDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot (quantity)
1x PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1 -Channel High Definition Audio
Storage
1x M. 2 (Qty)
M. 2_1 source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices
2x SATA 6G (Qty)
USB
4x USB 2.0 (rear)
4x USB 2.0 (front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Internal IO
1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0 )
4x USB 2.0 interface
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E
The Wireless module is pre-installed in the M. 2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GH z / 5GHz / 6GHz* (160MHz) up to 2.4G bps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED
