MSI MEG Z590I UNIFY LGA 1200 Mini ITX Intel Motherboard
REFURBISHED Product Type
- Intel Z590
- Supports 11th / 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
- Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5600
- 1DPC 2R Max speed up to 4800+
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MEG Z590I UNIFY
| Brand | MSI |
|---|---|
| Model | MEG Z590I UNIFY |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 1DPC 2R Max speed up to 4800+ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): M2_1 slot: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU Supports 2280 storage devices M2_2 slot (from Z590 chipset): Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220P |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX210 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

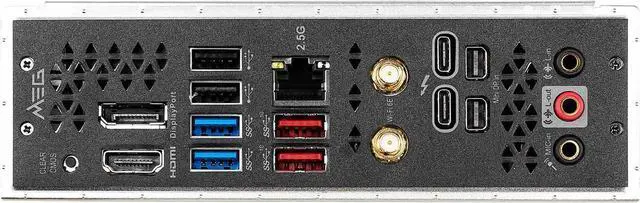

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) Wi-Fi /Bluetooth 2 x Mini DisplayPort 2 x Thunderbolt 4 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 2 x USB 3.2 Gen 2 Type-A 3 x Audio Jacks Clear CMOS Button |
|---|
| Onboard USB | 1 x USB 3.2 Gen2 10Gbps Type-C port 1 x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1 x USB 2.0 connector [supports additional 2 USB 2.0 ports] |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 3-pin RAINBOW LED connectors 1 x TPM module connector |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5600(OC) MHz Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience Twin M.2 Connectors: Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise Pre-installed I/O Shield: Better EMI protection and more convenience for installation |
|---|
| First Listed on Newegg | March 04, 2026 |
|---|
