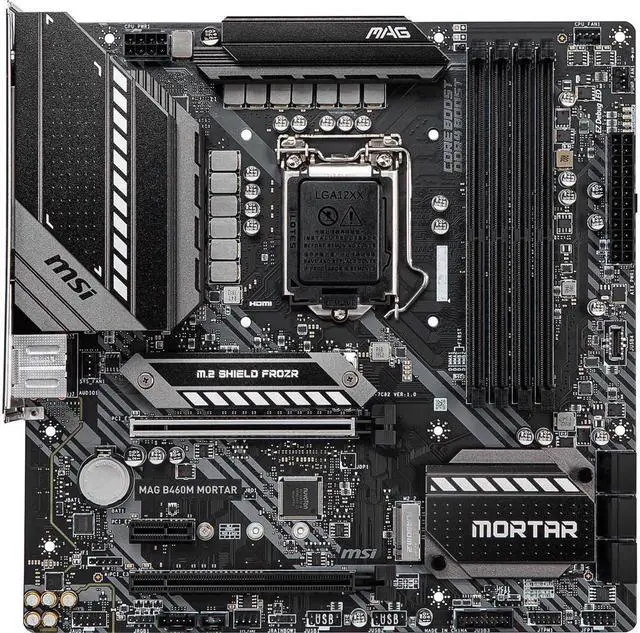

MSI MAG B460M MORTAR LGA 1200 Intel B460 SATA 6Gb/s Micro ATX Intel Motherboard

Intel B460 Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket Intel Core i7/i9 Supports up to DDR4 2933 MHz Intel Core i5 (Below) Supports up to DDR4 2666 MHz Brand MSI Model MAG B460M MORTAR CPU Socket Type LGA 1200 CPU Type Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2 1 Please go to intel. com for compatibility information. 2 Onboard graphics output are disabled when using the F SKU processors. Chipset Intel B460 Onboard Video Chipset Supported only by
CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1 x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Number of Memory Slots 4×288pin Memory Standard Intel Core i7/i9 Supports up to DDR4 2933 MHz Intel Core i5 (Below) Supports up to DDR4 2666 MHz Maximum Memory Supported 128GB Channel Supported Dual Channel PCI Express 3.0 x16 1 x PCIe 3.0 x16 slot (from CPU) 1 x PCIe 3.0 x16 slot (from PCH, supports x4 mode) PCI Express x1 1 x PCIe 3.0 x1 slot (from PCH) SATA 6Gb/s 6 x SATA 6Gb/s ports 1 1 SATA1 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. M. 2 2 x M. 2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices1 M2_2 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices 1 SATA1 will be unavailable when installing M. 2 SATA SSD in the M2_1 slot. Intel Optane Ready Intel Optane Memory Ready2 2 Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

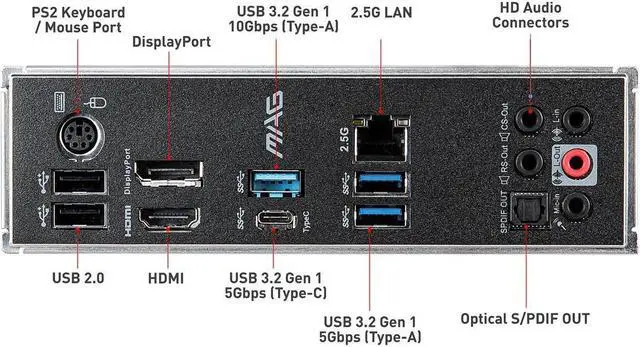

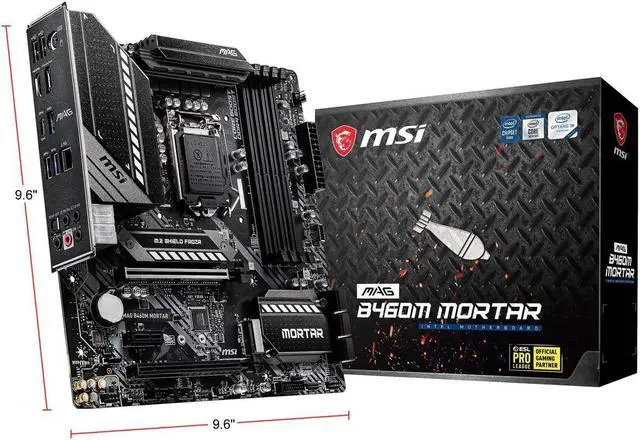

Audio Chipset Realtek ALC1200 Audio Channels 7.1 -Channel High Definition Audio Supports S/PDIF output LAN Chipset Realtek RTL8125B Max LAN Speed 10/100/1000/2500Mbps Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 1 Type-C / 2 x USB 2.0 / 1.1 / 3 x USB 3.2 Gen 1 / 5 x Audio Jacks Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 3.2 Gen 1 5Gbps Type-C connector 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) Other Connectors 1 x 4-pin CPU fan connector 1 x 4-pin water pump connector 2 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 1 x TBT connector * 1 x RTD3 connector* * Thunderbolt card need support RTD3 Form Factor Micro ATX LED Lighting RGB Dimensions (W x L) 9.6" x 9.6" Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Features Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 2933 MHz (Max) Enhanced

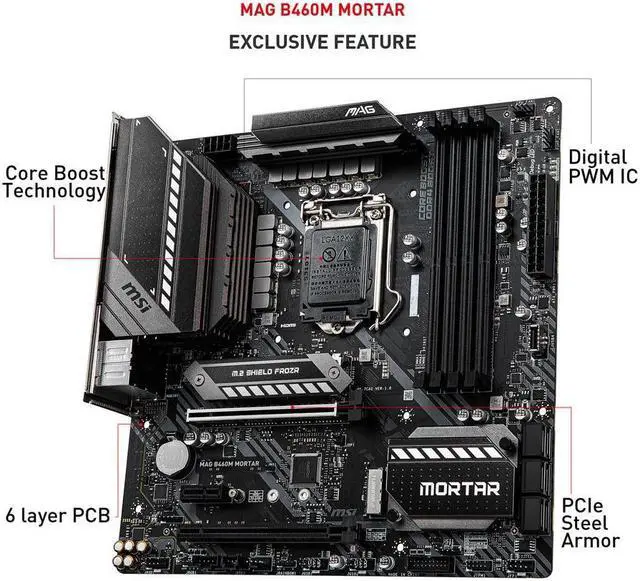

Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4
Boost Premium Thermal Solution: Extended Heatsink Design and M. 2 Shield Frozr are built for high performance system and non-stop gaming experience 2.5G LAN with
LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Turbo M.
2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based
SSDs Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Intel Turbo USB 3.2
Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
