MSI MPG B550 GAMING EDGE WIFI AM4 AMD B550 ATX AMD Motherboard

REFURBISHED Product Type
(2) Write a Review
  • AMD B550
  • Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *
  • * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
  • DDR4 5100+ / 5000 / 4866 / 4733 / 4600 / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
  • DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC
  • 1DPC 1R max speed 5100
  • 1DPC 2R max speed 3866
  • 2DPC 1R max speed 4000
  • 2DPC 2R max speed 3600
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI MPG B550 GAMING EDGE WIFI

Model
Brand MSI
Model MPG B550 GAMING EDGE WIFI
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *

* Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5100+ / 5000 / 4866 / 4733 / 4600 / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC

1DPC 1R max speed 5100
1DPC 2R max speed 3866
2DPC 1R max speed 4000
2DPC 2R max speed 3600
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Supports x4 speed.
* When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
PCI Express x1 2 x PCIe 3.0 x1
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M):

M2_1 slot (from AMD Processor):
Supports PCIe 4.0/3.0 x4 *
Supports SATA 6Gb/s
Supports 2242/2260/2280/22110 storage devices

M2_2 slot (from AMD B550 chipset):
Supports PCIe 3.0 x4
Supports 2242/2260/2280 storage devices

* The supported specification depends on installed processor.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8125B
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6 AX200 / AX210
802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

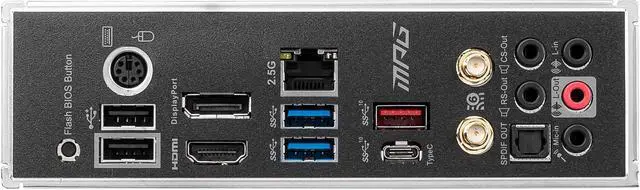

Rear Panel Ports
Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x PS/2 Keyboard/Mouse Combo
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1
1 x Optical S/PDIF Out
5 x Audio Jacks
Flash BIOS Button
Wi-Fi / Bluetooth
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connecto
1 x 4-pin water-pump fan connecto
6 x 4-pin system fan connectors
1 x Front panel audio connecto
2 x System panel connectors
1 x Chassis Intrusion connecto
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
1 x TPM module connecto
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connecto
1 x 8-pin ATX 12V power connector
Software Feature
Windows 11 Supported
Features
Features Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Supports DDR4 Memory, up to 5100+(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2

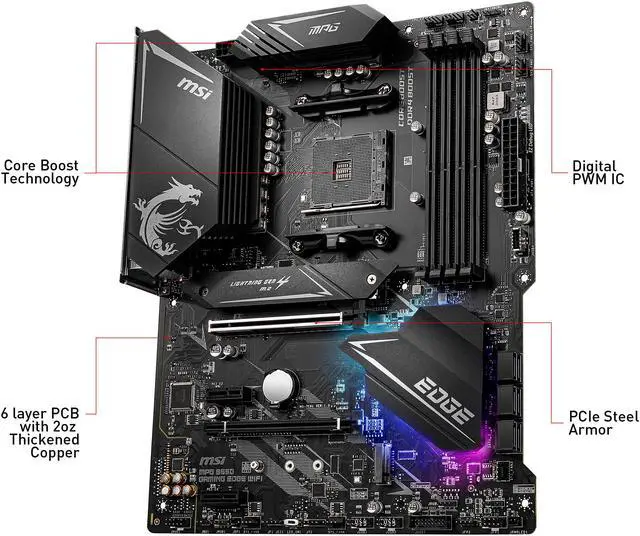

Enhanced Power Design: 10+2+1 Duet Rail Power Design, Core Boost, DDR4 Boost

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

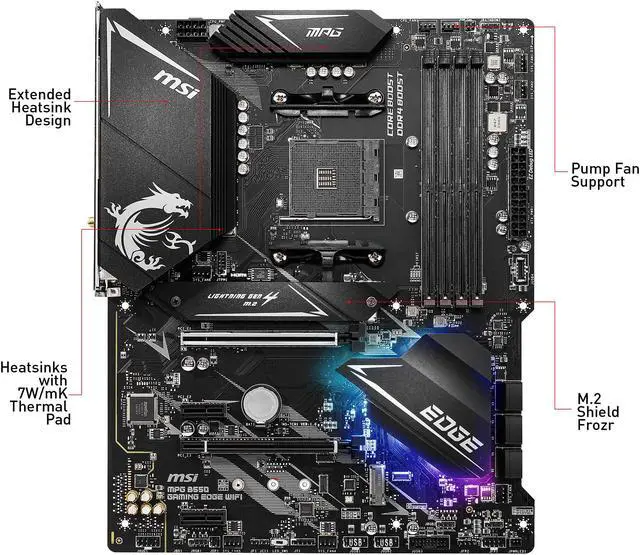

Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience

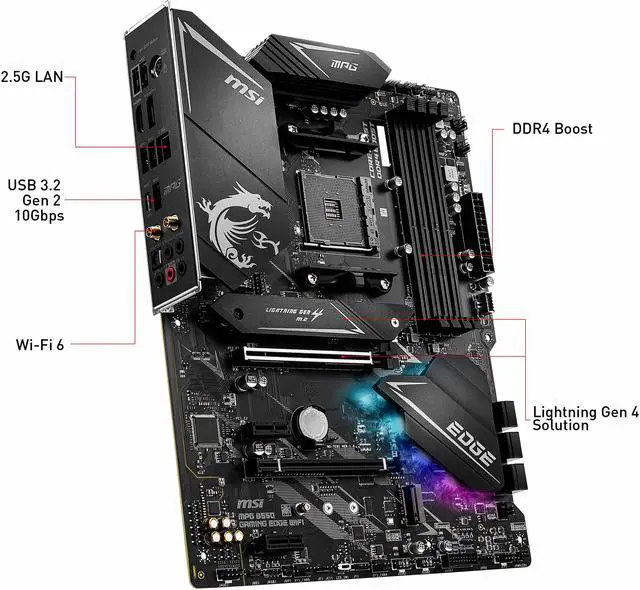

2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions

Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Additional Information
First Listed on Newegg December 14, 2021
