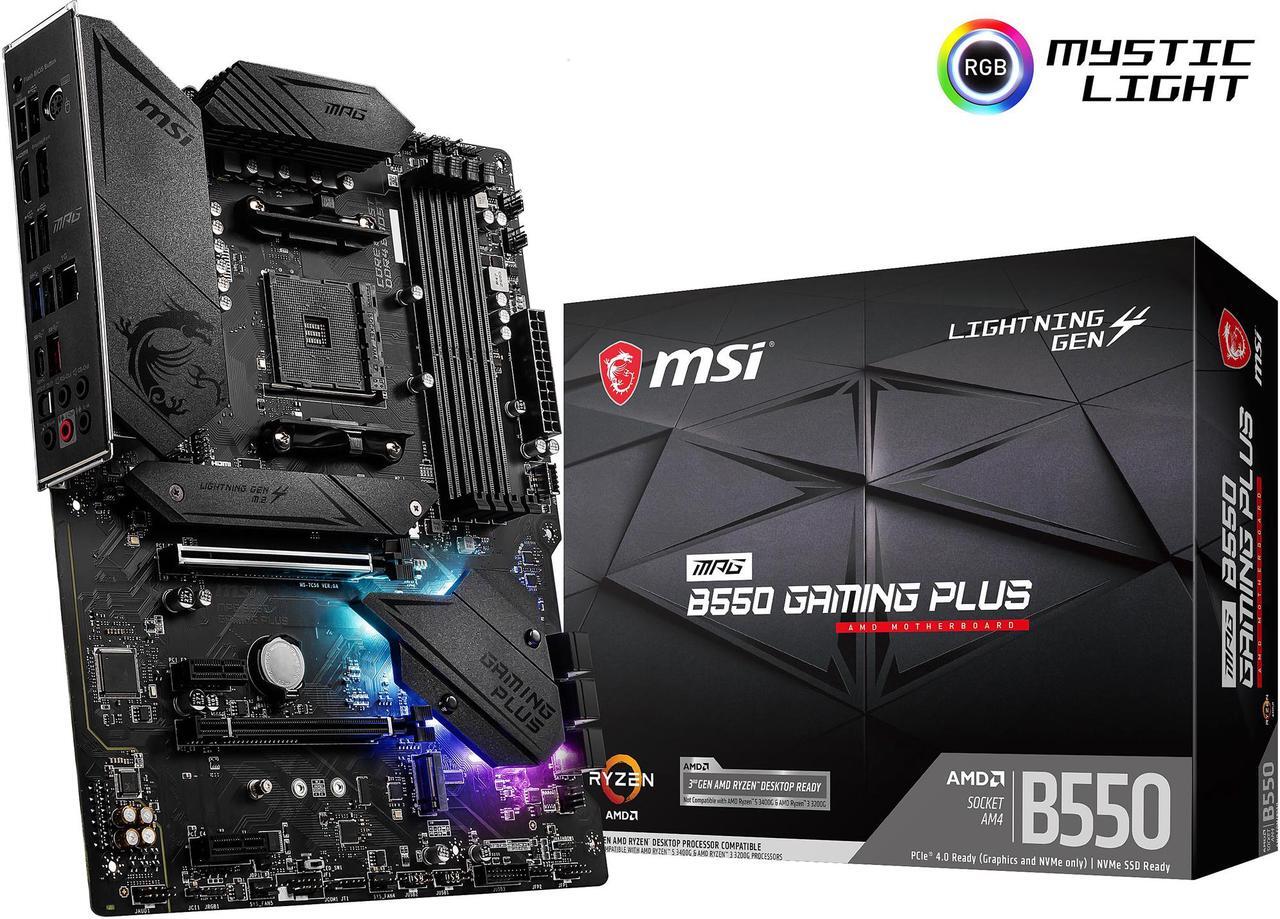

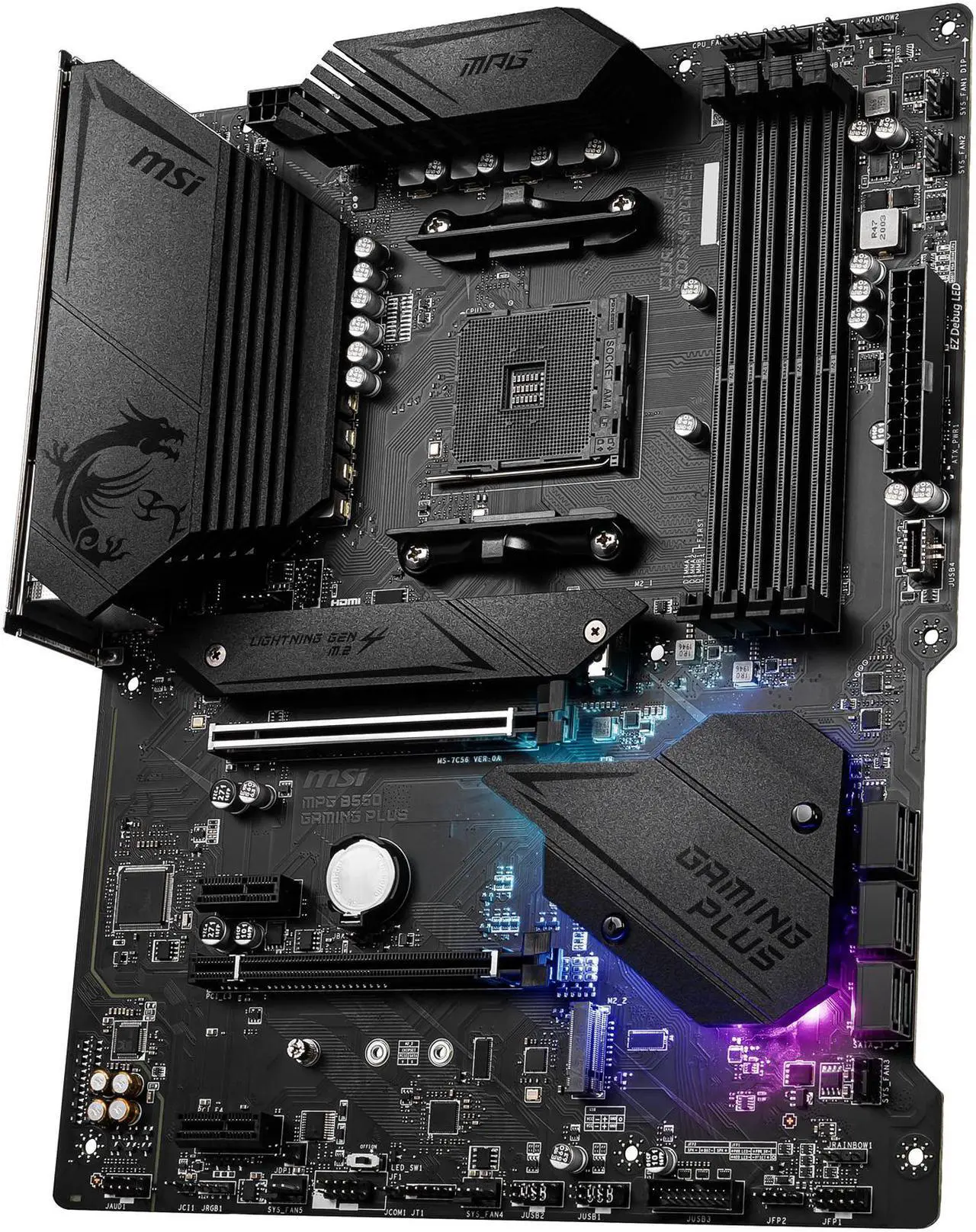

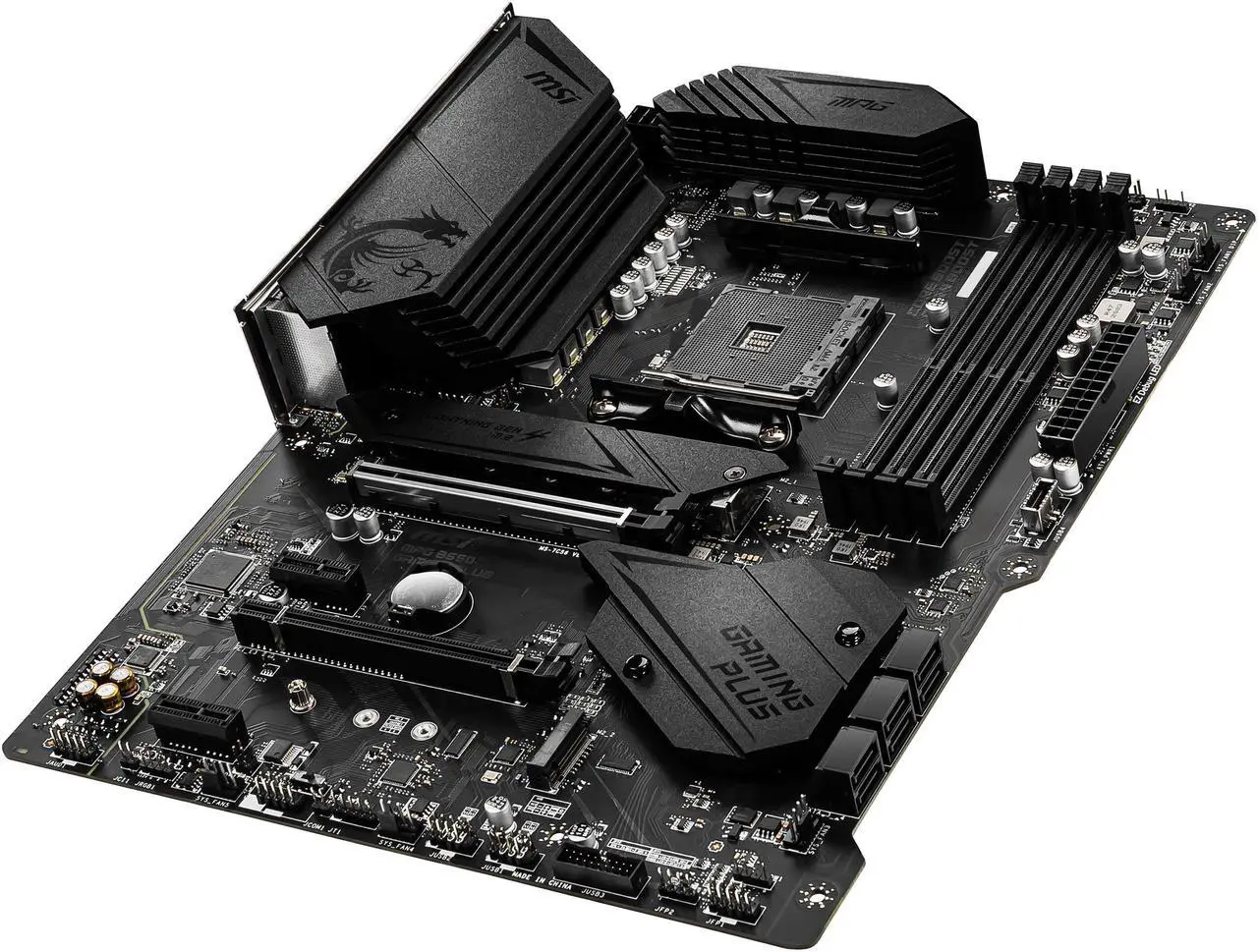

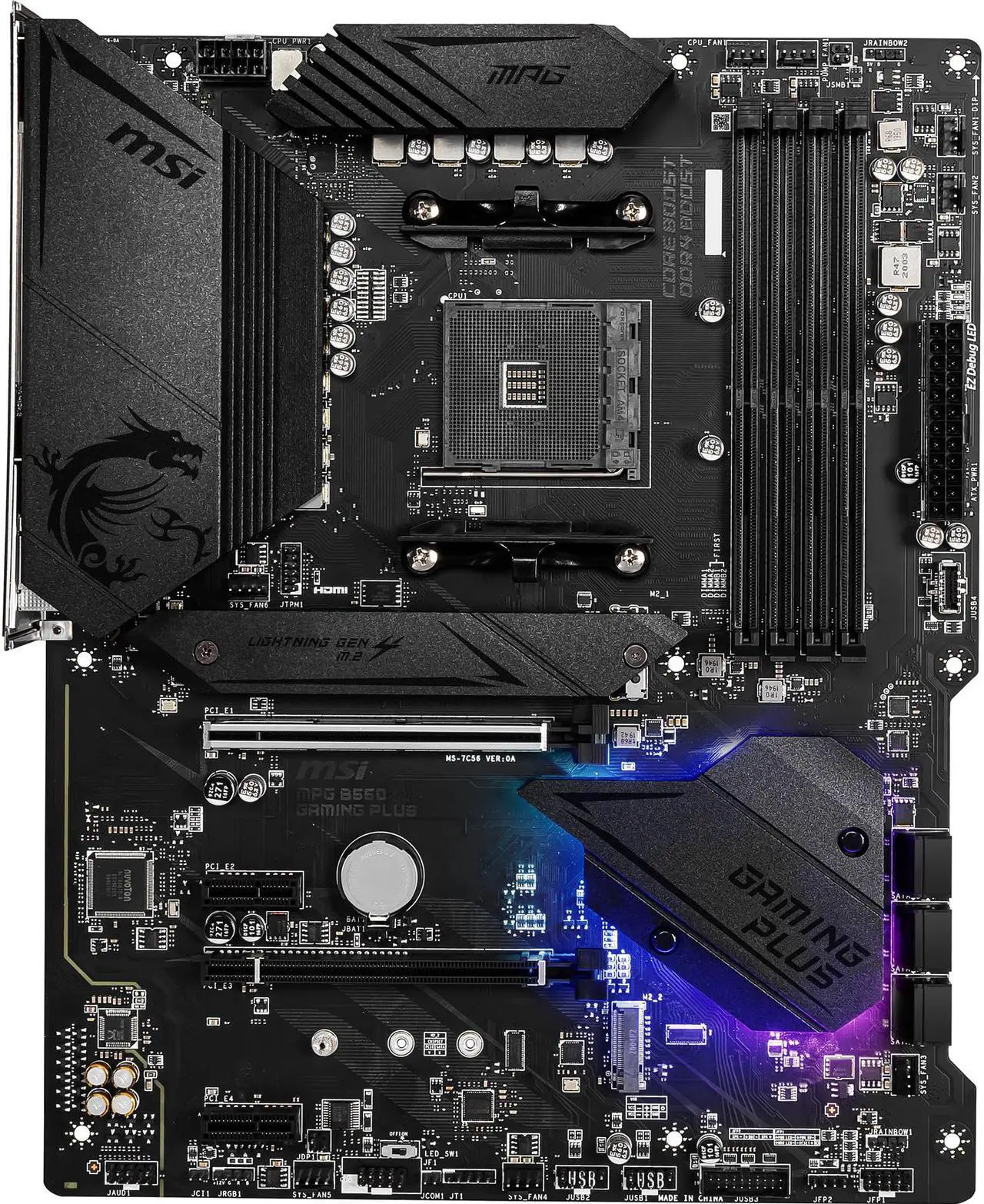

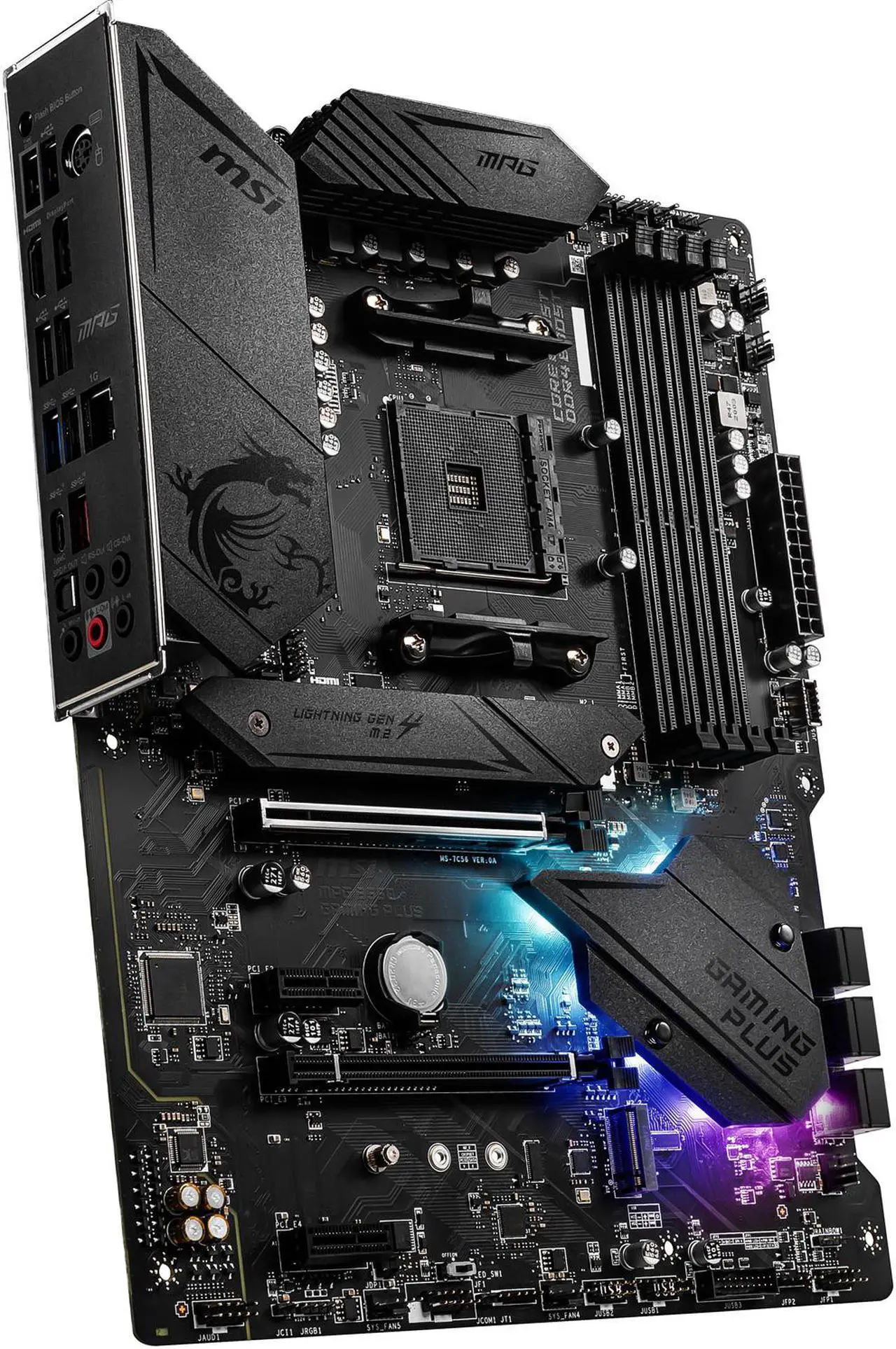

MSI MPG B550 GAMING PLUS AM4 AMD B550 ATX AMD Motherboard
REFURBISHED Product Type
- AMD B550
- Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors*
- * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
- DDR4 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
- DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC
- 1DPC 1R max speed 4400
- 1DPC 2R max speed 3866
- 2DPC 1R max speed 4000
- 2DPC 2R max speed 3600
+
+
Specs
Reviews (37)
Learn more about the MSI MPG B550 GAMING PLUS

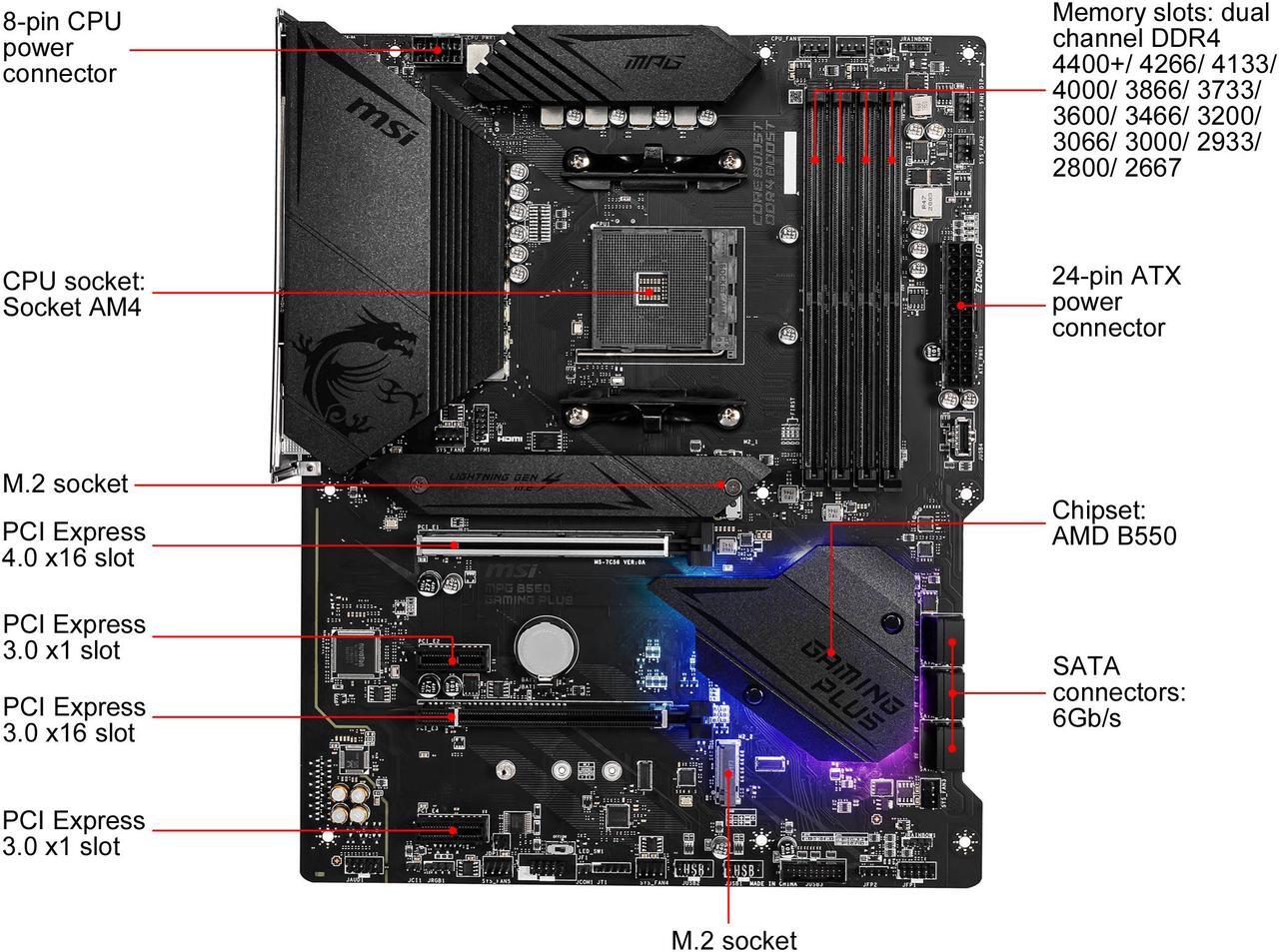

| Brand | MSI |
|---|---|
| Model | MPG B550 GAMING PLUS |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors* * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 by JEDEC 1DPC 1R max speed 4400 1DPC 2R max speed 3866 2DPC 1R max speed 4000 2DPC 2R max speed 3600 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable. |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): M2_1 slot (from AMD Processor): Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD B550 chipset): Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC892/ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

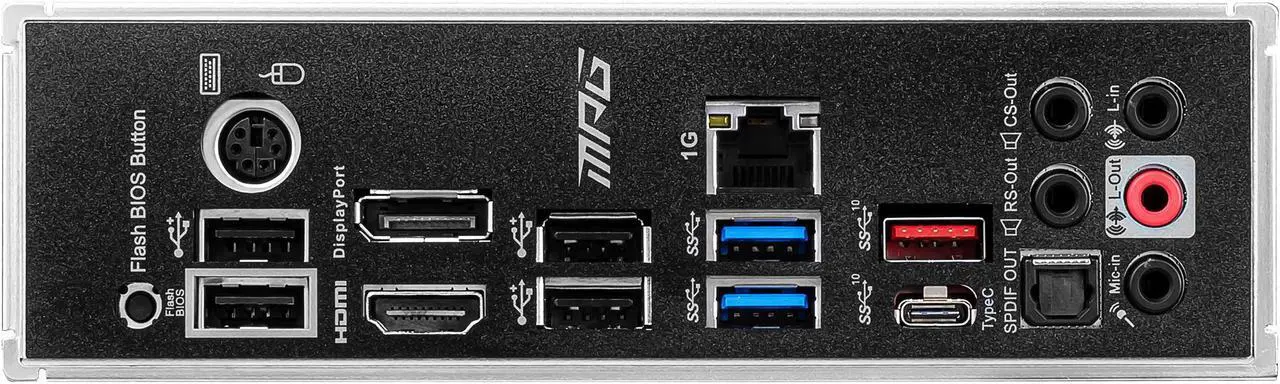

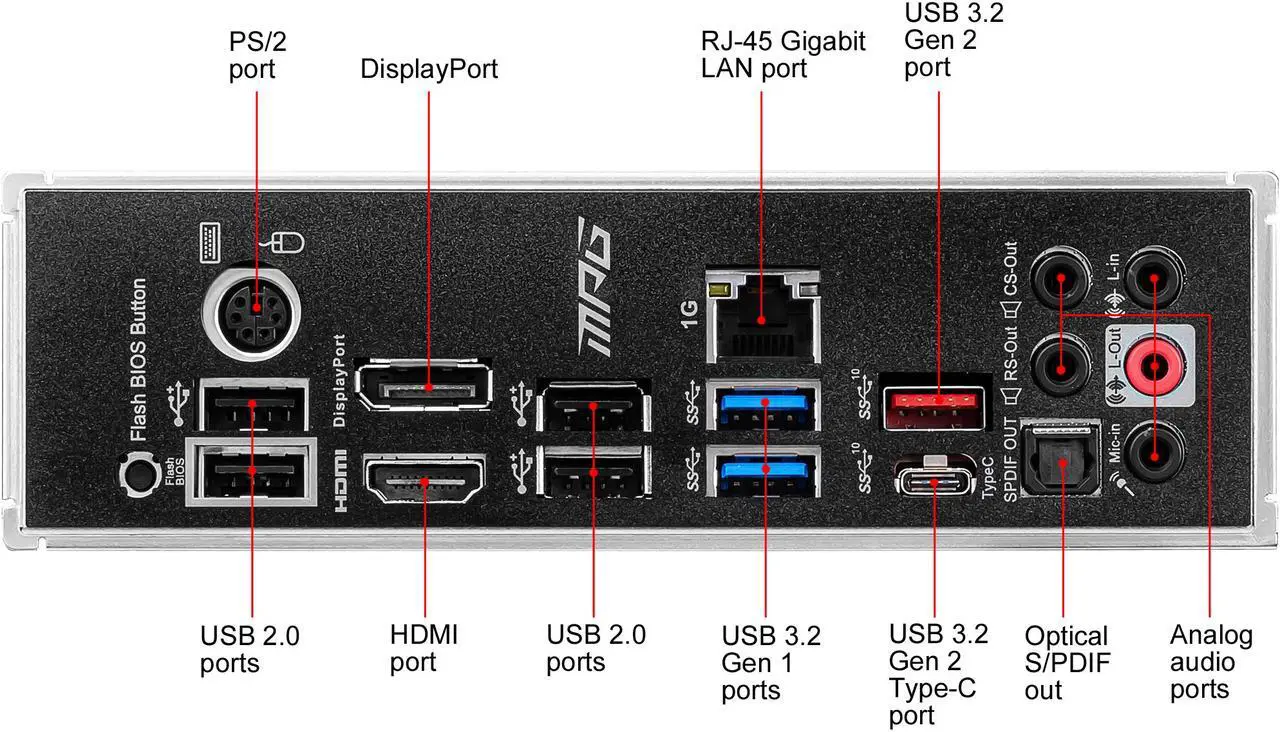

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x Flash BIOS Button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |

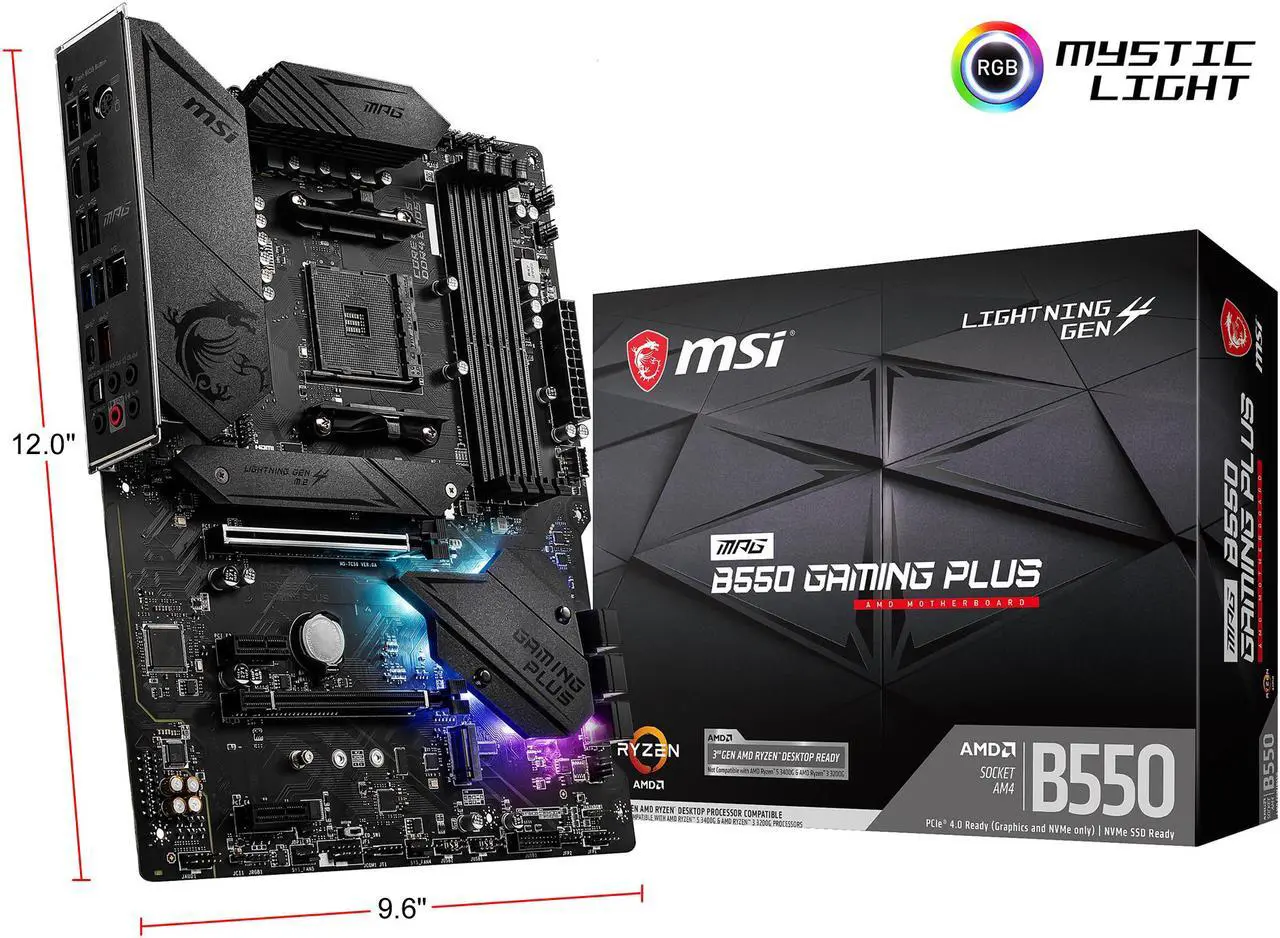

| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors Supports DDR4 Memory, up to 4400(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2 Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions Audio Boost: Reward your ears with studio grade sound quality |
|---|
| Date First Available | April 07, 2025 |
|---|
