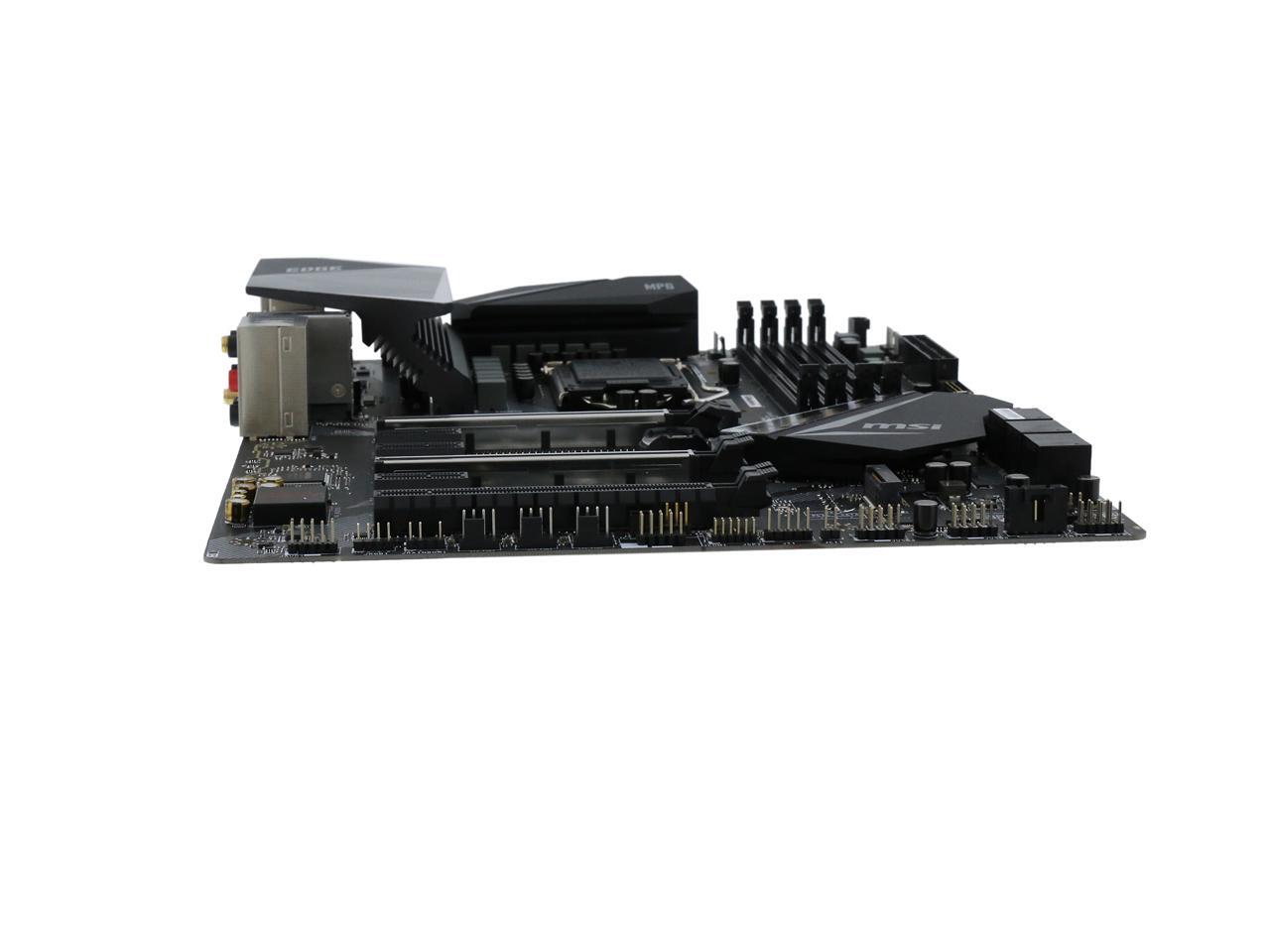

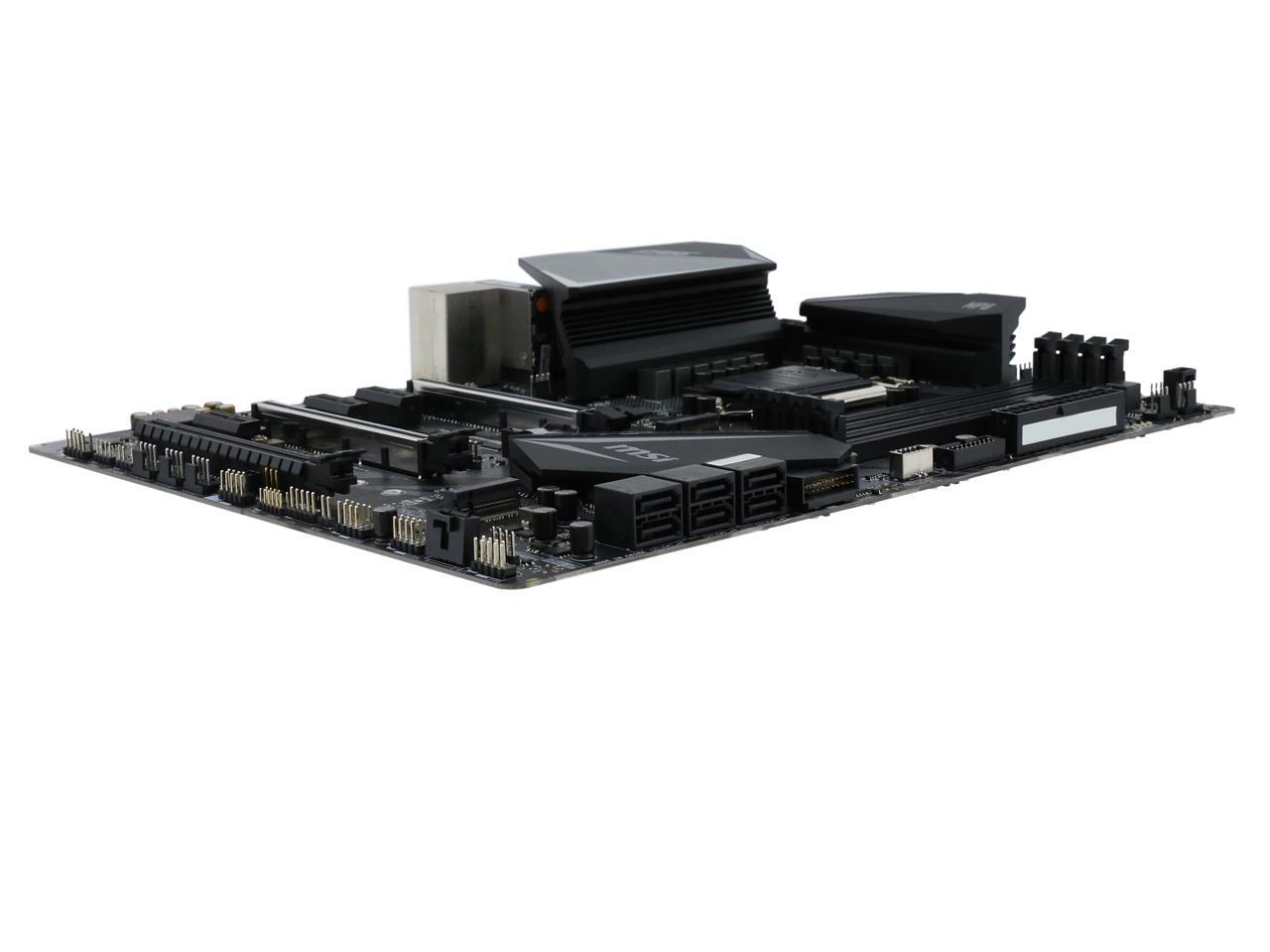

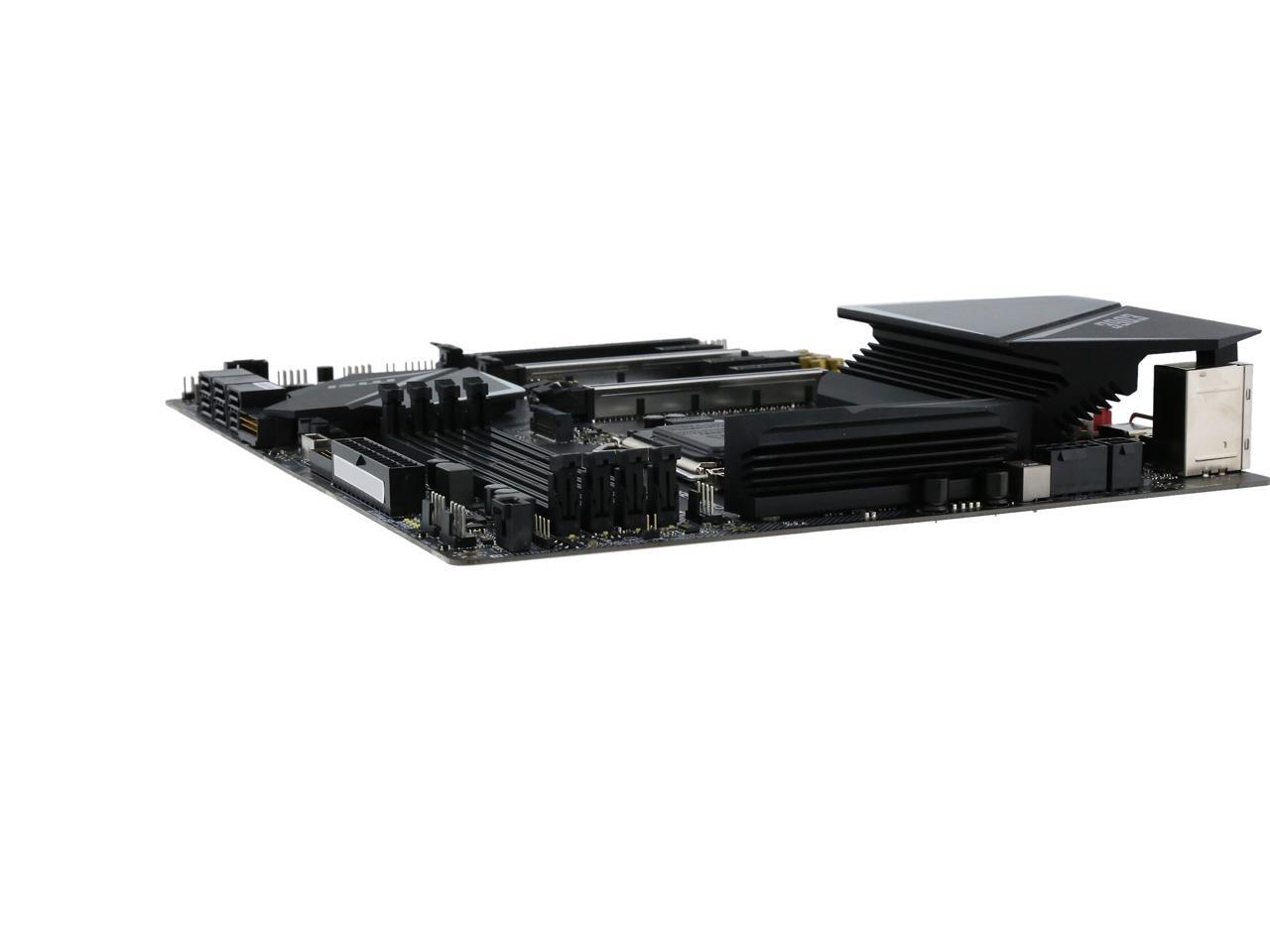

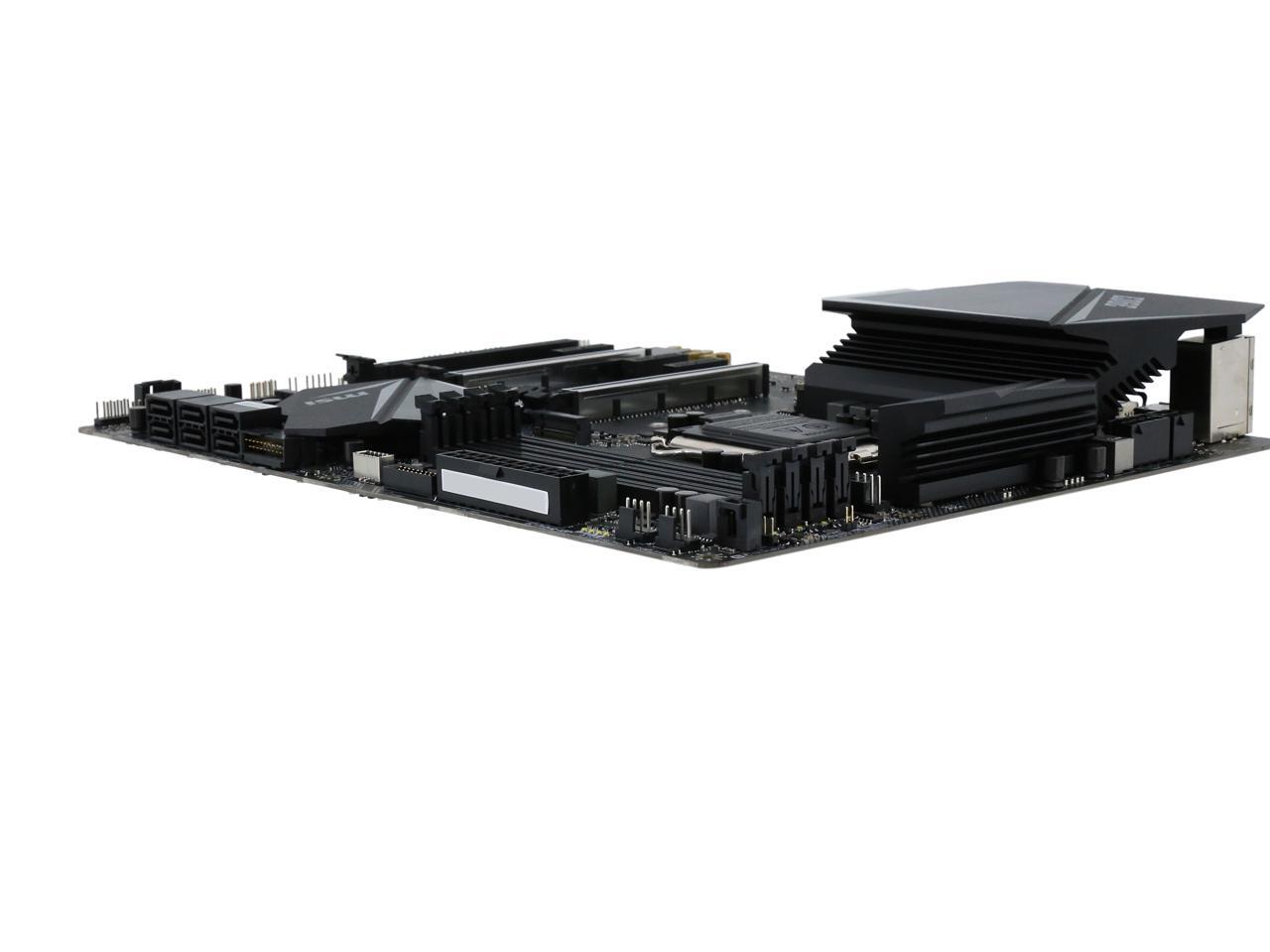

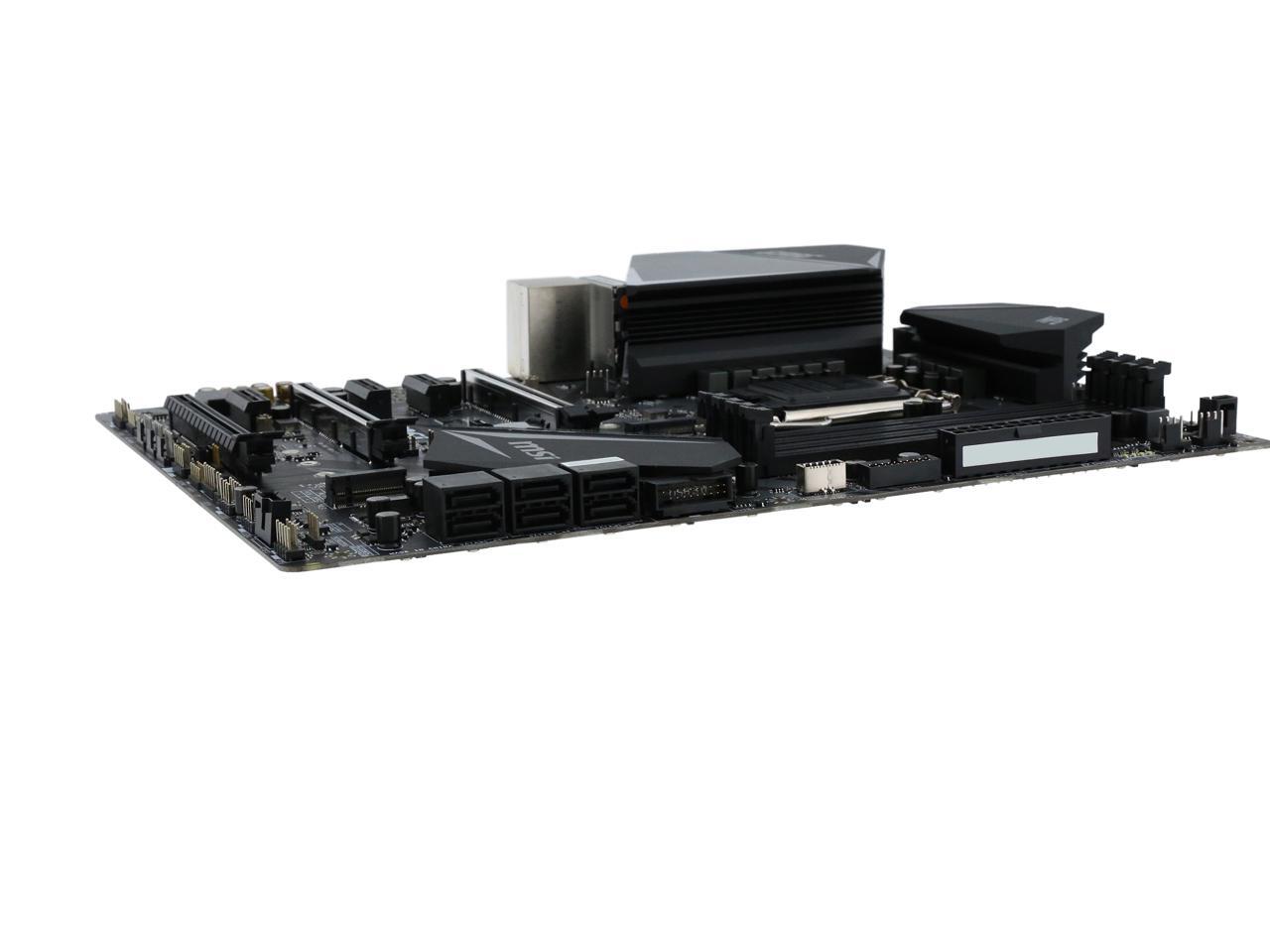

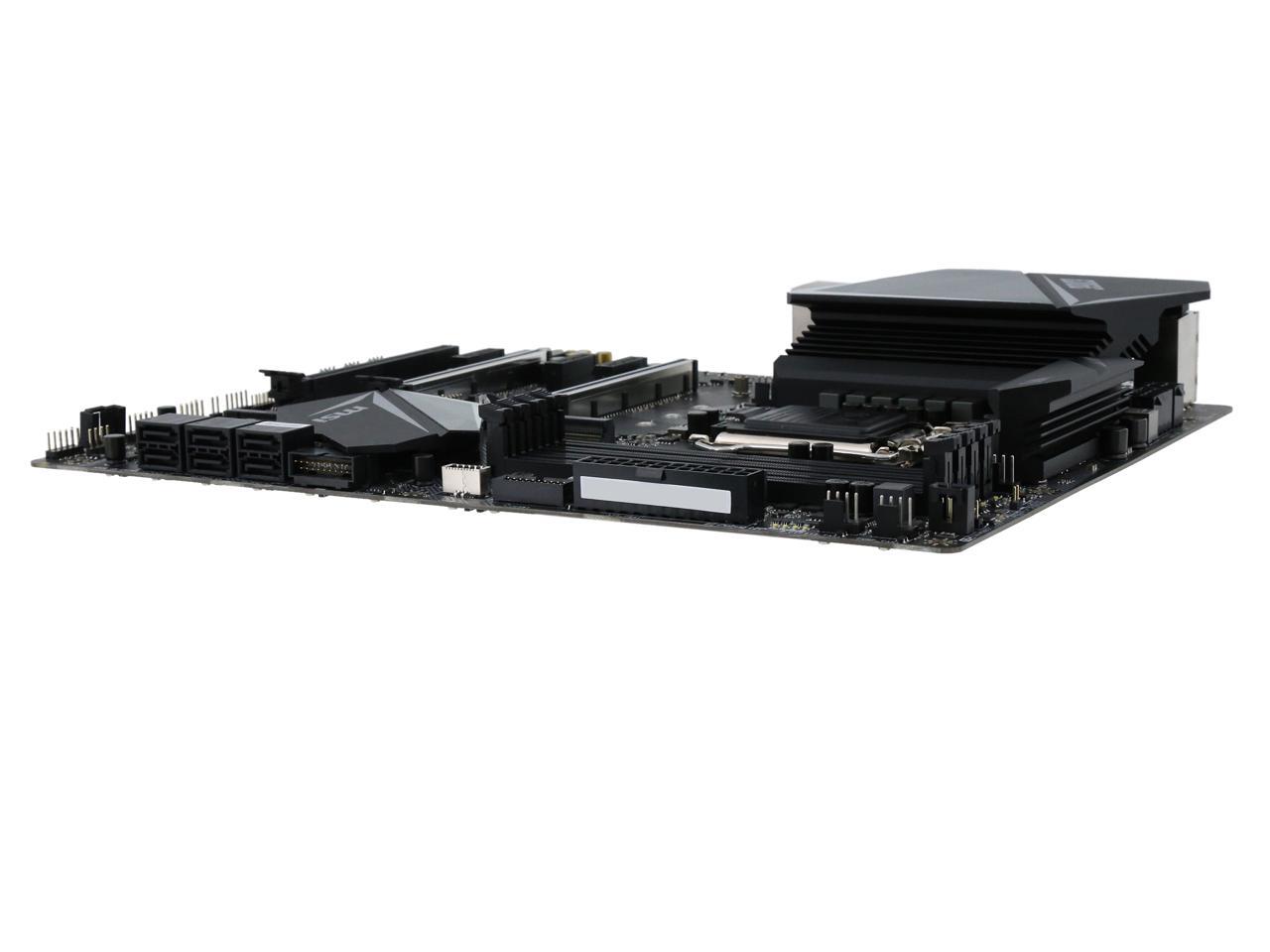

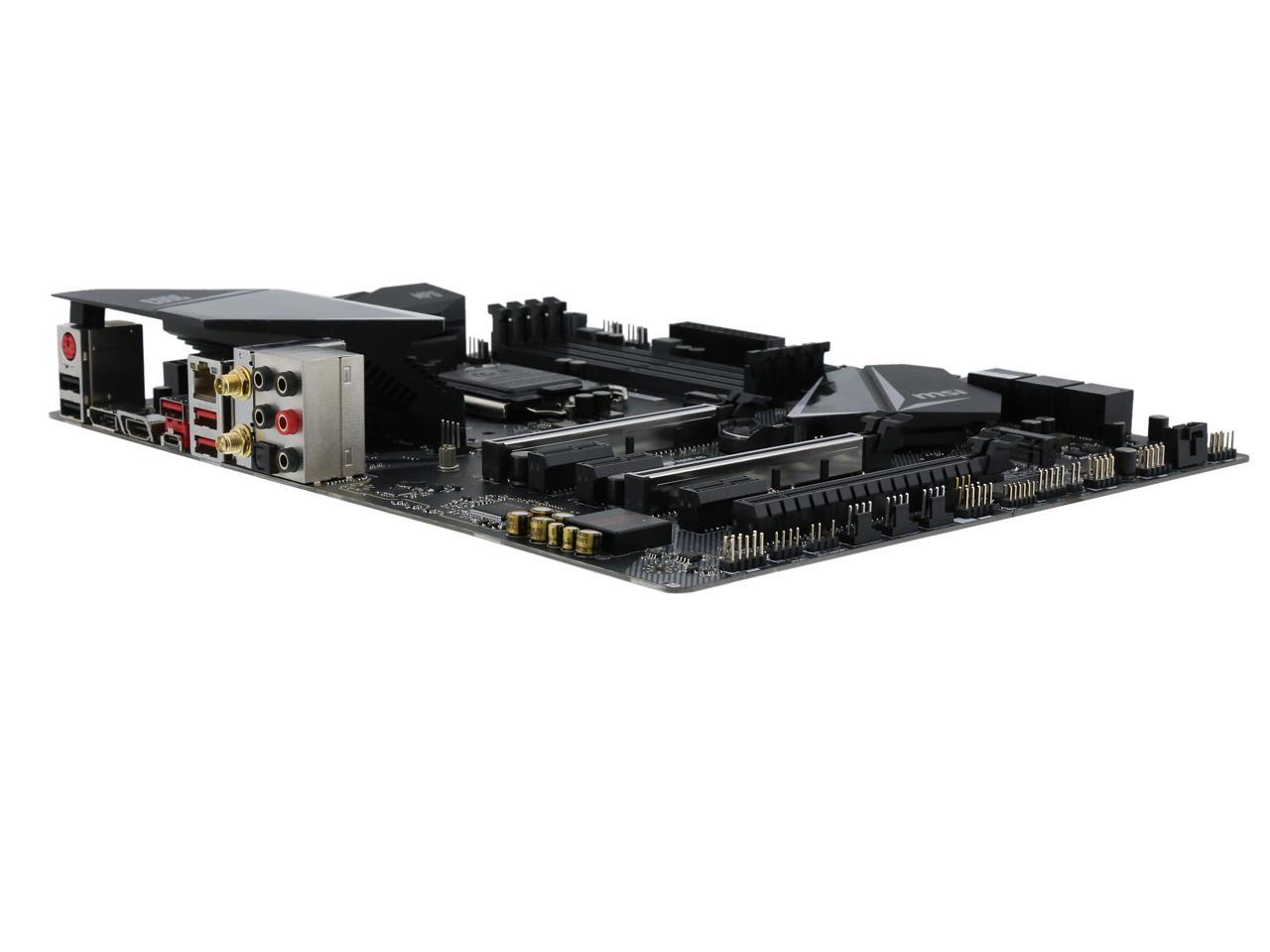

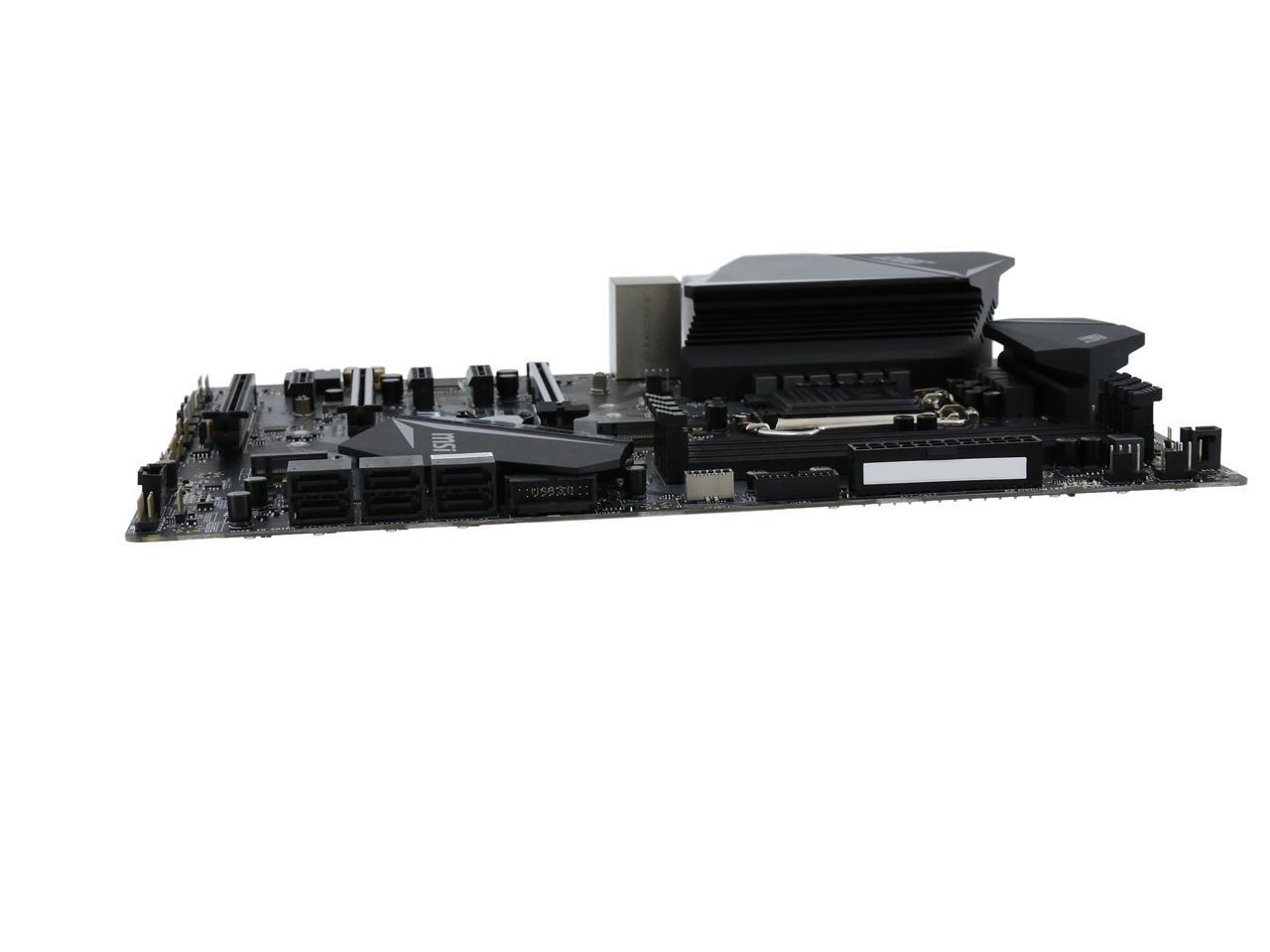

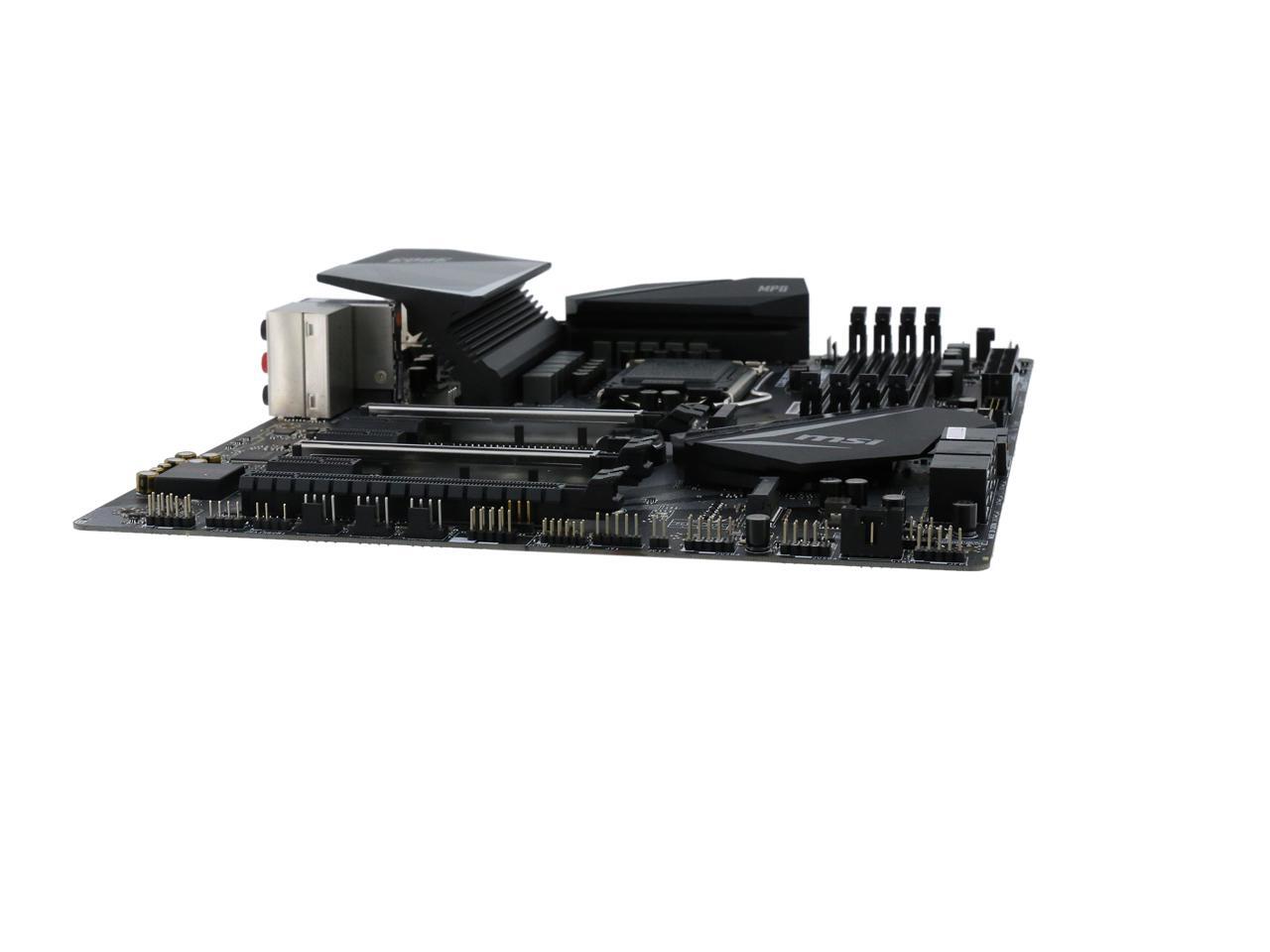

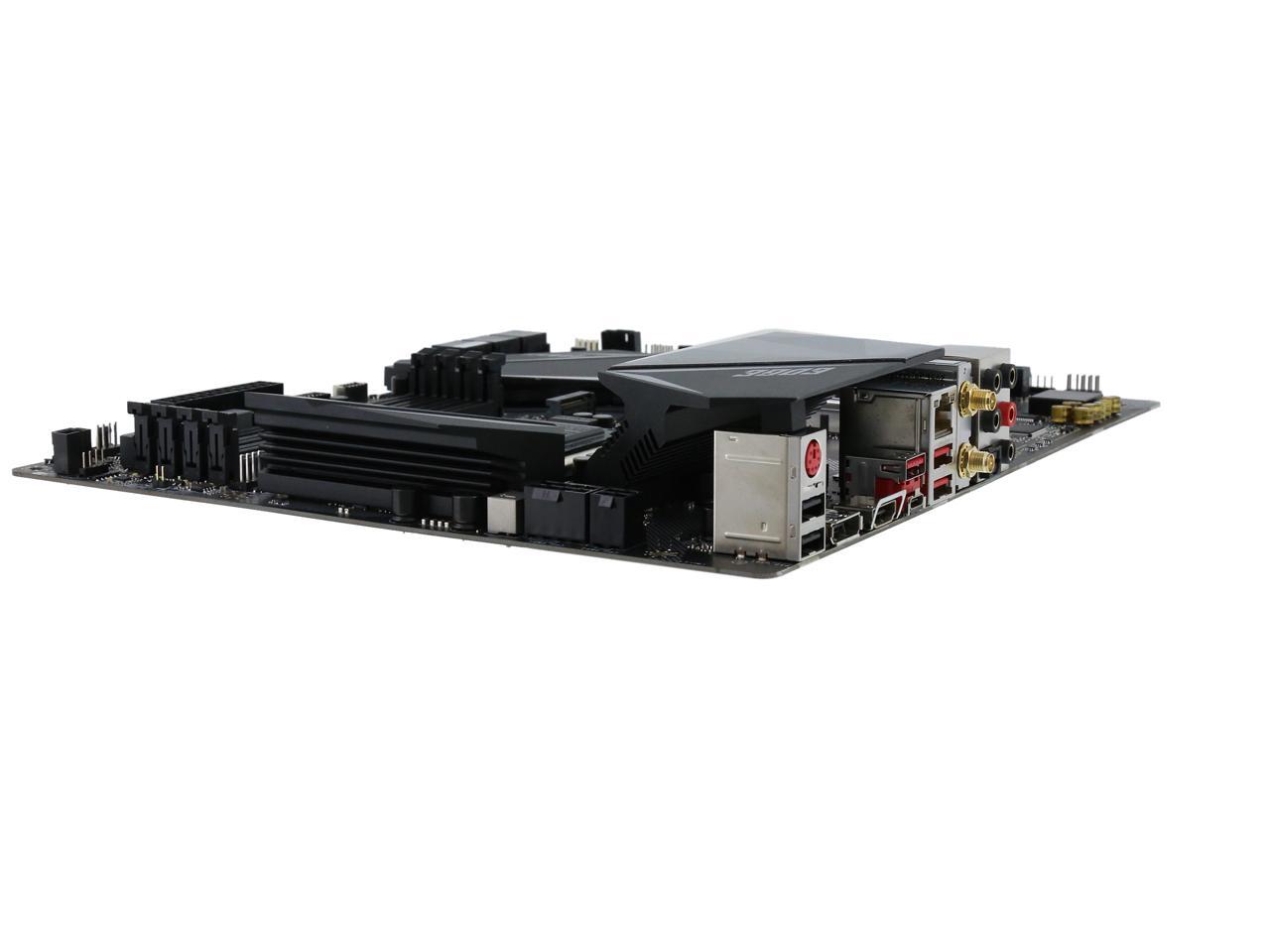

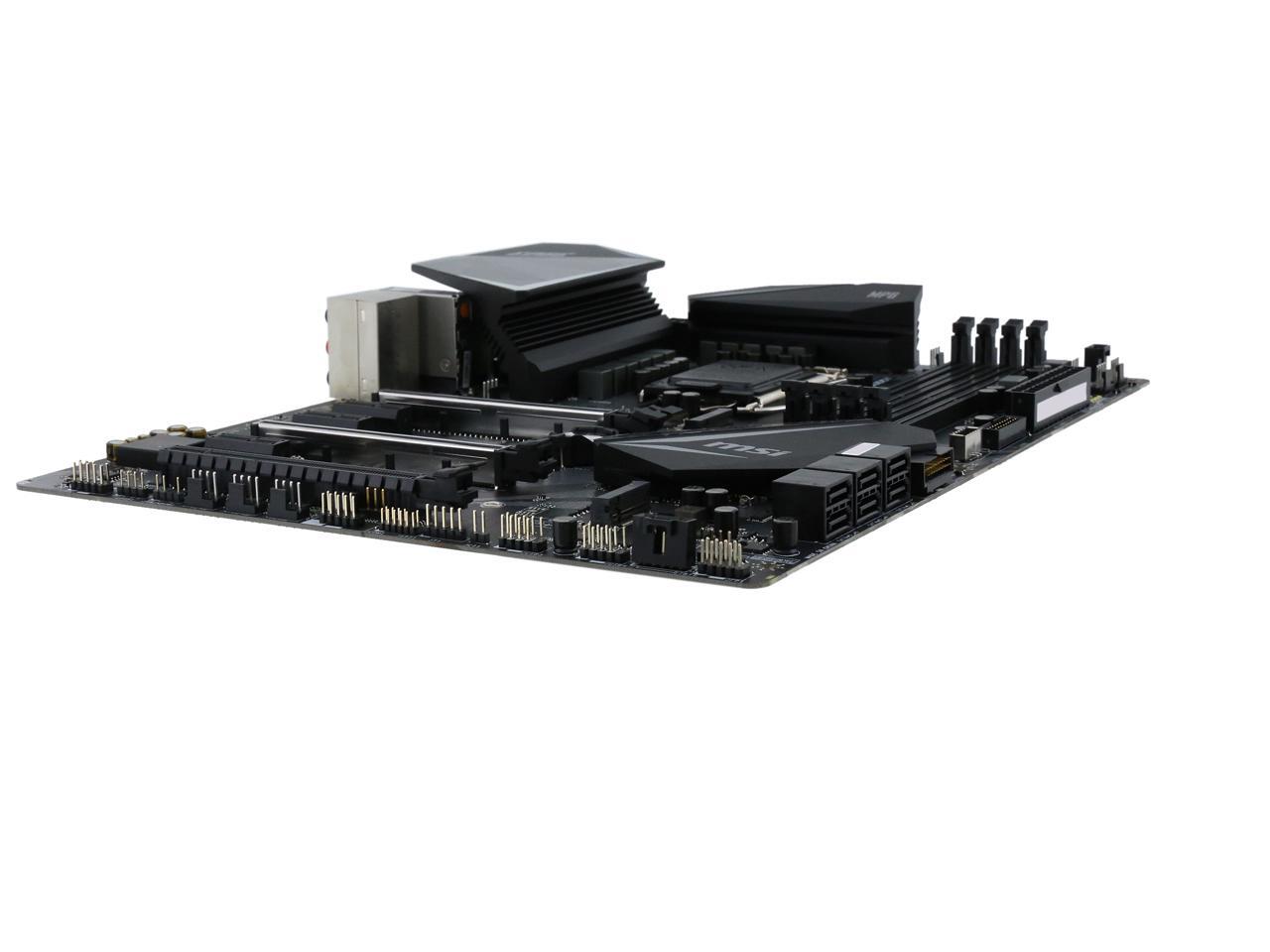

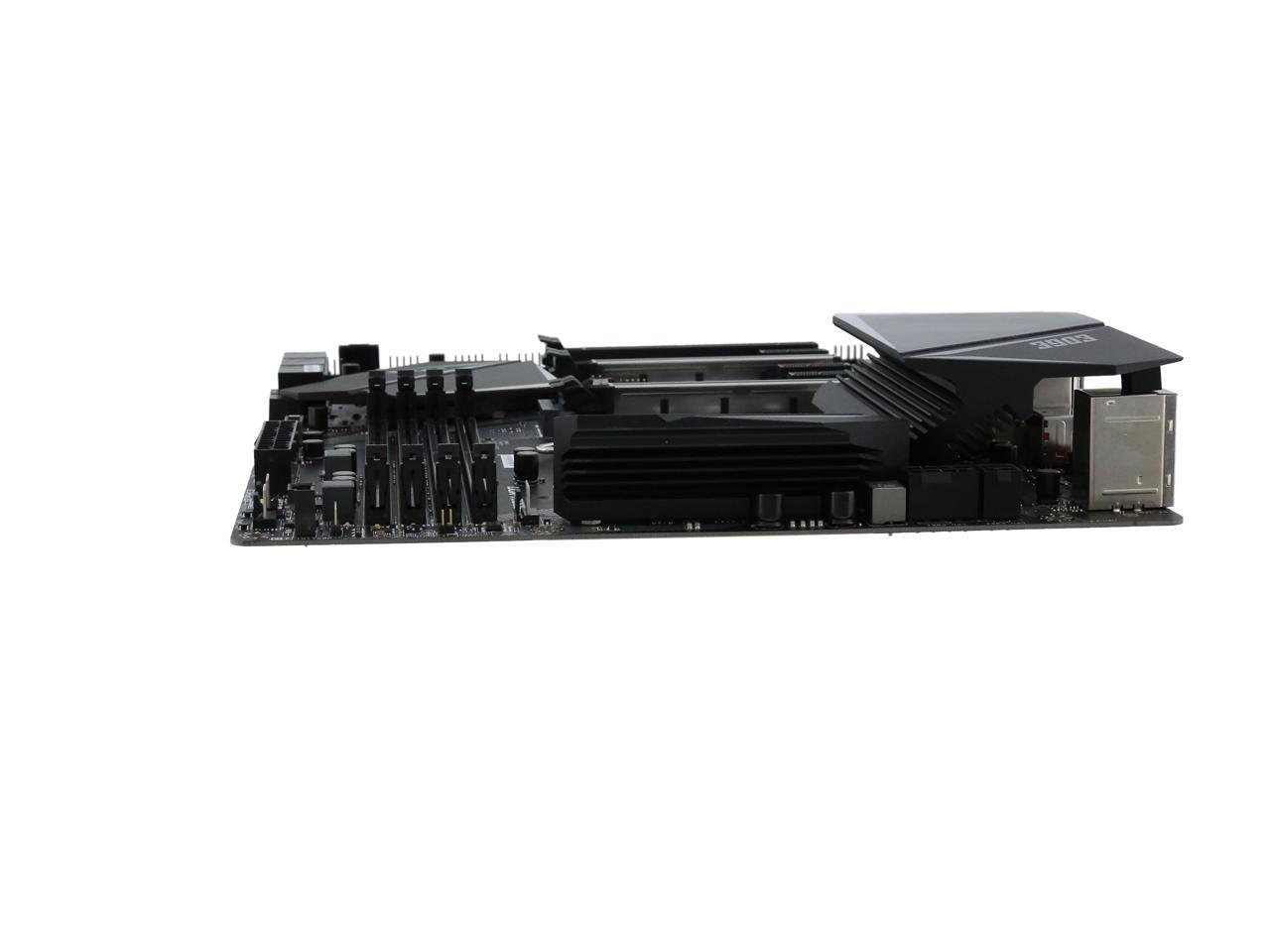

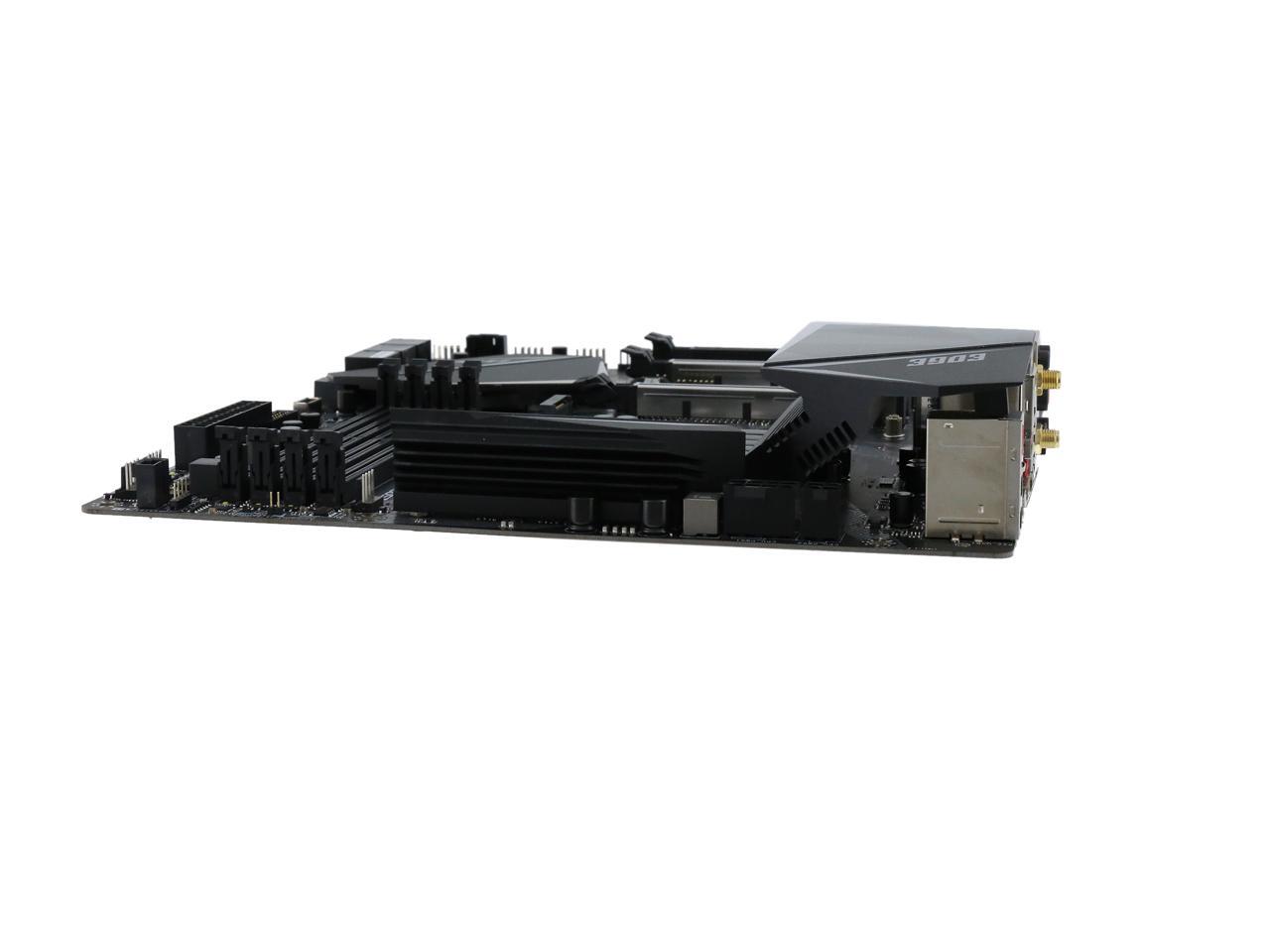

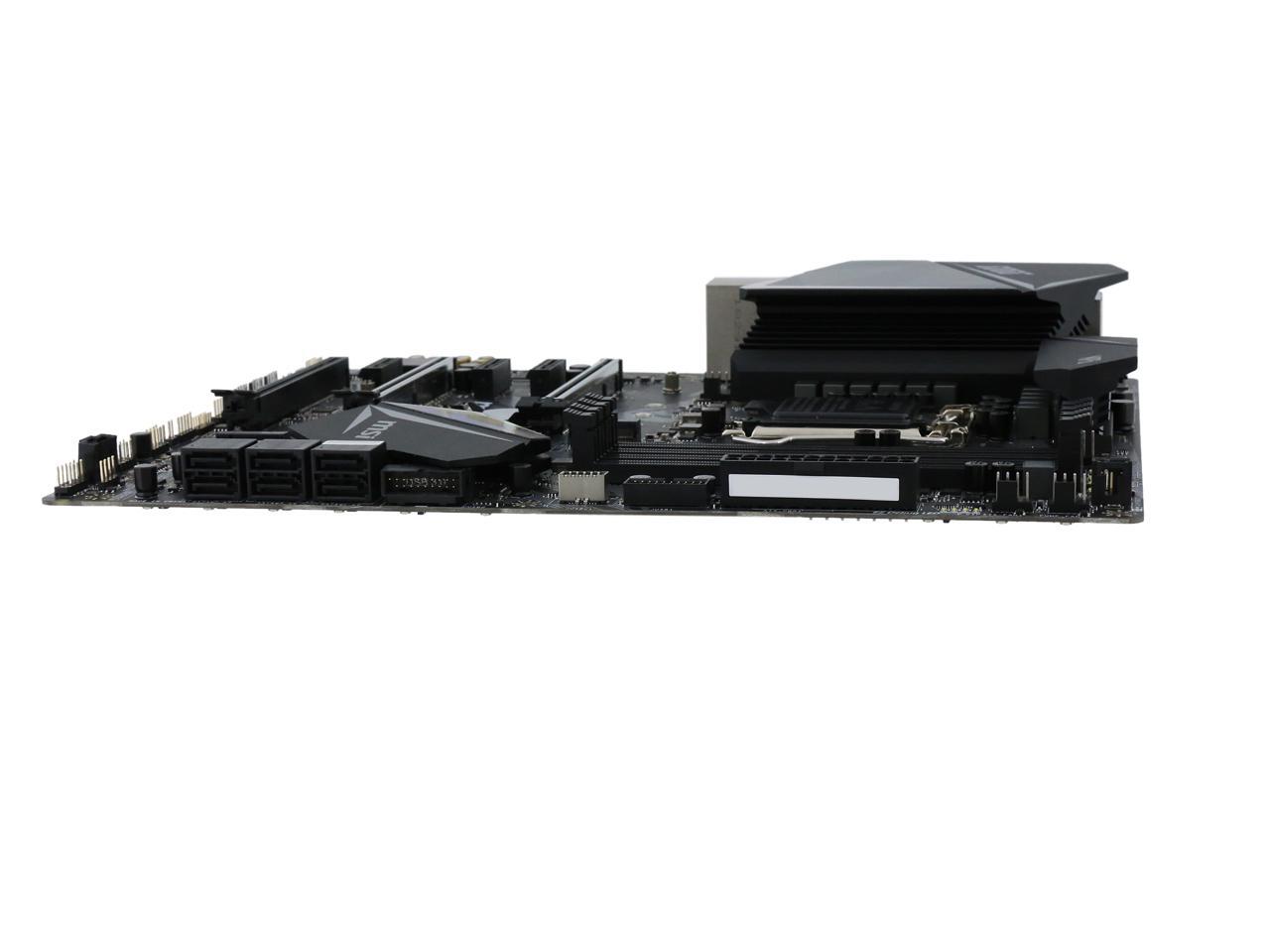

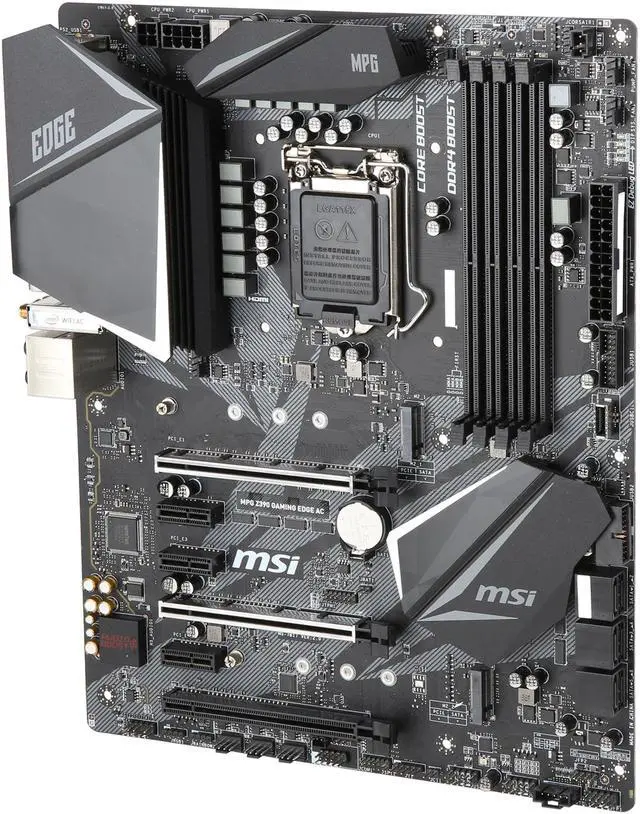

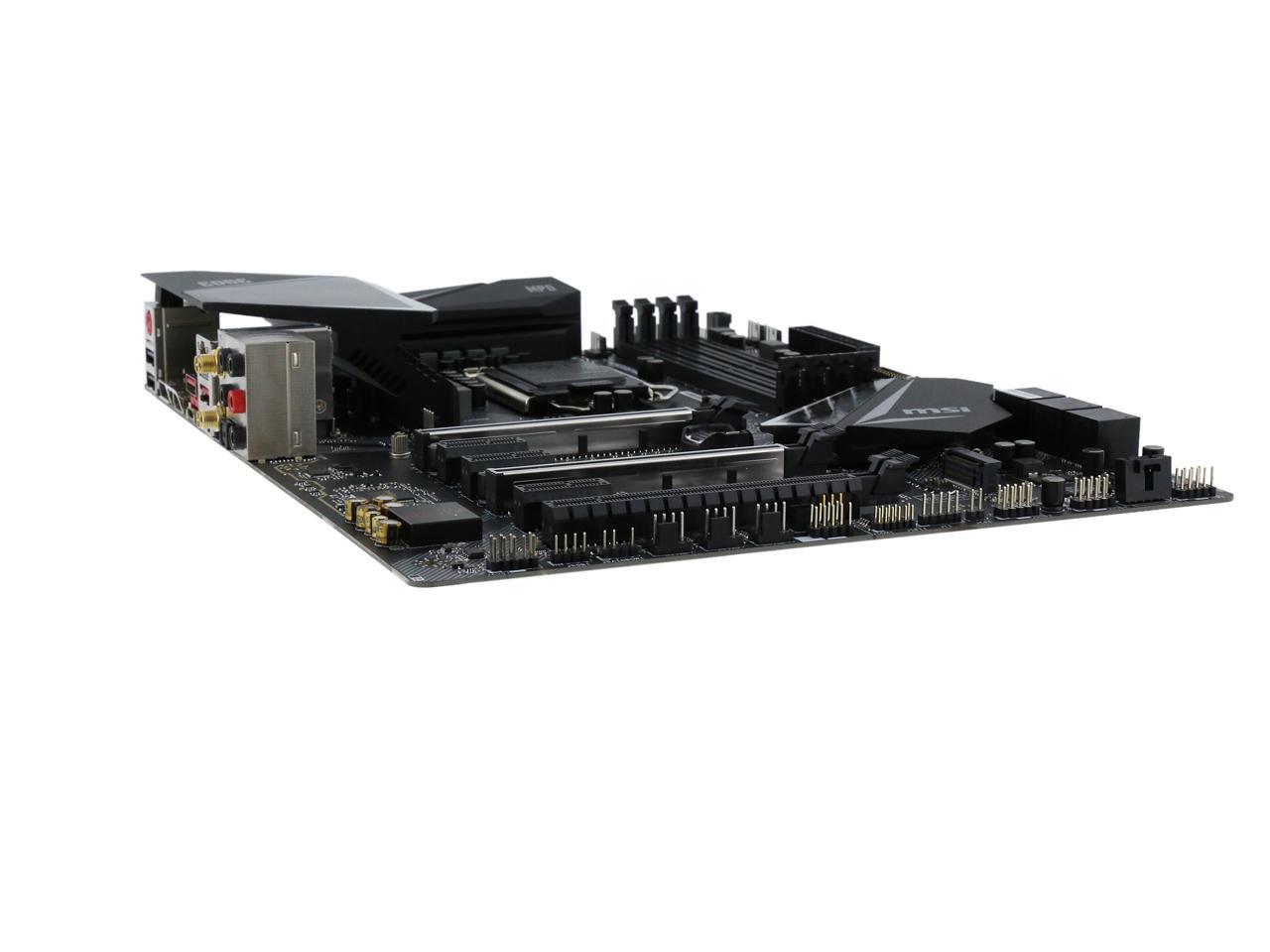

MSI MPG Z390 GAMING EDGE AC LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard
REFURBISHED Product Type
OPEN BOX Product Type
- Intel Z390
- Supports Intel Core 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI MPG Z390 GAMING EDGE AC
| Brand | MSI |
|---|---|
| Model | MPG Z390 GAMING EDGE AC |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports Intel Core 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz * No Display support when using the Processor model with suffix "F" |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) |
|---|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* * M.2 slots and SATA ports share the bandwidth. |
|---|---|
| M.2 | 2 x M.2 slot (Key M)* Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices * M.2 slots and SATA ports share the bandwidth. |
| Intel Optane Ready | Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220P Codec |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz up to 433 Mbps |
| Bluetooth | Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5 |

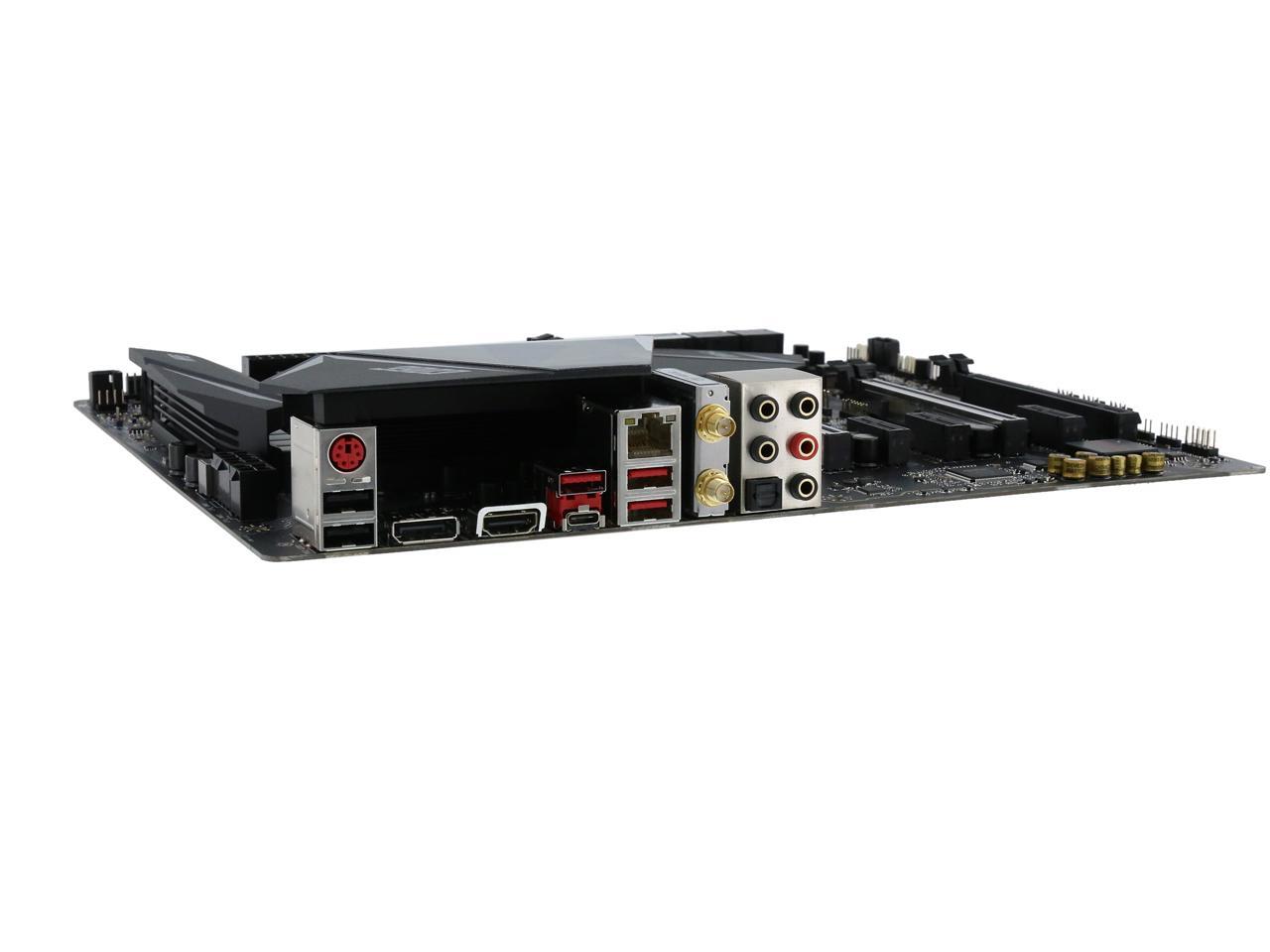

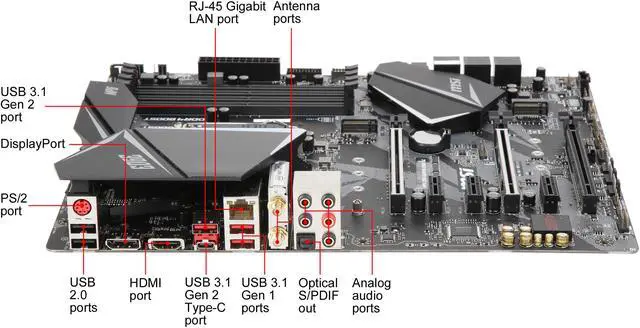

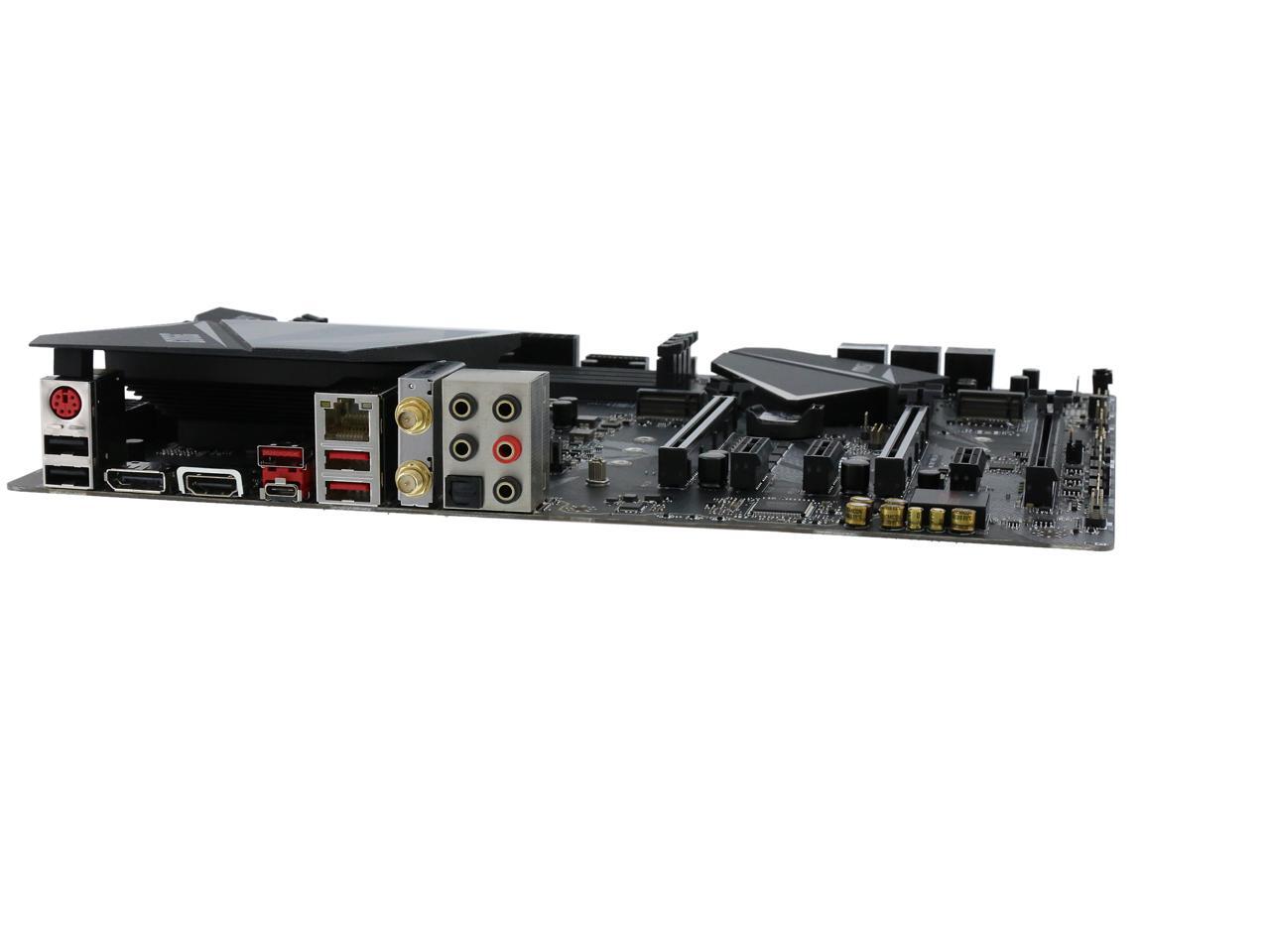

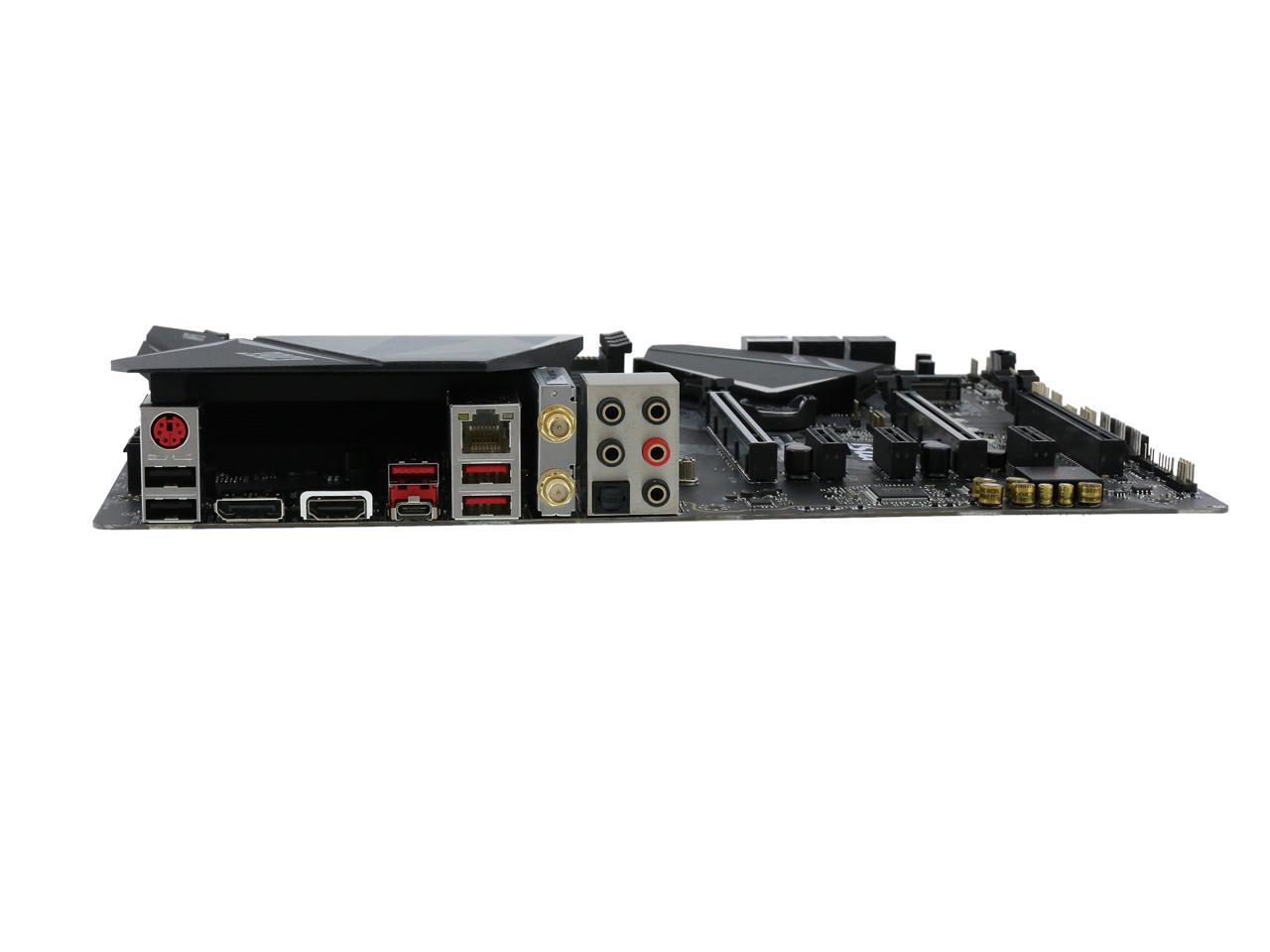

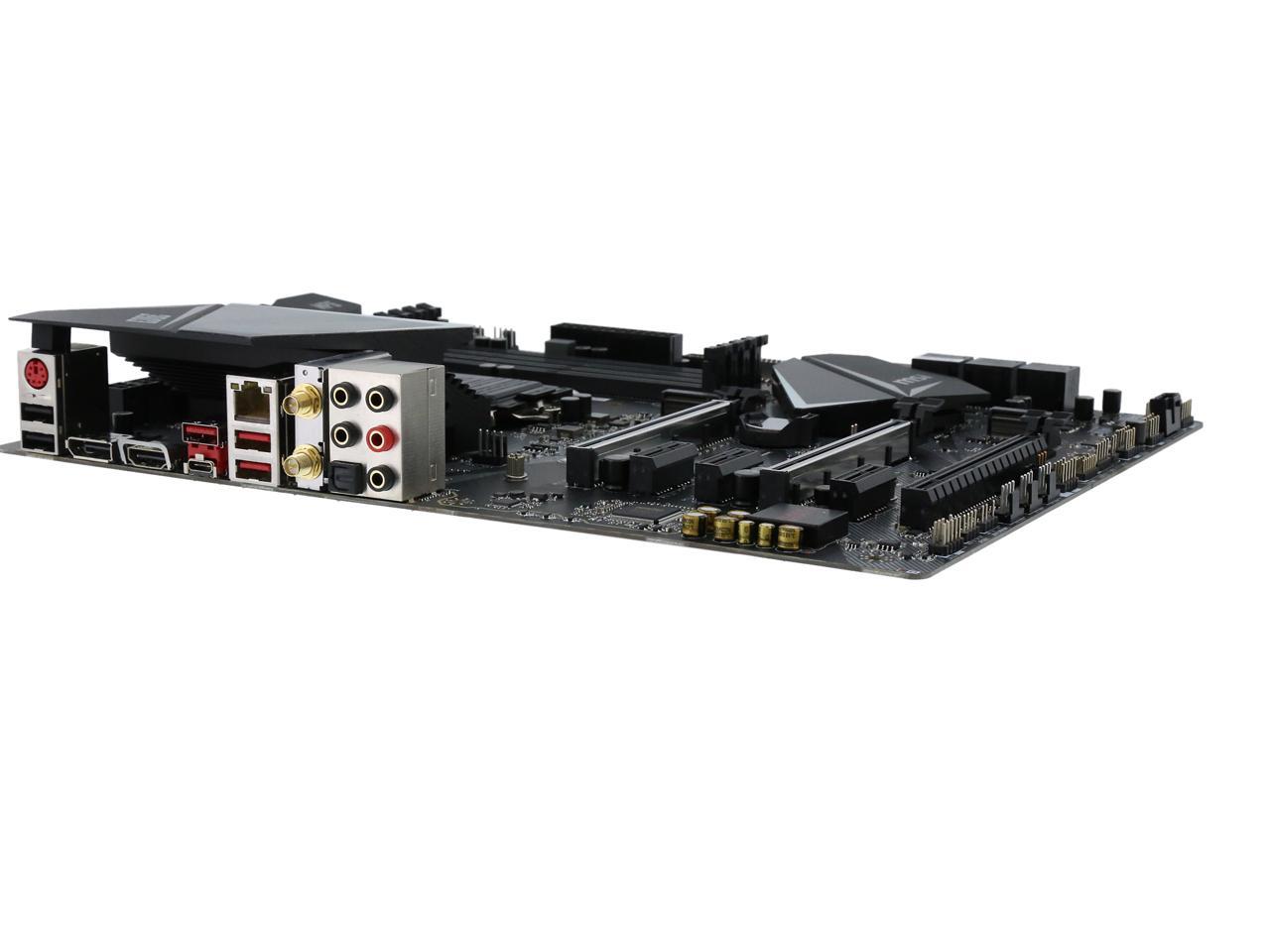

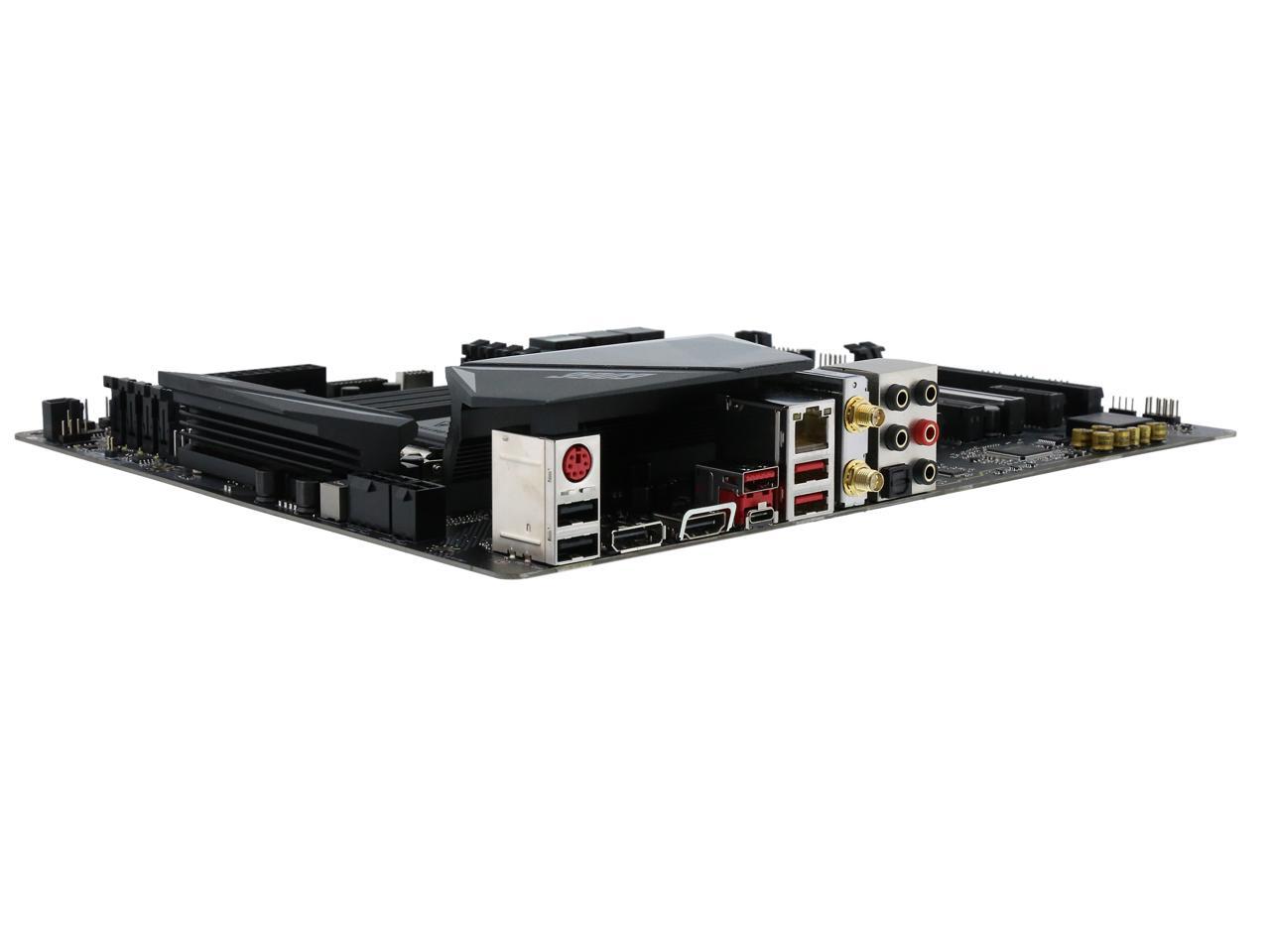

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 5 x Audio Jacks / 2 x USB 3.1 Gen 1 Type-A |
|---|
| Onboard USB | 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Thunderbolt Add-on Card Connector 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | DIY Friendly: Keep Out Zone XL PCI-E Clip EZ Debug LED Pump Fan Total Fan Control Enhance Performance: Extended Heatsink Design 8-Pin + 4-Pin Power Connectors Twin Turbo M.2 Intel Turbo USB 3.1 Gen2 Front USB Type-C Core Boost DDR4 Boost Multi GPU-2-Way NVIDIA SLI Technology Multi GPU-3-Way AMD CrossFire Technology Game Boost *BIOS Click BIOS5 XMP Hardware Moniter *Software Dragon Center MSI APP Player Mystic Light 3 In-Game Advantages: *Audio Audio Boost 4 Nahimic3 Voice Boost *LAN Intel LAN Intel Wi-Fi GAMING LAN Manager GAMING HOTKEY GAMING MOUSE Control VR Ready Exhilarating and Inspiring: Mystic Light Mystic Light Extension (RGB) Mystic Light Extension (RAINBOW) Mystic Light Extension (CORSAIR) Mystic Light Sync Loyal Comrade: PCI-E Steel Armor 7000+ Quality Test |
|---|
| First Listed on Newegg | July 19, 2019 |
|---|
