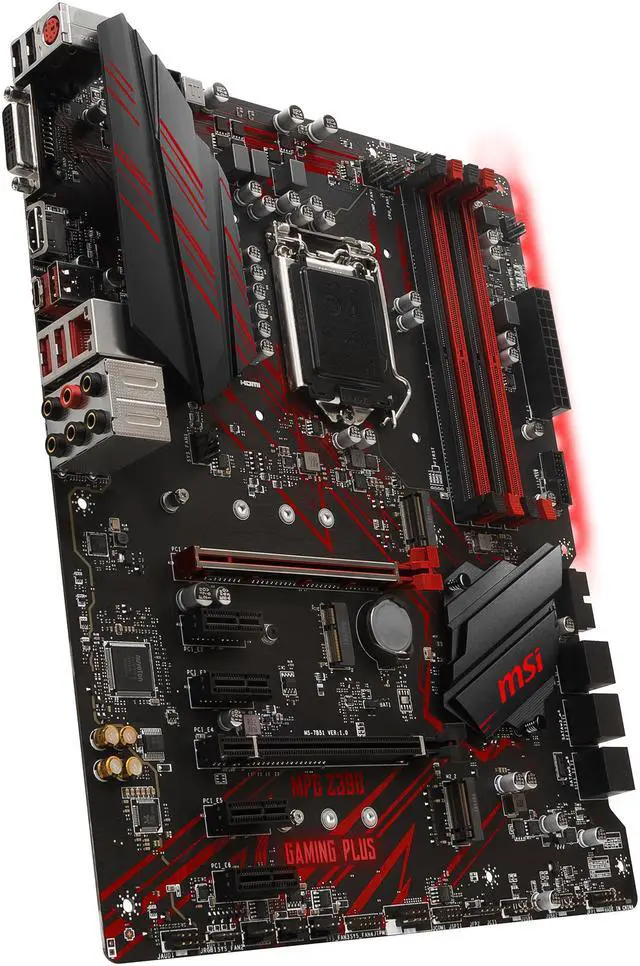

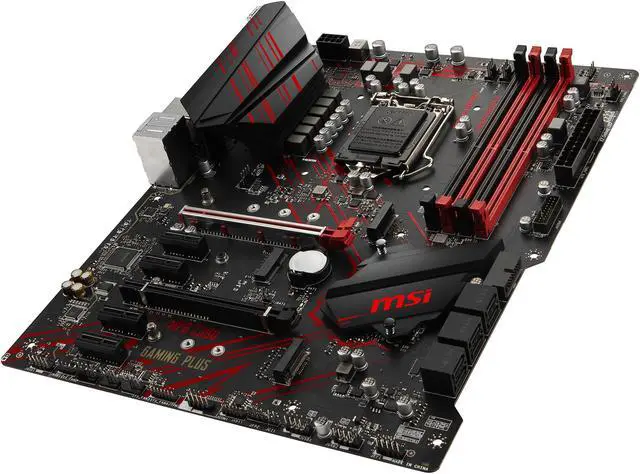

MSI MPG Z390 GAMING PLUS LGA 1151 (300 Series) Intel Z390 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z390
- Supports Intel Core 9000 Series family / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
+
+
Specs
Reviews (18)
Learn more about the MSI MPG Z390 GAMING PLUS
| Brand | MSI |
|---|---|
| Model | MPG Z390 GAMING PLUS |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports Intel Core 9000 Series family / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Z390 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slots (support x16/x4 mode) |
|---|---|
| PCI Express x1 | 4 x PCIe 3.0 x1 slots |
| Other Slots | 1 x M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* * M.2 slots and SATA ports share the bandwidth. Please refer user manual for details. |
|---|---|
| M.2 | 2 x M.2 slot (Key M)* M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices * M.2 slots and SATA ports share the bandwidth. Please refer user manual for details. |
| Intel Optane Ready | Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

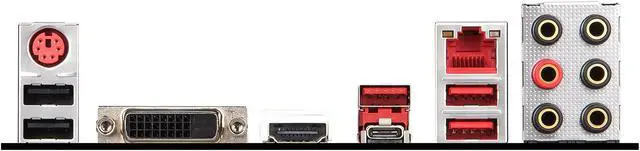

| Back I/O Ports | 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks |
|---|
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x Serial Port connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | DIY Friendly: Keep Out Zone XL PCI-E Clip EZ Debug LED Pump Fan Total Fan Control Enhance Performance: Extended Heatsink Design 8-Pin Power Connectors Twin Turbo M.2 Intel Turbo USB 3.1 Gen2 Core Boost DDR4 Boost Multi GPU-2-Way AMD CrossFire Technology Game Boost *BIOS Click BIOS5 XMP Hardware Moniter *Software Dragon Center MSI APP Player Mystic Light 3 In-Game Advantages: *Audio Audio Boost *LAN Intel LAN Intel CNVi Ready GAMING LAN Manager GAMING HOTKEY GAMING MOUSE Control VR Ready Exhilarating and Inspiring: Mystic Light Extension (RGB) Mystic Light Sync Loyal Comrade: PCI-E Steel Armor 7000+ Quality Test |
|---|
| First Listed on Newegg | October 29, 2024 |
|---|
